Features

  • 120W DC Power Supply
  • Compatible Havis Docks: DS-DELL-430, DS-DELL-900, & DS-DELL-1100 Series
  • Compatible computers: Dell Rugged (when docked)

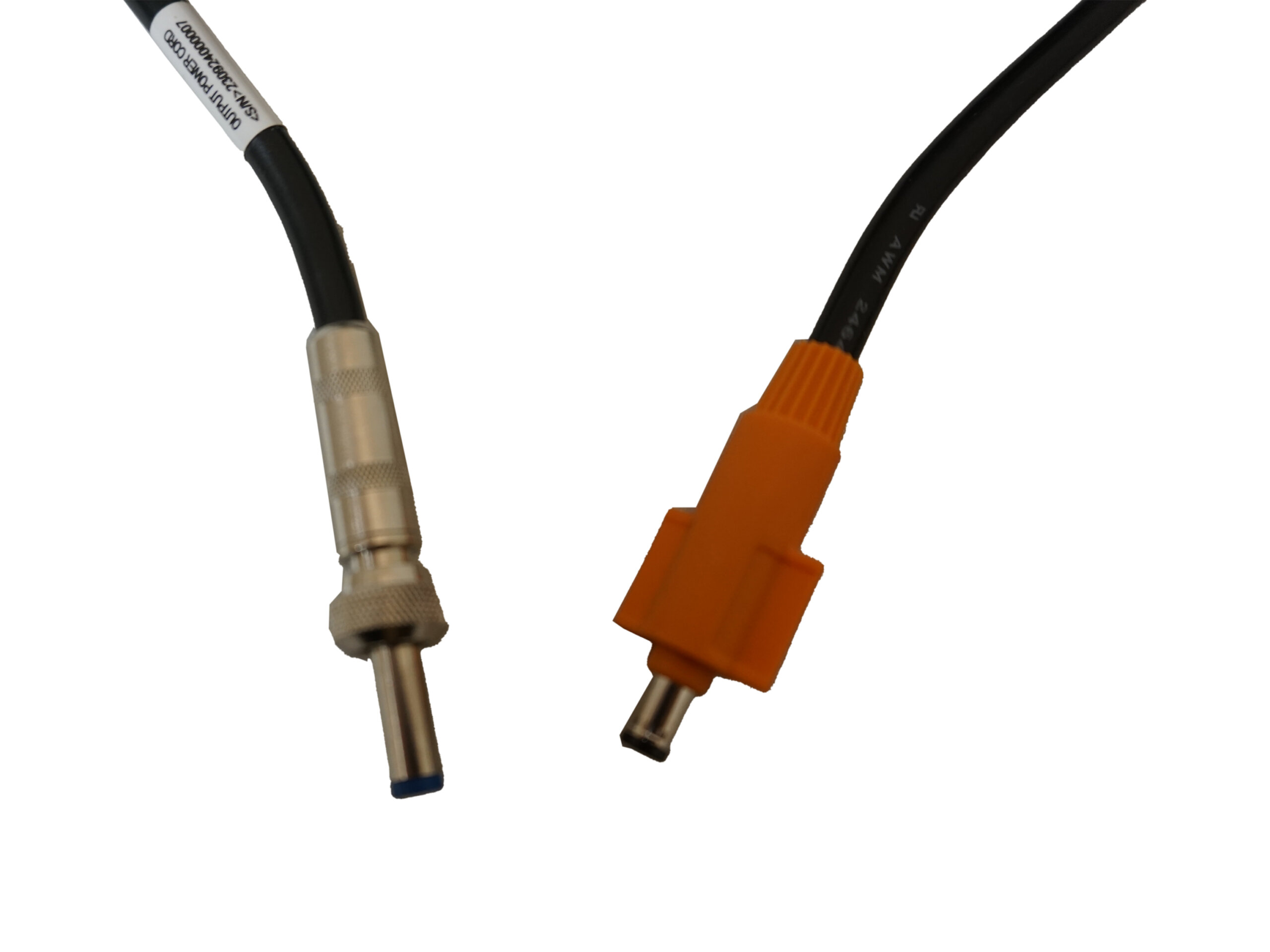

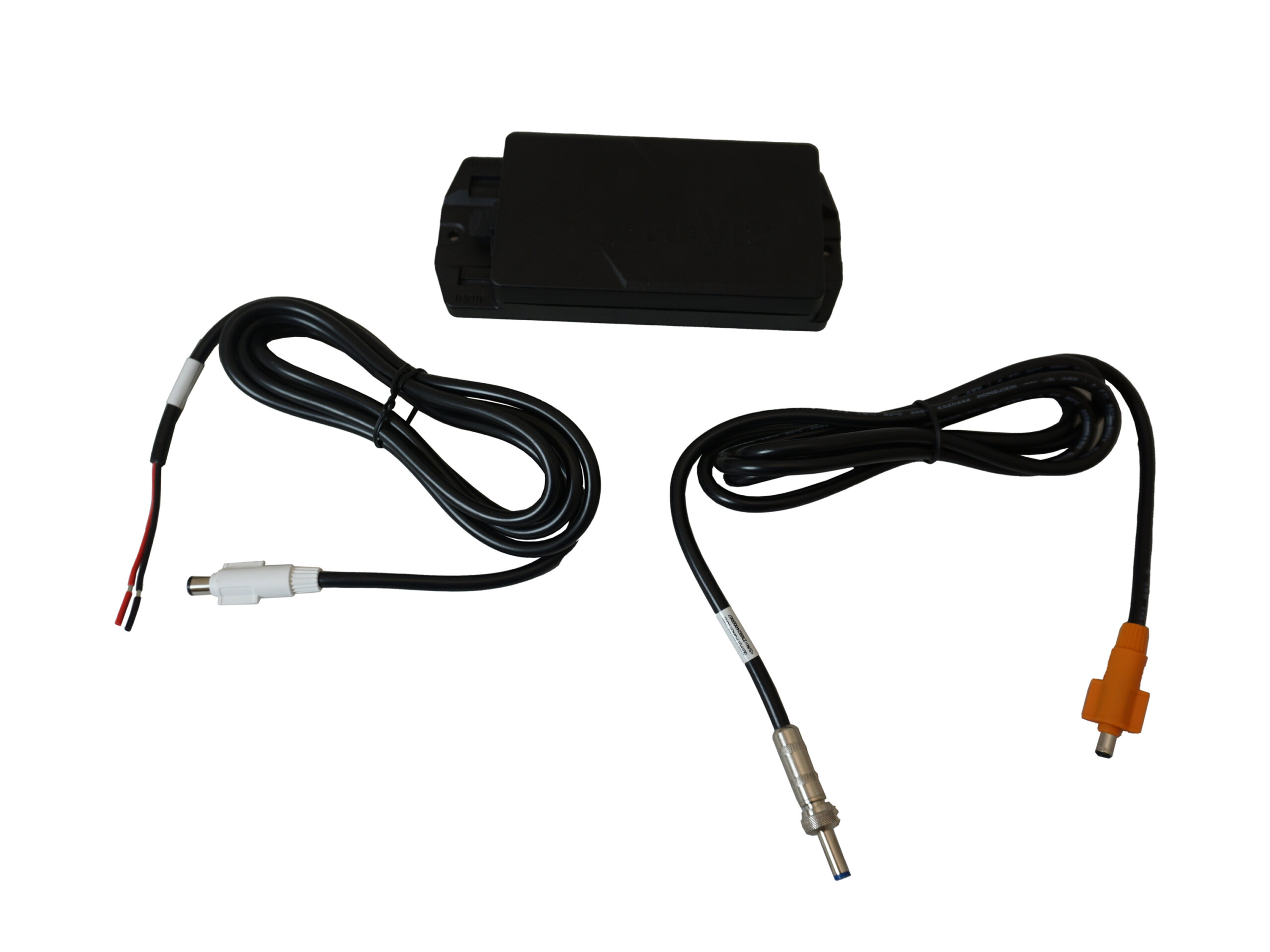

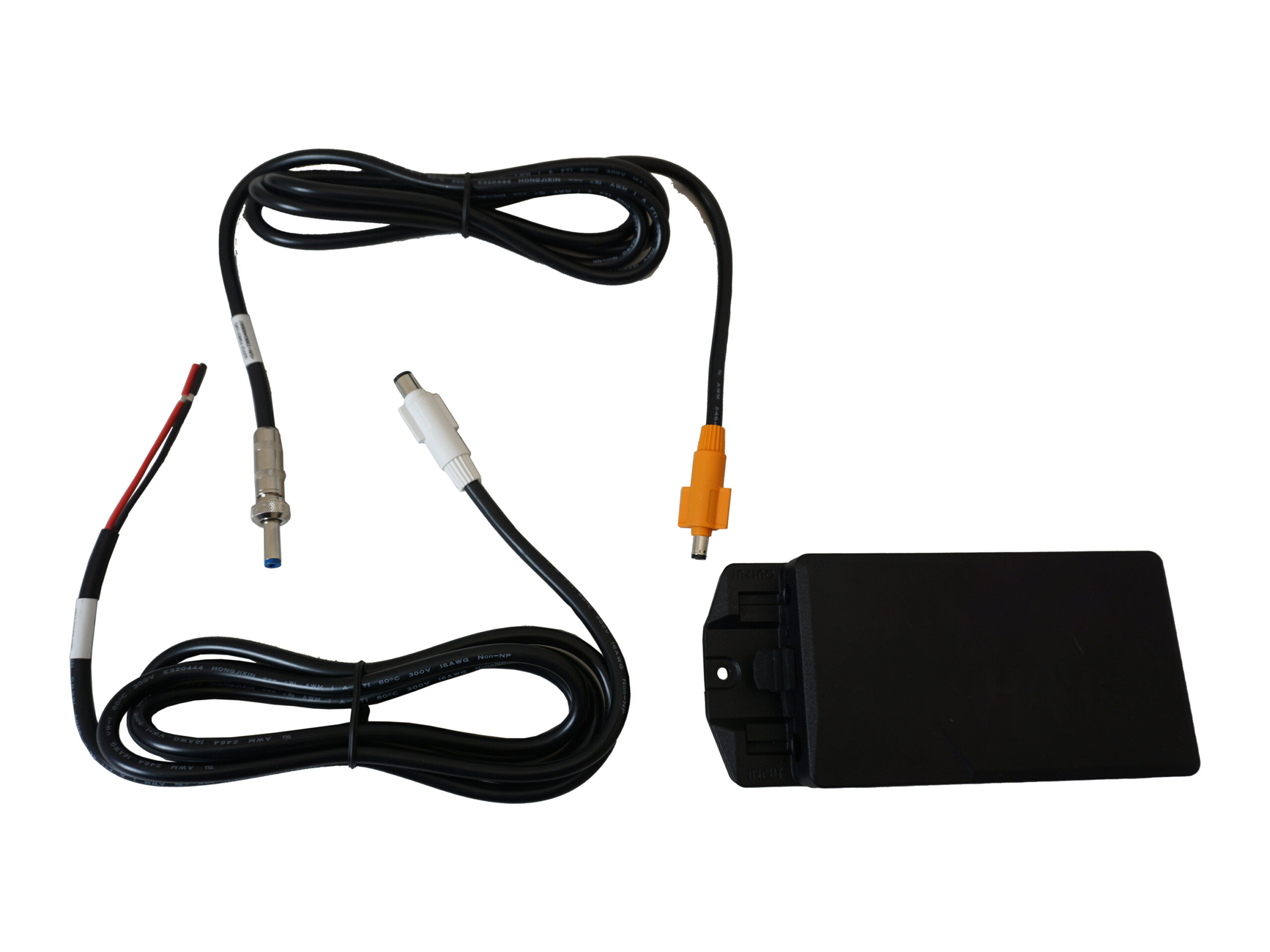

  • Power supply includes: detachable 72" output power cable with straight threaded connector, detachable 72" Bare-Wire Input Cable
  • Twist-to-Lock DC Power Connectors, LED Power Indicator, Covered Fuse, and Integrated Mounting

Specifications

PRODUCT SPECIFICATIONS:
Watts:120
Voltage:12-16 VIN, 19.5V Output
Input cable:72" long Bare-Wire, 16awg

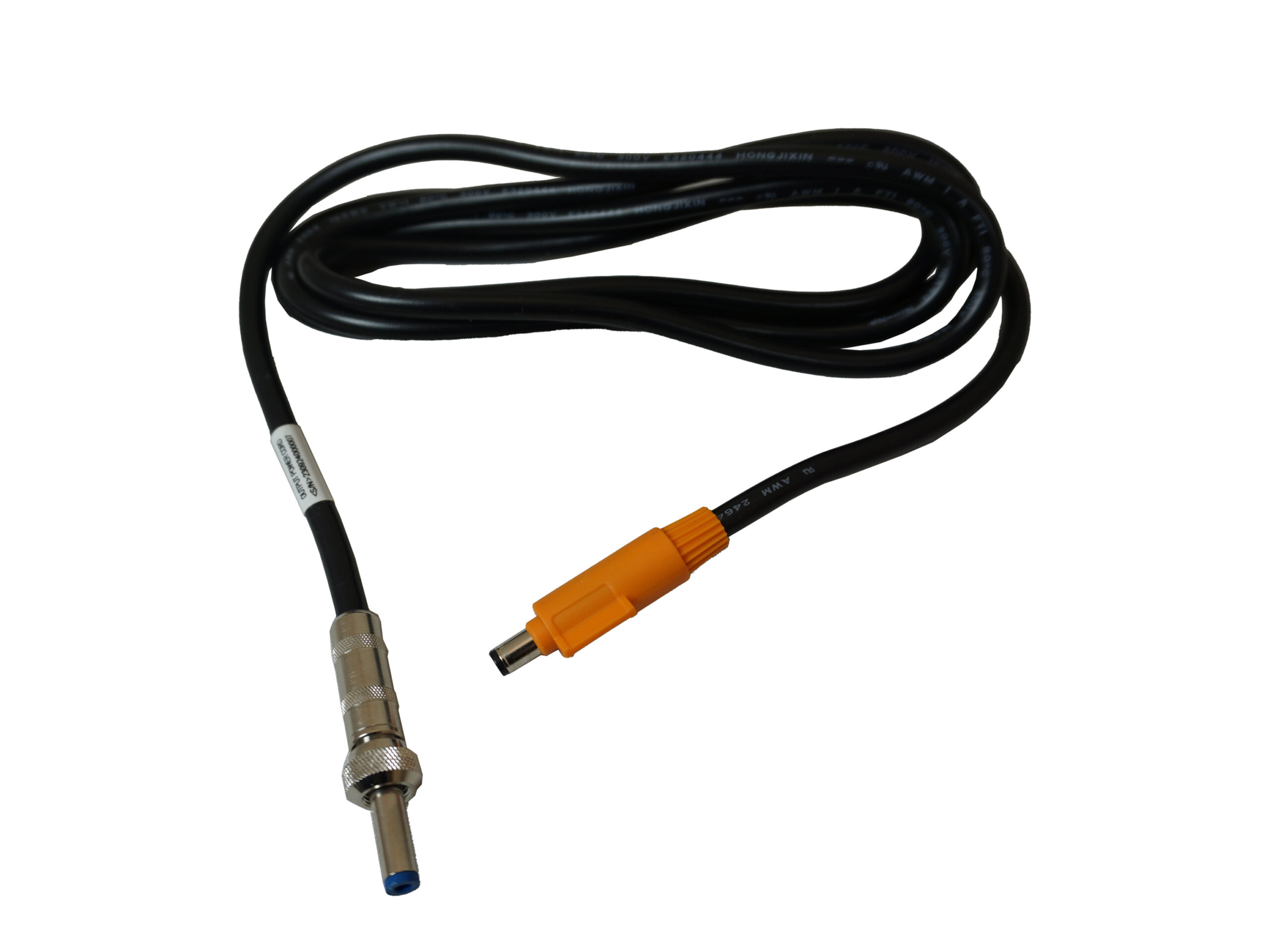

Output cable:72" long with straight threaded connector
Output current:up to 6.0 AMPS
Product dimensions:1.10” (2.79 cm) H x 2.99” (7.60 cm) W x 6.70” (17.0 cm) D
Efficiency: >89%
Input Current: Up to 15A
Output Voltage Ripple: 250mV pk-pk (max)
Operating Environment: -30C to 48C, 95% RH
Product weight:0.6 lbs.
Gross weight:0.5 lbs

Compatibility

DS-DELL-430, DS-DELL-900, & DS-DELL-1100 Series
DS-DELL-430, DS-DELL-900, & DS-DELL-1100 Series
Docking Station for Dell Pro Rugged 14
Docking Station for Dell Pro Rugged 14" & 13", 5430, 7330, 5420, 5424, & 7424 Notebooks, 7230 & 7030 Tablets
