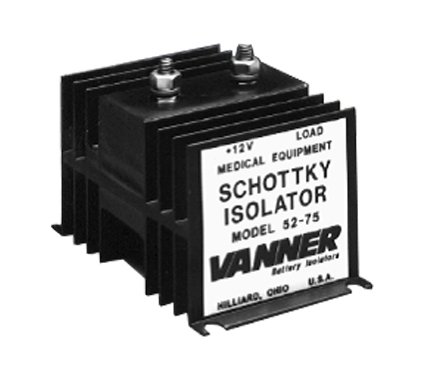

Features

  • Battery isolators allow dual battery systems to be charged from a single power source
  • Ideal for use in Ambulance and other medical response vehicles
  • Schottky 1-leg diode isolators are mandated for use in Ambulance per GSA Spec KKK-1822-D (3.7.7.3)
  • Designed to operate in the most sever environments
  • High quality heat sink
  • Heavy Duty wiring terminals
  • Schottky diode reduces voltage loss by up to 50% over silicon

PRODUCT SPECIFICATIONS:
Maximum Amperage::75 Amps
Input Voltage: 0 - 32V DC
Operating Temperature: -67ºF to +140ºF (-55ºC to +60ºC)
Product Dimensions:2.5” H x 4.5” W x 3.0” D
Product Weight:1.5 lbs
Gross weight:8 lbs

Resources

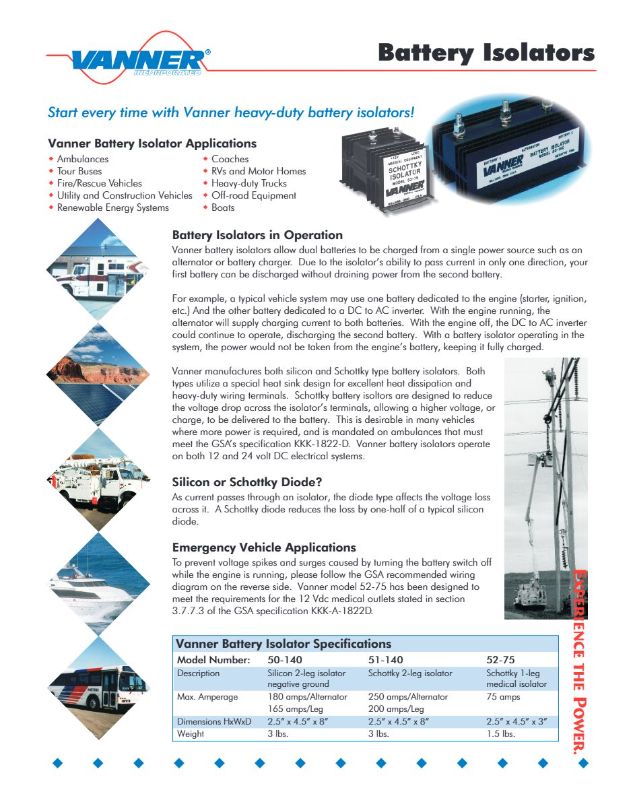

Owner's Manual
Owner's Manual
