Features

  • For 2021-2023 Dodge Charger Police Package (column shifter)

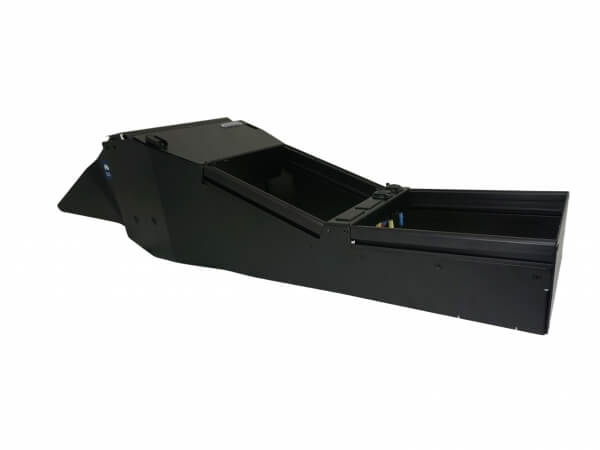

  • Angled console with 18" of total internal mounting space
  • 9" front angled, 9" rear horizontal & 30° degree of angle
  • Mounts between seats and fits lower dash contour
  • Angled design minimizes height between seats
  • Accepts Brother PocketJet 6 and 7 printers included in PJ-622, 623, 662, 663, 673, 722, 723, 762, 763 and 773 Model kits
  • Hinged lid allows easy "top load" paper replacement, protects printer from spills, and has a window for viewing printer lights
  • Includes:

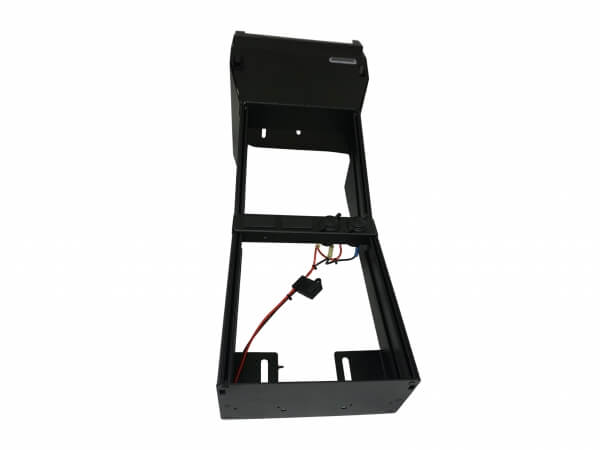

  • Single piece console housing w/ removable side panels
  • Knockouts for running wiring through rear of console
  • Cutouts for OEM USB module and 12v plugs
  • Two (2) additional 12 volt sockets with wire and fuse mounted to crossbar, and a USB/switch (not included) cutout
  • Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Vehicle mounting kit
  • If using a vertical gun rack between seats, a partition with gun alcove is recommended
  • Has mounting holes for C-HDM-204 or 214 side mount poles (sold separately)
  • Accepts most standard accessories (sold separately)
  • Configure a complete solution with these products:

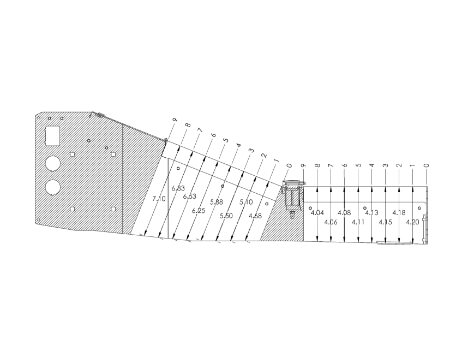

  • See side view drawing min/max for mounting depth allowed for control heads and/or options
  • Havis Rugged Keyboard & Keyboard mount: KB-106 & C-KB-201
  • C-ARM-102 or C-ARM-103 armrests recommended (sold separately)
  • C-SM Series brackets not recommended because front of console is too wide
  • View console accessories here
  • Made in USA
  • Lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Vehicle recommendation:For vehicles with 12.1" screen factory option codes AV2 (integrated display package) or RDY (12.1" touchscreen) C-VS-1800-CHGR-3 is the recommended solution
Dimensions38.7"L x 11.1"W x 10"H (Length includes trim panels)
Material:Heavy gauge steel
Finish:Black powder coat
Gross weight:20 lbs

Application Gallery

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)
Side View Depth Measurements (JPG)
Side View Depth Measurements (JPG)
