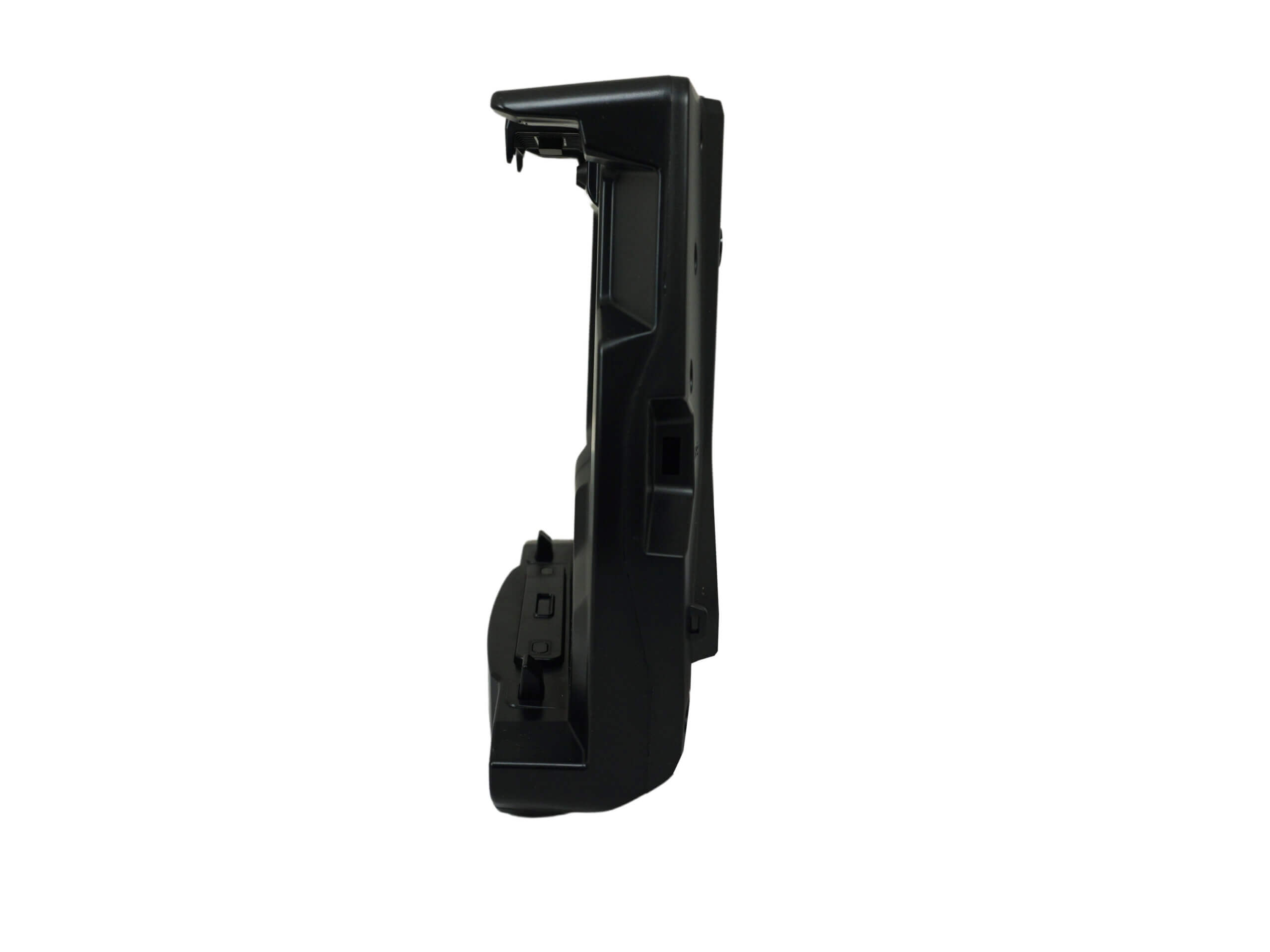

Features

  • Supports Dell's 12” Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
  • Cradle offers safe and secure stowage of tablet
  • One-handed docking & undocking
  • Provides access to all buttons, ports, and bar code scanner when tablet is docked
  • Compatible with Dell 7230 tablet accessories including hard and soft handles, magnetic mount, rotating hand strap and shoulder strap
  • Compact & lightweight
  • Integrated cable management system

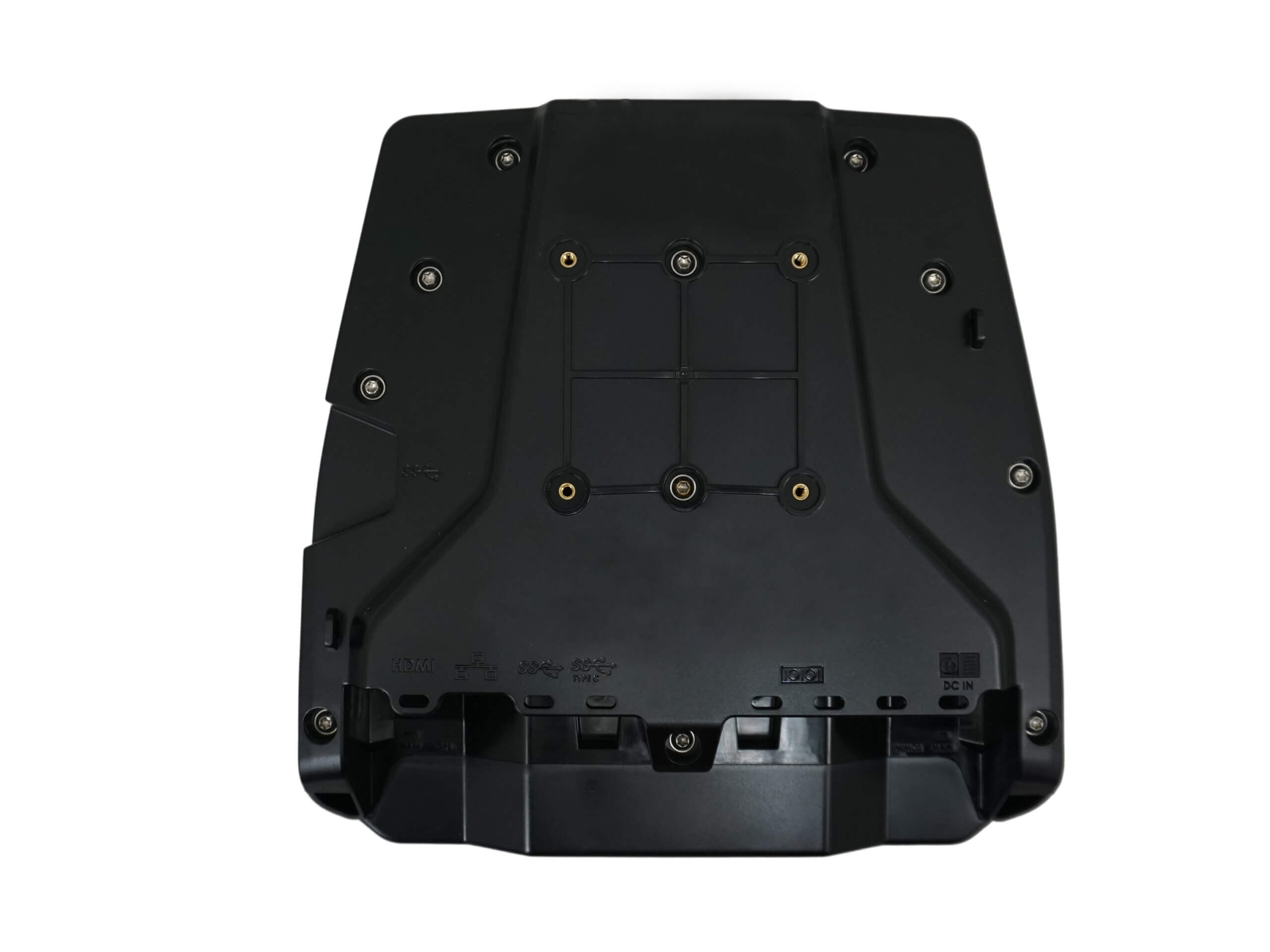

  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Dell 12” Latitude 7230 Rugged Extreme Tablet
Certifications: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Dimensions:Height 10.2” (259mm) latched, 10.7” (272mm) unlatched; Width 10” (254mm); Depth 3.5” (89mm)
Product weight:2.75 lbs (1.25kg)
Gross weight:3.5 lbs

Resources

Dell Brochure
Dell Brochure
Dell Speeds & Feeds
Dell Speeds & Feeds
DS-DELL-900 Sales Sheet - Material Handling
DS-DELL-900 Sales Sheet - Material Handling
DS-DELL-900 Sales Sheet - Work Truck
DS-DELL-900 Sales Sheet - Work Truck
DS-DELL-900 Sales Sheet - Public Safety
DS-DELL-900 Sales Sheet - Public Safety
Owner's Manual
Owner's Manual

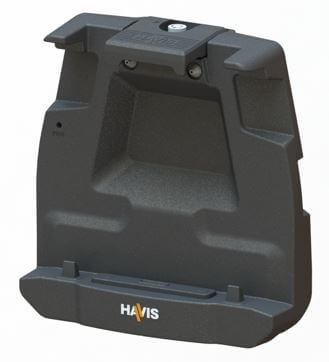

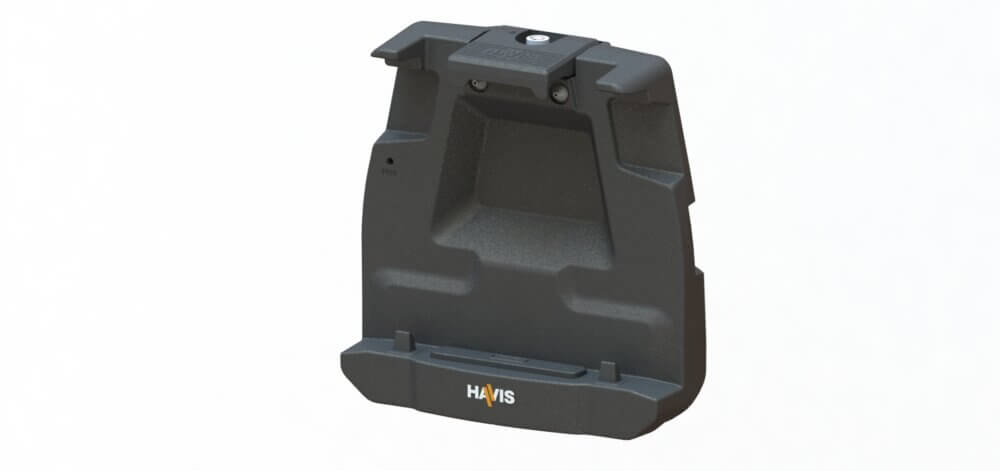

3D Rendering
3D Rendering
Dell Speeds & Feeds - French
Dell Speeds & Feeds - French
Dell Speeds & Feeds - German
Dell Speeds & Feeds - German
Dell Speeds & Feeds - Spanish
Dell Speeds & Feeds - Spanish

Compatibility

Dell 12” Latitude 7230 Rugged Extreme Tablet
Dell 12” Latitude 7230 Rugged Extreme Tablet

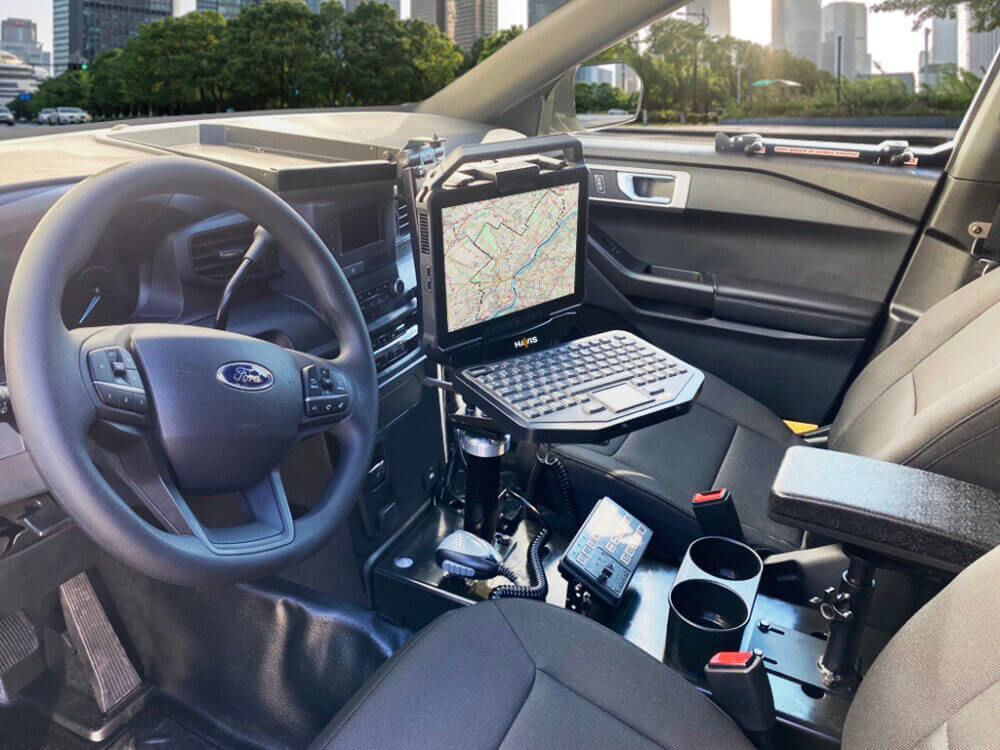

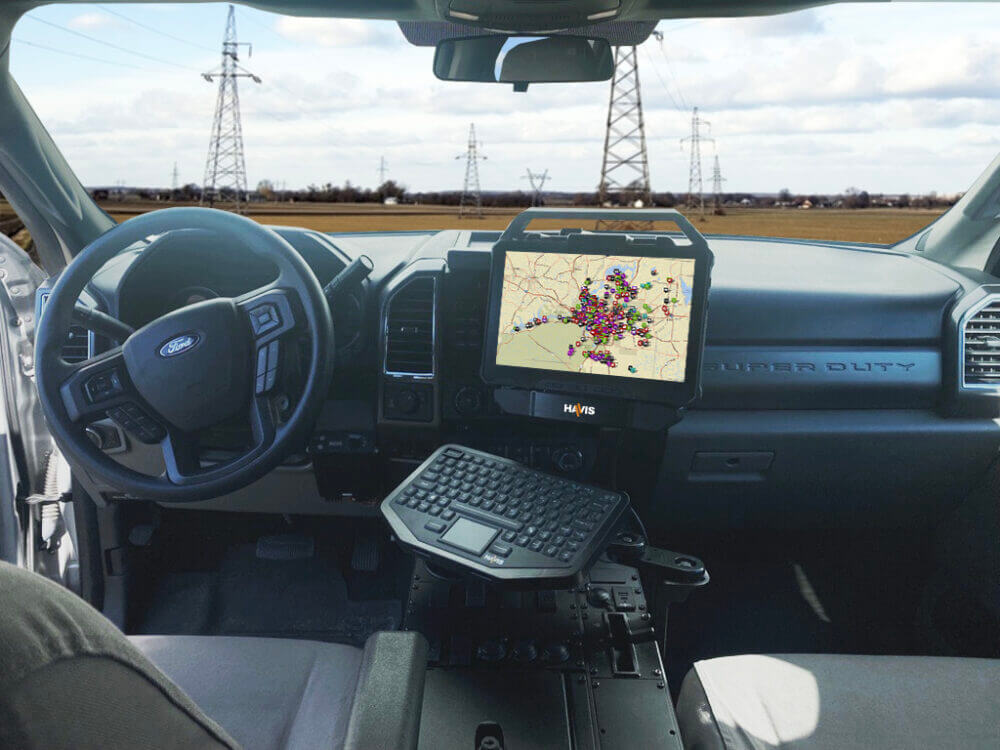

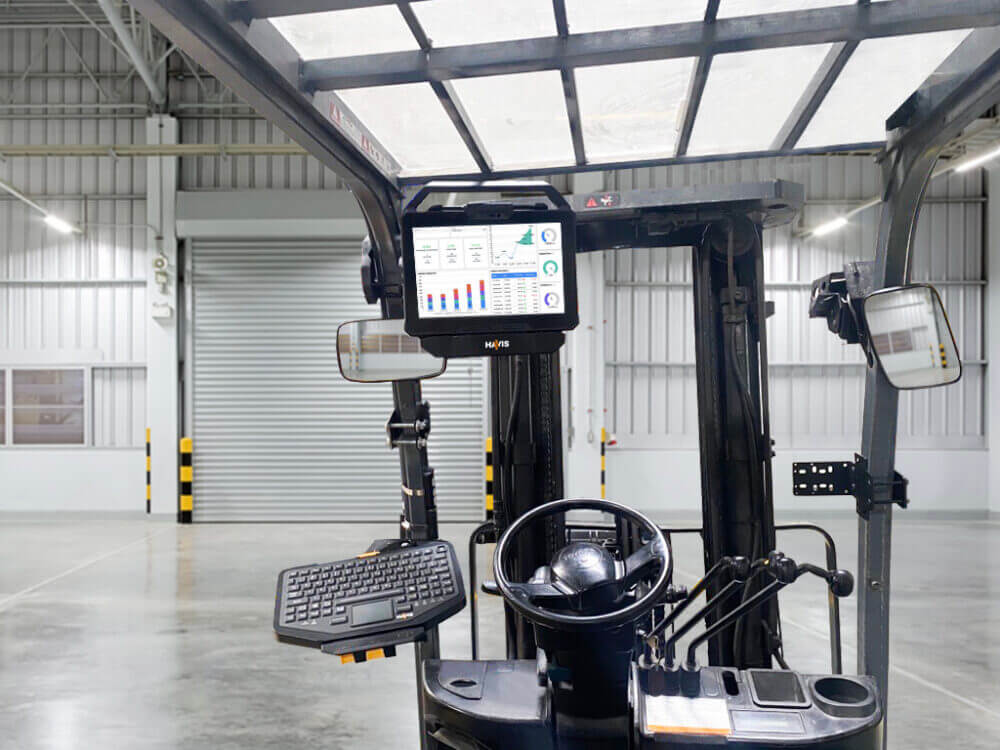

Application Gallery
