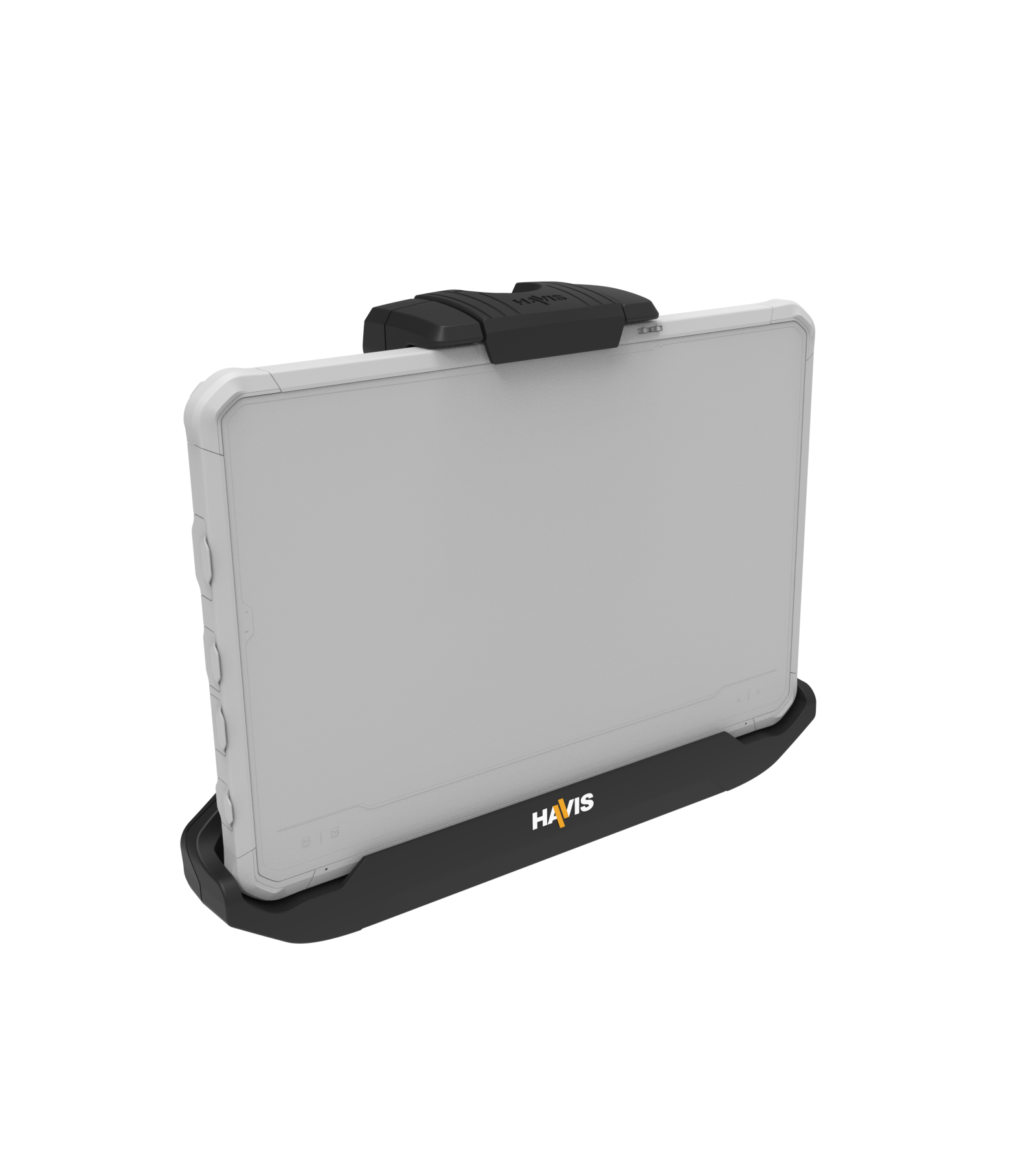

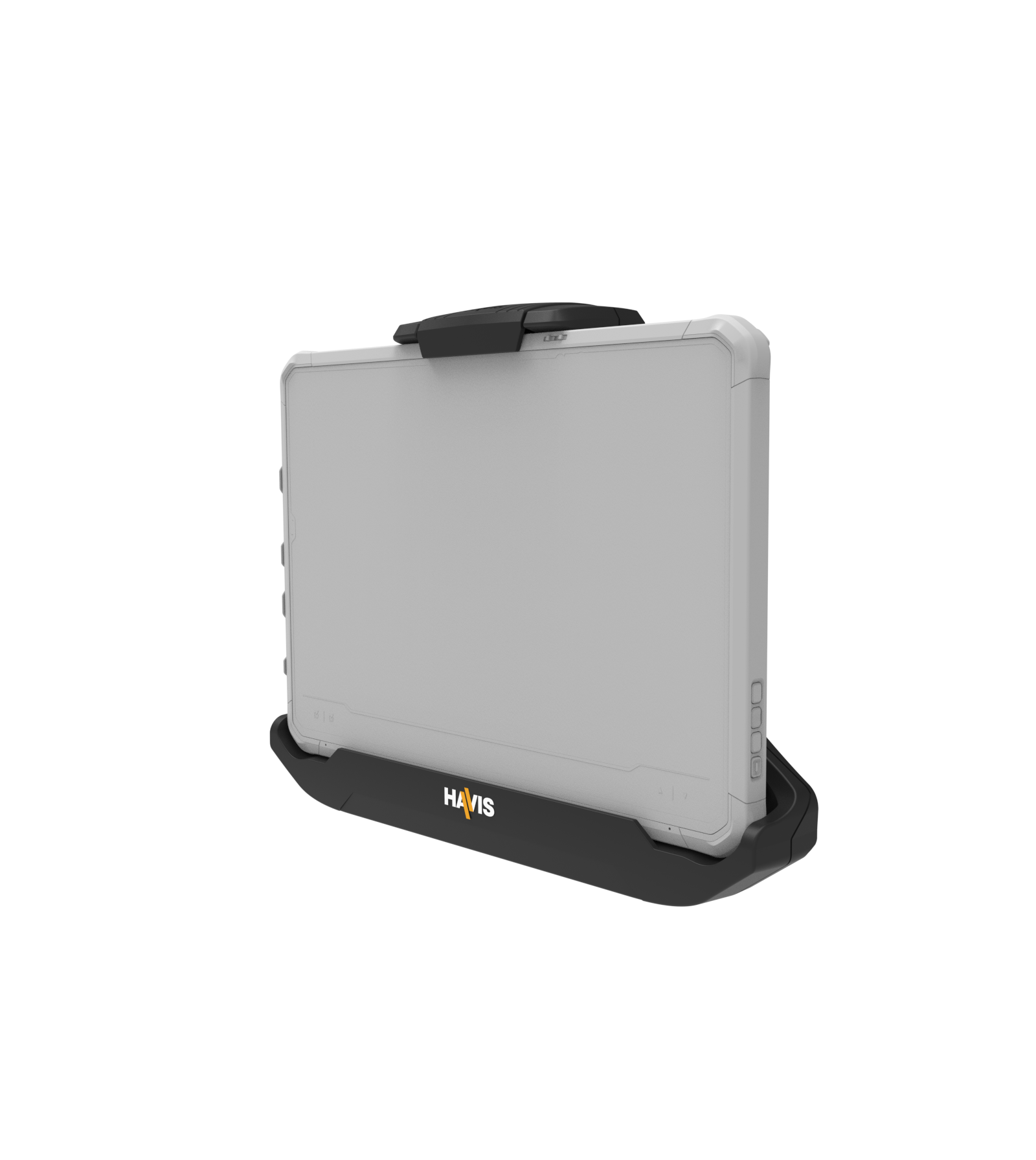

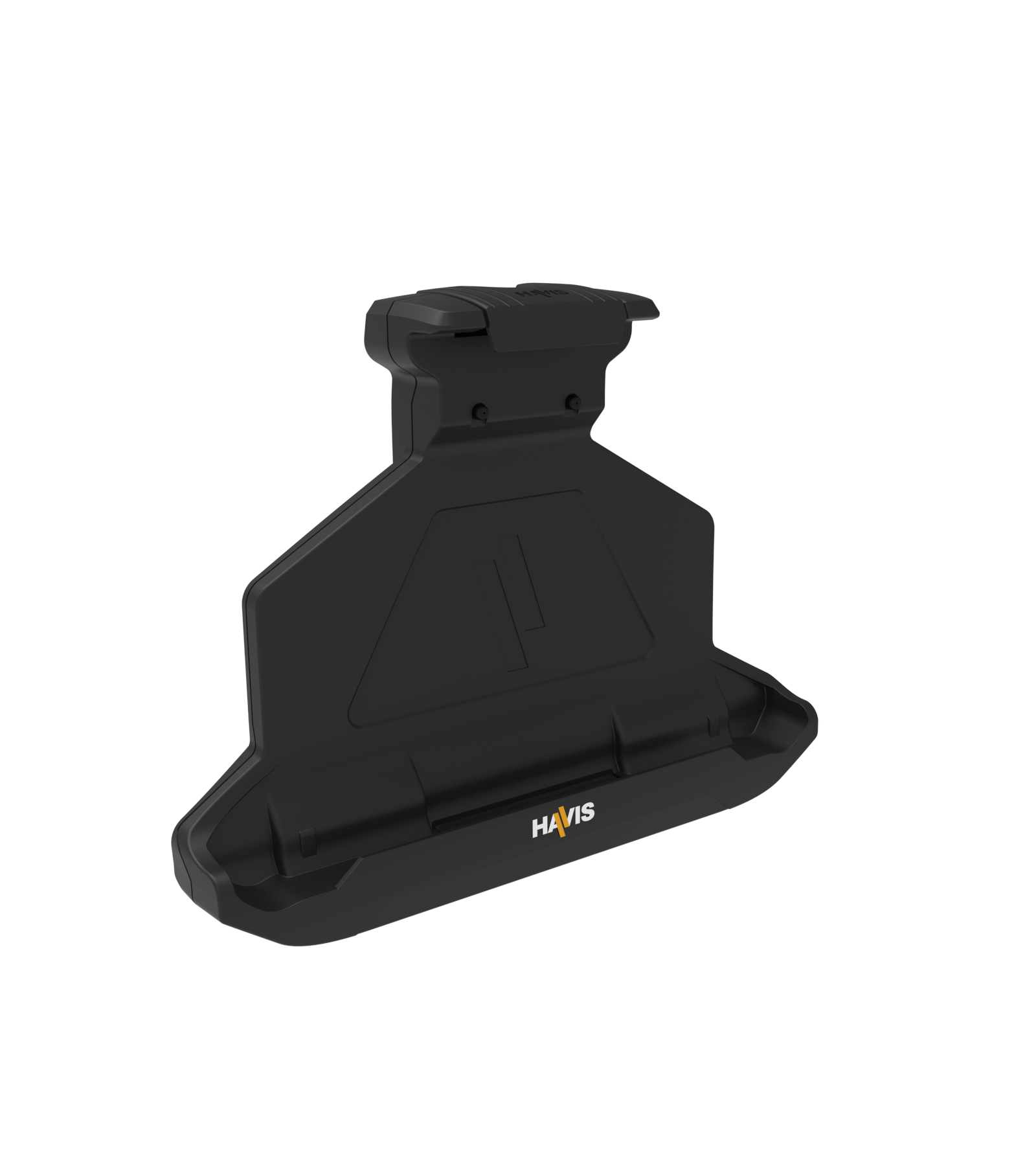

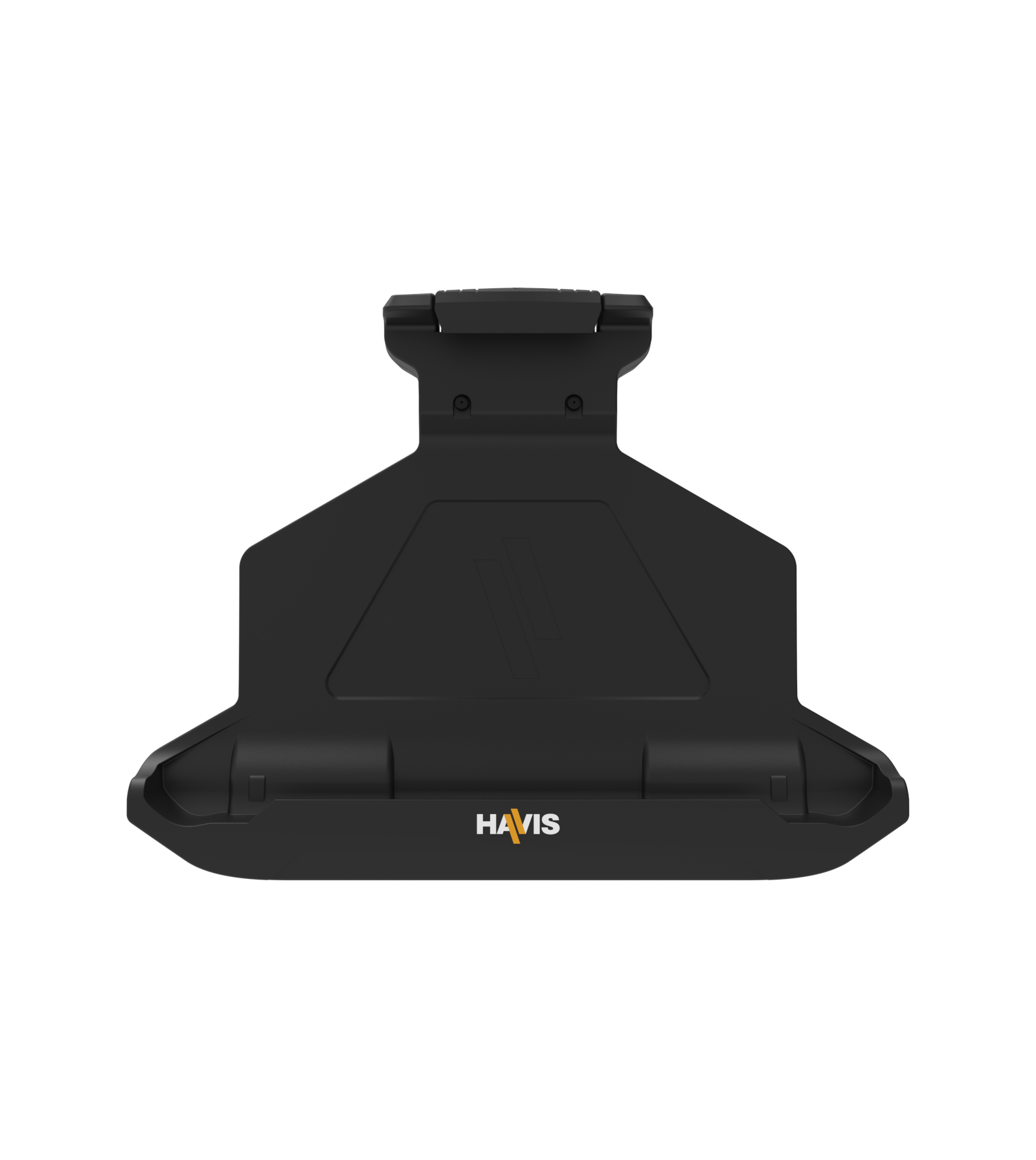

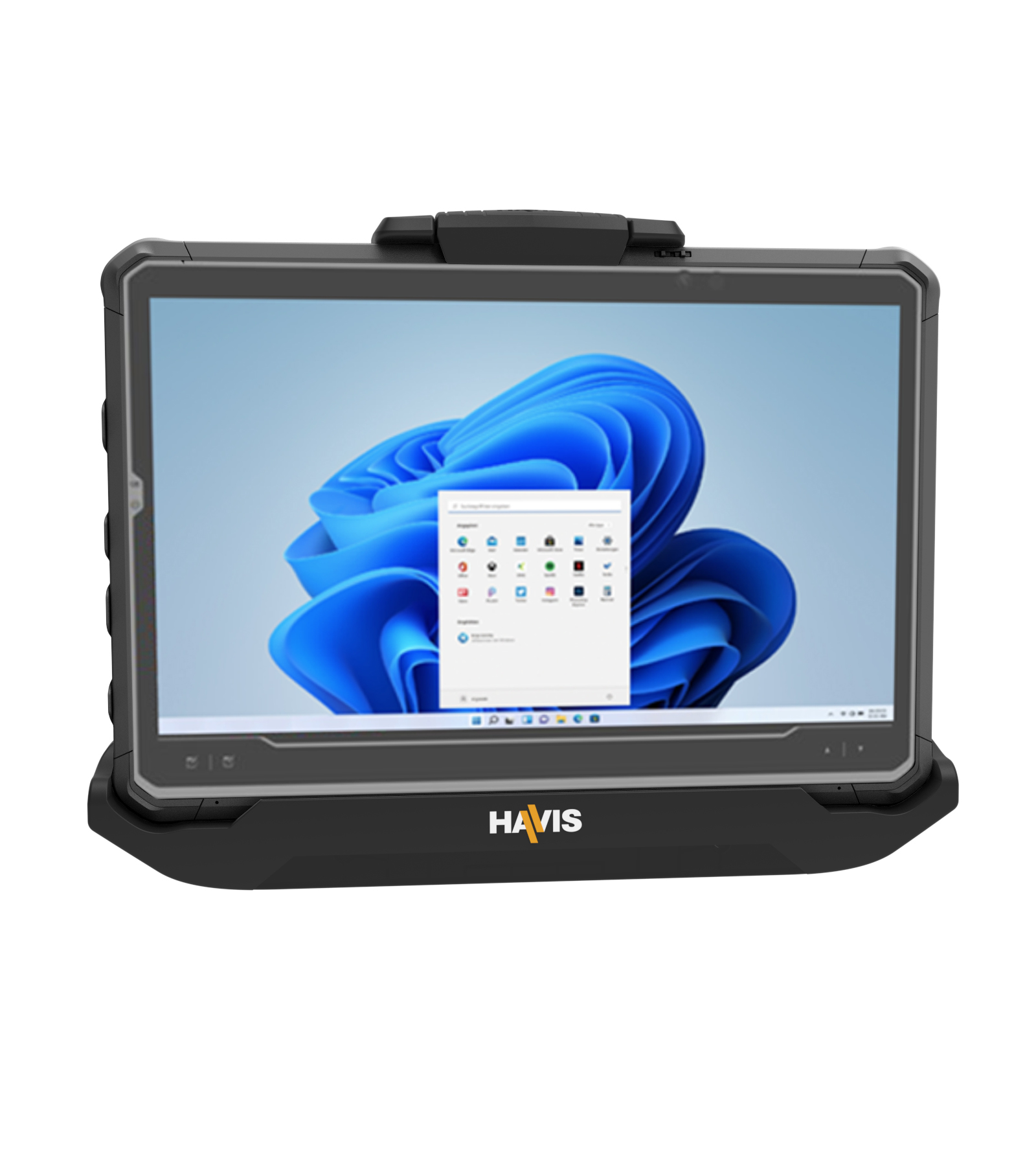

Features

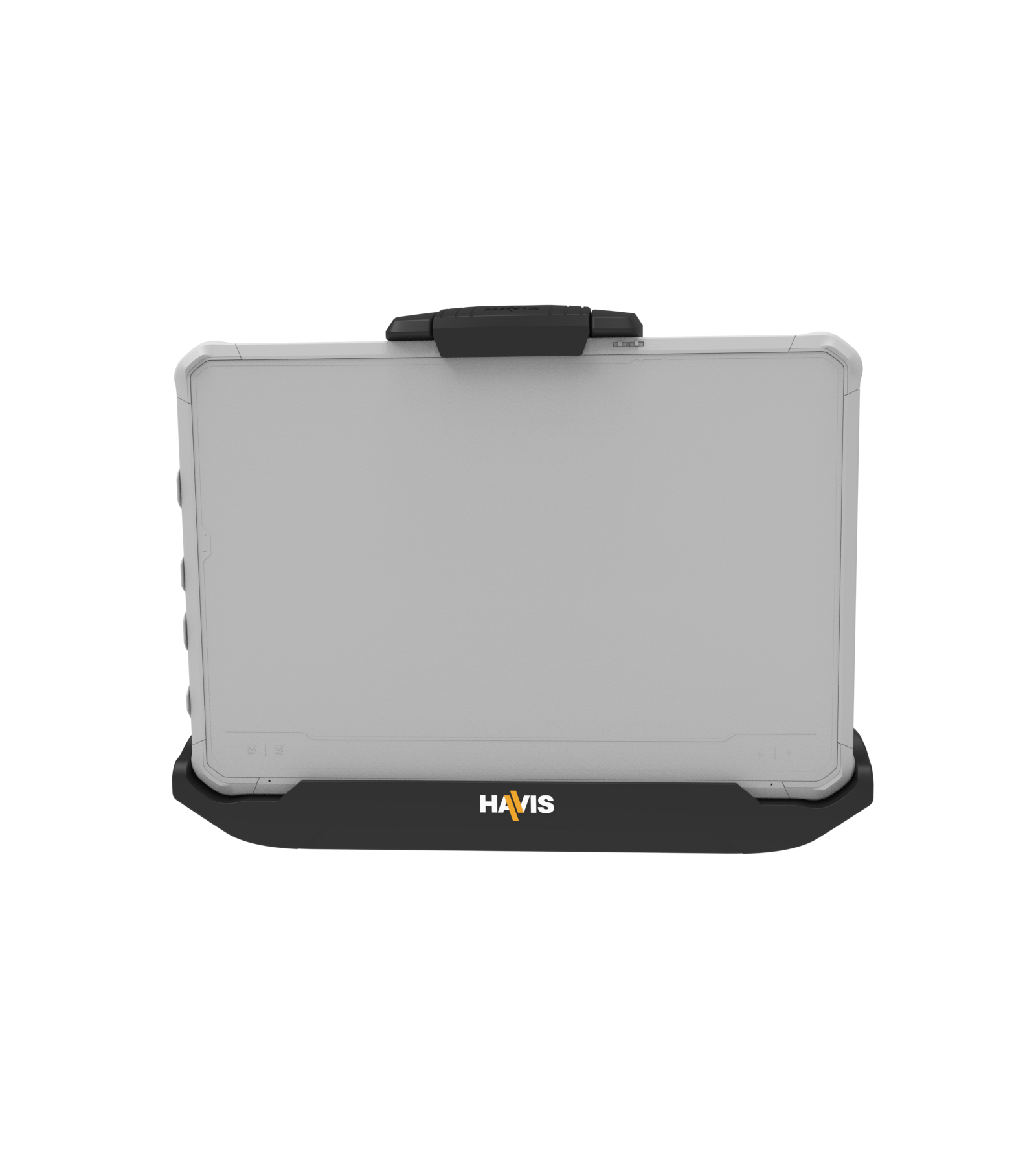

  • Supports DT Research's DT323 Series tablets in public safety, utility, and other demanding environments
  • Full access to camera, speakers, and controls
  • Simple, safe and secure connectivity through one handed docking and undocking
  • Low profile, rugged design
  • Compatible Accessories: High-Capacity Battery, Hand Strap, Hard Handle (in Open Position only)
  • Requires a 120W external power supply (sold separately)
  • Integrated cable management system
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in the USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Oracle Public Safety Tablet 210, and DT Research's DT323 Series (DT323-RP, DT323-PA, DT-323-MA, DT323-EP)
Certifications and testing:

Vibration Testing: MIL-STD 810G 514.8
Crash test: SAE J1455 30mph Crash Testing
Cycle test: latch handle & docking connectors mechanism 30,000 cycles
Environmental testing: hot/cold operational
FCC
ICES (Canada)
CE (EMC: EN 55032, EN 50498), (RoHS, REACH)

Dimensions:13.90" (353mm) H x 10.71" (272mm) W x 2.74" (70mm) D
Product weight:2.07 lbs.
Gross weight:2.5 lbs

Resources

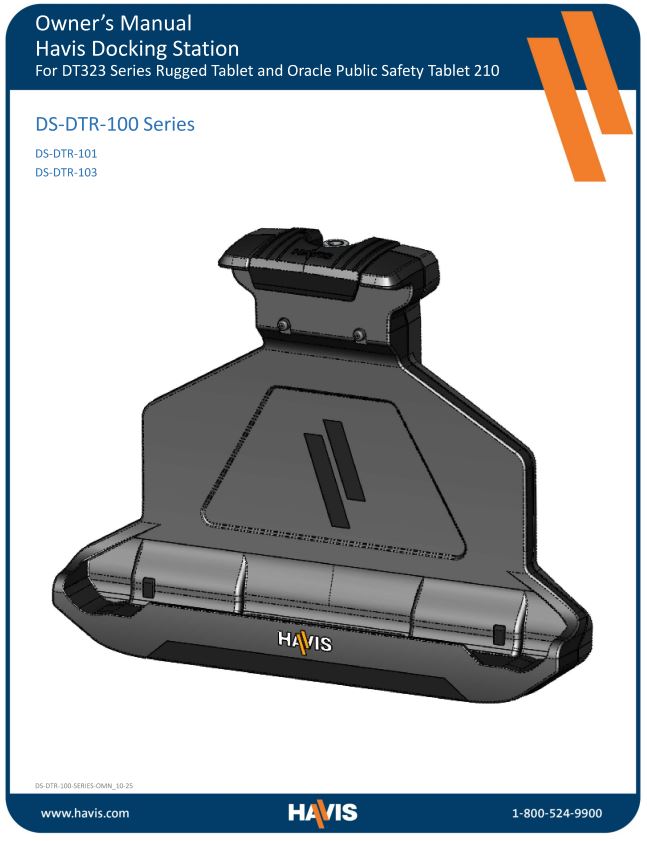

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share

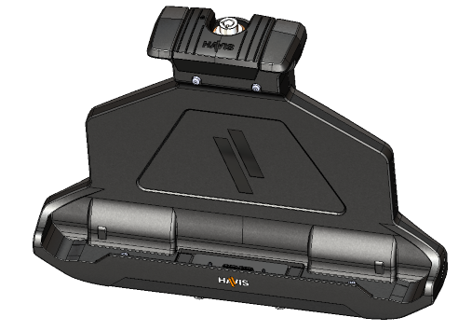

3D Rendering
3D Rendering
Download share

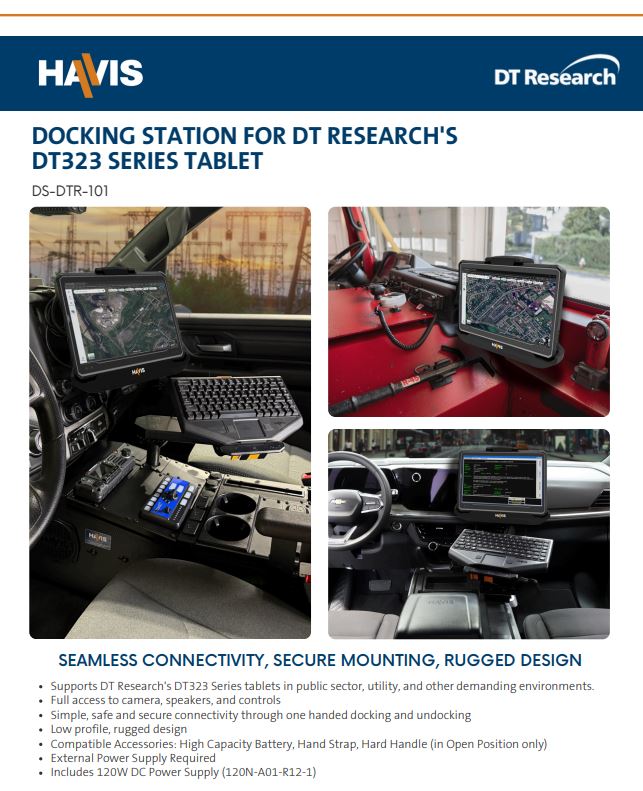

DS-DTR-100 Series Sales Sheet
DS-DTR-100 Series Sales Sheet
Download share

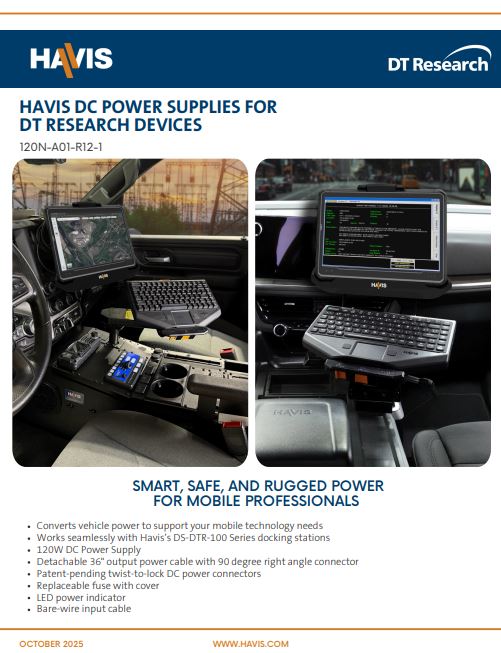

DT Rearch Power Supply Sales Sheet
DT Rearch Power Supply Sales Sheet
Download share

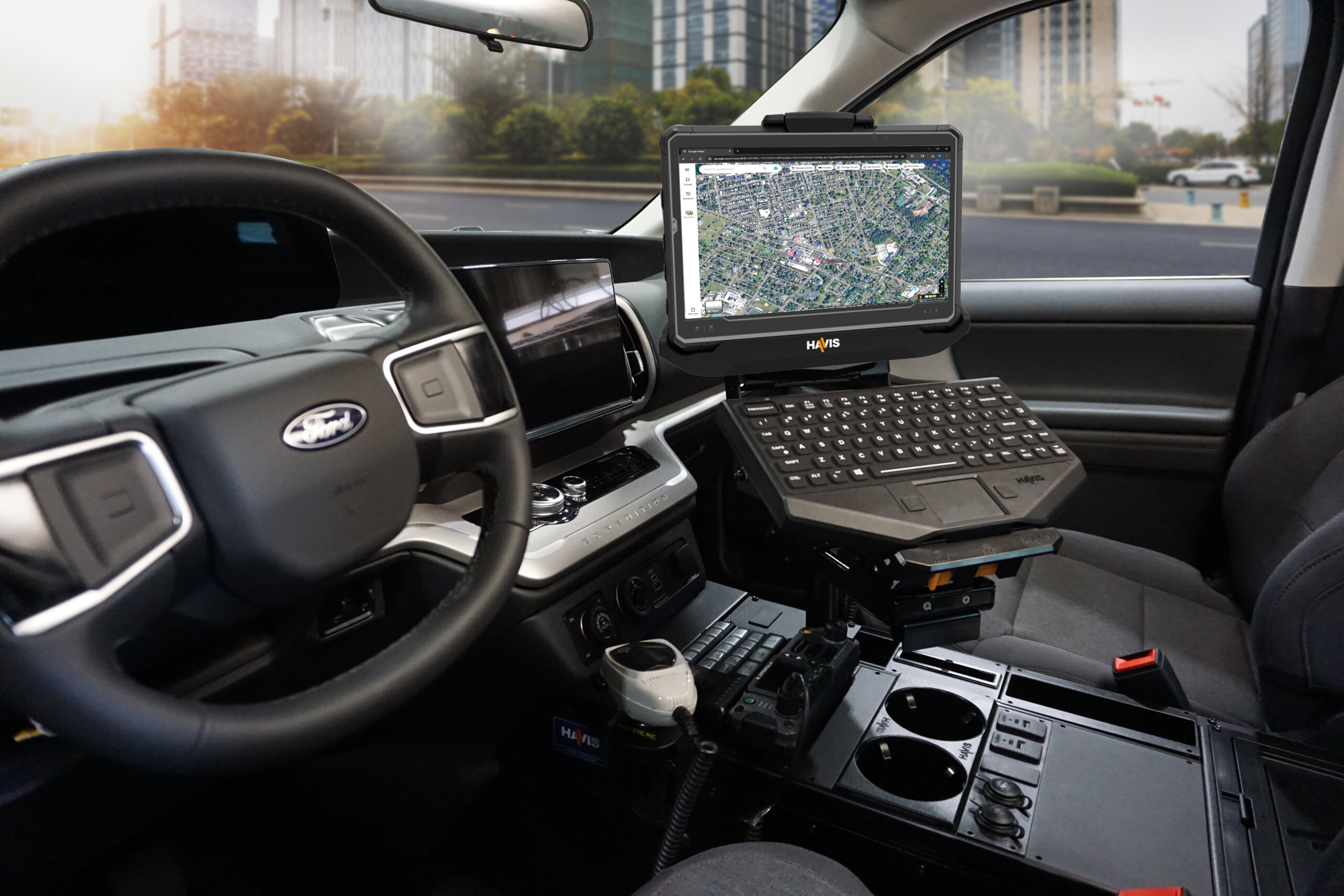

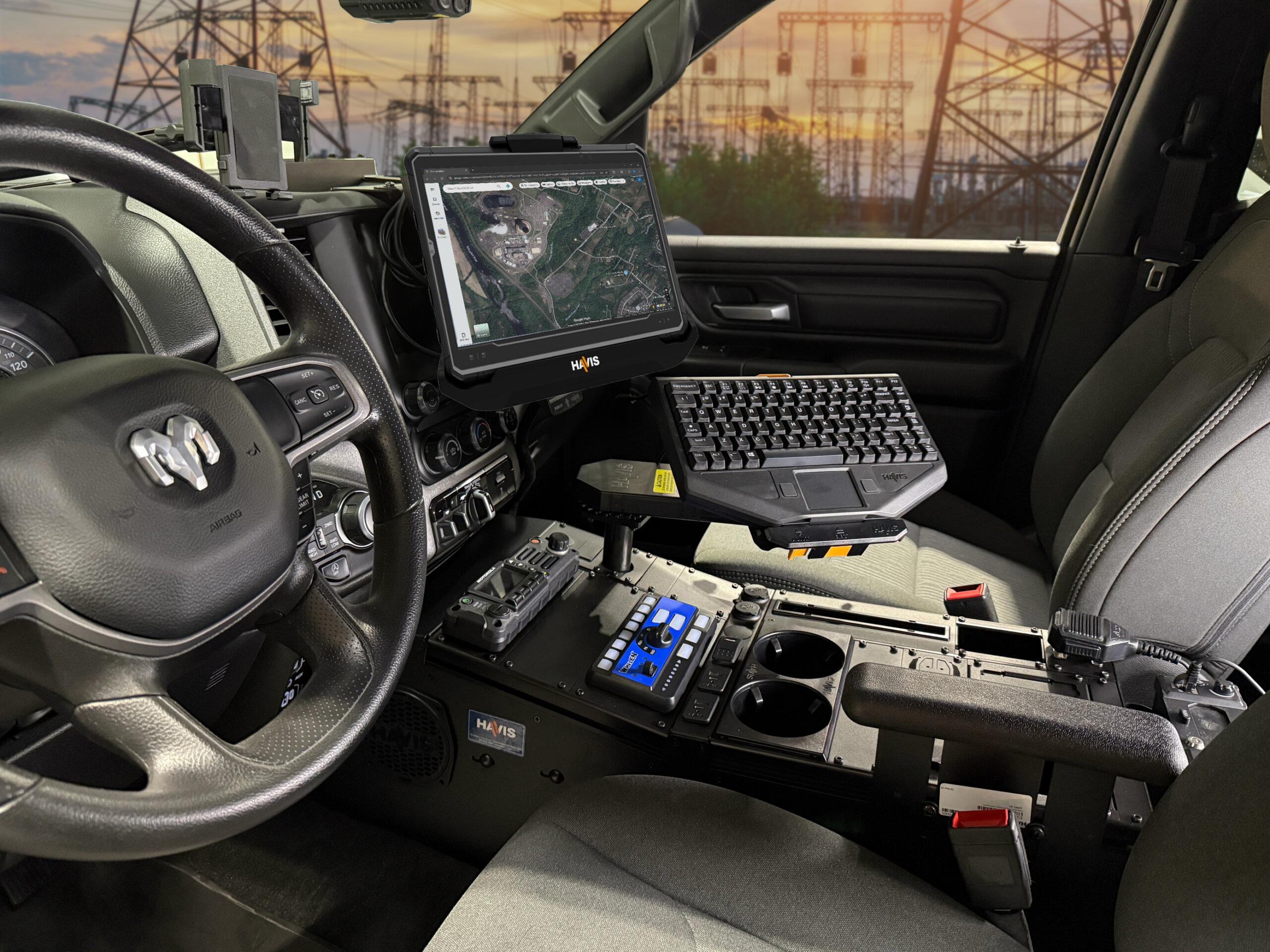

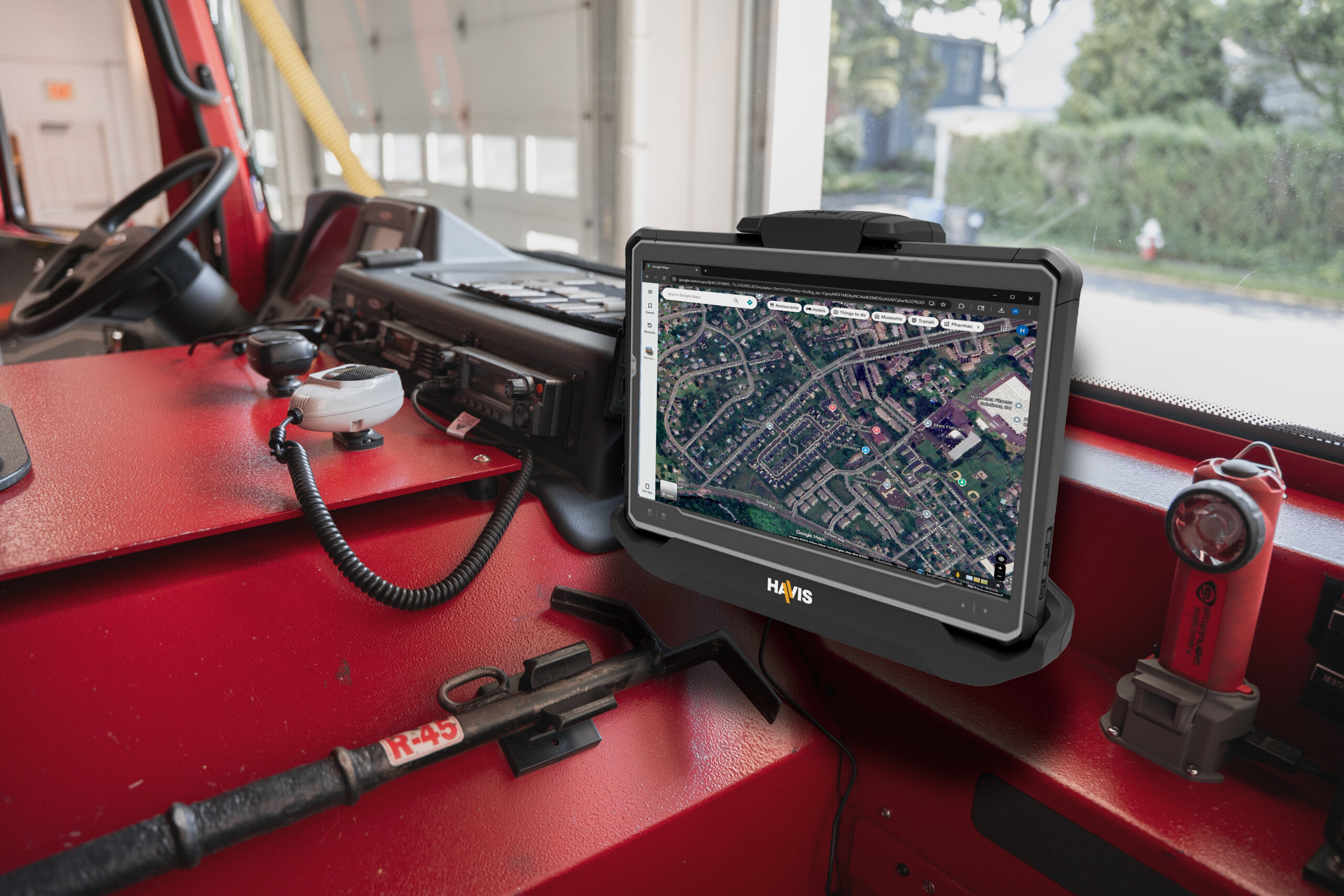

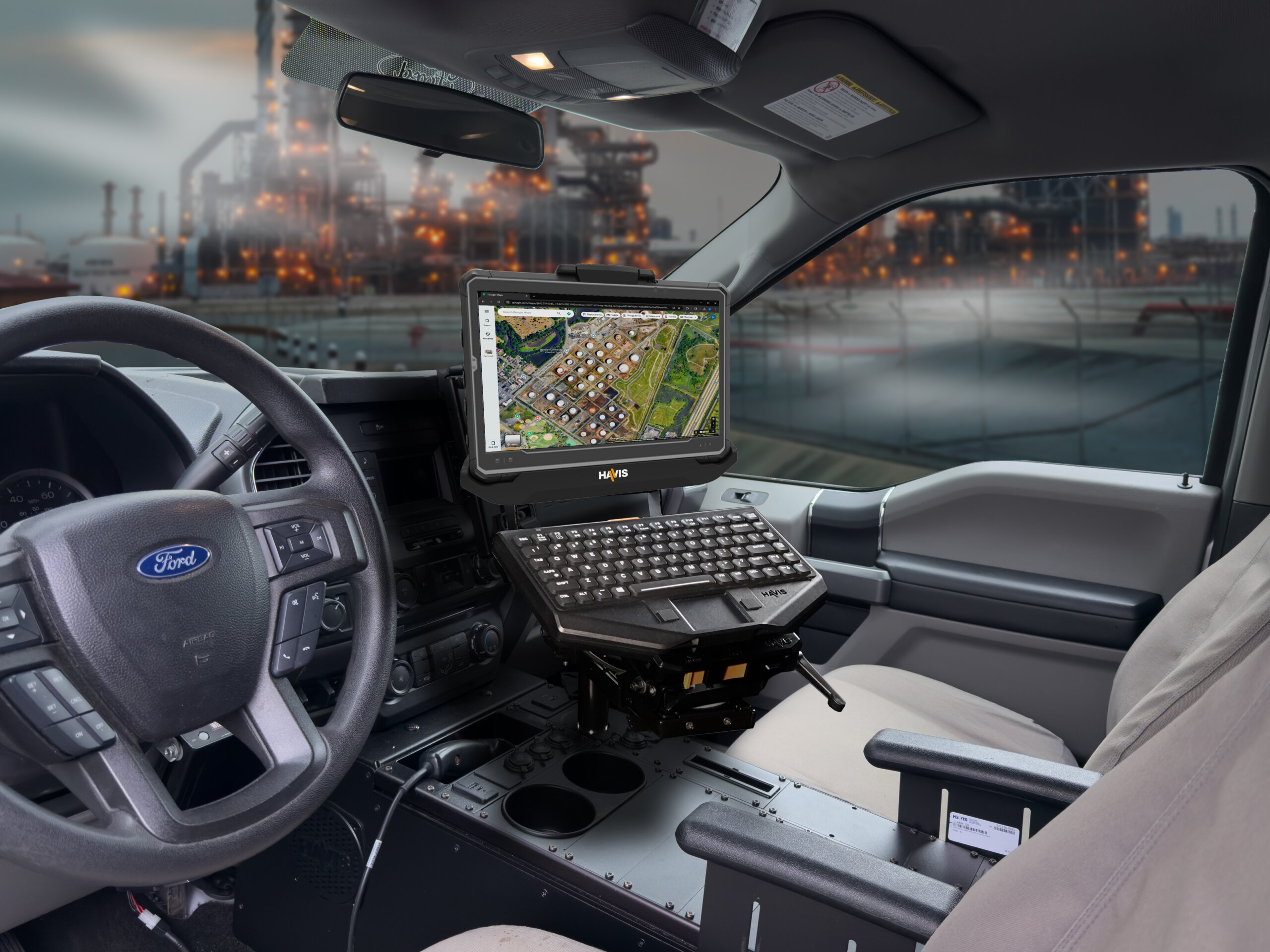

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Compatibility

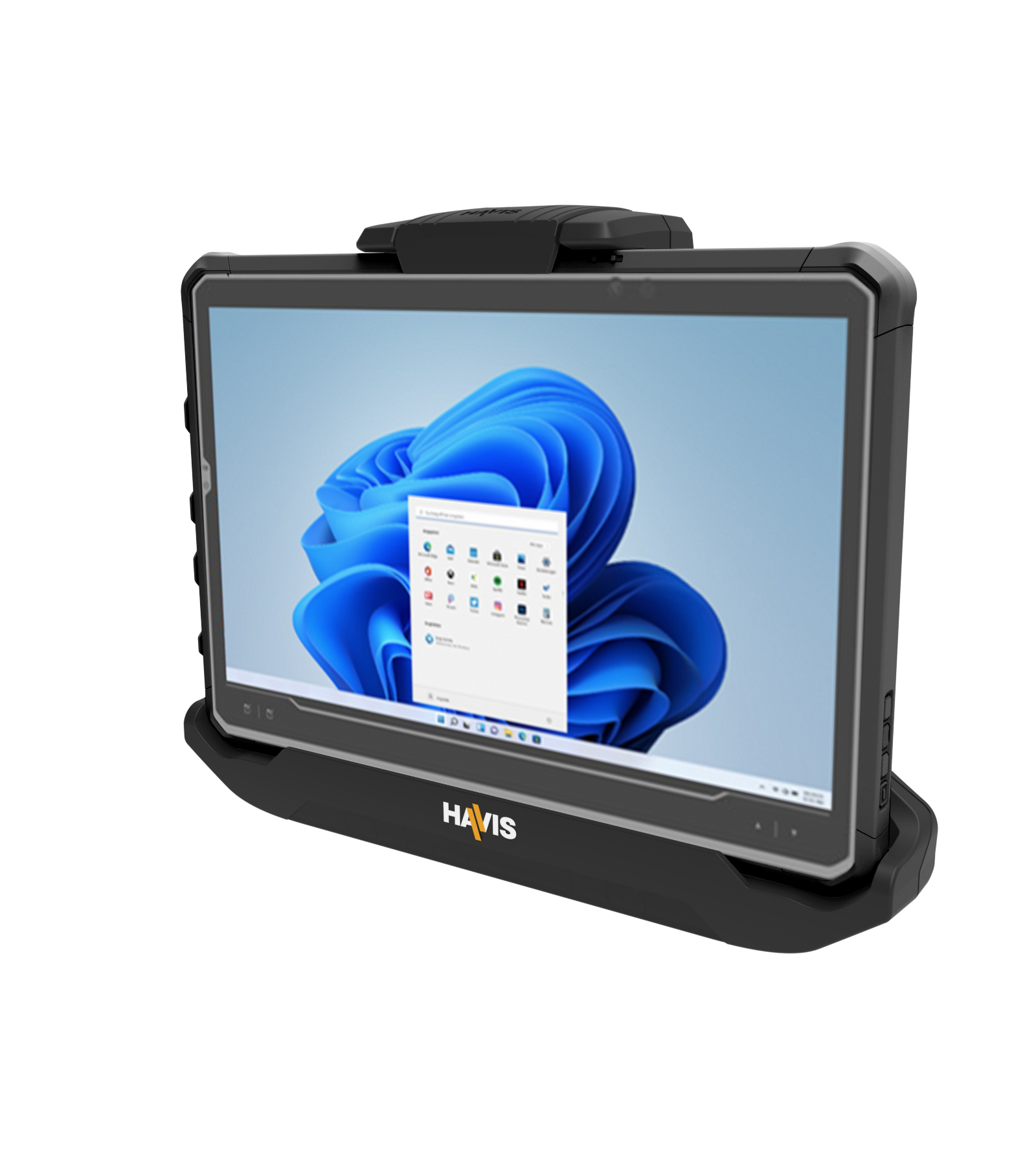

DT Research's DT323 Series tablets
DT Research's DT323 Series tablets
