Features

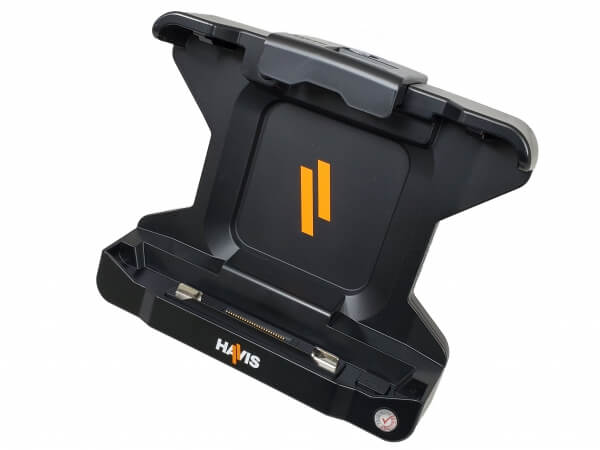

  • Supports Panasonic's TOUGHBOOK A3 tablet in warehousing, logistics, transportation and other demanding environments
  • Compatible with all tablet configurations and options, including integrated barcode reader, extended battery, smart card reader, and hand strap
  • Access to all device buttons and ports when docked
  • One-handed docking
  • Compact and lightweight
  • Panasonic certified port replication
  • Spring-loaded connector head
  • Powered by LIND 90W vehicle adapter (LPS-102, sold separately)
  • Integrated VESA 75 mounting pattern
  • Rounded corners and edges for occupant safety
  • Built-in cable management system with strain relief provisions
  • Keyed lock
  • Proudly made in the USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Panasonic TOUGHBOOK A3 tablet
Certifications:Panasonic TOUGHBOOK Certified, UL safety, Vibration Testing: MIL-STD 810G 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational
Connectivity:USB: type a 2.0 (2x), RJ45 Ethernet (1x), input power (1x @16V DC); external antenna switch
Dimensions:9.77" (24.82 cm) height x 11.45" (29.08 cm) width x 3.96: (10.06 cm) depth
Product weight:2.94lbs. (1.33 kg)
Gross weight:4.4 lbs

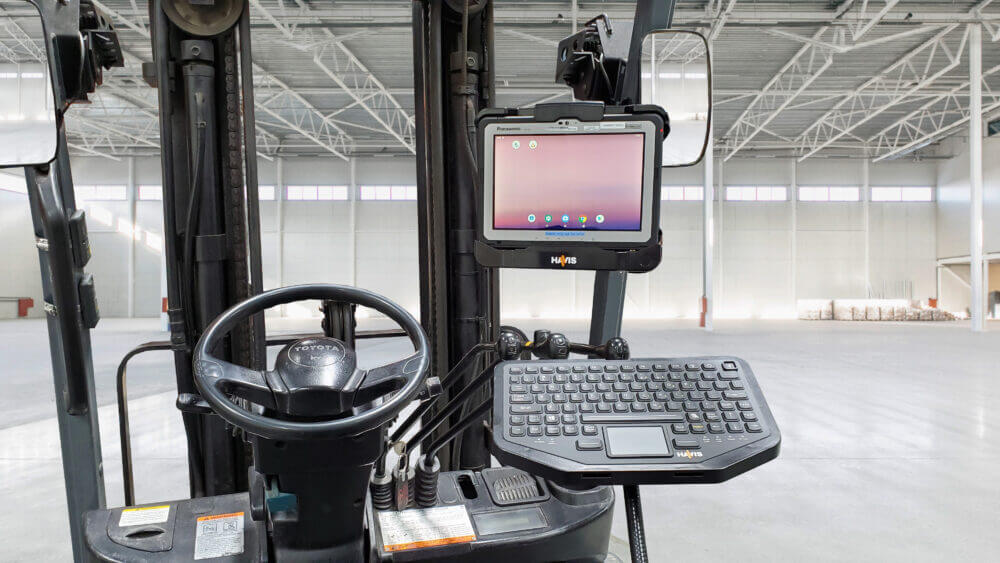

Application Gallery

Resources

Owner's Manual - English/French (PDF)
Owner's Manual - English/French (PDF)
Related Product Information (PDF)
Related Product Information (PDF)
Panasonic Brochure
Panasonic Brochure
Panasonic Speeds & Feeds
Panasonic Speeds & Feeds
DS-PAN-1400 Series Sales Sheet
DS-PAN-1400 Series Sales Sheet

Compatibility

Panasonic TOUGHBOOK A3 tablet
Panasonic TOUGHBOOK A3 tablet
