Features

  • Supports Android and Windows versions of Zebra's ET51 and ET56 Series of 10" tablets with rugged frame
  • Ideal for demanding environments like material handling, utility services, waste management and more
  • Offers standard port replication
  • Features internal power supply (isolated)
  • LED power indicator for easy trouble-shooting

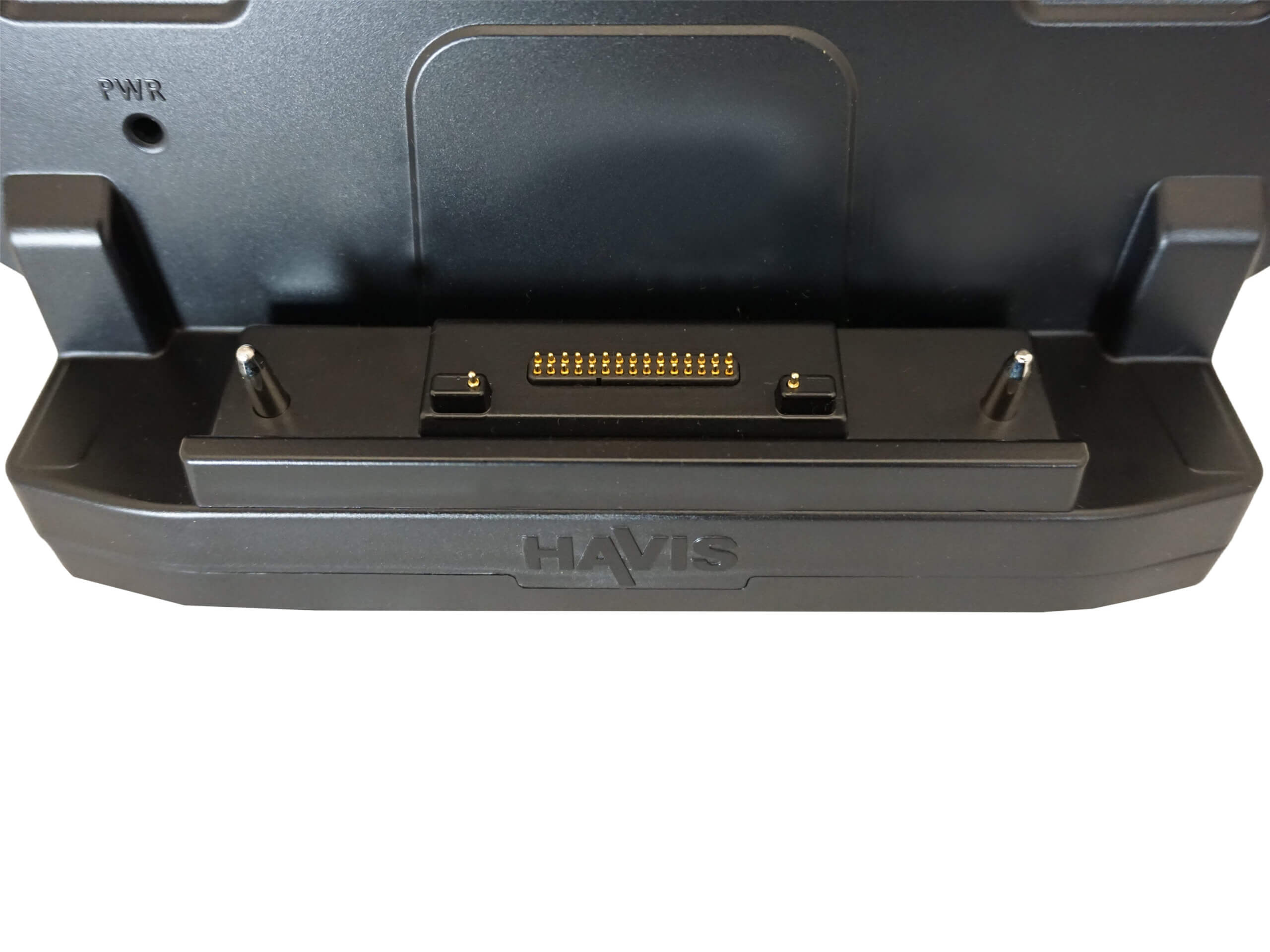

  • Spring-loaded docking connector
  • One-handed docking & undocking with pivoting alignment points
  • Preserves access to tablet's features like control buttons, USB-C port, and front-facing camera while tablet is docked
  • Limited compatibility with Zebra accessories (D-clips, handle strap, and break-away shoulder strap for use with rugged cases)
  • Lightweight & compact design

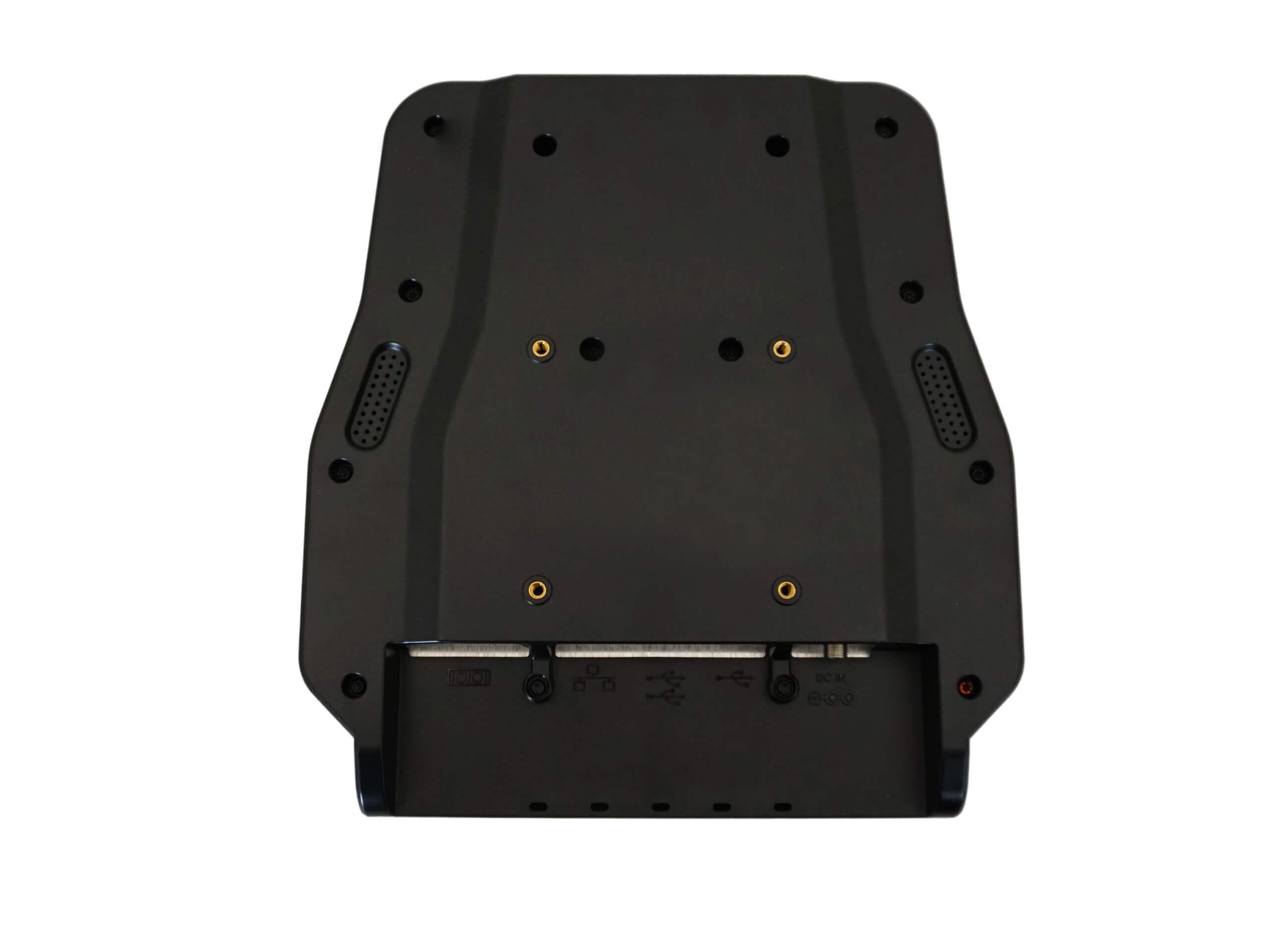

  • Integrated VESA 75 mounting pattern
  • Rounded edges for comfort & safety

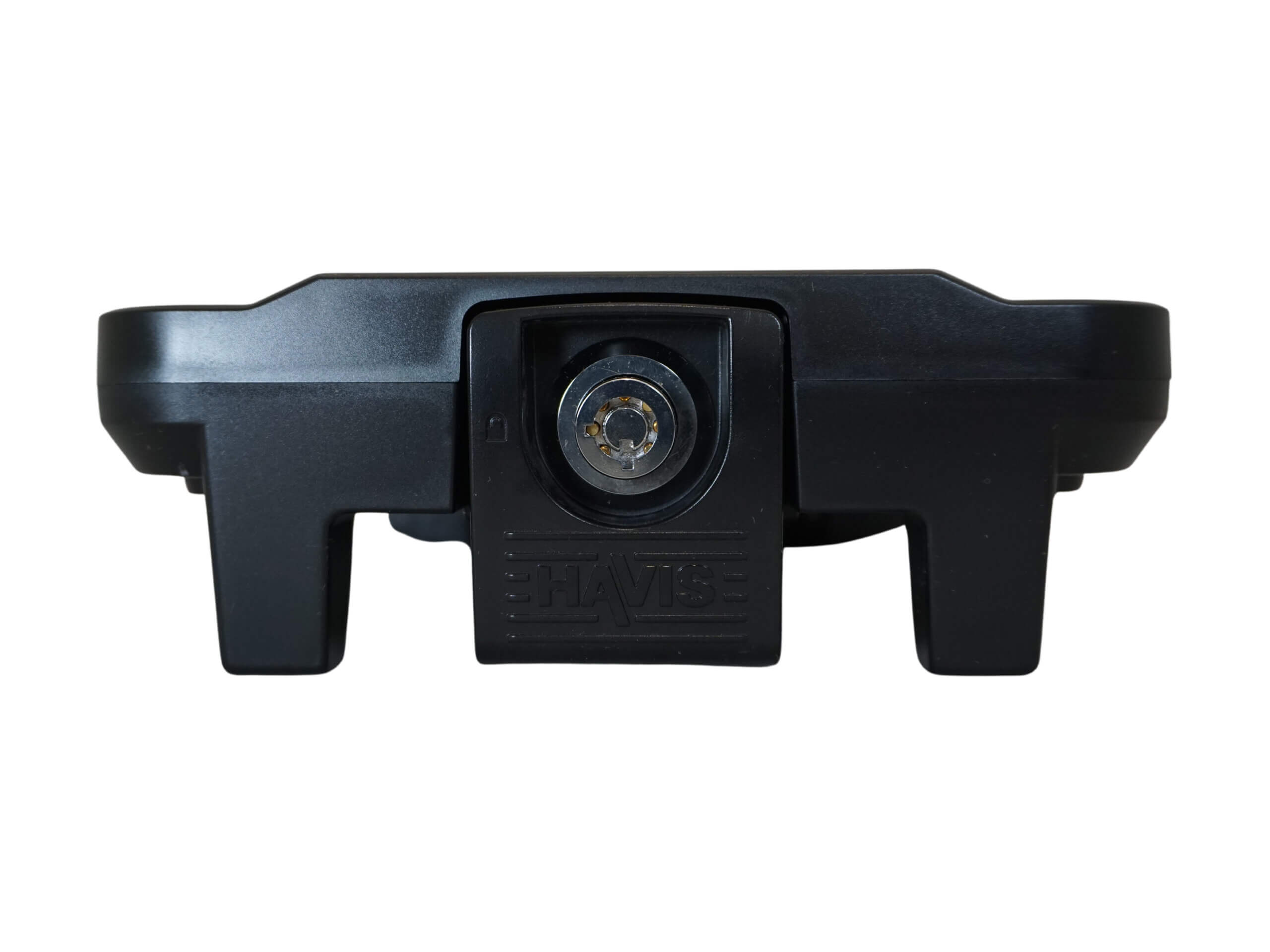

  • Keyed lock
  • Made in the USA

Specifications

PRODUCT SPECIFICATIONS:

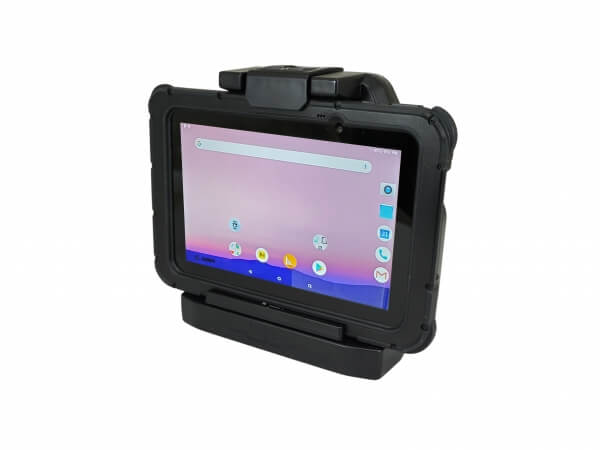

Compatible Devices:ZEBRA ET51 and ET56 10” Tablets with Rugged Frames
Dimensions:9.4" h (23.9cm) x 8.8" w (22.2cm) x 2.8"D (7.1 cm)
Certifications: Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, shock testing: MIL-STD 810H 516.8, cycle test: latch handle & docking connectors mechanism 30,000 cycles, hot/cold storage testing, humidity, testing, CE, Ro
Connectivity includes:USB: fully-powered USB 2.0 (1); power input
Input voltage range:18-75V (isolated)
Product weight:2.07 lbs (0.94 kg)
Gross weight:3 lbs

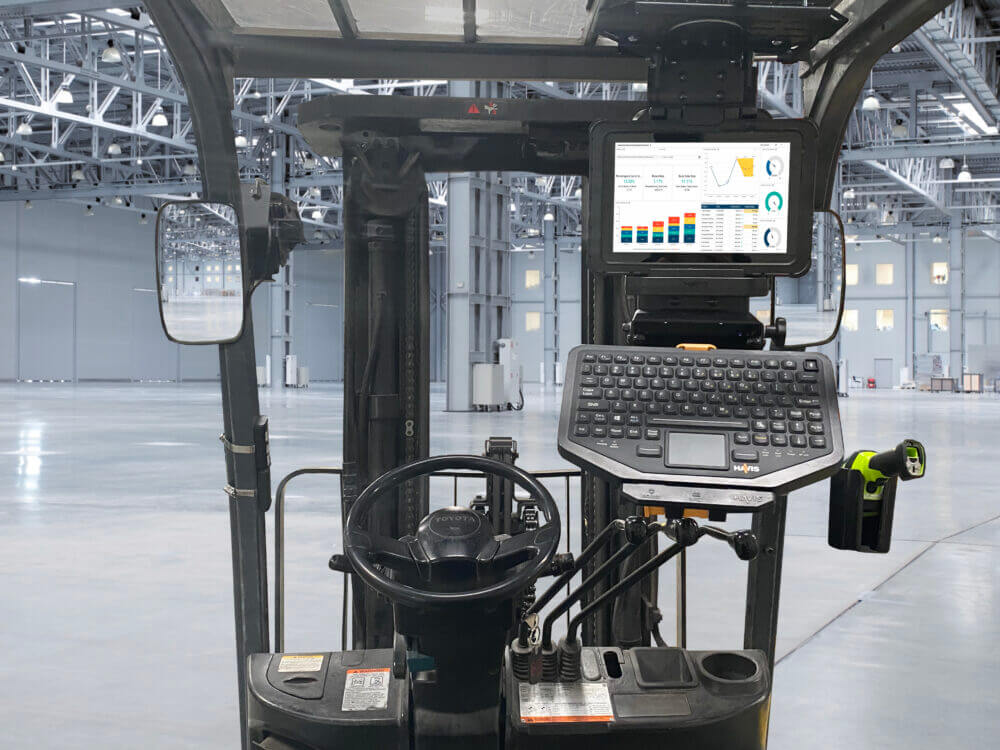

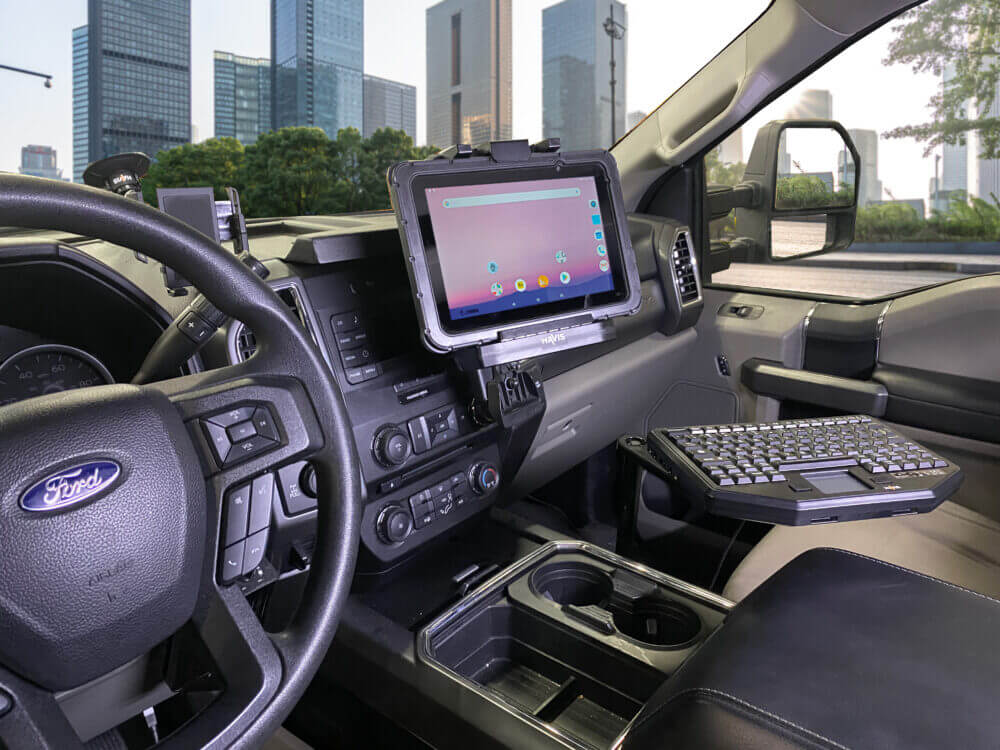

Application Gallery

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)

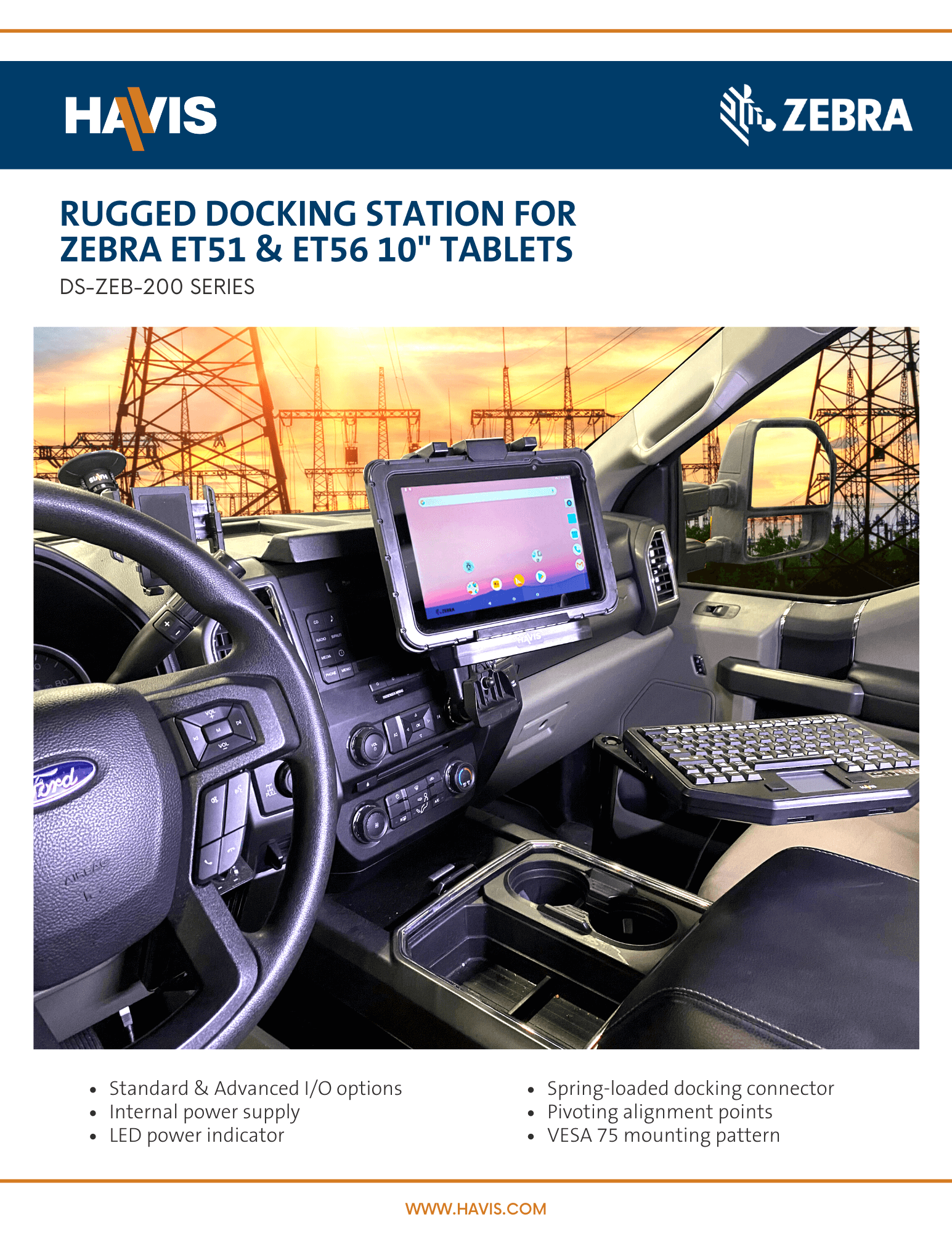

Zebra ET5X 10” Tablet Docking Station Sales Sheet – Work Truck
Zebra ET5X 10” Tablet Docking Station Sales Sheet – Work Truck
Zebra ET5X 10” Tablet Docking Station Sales Sheet – Material Handling
Zebra ET5X 10” Tablet Docking Station Sales Sheet – Material Handling

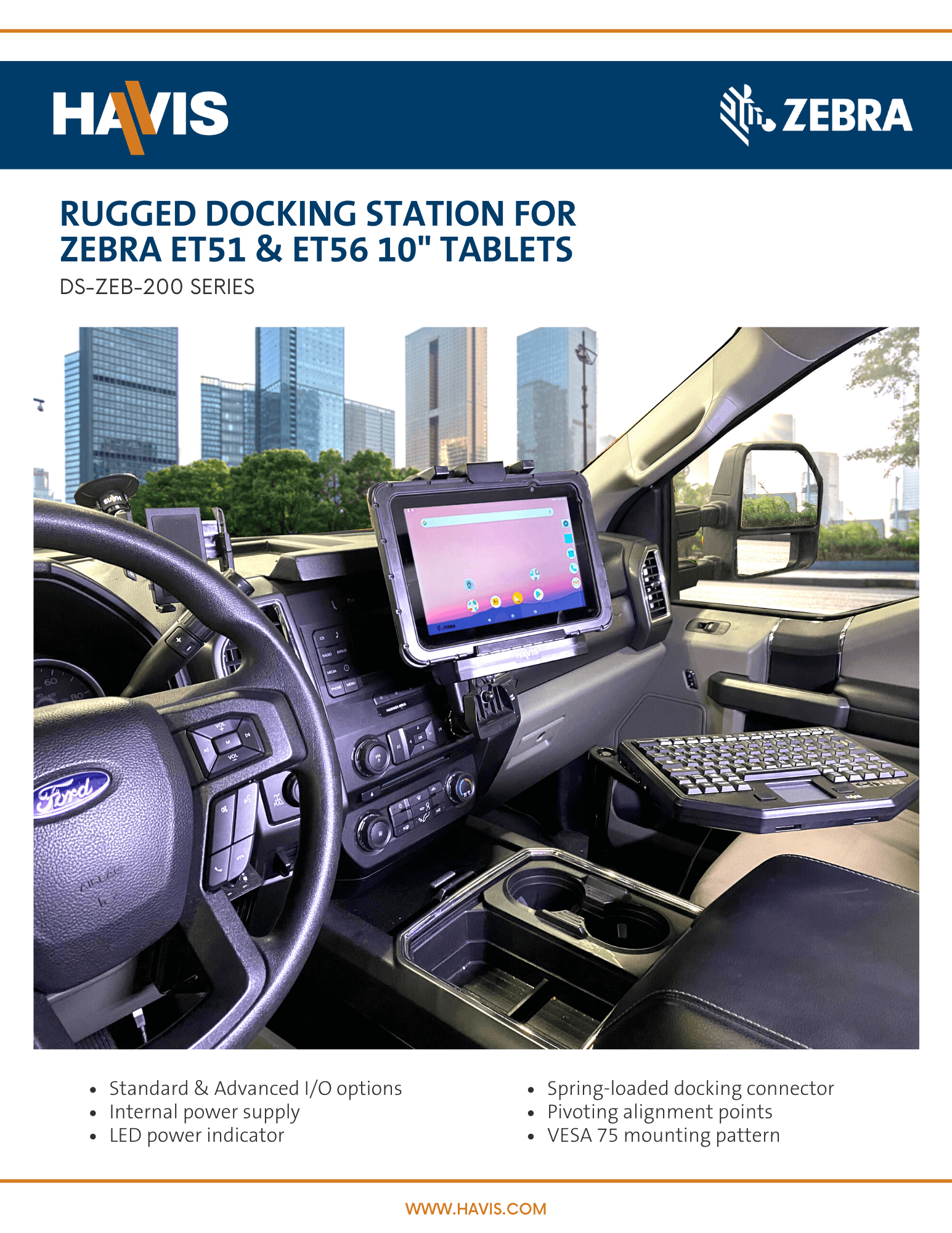

Zebra ET5X 10” Tablet Docking Station Sales Sheet – Public Safety
Zebra ET5X 10” Tablet Docking Station Sales Sheet – Public Safety

Compatibility

Zebra ET51 & ET56 10
Zebra ET51 & ET56 10" Tablet
