Features

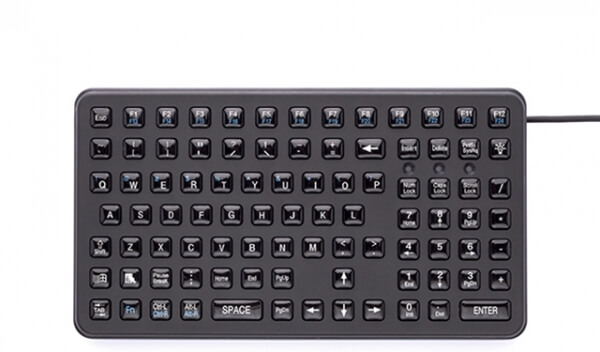

  • Accommodates rugged applications in manufacturing, material handling and remote data entry
  • Epoxy-coated keys are arranged for convenient gloved-hand use
  • Compact design is ideal for forklift mounting
  • Integrated AMPS pattern for convenient mounting
  • Robust polycarbonate case and industrial silicone keypad seal it from dust, liquids and corrosives
  • 91-Key functionality
  • 24 function keys
  • Integrated 10-Key numeric pad
  • Integrated backlighting
  • 4-foot (1.2m) coiled cable with USB type a connector
  • 1-Year limited warranty

Specifications

PRODUCT SPECIFICATIONS:
Compatibility:all Windows and macintosh os
Certifications and testing:NEMA 4X UL60950, FCC part 15 class b; Vibration Testing: power spectral density: 0.04g/Hz frequency range: 20Hz - 2 khz duration of test per axis: 3 hours; shock test: 3x11 ms pulses of 50g on each of 3 axes
Dimensions:11.40" x 6.30" x 1.90" (w-h-d) 289.56mm x 160.02mm x 48.3mm
Product weight:2.25 lbs +/- 0.10 lbs (1.02 kg +/- 0.05 kg)
Power:200mA@5V (from CPU port)
Temperature range:storage: -40C to +90C (-40F to +194F) operating: -40C to +70C (-40F to +158F)
Humidity:100% humidity resistant
Key switch:material: epoxy-coated industrial silicone rubber life: greater than 10 million cycles travel: 0.055 in. (1.4mm) actuation force: 7.03 oz +/- 0.70 oz (200g +/- 20g) feedback: tactile with mechanical snap
Gross weight:2 lbs
