Features

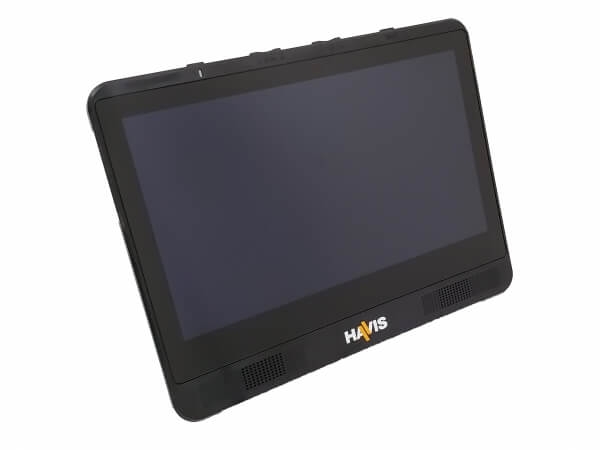

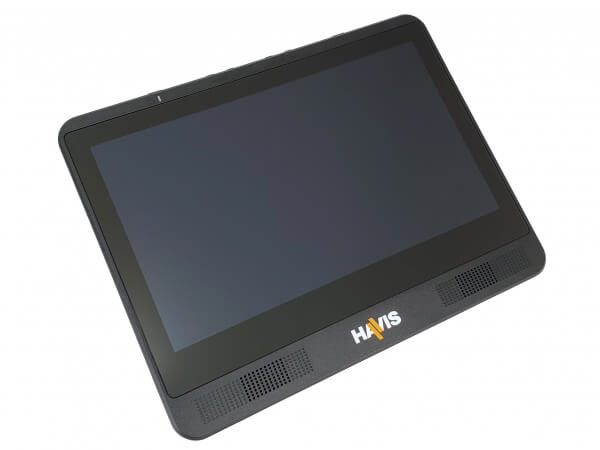

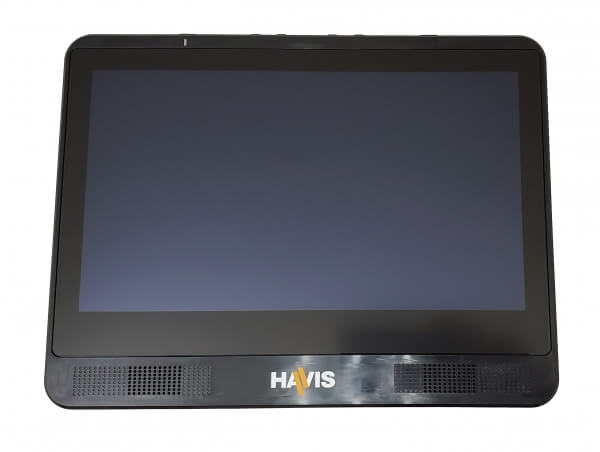

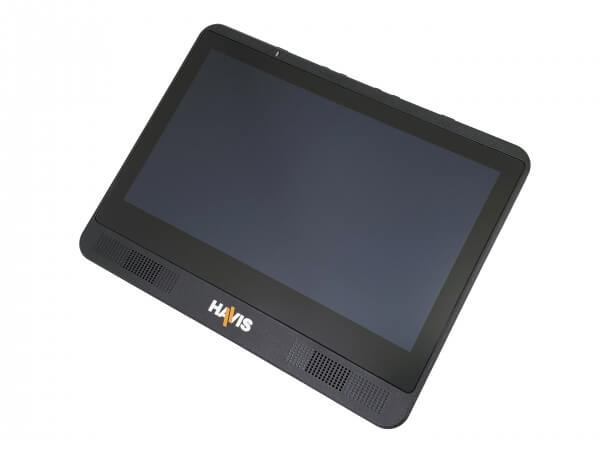

  • Fully rugged Touch Screen Display solution for all mobile office workers
  • Integrated DeX technology - no hub required
  • On-board I/O includes gigabit Ethernet, HDMI 1.4, superspeed USB-C and multiple USB 3.1 type a ports
  • 10-point capacitive Touch Screen with gorilla glass
  • Two power delivery (pd) options via USB type-C (5V@3A, 9V@2A)
  • 1200 nits of brightness
  • Pair of 4W front-facing stereo speakers
  • Input selector switch to toggle between USB-C and HDMI
  • Indicator lights communicate when TSD-201 is powered up and when a device is connected.
  • Night mode offers red monochrome for reduced eye strain
  • Sleep mode equipped to reduce power consumption
  • Power button allows screen to be blacked out for privacy without full reboot

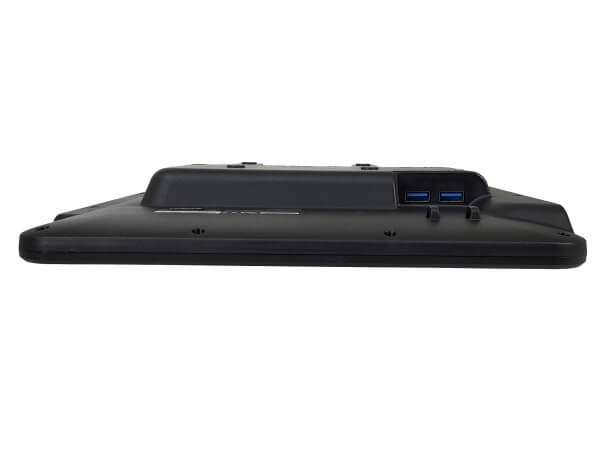

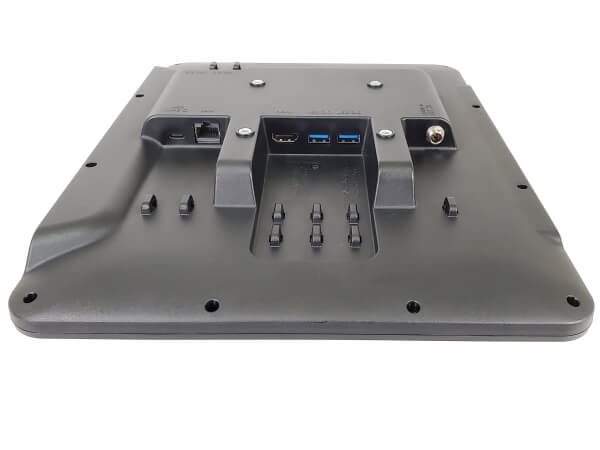

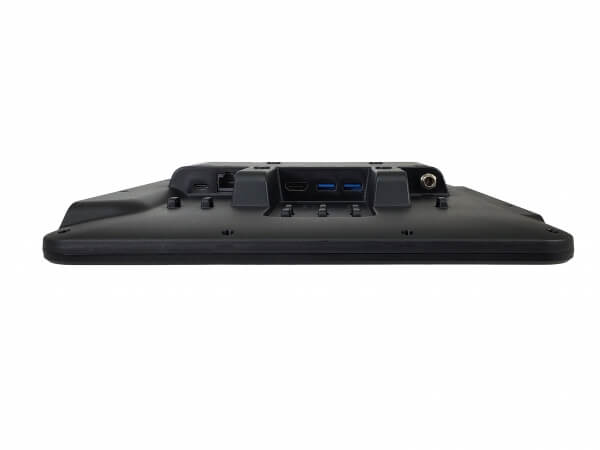

  • Side and bottom-facing ports with integrated strain relieving

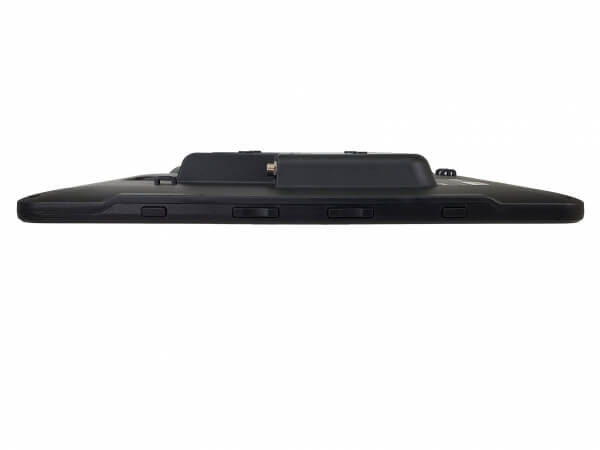

  • Top-mounted buttons allow easy access to Touch Screen controls
  • Complete your set up with a KB-108 keyboard or other Havis KB-100 Series products
  • USB-C port supports device mirroring in equipped phones, tablets, and laptops

Specifications

PRODUCT SPECIFICATIONS:
Glass:anti-glare
Contrast ratio: 700:1
Resolution:1920 x 1080
Brightness:1200 nits
Display color:16.7M
Aspect ratio:16:9
Viewing angle:89 degrees max
Active area:276.48mm x 155.52mm
Power: 11-16 VDC, 12 VDC output
OSD Buttons:Brightness +/-, volume +/-, power, input selector
I/O: (1) DC power in, (1) gigabit Ethernet, (1) HDMI 1.4, (1) USB-C, (4) USB 3.1 type a
Platforms supported:Win7, Win8, Win10, Android, and ios (tested)
Response time:25ms (typical)
Temperature range: operating: -29C to 63C ( -20F to 140F); storage: -60C to 70C (-40 F to 158F)
Speakers:(2) 4W stereo (front facing)

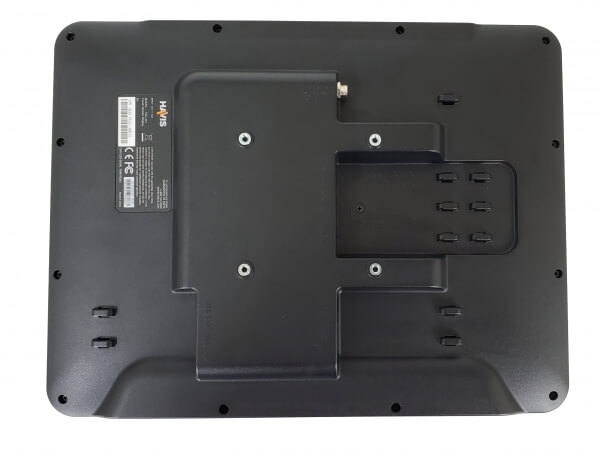

Mounting capability:VESA 75
Touch Screen weight:2.66 lbs. (1.21 kg)
Touch Screen dimensions:9.58" (24.3 cm) h x 12.44" (31.6 cm) w x 1.51" (3.84cm) d
Vibration Testing:MIL-STD 810G 514.5
Environmental testing:hot/cold operational & storage
Crash test:SAE J1455 30mph Crash Testing
FCC, CE, RoHS, reach
1 year limited warranty
Gross weight:4 lbs

Resources

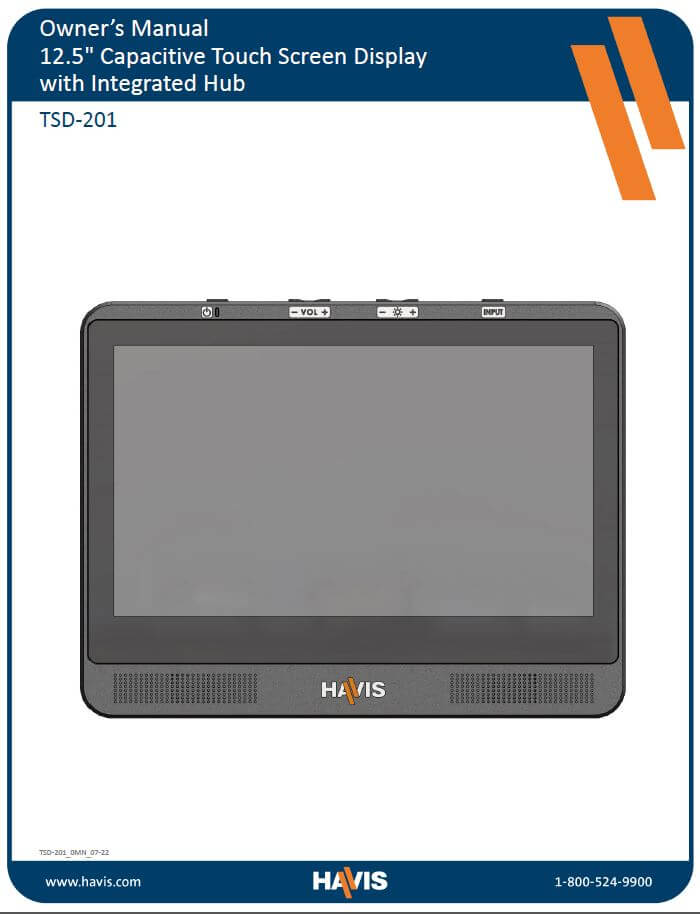

Owner's Manual (PDF)

Related products

  • DISCONTINUED – Dash Mount for 2015-2022 Dodge Charger Pursuit
    C-DMM-2004
    $449.43
    DISCONTINUED – Dash Mount for 2015-2022 Dodge Charger Pursuit
    View product

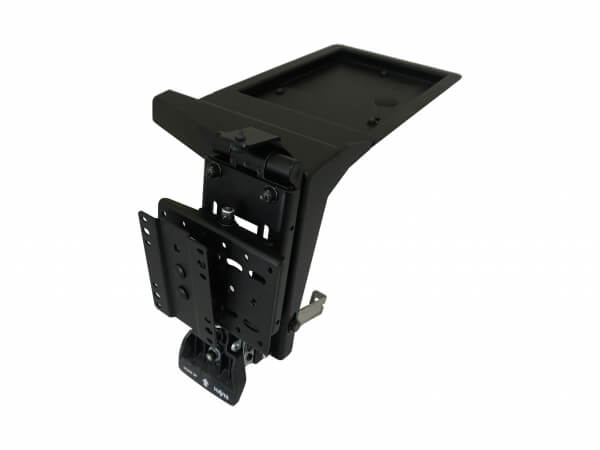

  • Heavy-Duty Dash Mount for 2015-2020 Ford F-150 Retail, Responder & SSV, 2017-2022 Ford F-250, 350, 450 Pickup, F-450 and 550 Cab Chassis, 2018-2021 Expedition Retail & SSV
    C-DMM-3006
    $548.00
    Heavy-Duty Dash Mount for 2015-2020 Ford F-150 Retail, Responder & SSV, 2017-2022 Ford F-250, 350, 450 Pickup, F-450 and 550 Cab Chassis, 2018-2021 Expedition Retail & SSV
    View product
  • DISCONTINUED – Dash Mount for 2017-2021 Ford F-250, 350, 450 Pickup and F-450, 550 Cab Chassis, 2018-2022 Ford Expedition, 2015-2020 Ford F-150, and 2022 Ford F-150 Lightning
    C-DMM-2006
    $495.32
    DISCONTINUED – Dash Mount for 2017-2021 Ford F-250, 350, 450 Pickup and F-450, 550 Cab Chassis, 2018-2022 Ford Expedition, 2015-2020 Ford F-150, and 2022 Ford F-150 Lightning
    View product
  • Enhanced Protection Plan, 3 Year, for Havis Touch Screen Display
    EP3-TSD-201
    $439.00
    Enhanced Protection Plan, 3 Year, for Havis Touch Screen Display
    View product
  • Package – USB Keyboard with Mount (No Emergency Key)
    PKG-KB-206
    $715.00
    Package – USB Keyboard with Mount (No Emergency Key)
    View product

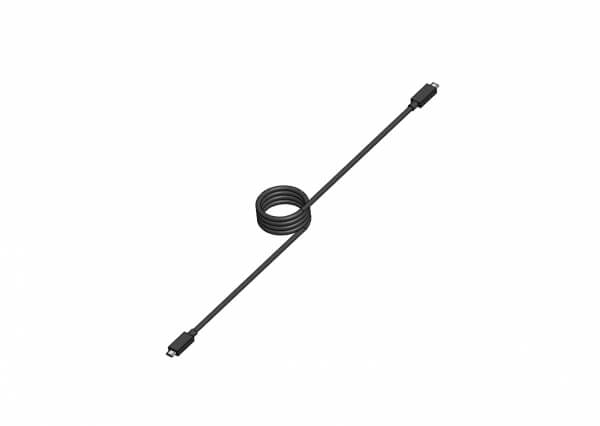

  • USB-C Male to Male Cable
