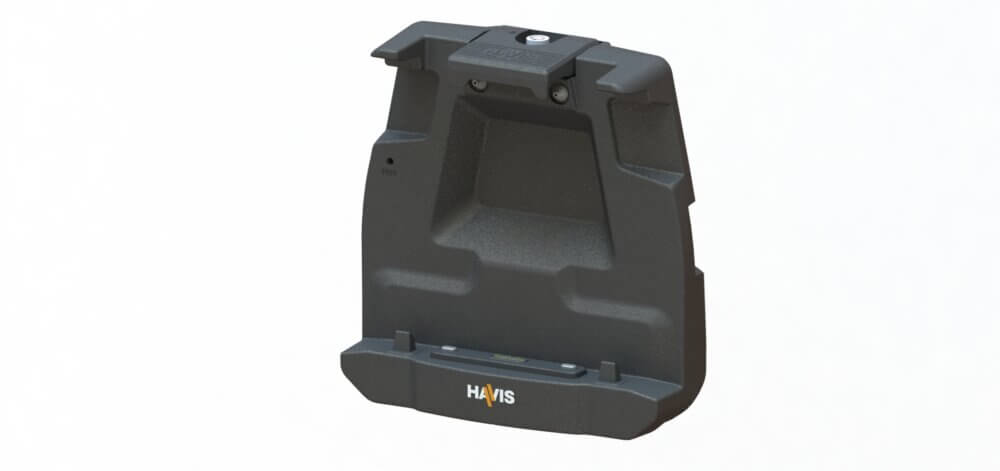

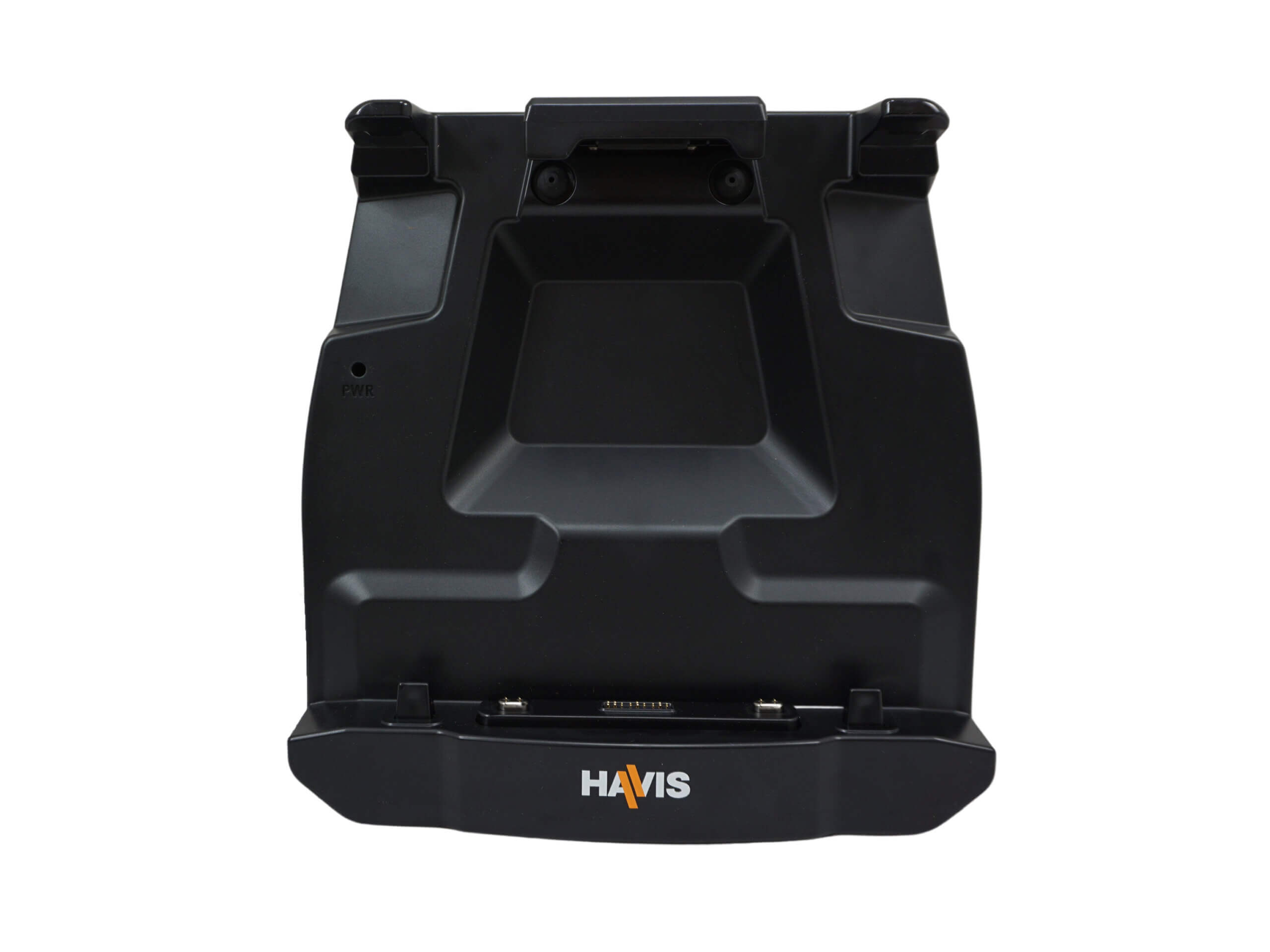

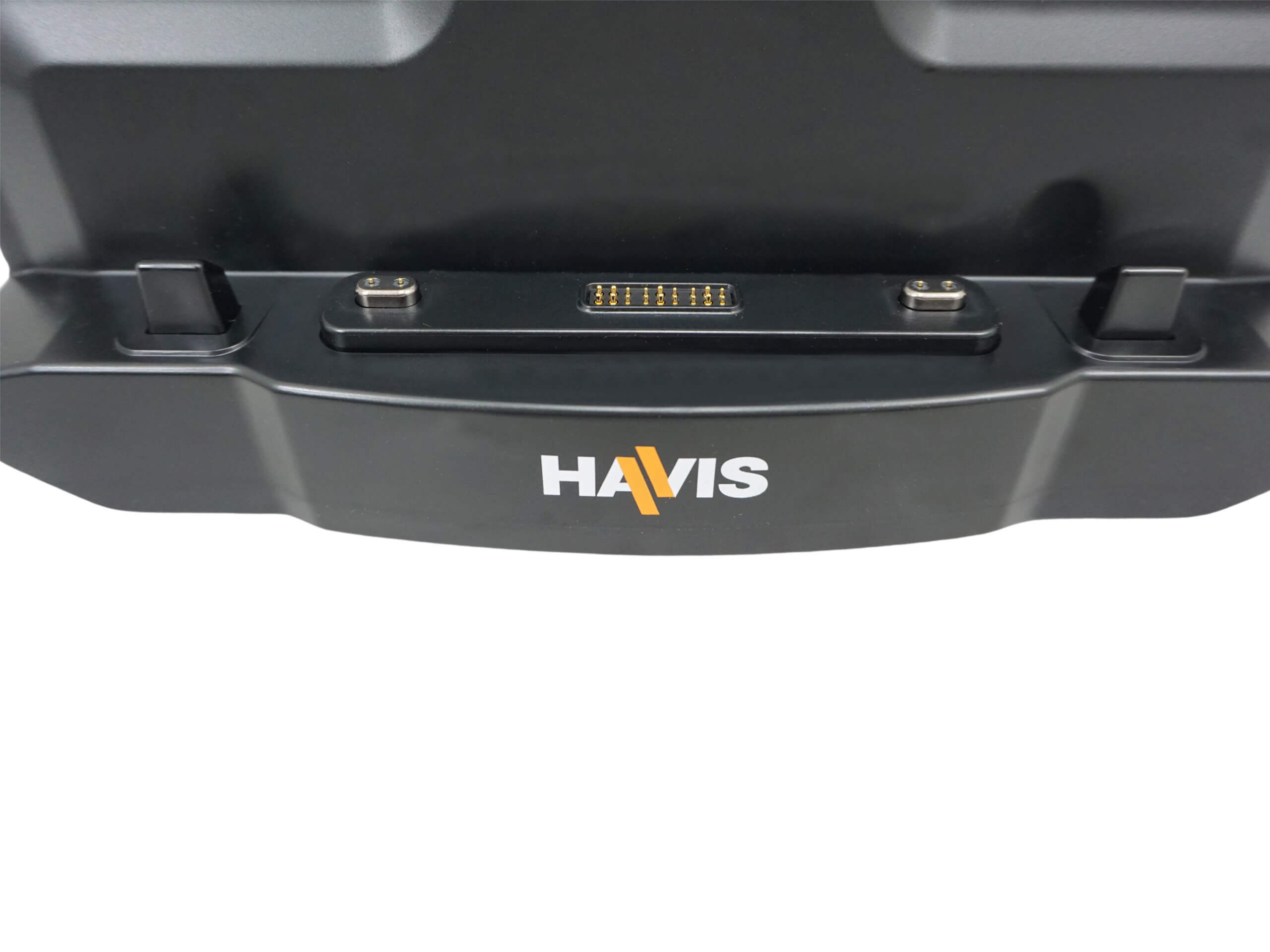

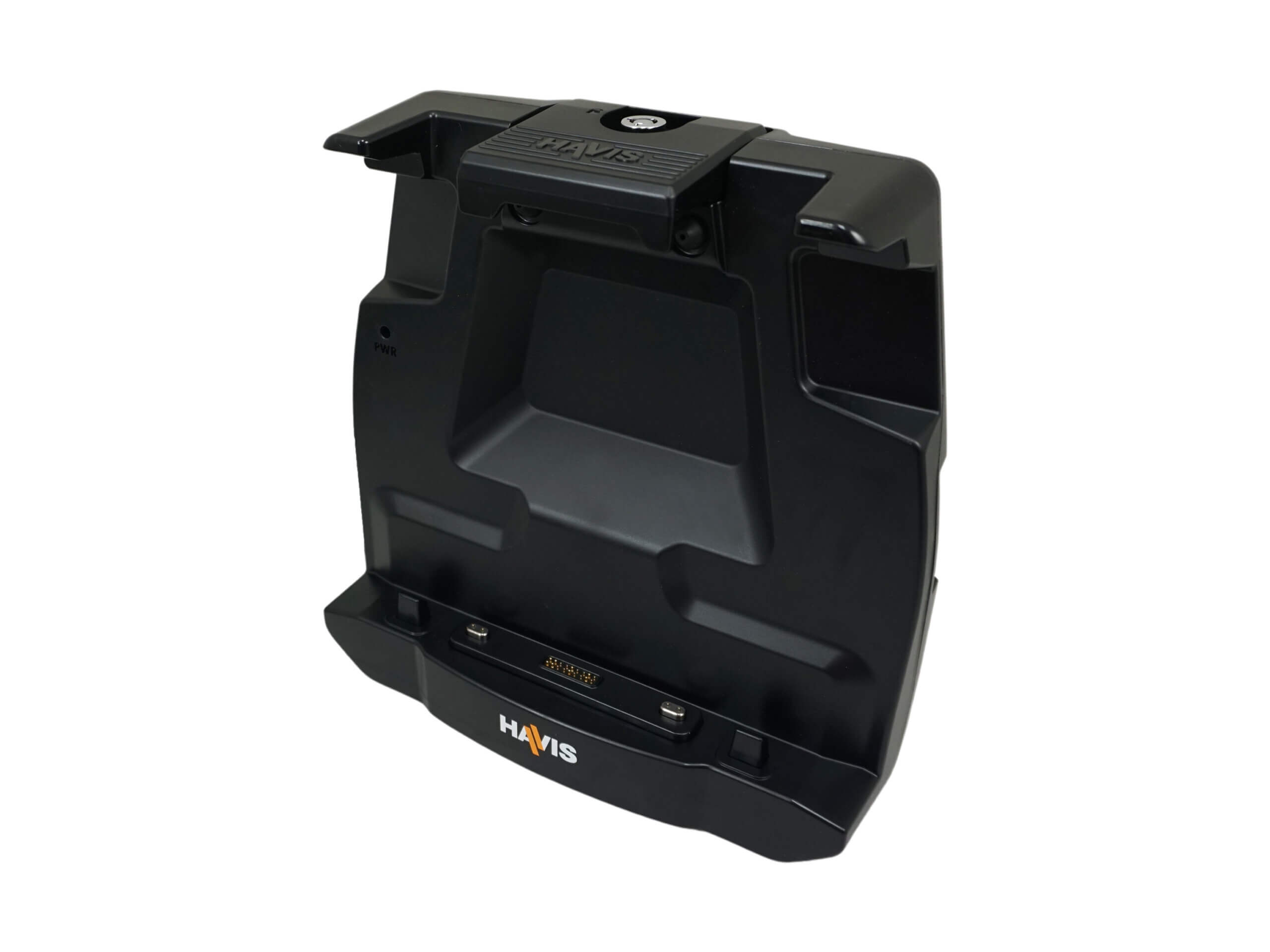

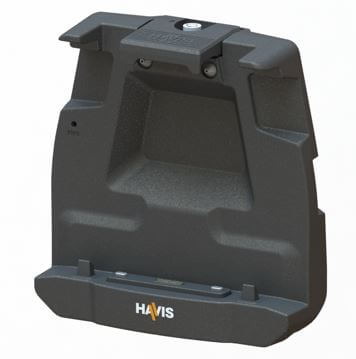

DEVMT, DOCKST, DELL, ADV, [4]HGANT, EPS, 7230,
Compatible computer: | Dell 12” Latitude 7230 Rugged Extreme Tablet |
---|---|
Certifications: | Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F) |

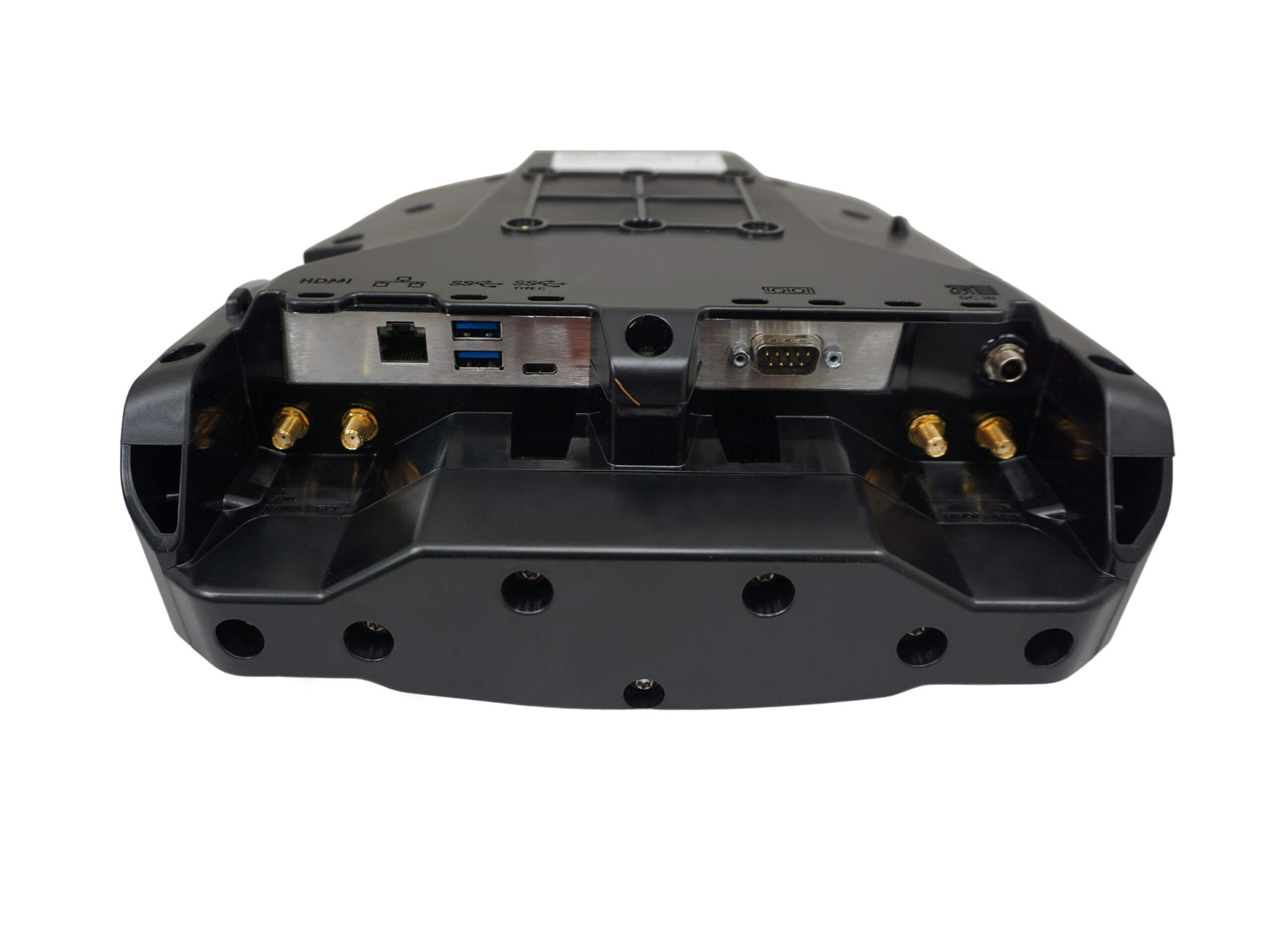

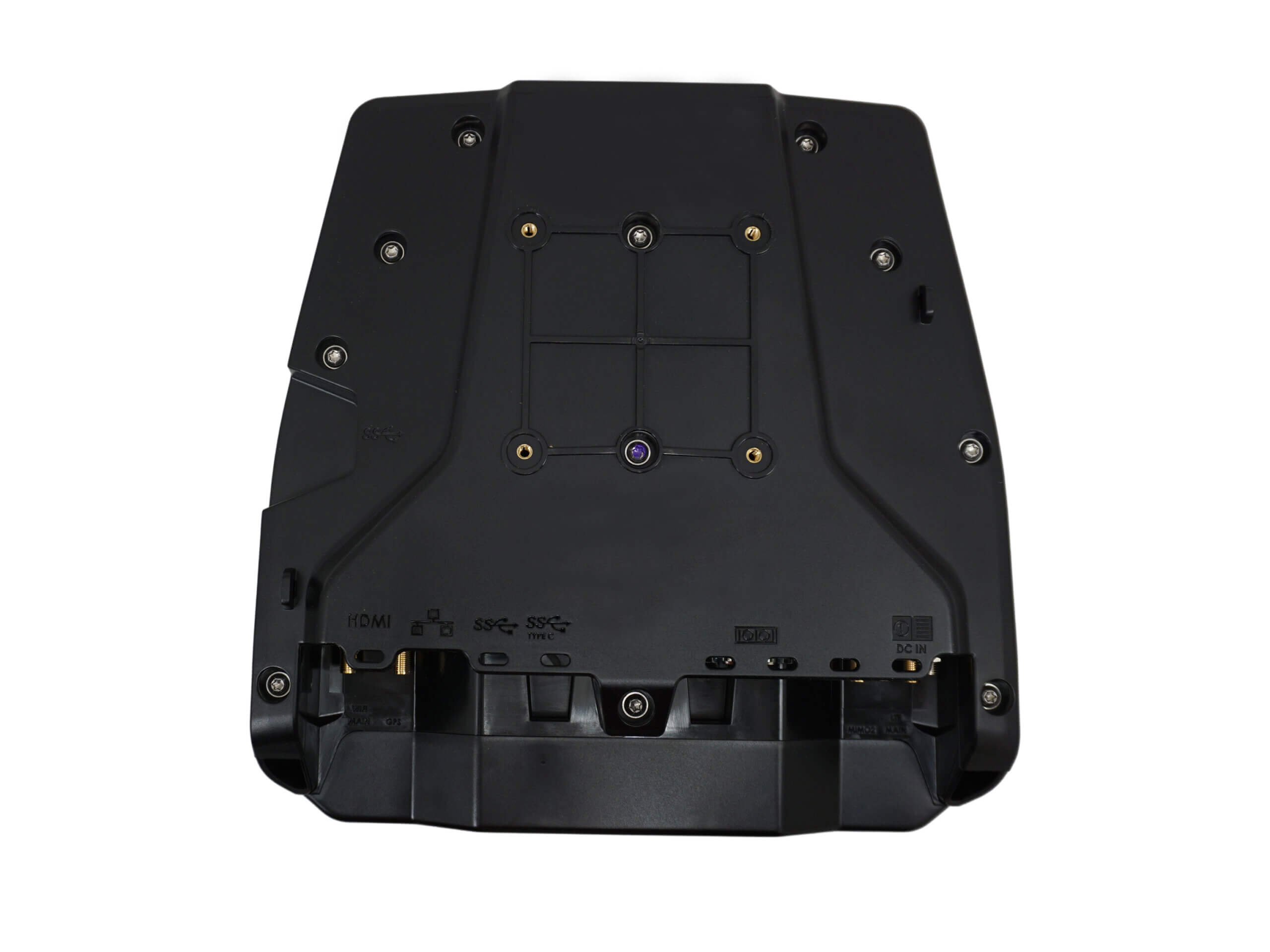

Port Replication: | (1) RJ45 Ethernet, (3) USB3.0 Type A, (1) USB-C, (1) DB9 Serial - 5V powered, (1) HDMI, (1) DC In port, |
Antenna: | Quad RF Pass-Thru Connection (SMA) |
Dimensions: | Height 10.2” (259mm) latched, 10.7” (272mm) unlatched; Width 10” (254mm); Depth 3.5” (89mm) |
Product weight: | 2.75 lbs (1.25kg) |
Gross weight: | 4 lbs |
If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.
