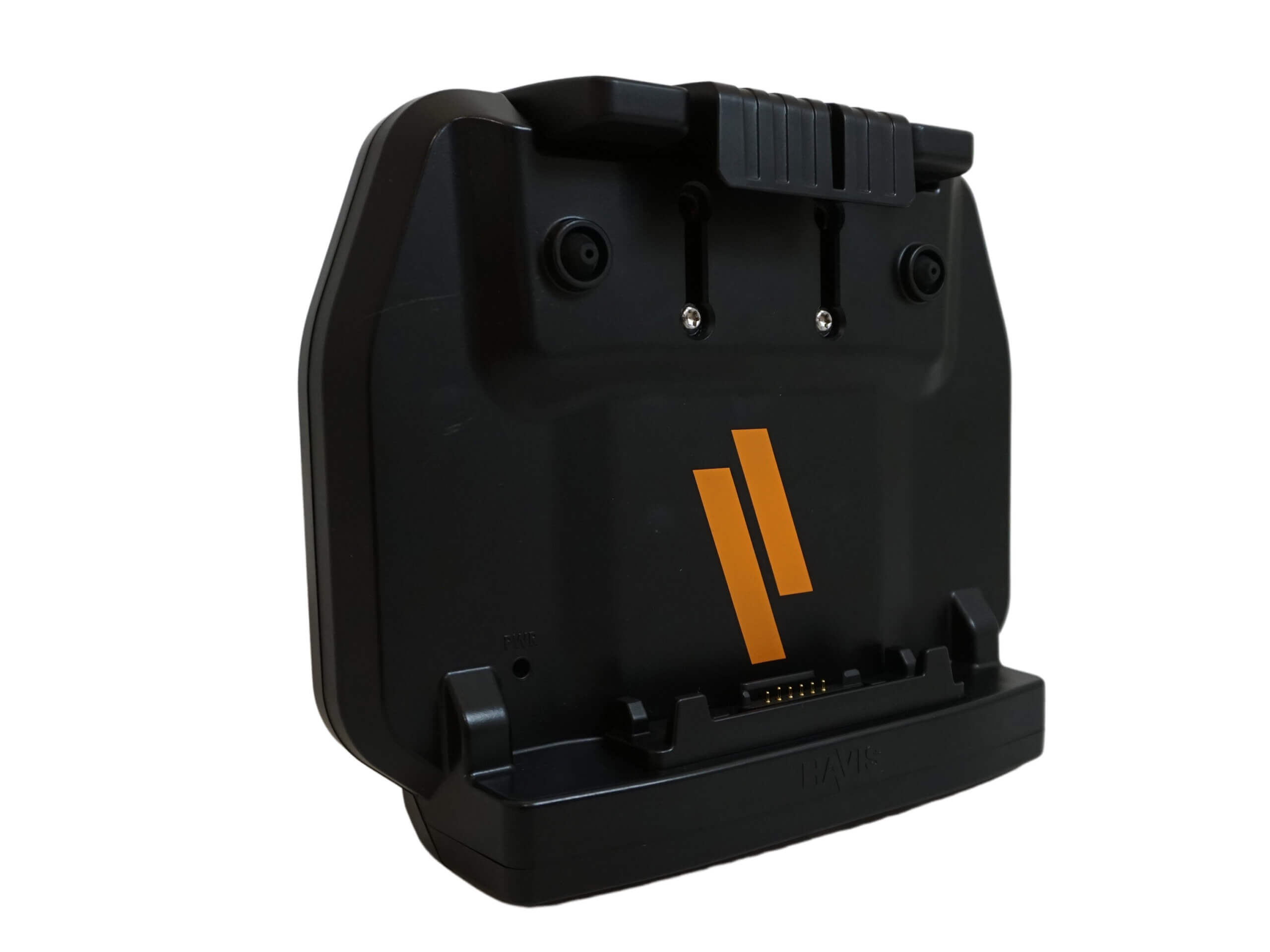

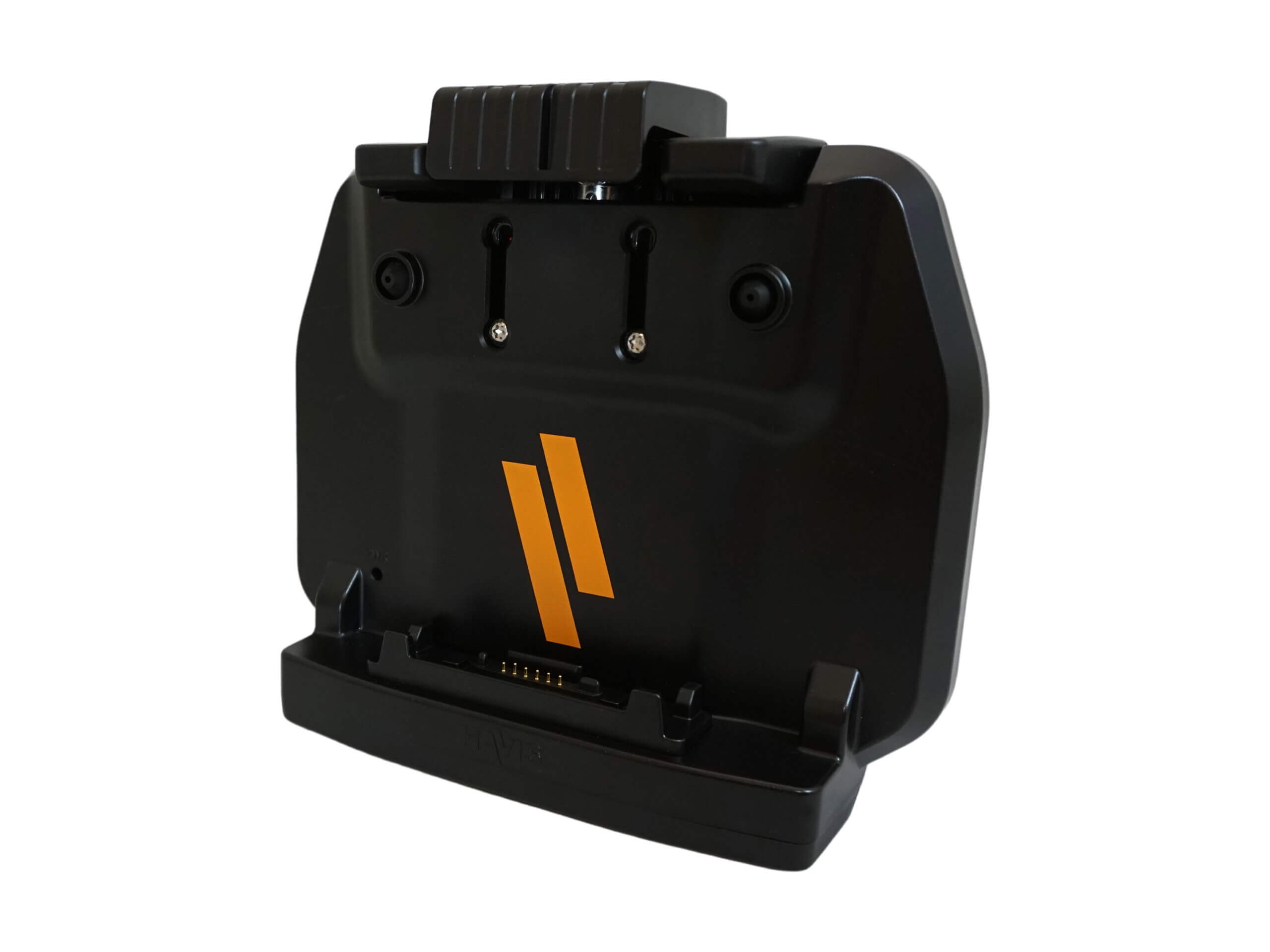

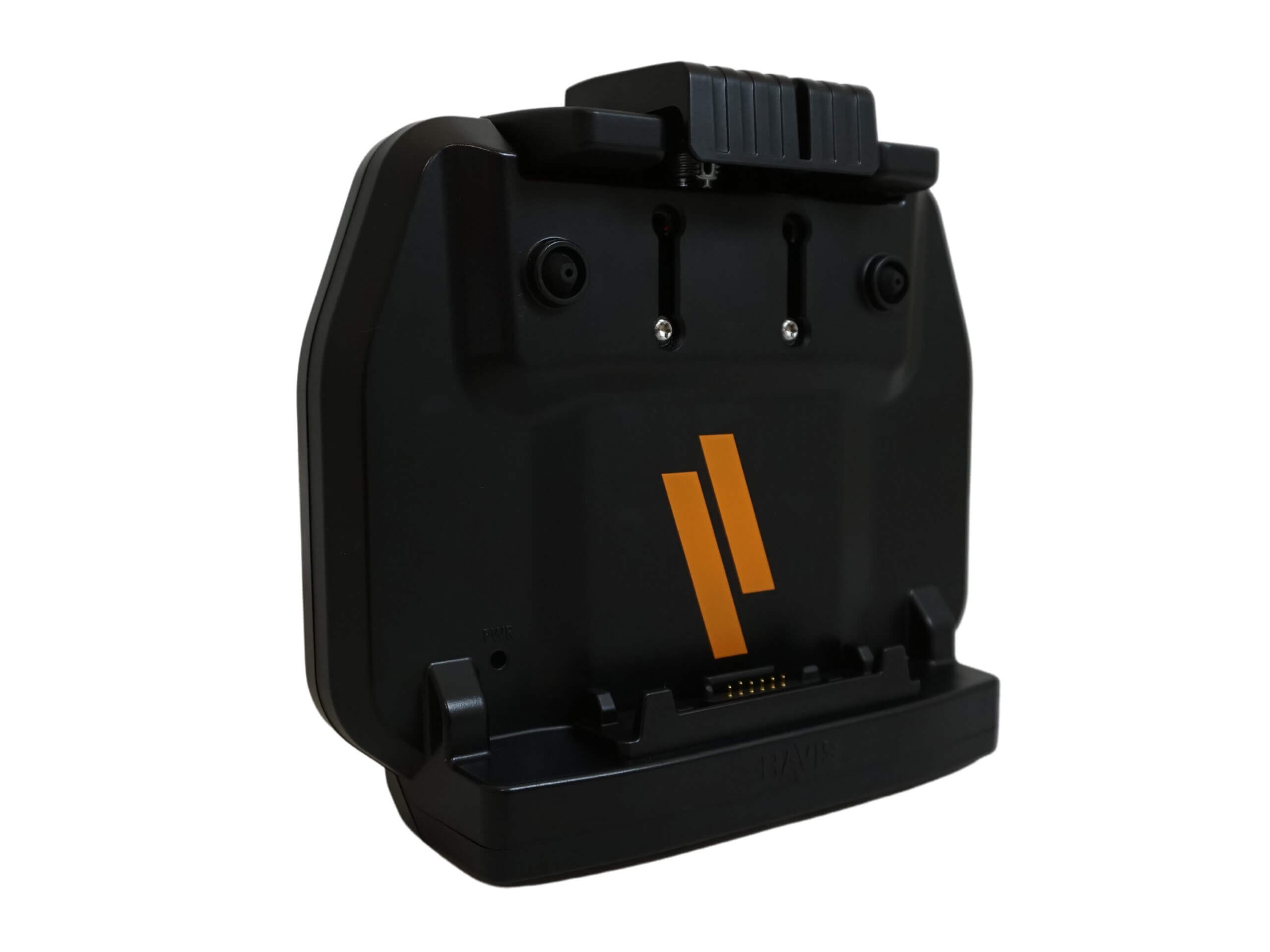

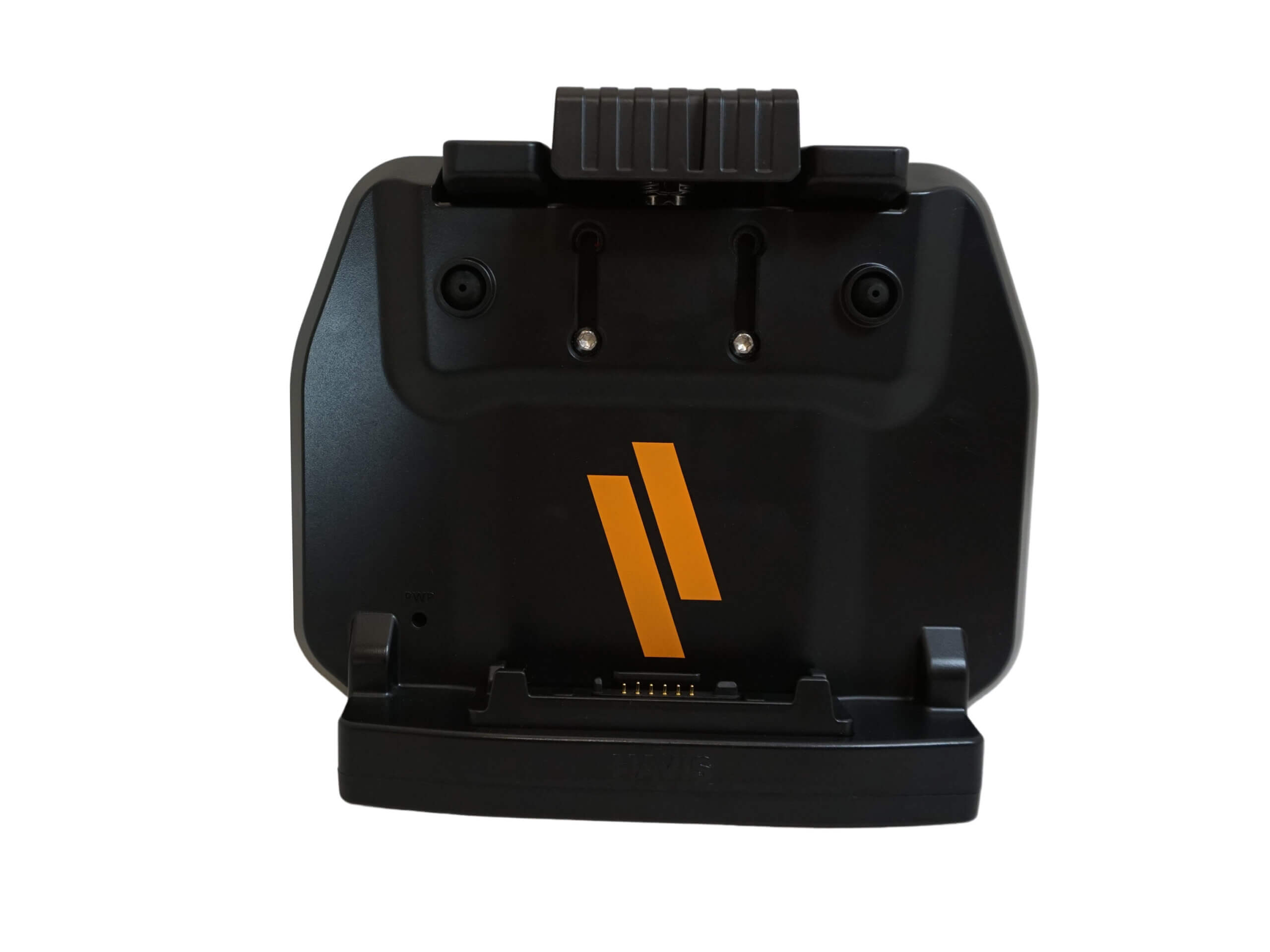

Features

  • Supports Zebra's ET4x Series in Material Handling, Utility Services, Waste Management and other demanding environments
  • Unique height-adjustable design is compatible with both 8" and 10" devices with rugged boots

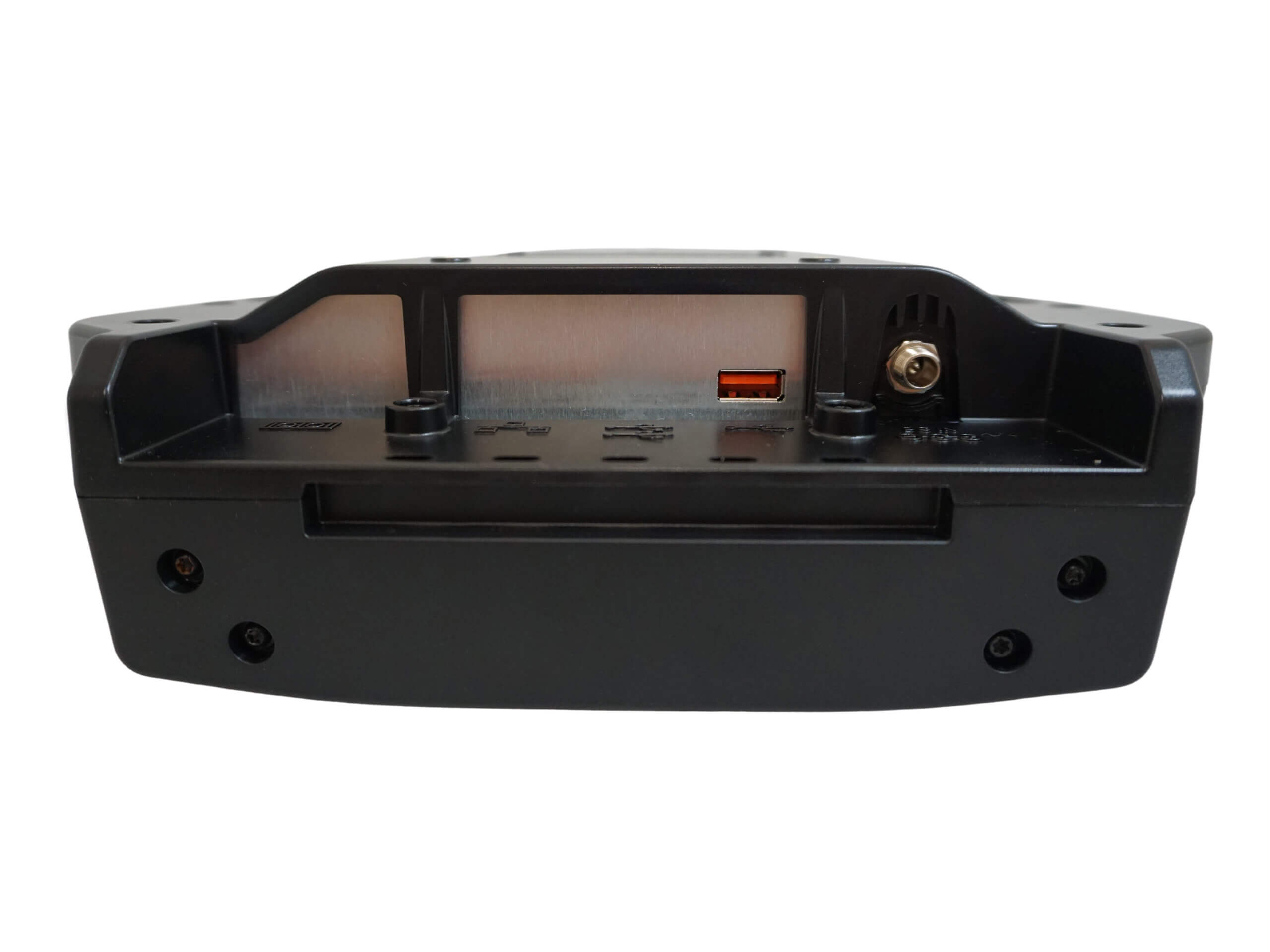

  • Standard port replication includes one USB2.0 port

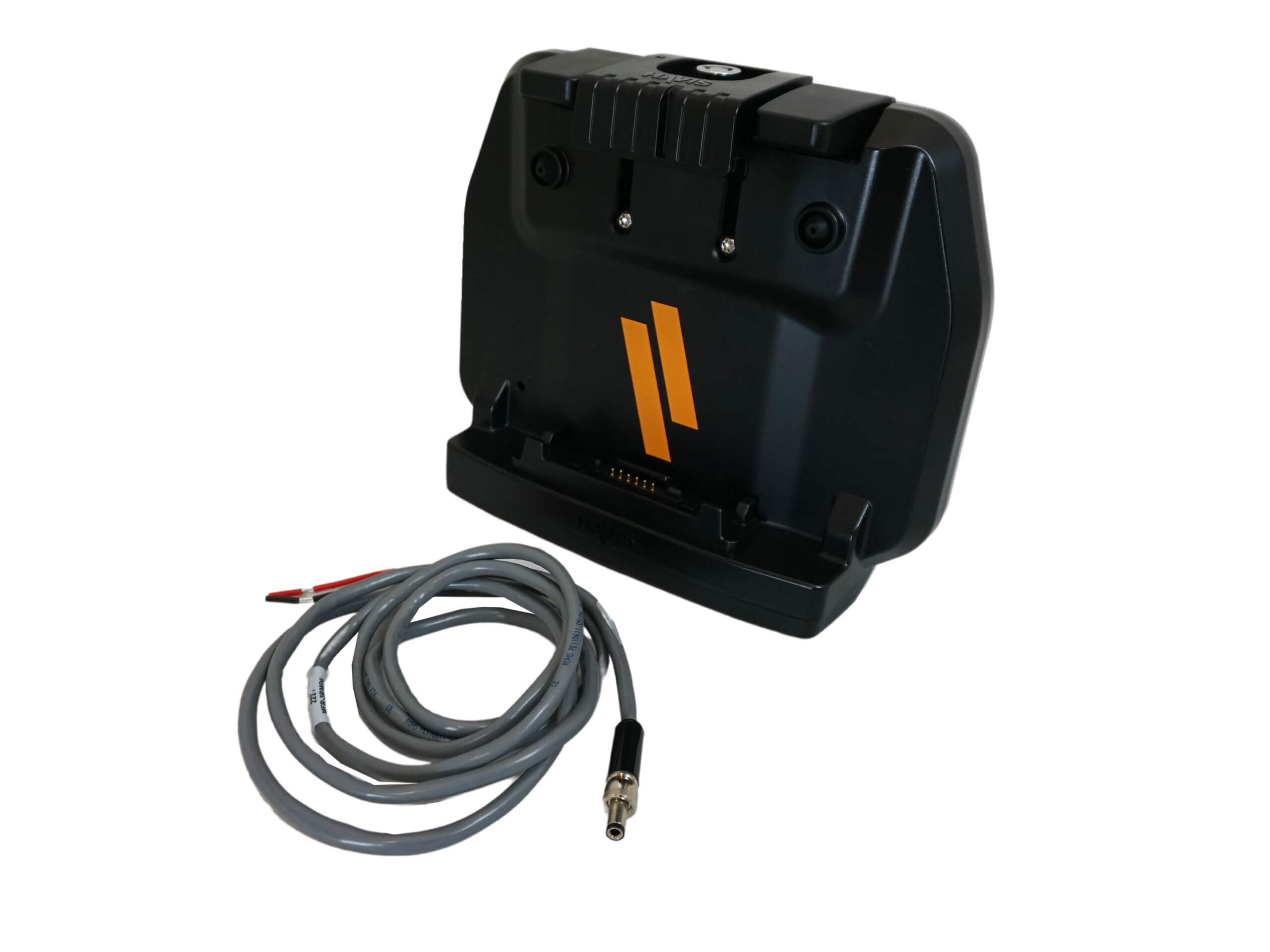

  • Internal isolated power supply (18-75V)
  • LED power indicator
  • One-handed docking & undocking

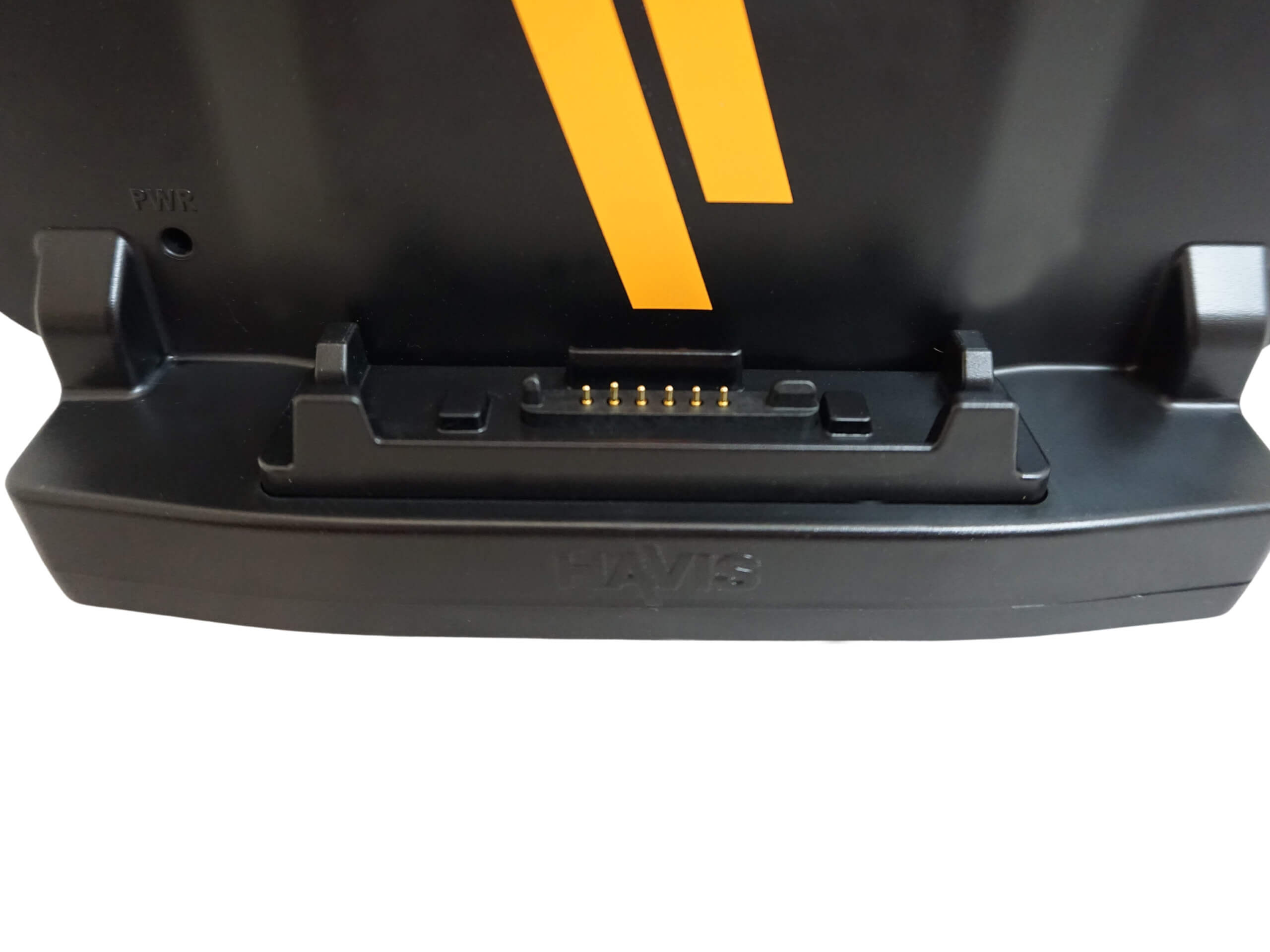

  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Provides access to critical buttons, ports, and bar code scanner when tablet is docked
  • Compact & lightweight
  • Compatible with attachable hand and shoulder straps
  • Integrated strain relief and cable routing features

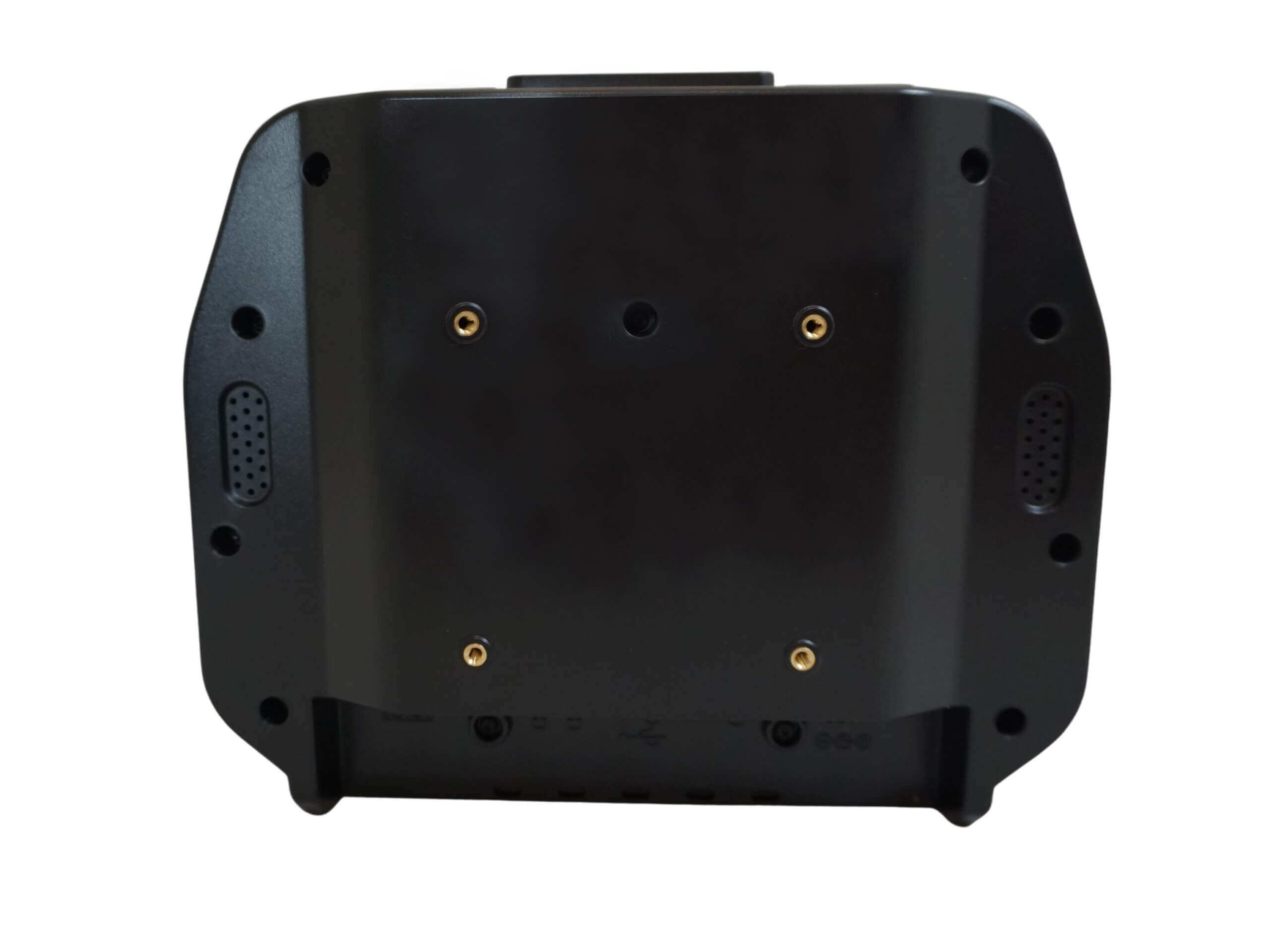

  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety

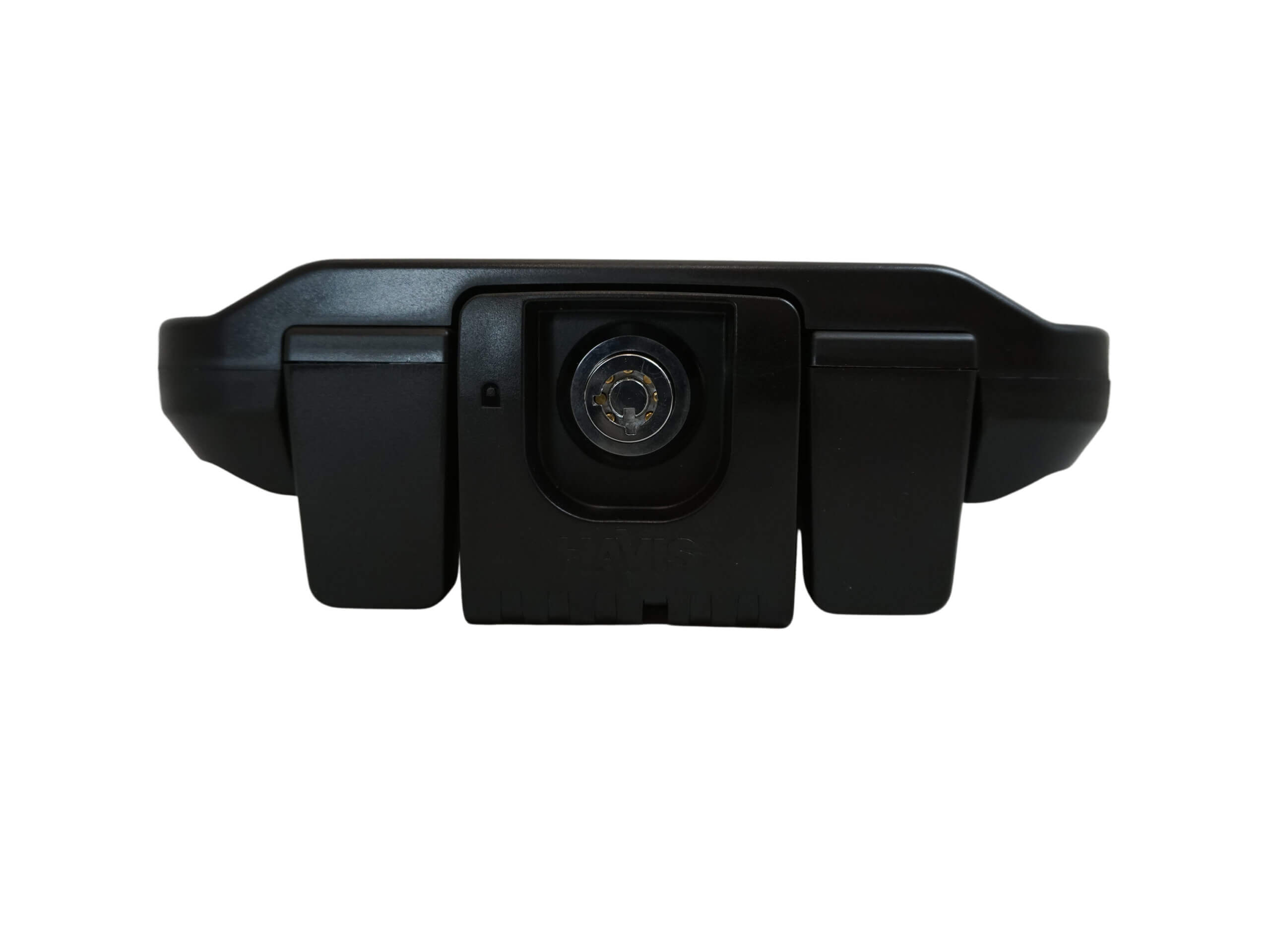

  • Keyed lock for added security
  • Made in the USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible Devices:Zebra ET40 and ET45 (both 8" and 10" devices with required, rugged boots)
Certifications:Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 50° C (-4° F to 122° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Port Replication:Standard: (1) USB2.0 port
Dimensions:8" Configuration Unlatched: 7.7" (196 mm) H 8.6” (219 mm) W 2.9” (74 mm) D 7.2” (183 mm) H Latched
10" Configuration Unlatched: 8.8" (253 mm) H 8.0” (219 mm) W 2.9” (74 mm) D 8.3” (211 mm) H Latched
Product weight: 1.86 lbs (0.85kg)
Gross weight:2.25 lbs

Application Gallery

Resources

Owner's Manual
Owner's Manual
Zebra ET4X 8” & 10” Tablet Docking Station Sales Sheet – Work Truck
Zebra ET4X 8” & 10” Tablet Docking Station Sales Sheet – Work Truck
Zebra ET4X 8” & 10” Tablet Docking Station Sales Sheet – Material Handling
Zebra ET4X 8” & 10” Tablet Docking Station Sales Sheet – Material Handling
Zebra ET4X 8” & 10” Tablet Docking Station Sales Sheet – Last Mile Delivery
Zebra ET4X 8” & 10” Tablet Docking Station Sales Sheet – Last Mile Delivery
Zebra ET4X 8” & 10” Tablet Docking Station Video
Zebra ET4X 8” & 10” Tablet Docking Station Video

Compatibility

Zebra ET40 and ET45
Zebra ET40 and ET45
