Features

  • Supports the Panasonic TOUGHBOOK 40 laptop in Public Safety, Federal, Work Truck, and other demanding environments

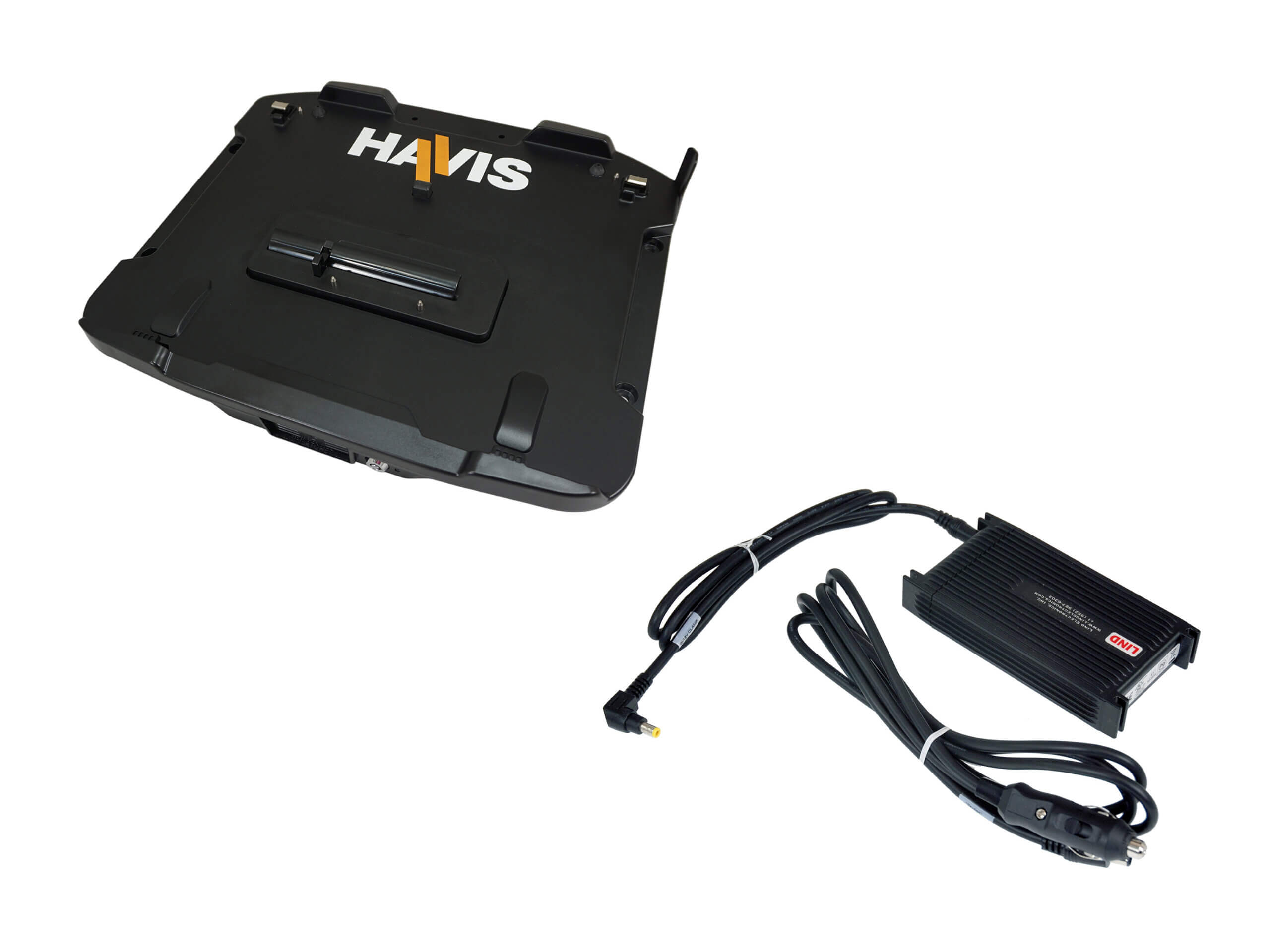

  • Includes LPS-103 LIND external power supply
  • Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • Quad Pass-Through Antenna Connection to support WiFi, GPS and 4G/5G cellular signals
  • Spring-loaded connector head ensures constant contact between docking station and computer
  • Retractable connector cover offers additional protection to connector head and antenna pins
  • Access to critical laptop buttons and ports when docked
  • Finger recesses for easy computer removal
  • Lightweight, durable and compact design

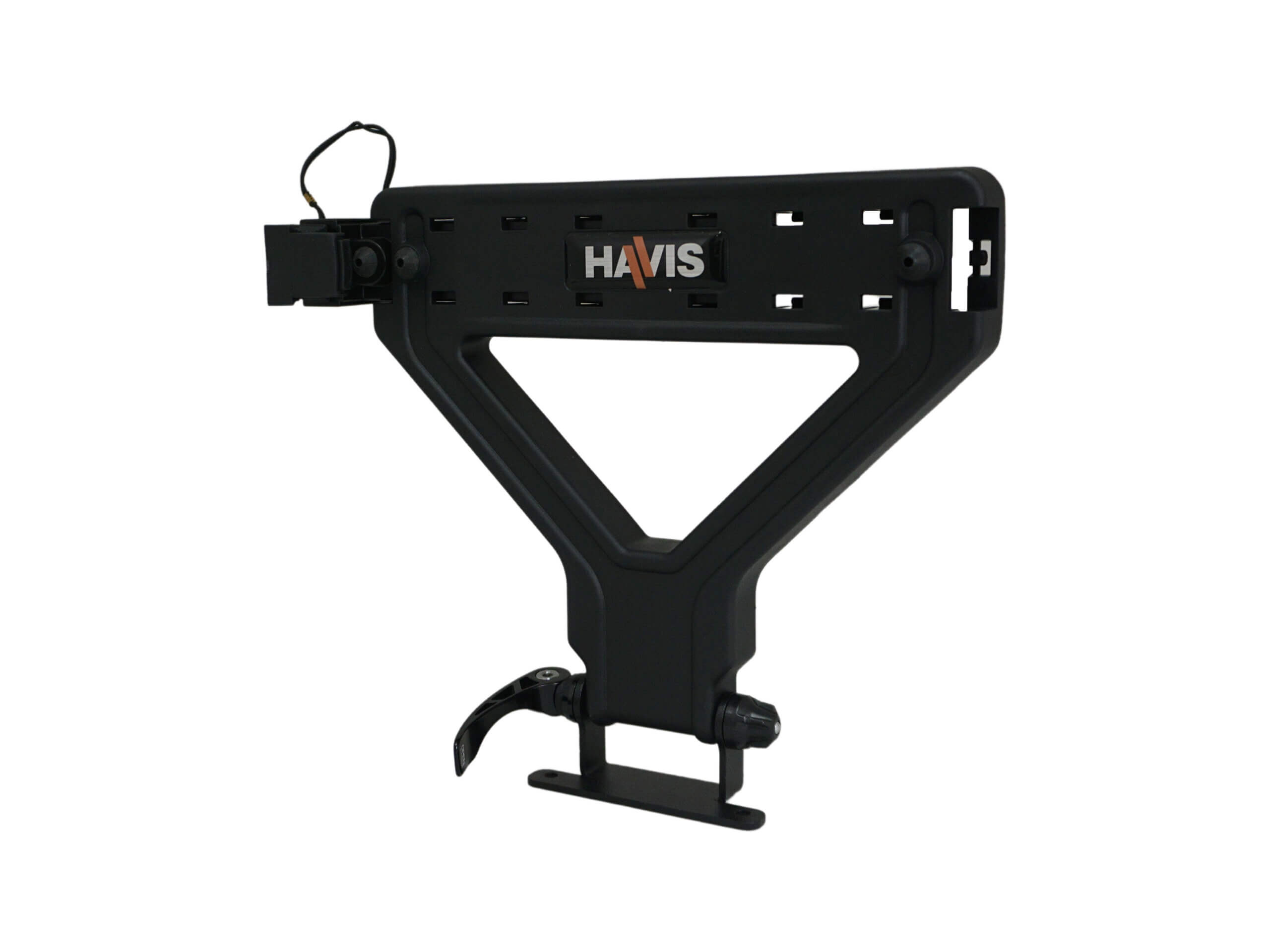

  • Compatible with screen support (DS-DA-423, sold separately)
  • Rounded edges for comfort & safety
  • Integrated cable management system
  • Keyed lock for theft deterrence
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer: Panasonic TOUGHBOOK 40
Dimensions: W 14.4" (36.6 cm) x D 12.3" (31.3 cm) x H 2.63" (6.7 cm)
Certifications: Vibration testing: mil-std 810H 514.5, Panasonic: Toughbook Certified, UL Safety Certified, crash test: sae J1455 30mph crash testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles

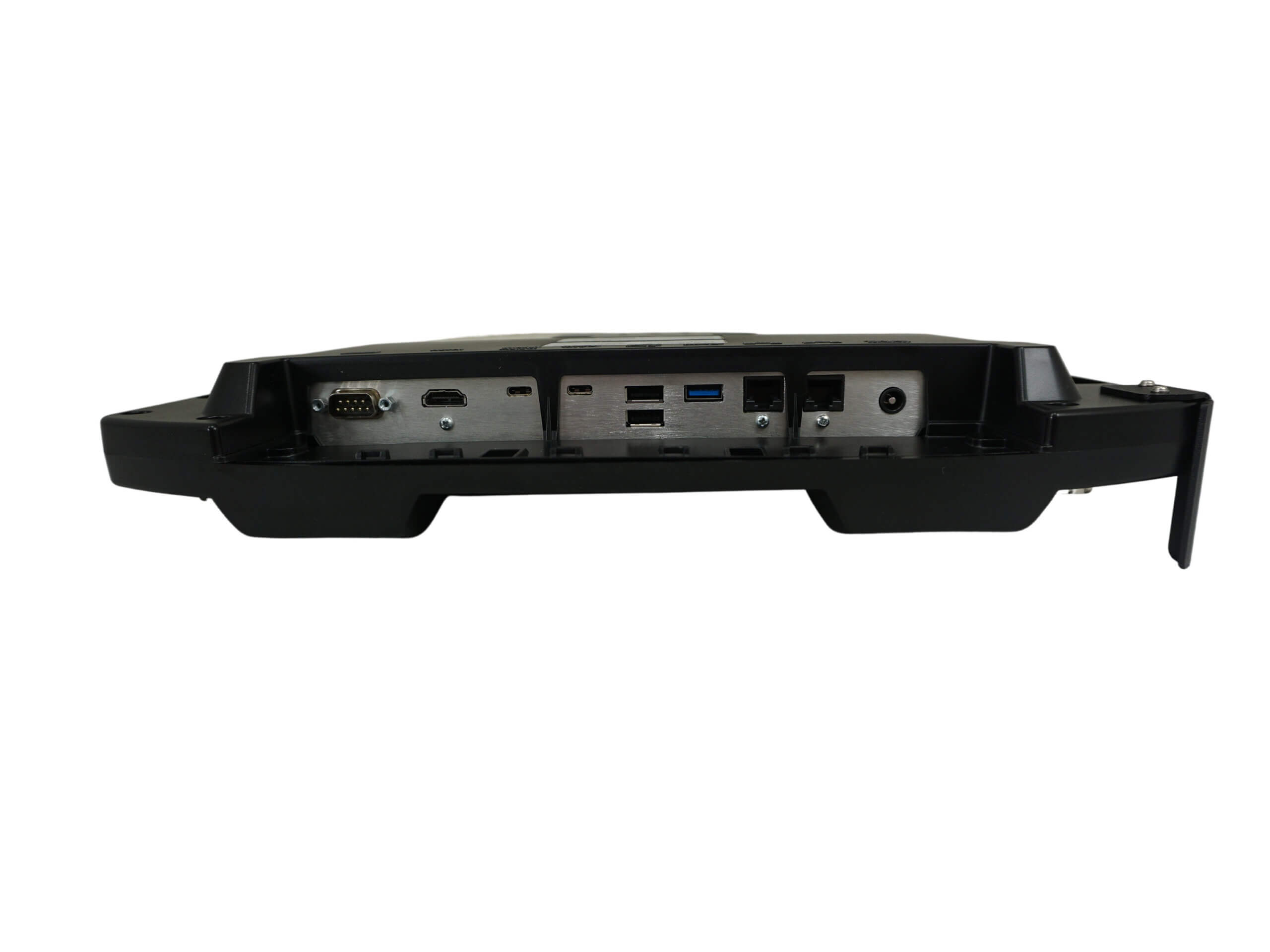

Connectivity:Serial: DB9 (9-Pin) connection (1), USB: fully-powered USB 2 Type A (2), USB: fully-powered USB 3 Type A (1), USB: fully-powered USB 2 Type C (1, front), USB: fully-powered USB 3 Type C (2), Ethernet: RJ45 Ethernet (2), HDMI (1), input voltage: 15.6V dc, Antenna: Quad Pass-Thru Connection (SMA)
Product Weight:6.25 lb (2.5 kg)
Gross weight:9 lbs

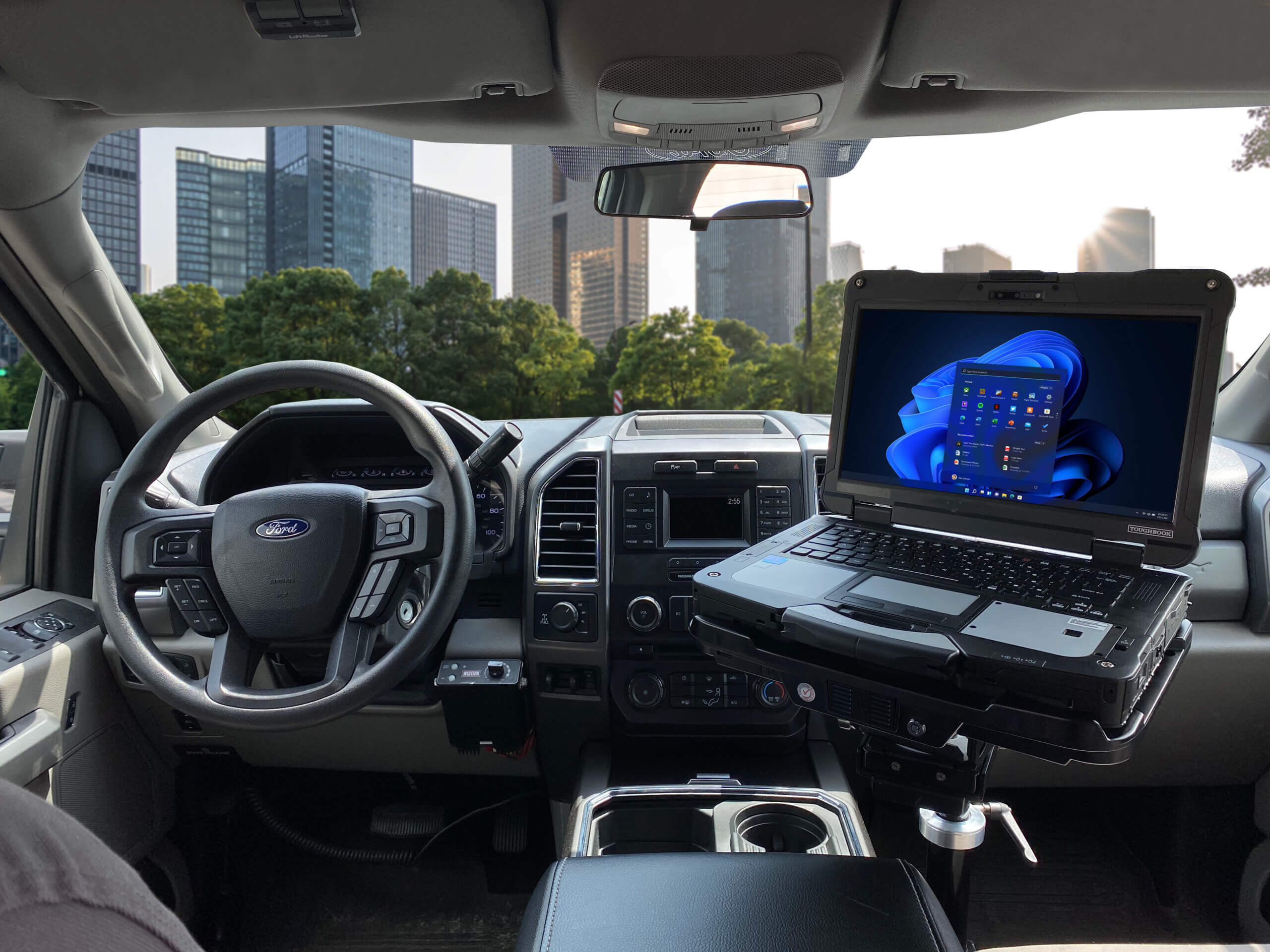

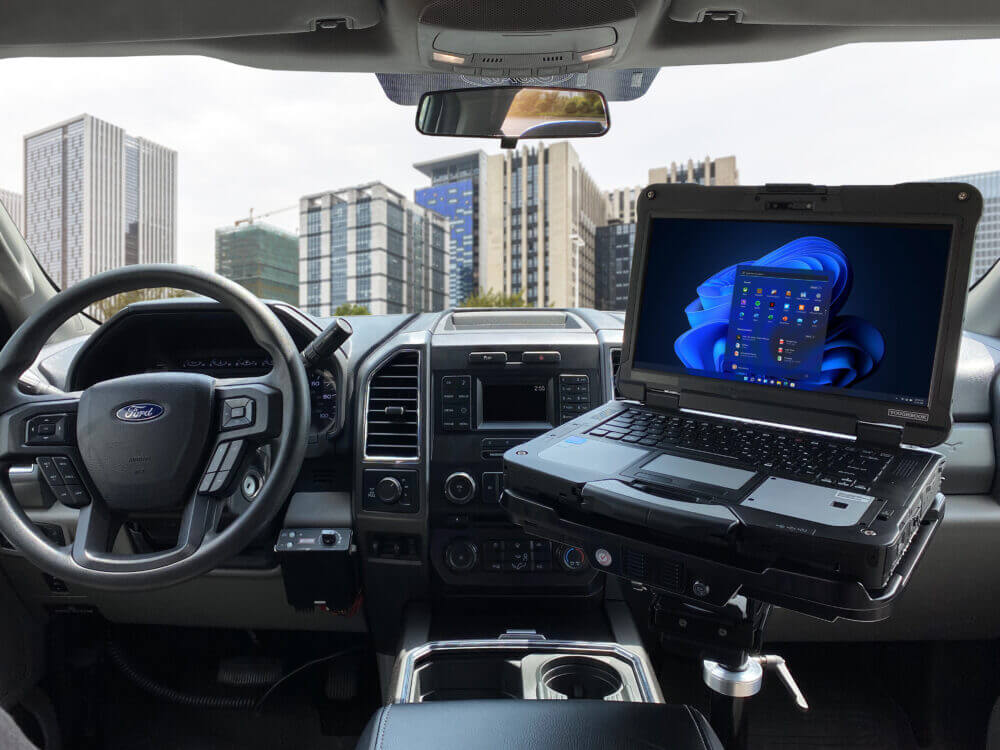

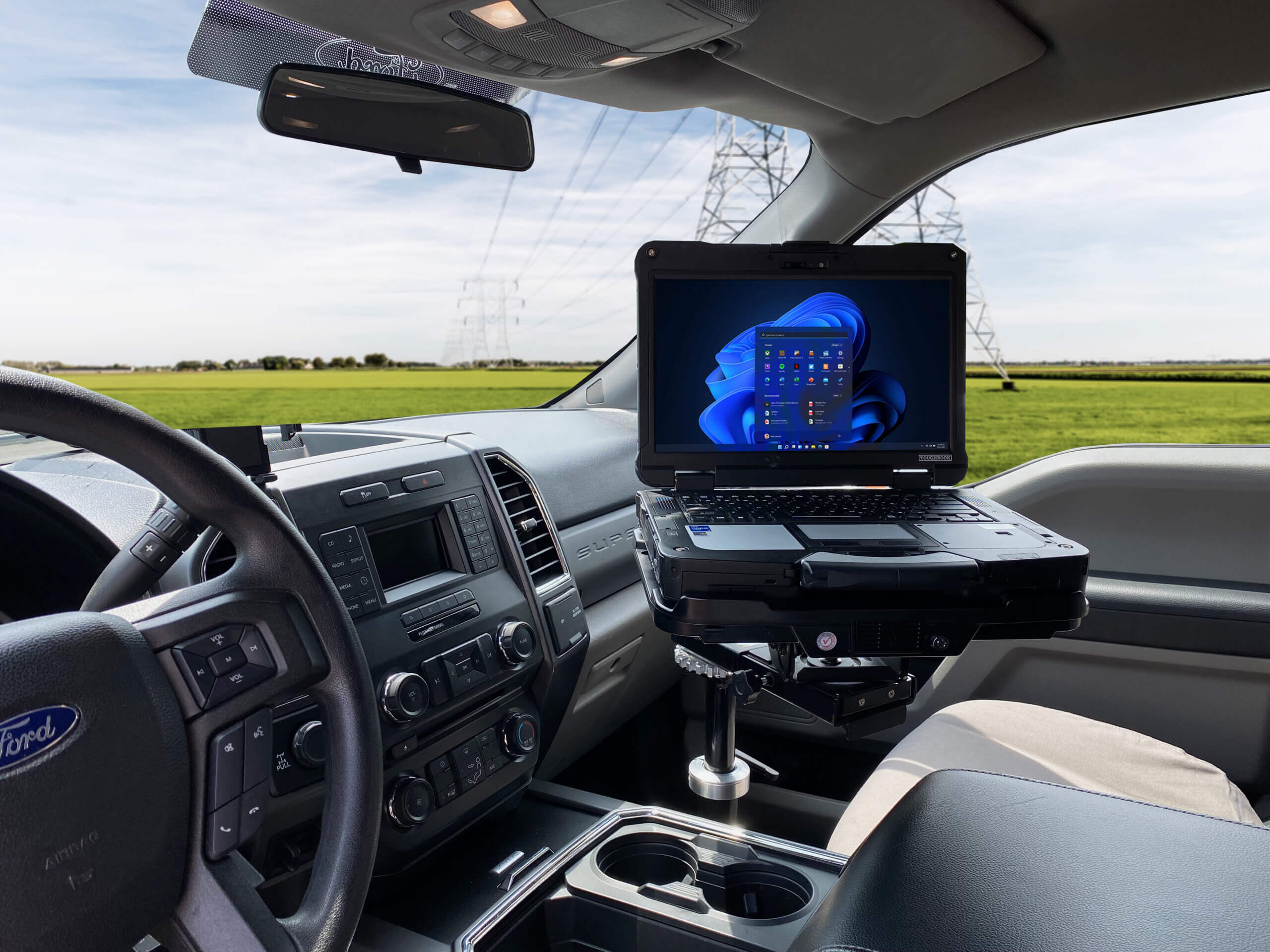

Application Gallery
