Features

  • Supports Dell's Latitude 7230 & 7030 Rugged Extreme Tablets in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
  • Docking station pairs with TA-100 series tablet adapter to provide IP65 rating while maintaining device mobility
  • Havis-designed port replication to connect multiple mission-critical peripherals
  • LED power indicator
  • IP65 sealed I/O panel accomodates a variety of cable diameters
  • One-handed docking & undocking
  • External 100W power supply required
  • Provides access to all buttons, ports, and bar code scanner both docked and undocked
  • Compatible with Dell 7230 tablet accessories including hard and soft handles and shoulder strap
  • Compact & lightweight
  • Integrated cable management system

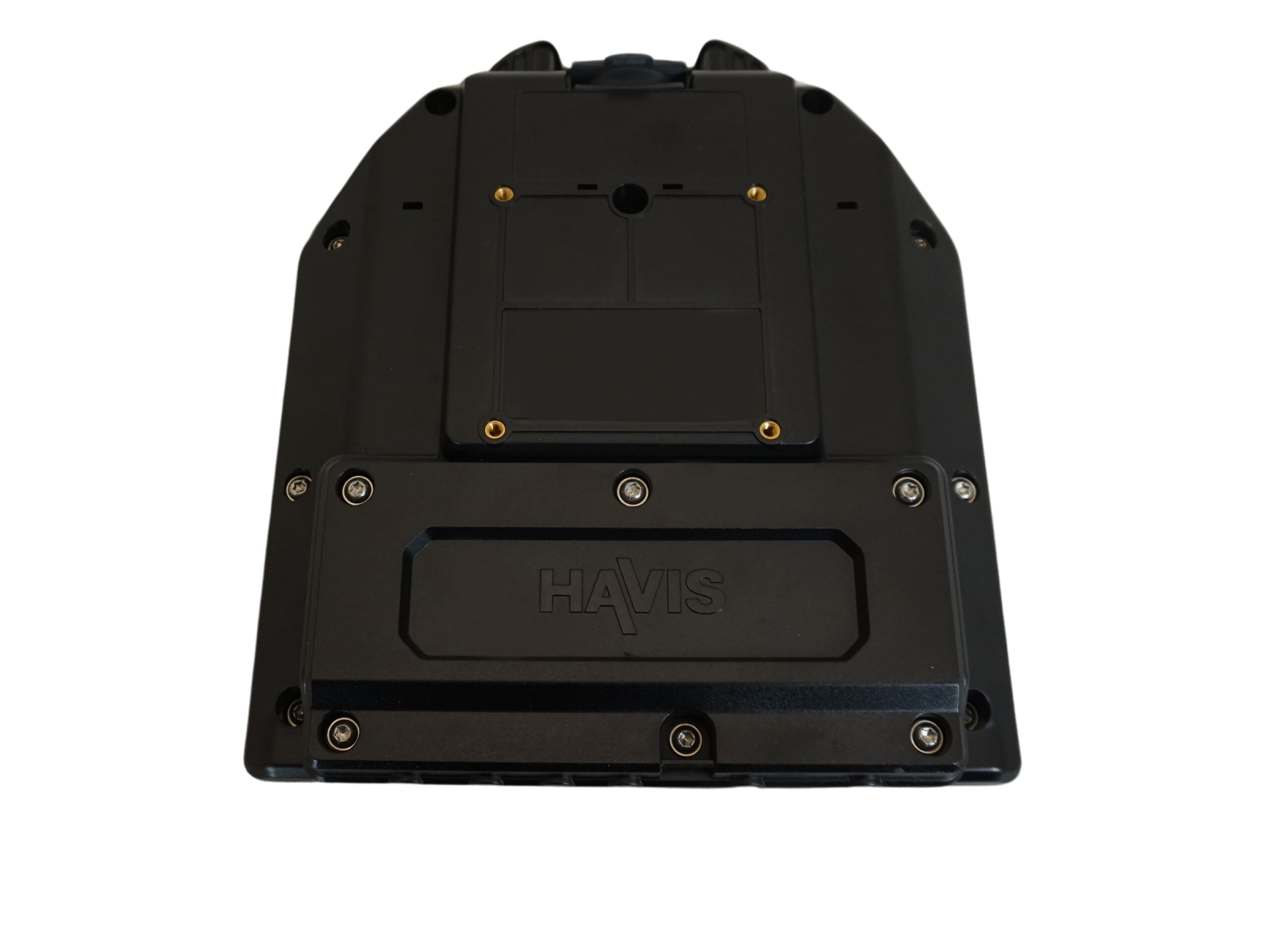

  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety

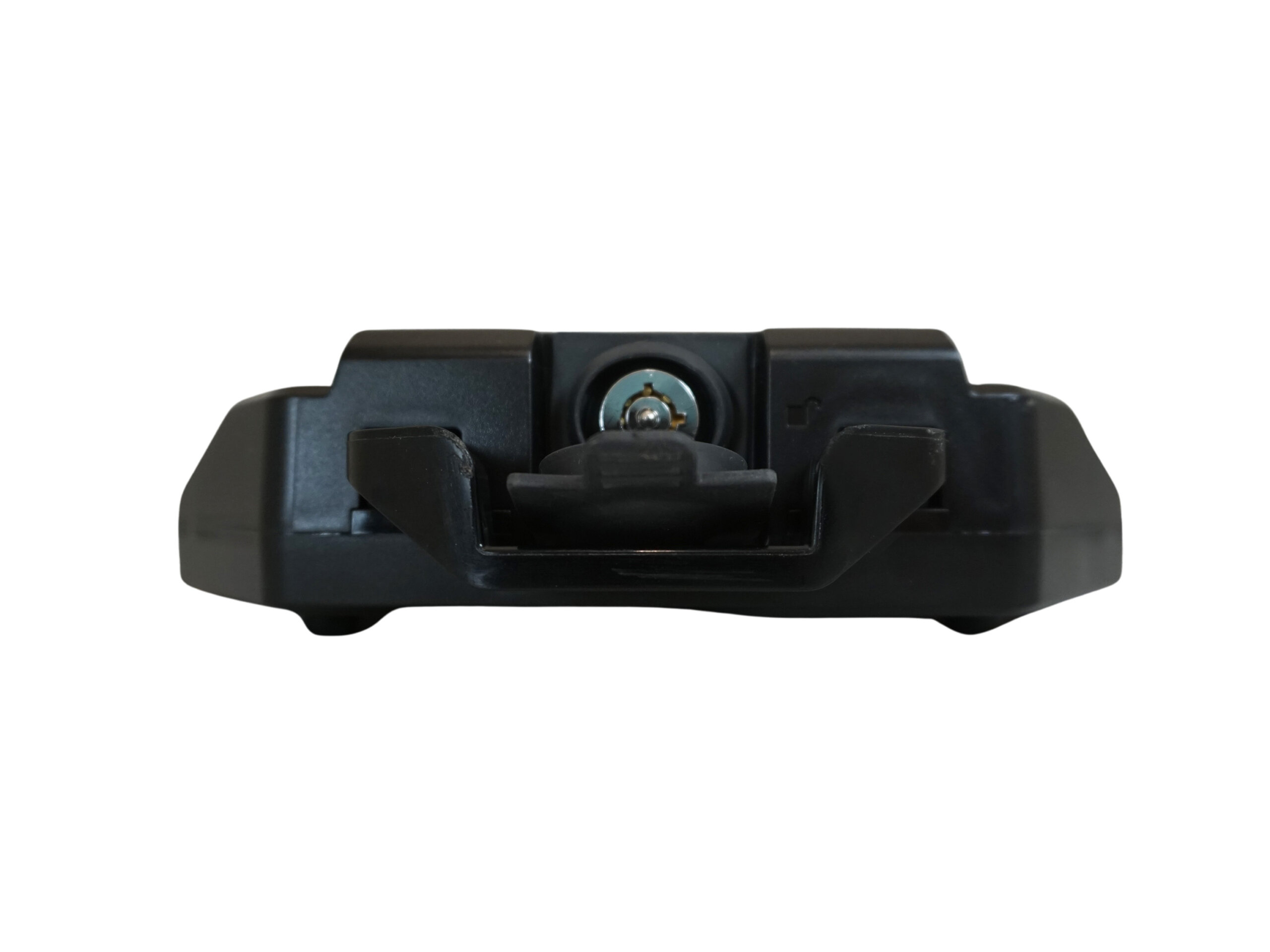

  • Keyed lock under sealed cover for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Dell Latitude 7230 & 7030 Rugged Extreme Tablets
Certifications: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 55° C for DOCK ONLY (-20° F to 131° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F); Ingress Protection Rating: IP-65
Port Replication:(1) RJ45 Ethernet, (3) USB2.0 Type A, (1) DB9 Serial - 5V powered, (1) DC In port
Dimensions:8.43" (21.41cm) W x 9.59" (24.36cm) H x 2.06" (5.23cm) D
Product weight:1.96 lbs (0.89 kg)
Gross weight:2.5 lbs

Resources

Dell Brochure
Dell Brochure
Download share
Dell Speeds & Feeds
Dell Speeds & Feeds
Download share
PKG-DELL-1000 Sales Sheet - Material Handling
PKG-DELL-1000 Sales Sheet - Material Handling
Download share
PKG-DELL-1200 Sales Sheet - Material Handling
PKG-DELL-1200 Sales Sheet - Material Handling
Download share
Owner's Manual
Owner's Manual
Download share
3D Rendering
3D Rendering
Download share

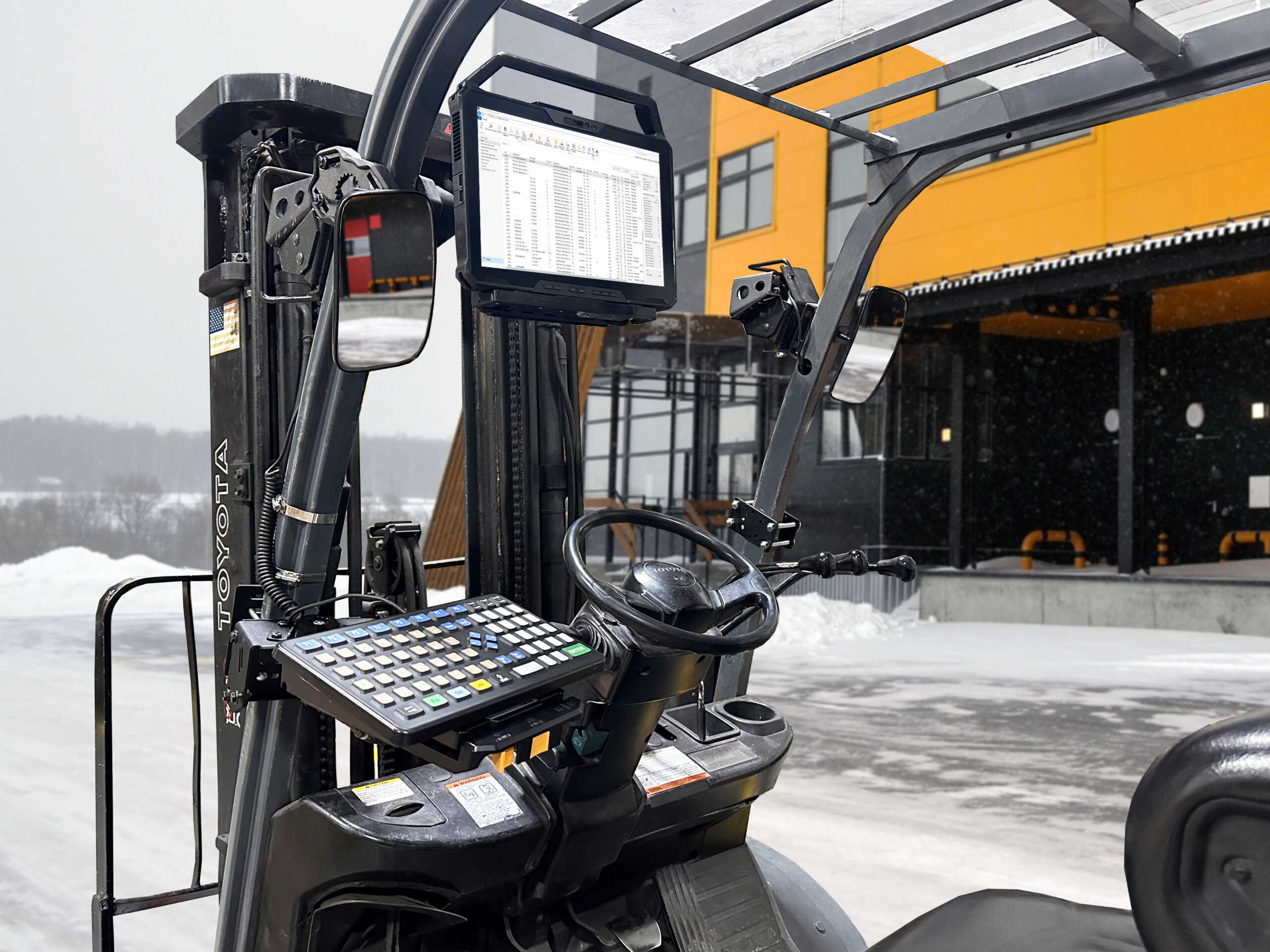

Application Gallery

product galleryproduct gallery

Compatibility

Dell Latitude 7230 & 7030 Rugged Extreme Tablets
Dell Latitude 7230 & 7030 Rugged Extreme Tablets
