Features

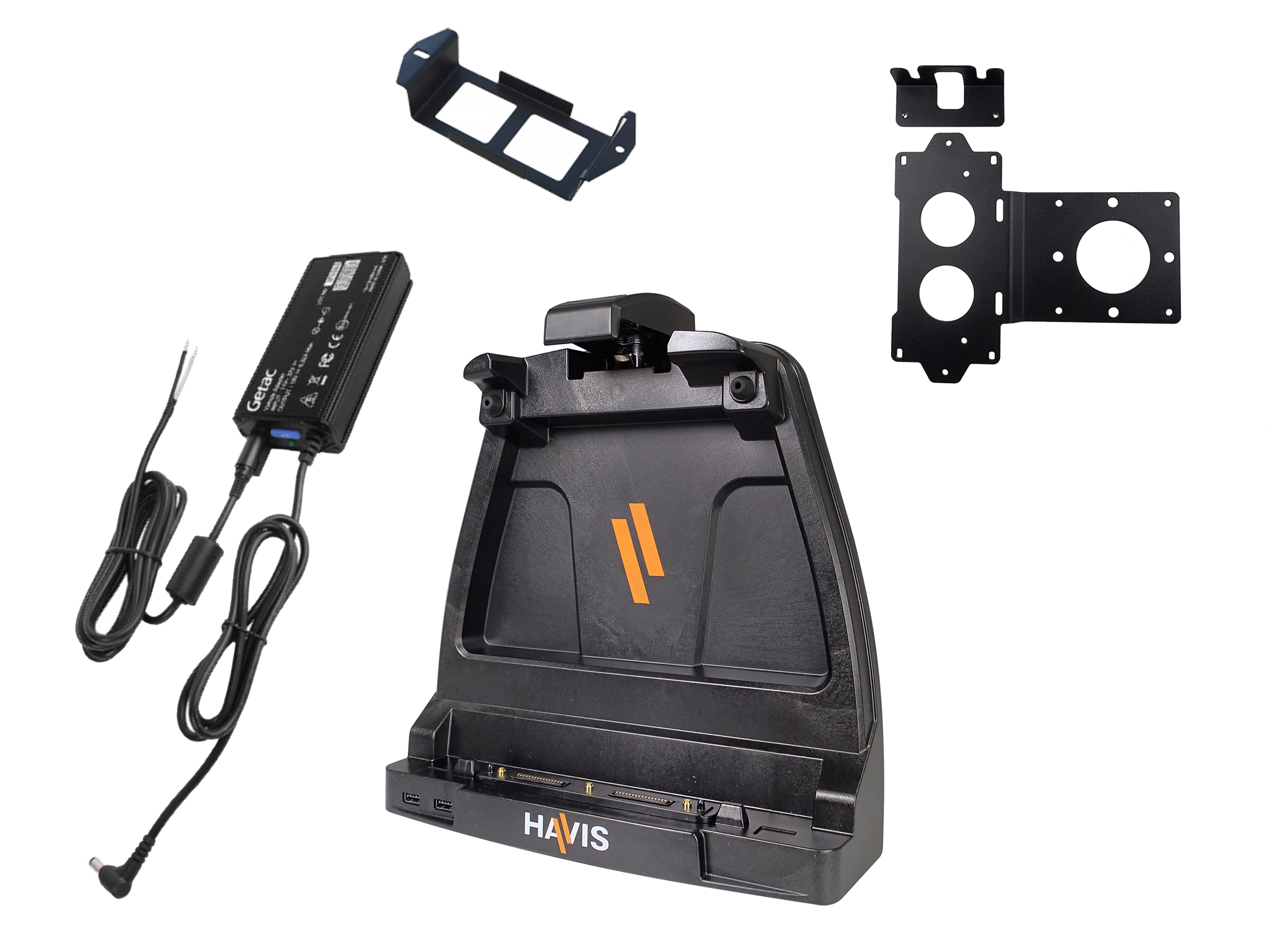

  • Package - docking station with LPS-140-BW (120W Getac vehicle power supply with LPS-208) and LPS-211 (multipurpose bracket) for Getac K120 tablet

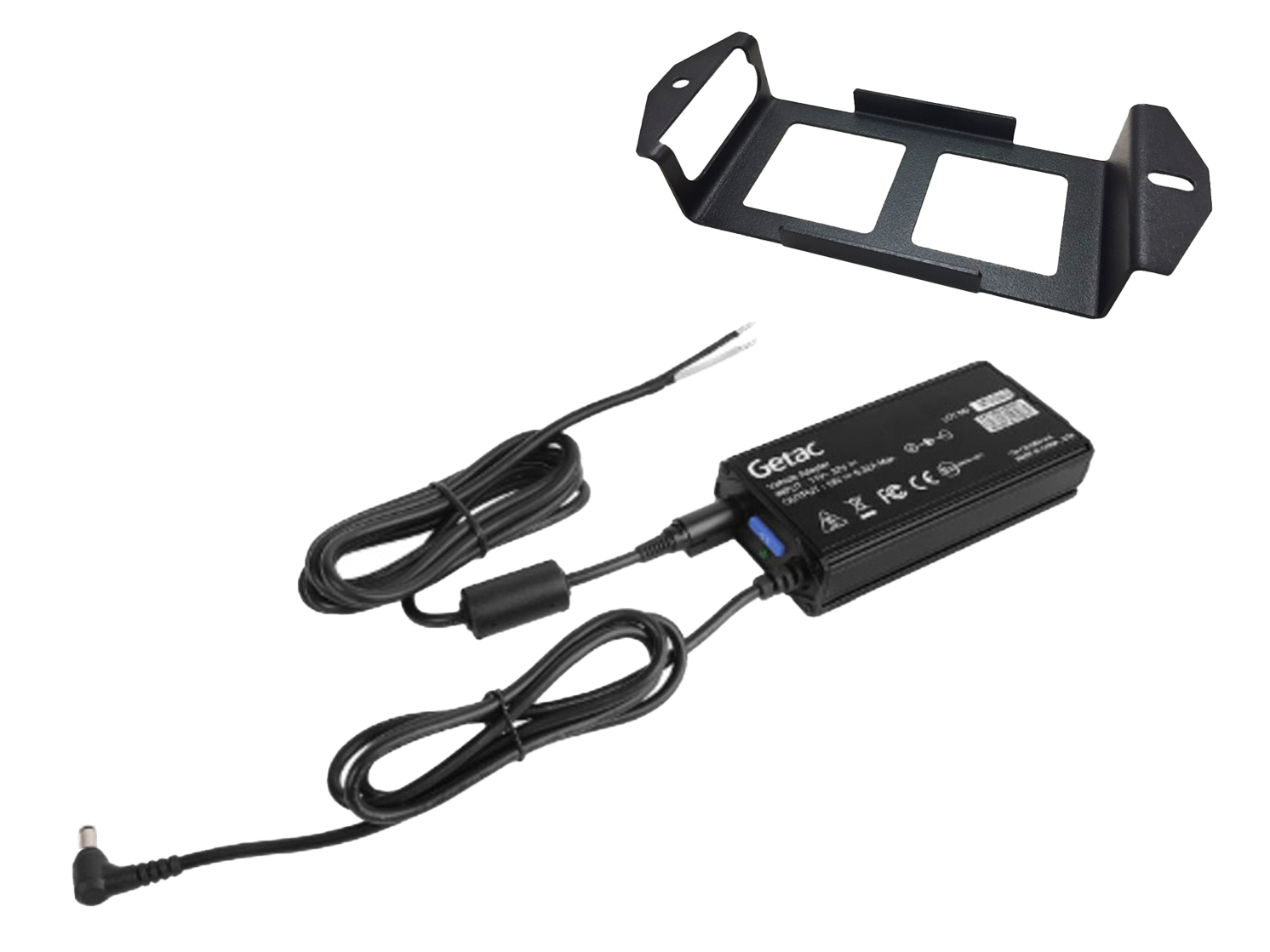

  • Includes LPS-140-BW power supply with LPS-208 panel mount bracket for convenient mounting of the power supply
  • Includes LPS-211 accessory bracket for mounting the power supply directly to the docking station
  • Low profile design maximizes available space inside of vehicle
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
  • Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
  • Lock and key supplied for peace of mind theft deterrence

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Getac K120 tablet
Dimensions:11.7" l, 11.95" w, 3.9" h (297.2mm x 303.5mm x 99.1mm)
Certifications:

Vibration Testing: MIL-STD 810H 514.8
Crash test: SAE J1455 30mph Crash Testing
Cycle test: latch handle & docking connectors mechanism, 30,000 cycles
Environmental testing: Hot/Cold operational & storage
Thermal shock
Bump testing

Connectivity:USB: fully-powered USB 2.0 (3 total - 2 front-facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1)
Dock input power:19V DC
Docking station net weight:3.75 lbs (1.70 kg)
Docking station product weight:5.27 lbs (2.39 kg)
Product weight:7.25 lbs (3.29 kg)
Gross weight:4 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share
Parts Breakdown (PDF)
Parts Breakdown (PDF)
Download share
Getac Brochure
Getac Brochure
Download share
Getac Speeds & Feeds
Getac Speeds & Feeds
Download share
Getac Speeds & Feeds - French
Getac Speeds & Feeds - French
Download share
Getac Speeds & Feeds - Spanish
Getac Speeds & Feeds - Spanish
Download share

Compatibility

Getac K120 tablet
Getac K120 tablet
