Features

  • Compatible with the Getac UX10 10-inch tablet
  • Ensures portable performance in the most demanding environments like public safety, utility services, material handling, industrial manufacturing and more
  • Includes LPS-140-BW power supply with LPS-208 panel mount bracket for convenient mounting of the power supply
  • Includes LPS-211 accessory bracket for mounting the power supply directly to the docking station
  • Preserves access to tablet's key features like control buttons, ports, front-facing camera, and stylus while tablet is docked
  • Supports a variety of Getac accessories like rotating hand strap, hard handle, RFID reader, smart card reader, and extended battery
  • One-handed docking for easy insertion and removal of tablet
  • Bottom-access port replication with integrated strain relieving features to minimize the footprint while providing simple, safe, and secure connectivity to essential peripherals
  • Integrated VESA 75mm mounting pattern
  • Ultra-rugged, lightweight and low profile design maximizes available space inside of vehicle
  • Rounded corners and edges to maximize occupant safety in accidents and airbag deployment, in addition to daily use and operation of docking station
  • Lock and key supplied for peace of mind theft deterrence
  • 3 year limited standard warranty; enhanced protection plan options available
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Docking station dimensions:9.7" (24.5 cm) x 11.1" (28.3 cm) x 3.0" (7.6 cm)
Docking station certifications:

Vibration Testing: MIL-STD 810H 514.8
Crash test: SAE J1455 30mph Crash Testing
Cycle test: latch handle & docking connectors mechanism 30,000 cycles
CE, RoHS

Connectivity includes:serial: DB9 (9-Pin) connection (1), USB: fully-powered USB 2.0 (2), fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), input voltage: 19V DC, antenna: triple high gain (SMA connectors)
Docking station weight:3.00 lbs (1.36 kg)
Gross weight:3.5 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Download share

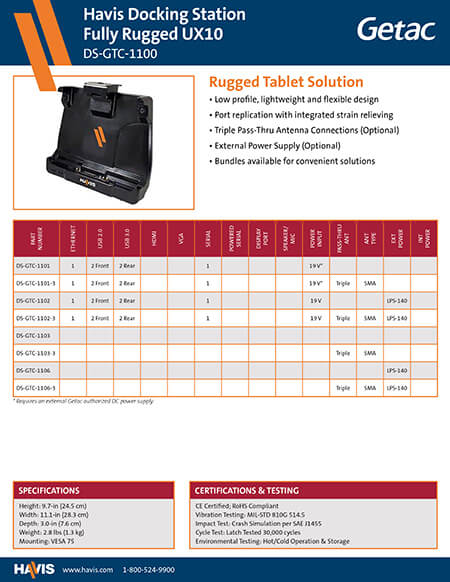

Parts Breakdown (PDF)
