Features

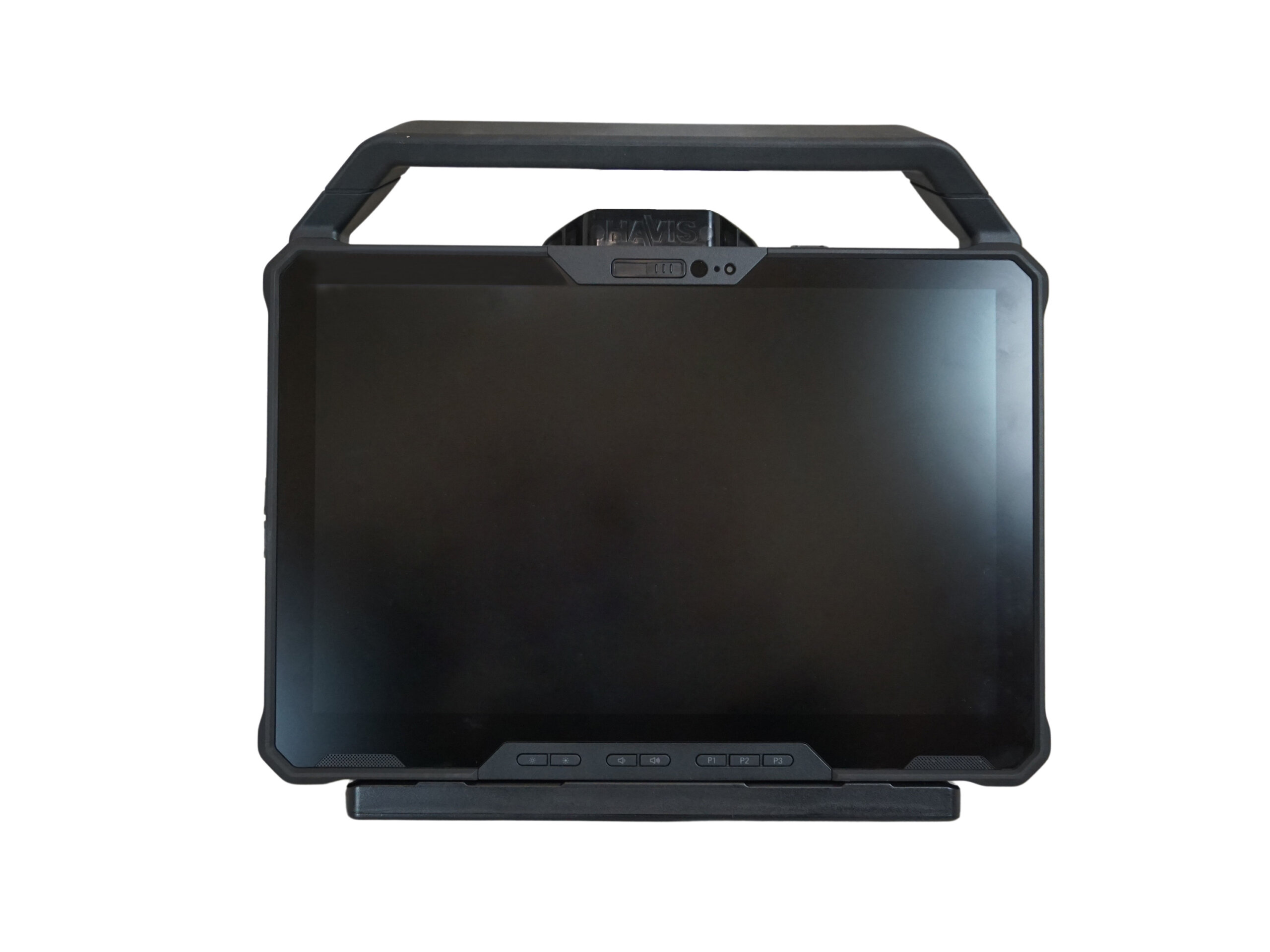

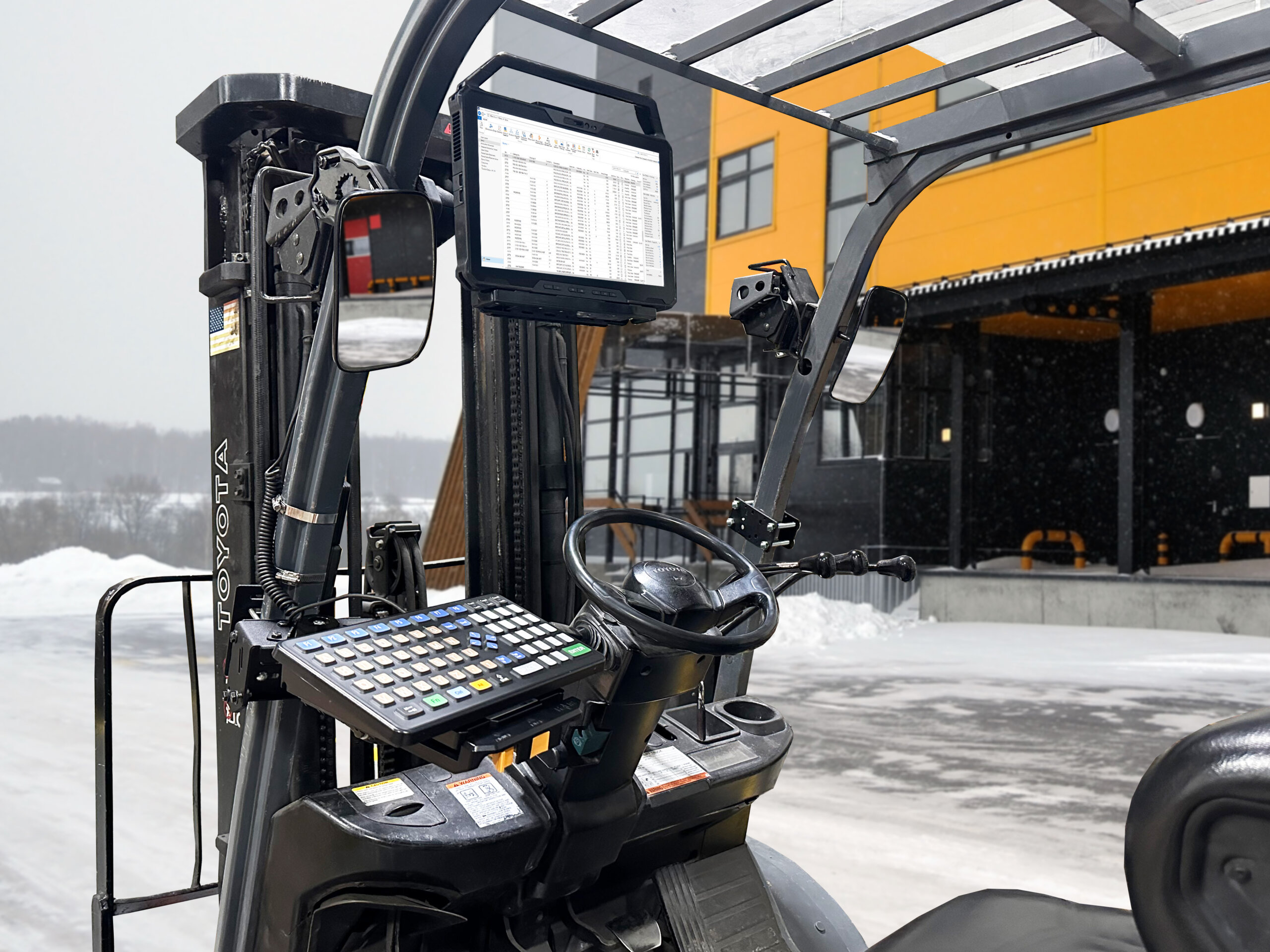

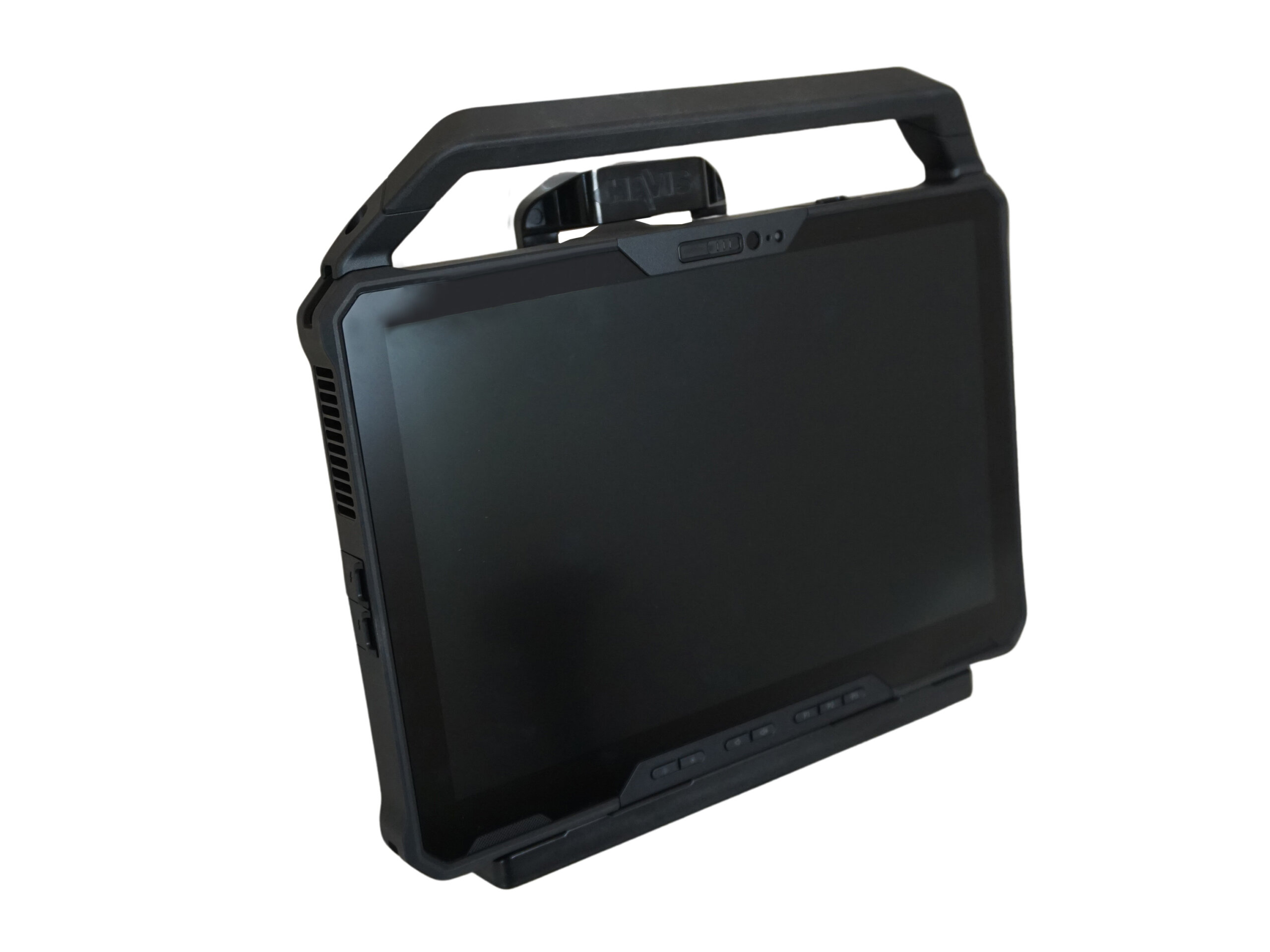

  • Supports Dell's 12” Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments

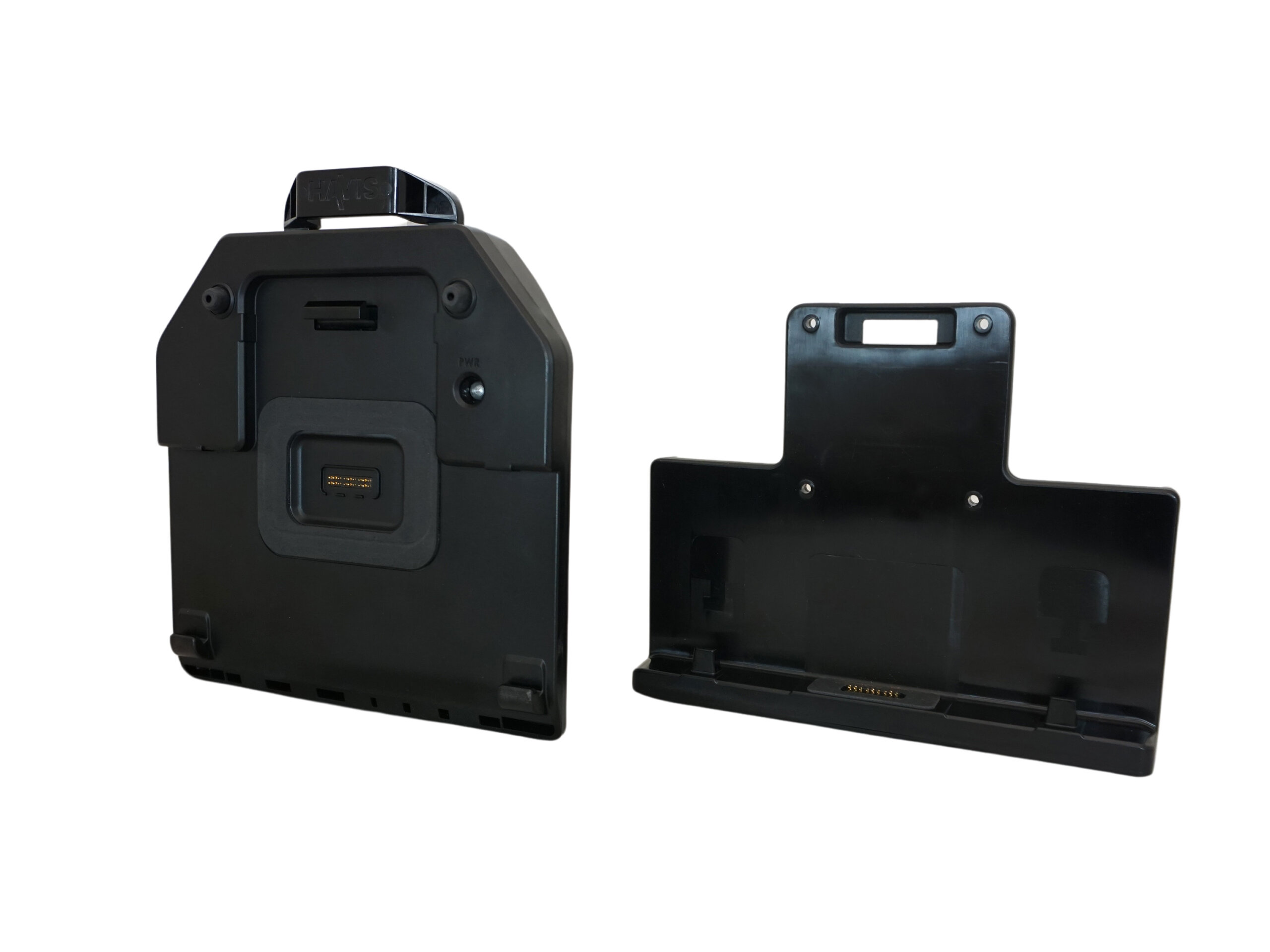

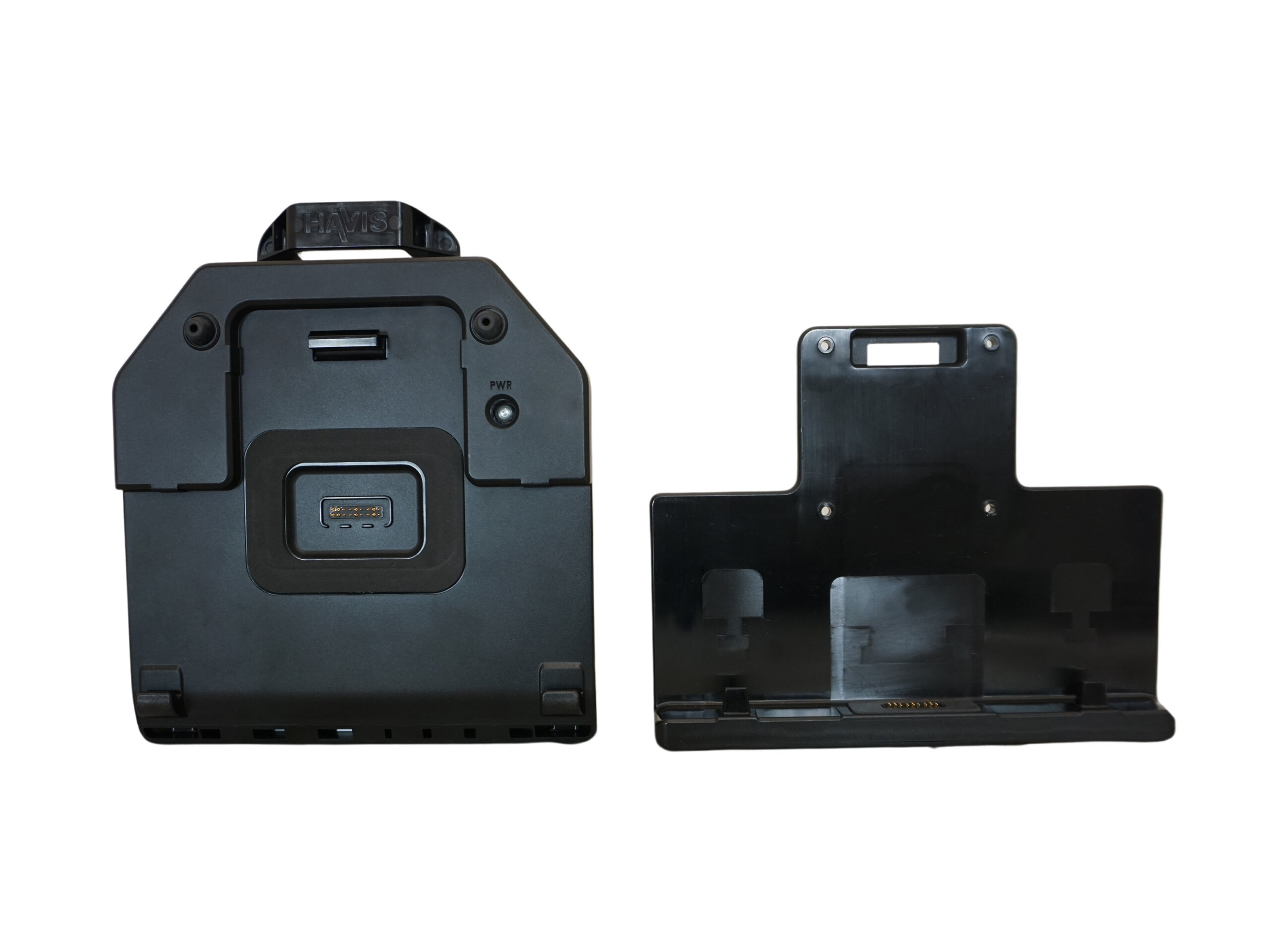

  • Unique two-piece design provides IP65 rating while maintaining device mobility
  • Havis-designed port replication to connect multiple mission-critical peripherals
  • LED power indicator
  • IP65 sealed I/O panel accomodates a variety of cable diameters
  • One-handed docking & undocking
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Features an internal, non-isolated power supply (9-36V)

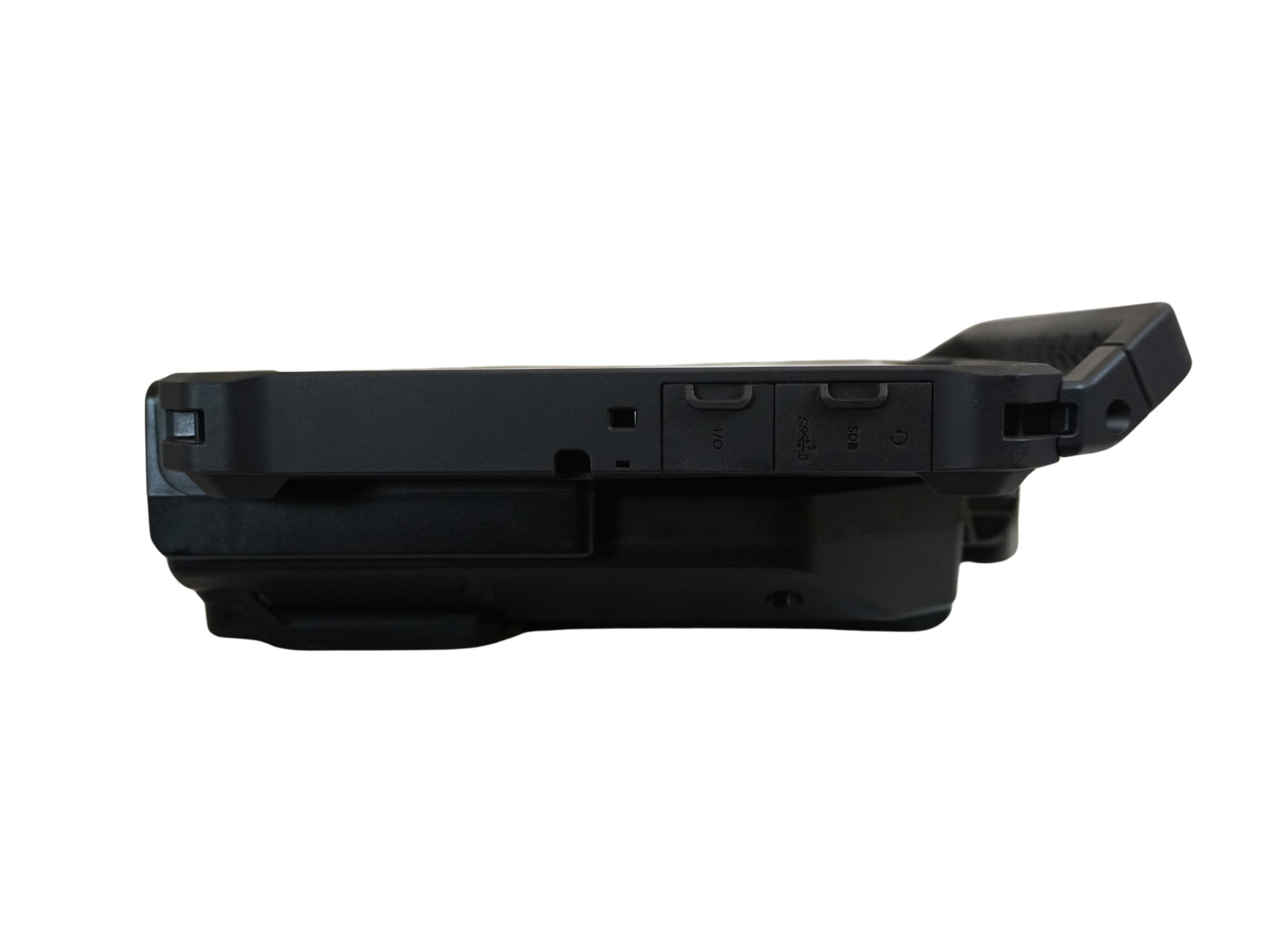

  • Provides access to all buttons, ports, and bar code scanner both docked and undocked
  • Compatible with Dell 7230 tablet accessories including hard and soft handles and shoulder strap
  • Compact & lightweight
  • Integrated cable management system
  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Keyed lock under sealed cover for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer:Dell 12” Latitude 7230 Rugged Extreme Tablet
Certifications: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 55° C for DOCK ONLY (-20° F to 131° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F); Ingress Protection Rating: IP-65
Port Replication:(1) RJ45 Ethernet, (3) USB3.0 Type A, (1) DB9 Serial - 5V powered, (1) DC In port
Dimensions:Height: 9.64-in (24.47 cm) Width: 9.35-in (23.75 cm) Depth: 3.20-in (8.13 cm)
Product weight:2.82 lbs (1.28 kg
Gross weight:2.25 lbs

Resources

Dell Brochure
Dell Speeds & Feeds
PKG-DELL-1000 Sales Sheet - Material Handling
Owner's Manual

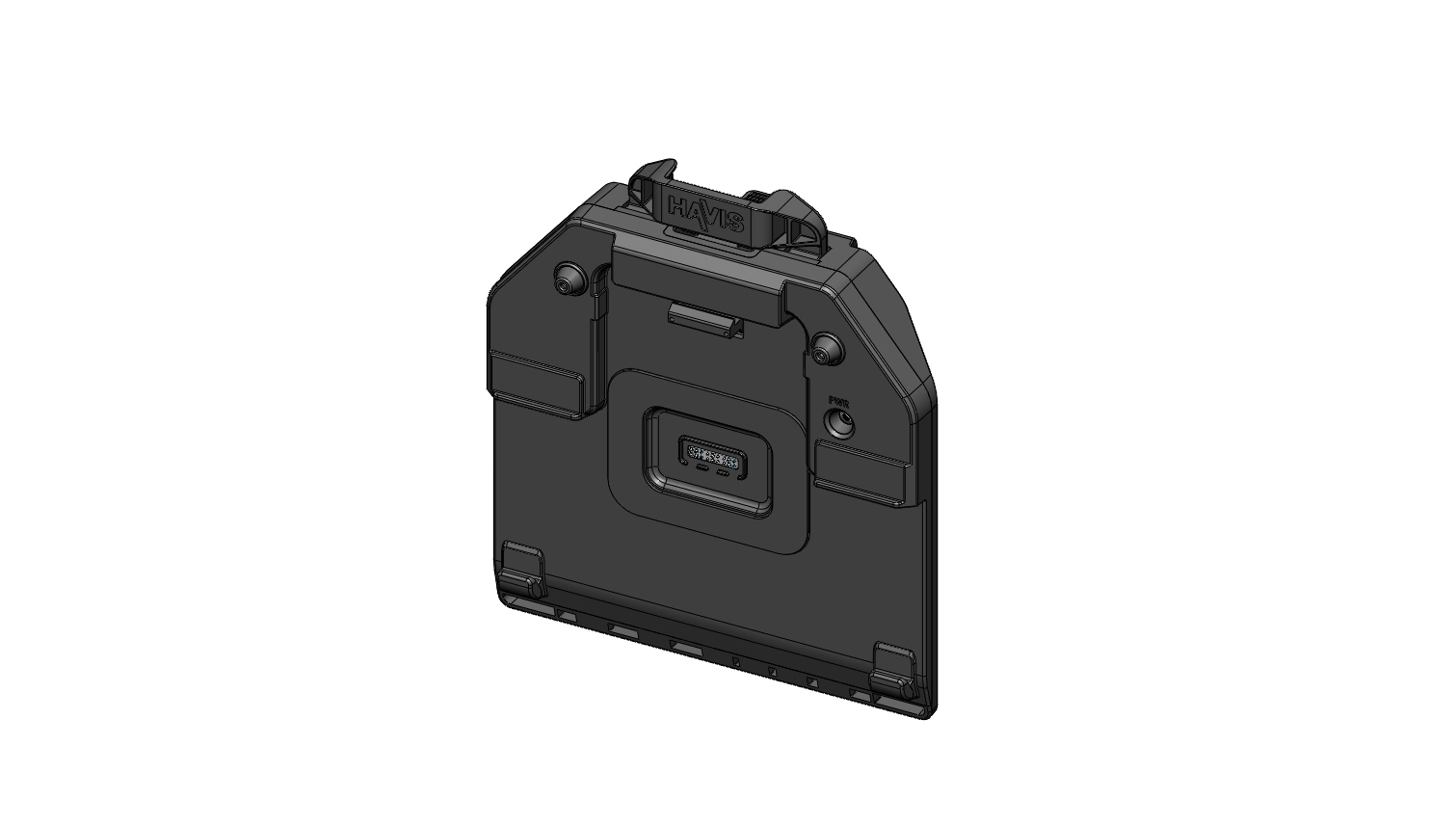

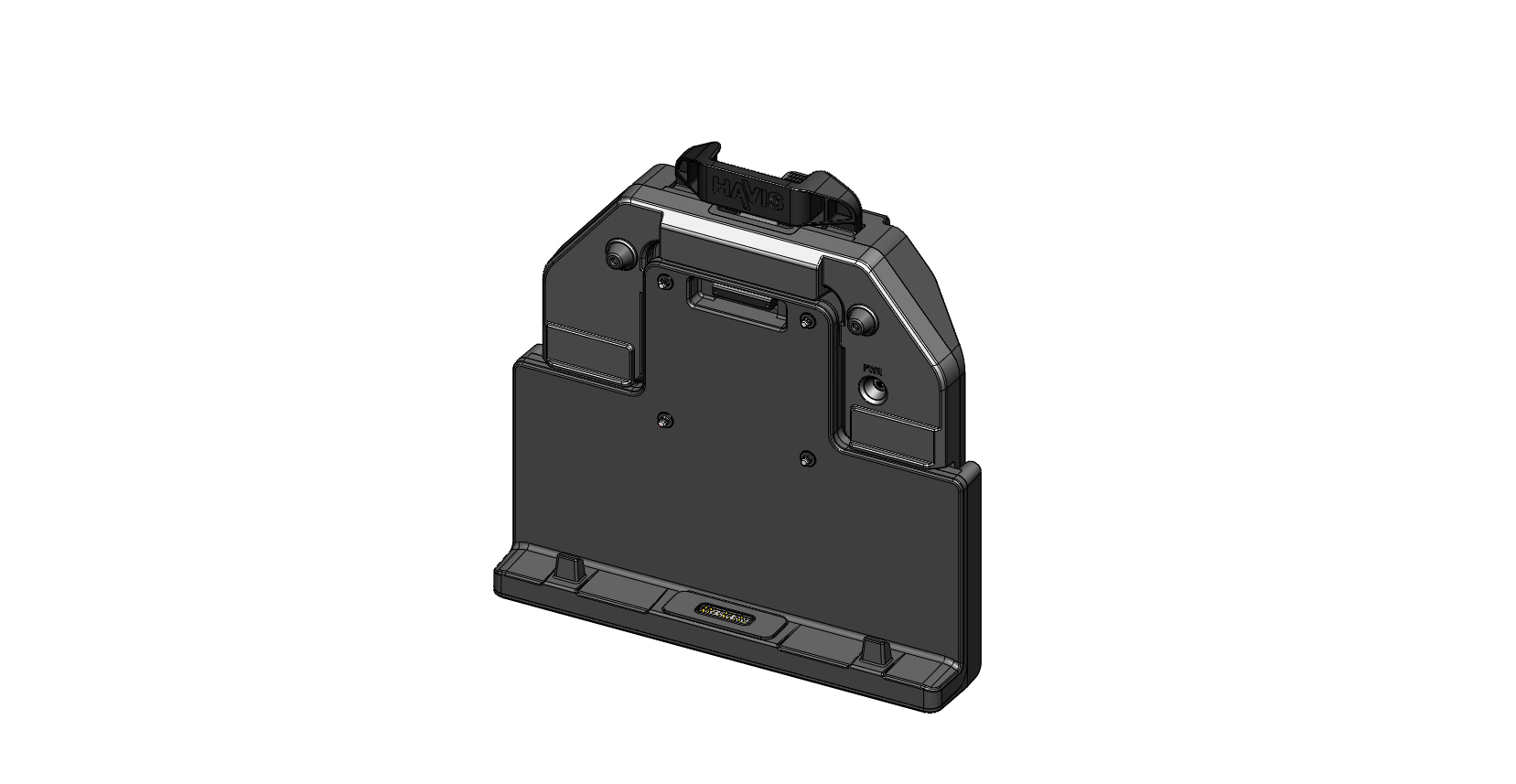

3D Rendering
Dell 12
Dell 12" Latitude 7230 & Dell 10" Latitude 7030 Rugged Extreme Tablets Animation Video

Application Gallery

Compatibility

Dell 12” Latitude 7230 Rugged Extreme Tablet
Dell 12” Latitude 7230 Rugged Extreme Tablet
