Features

  • Supports Samsung Galaxy S24FE in Public Sector, Warehouse & Distribution, Energy & Utilities, Field Service, and other demanding environments

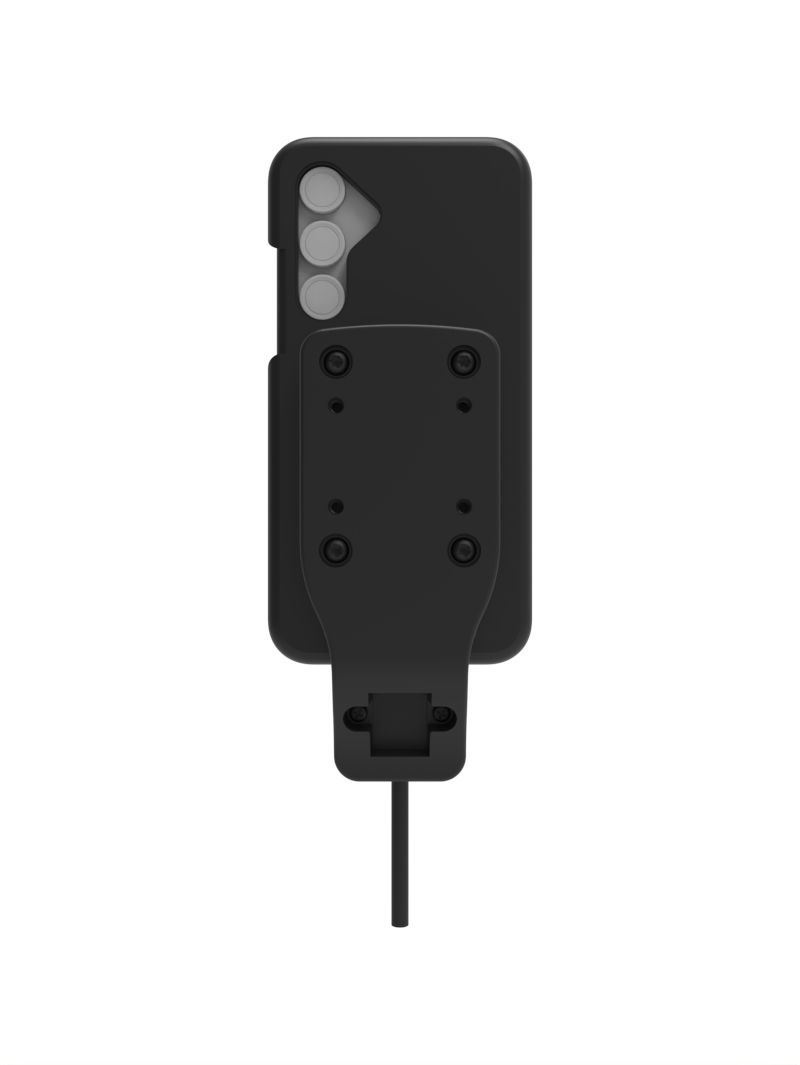

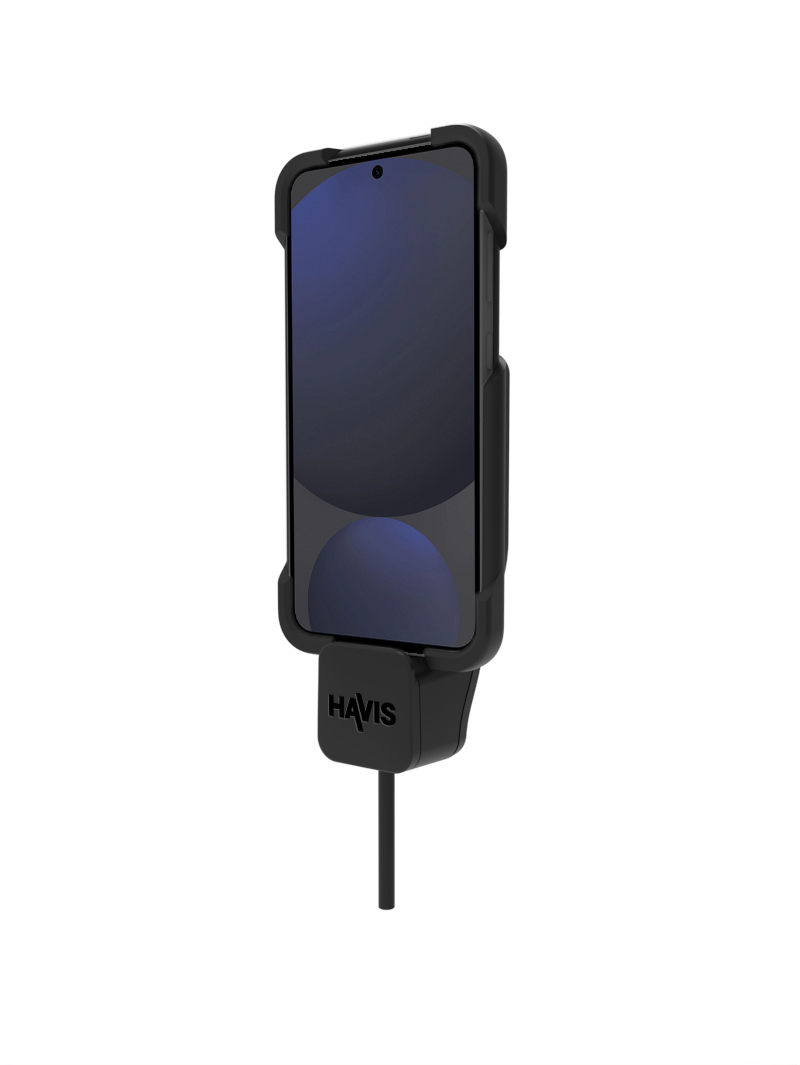

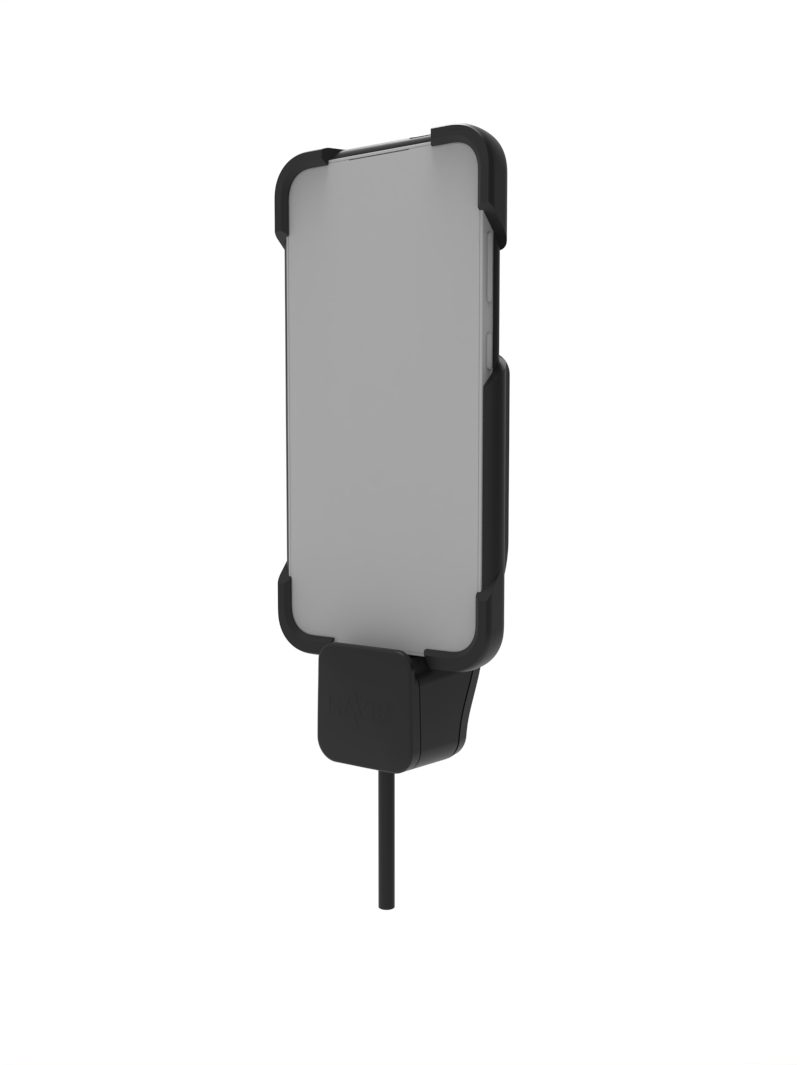

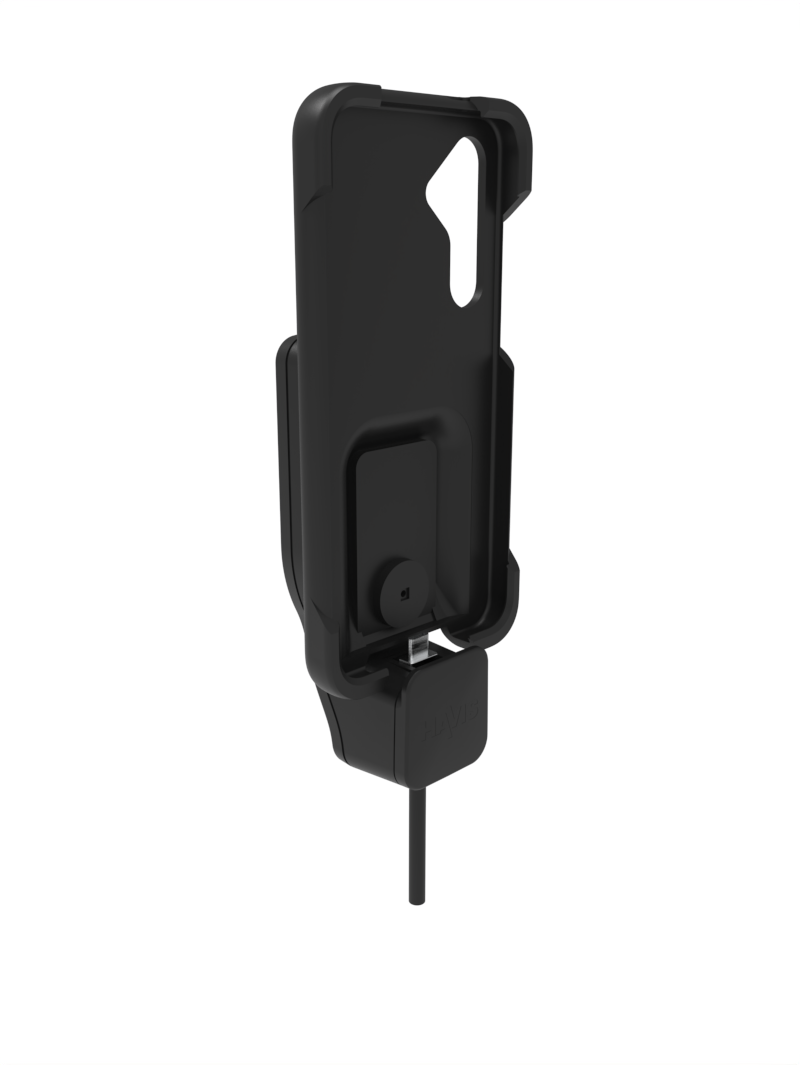

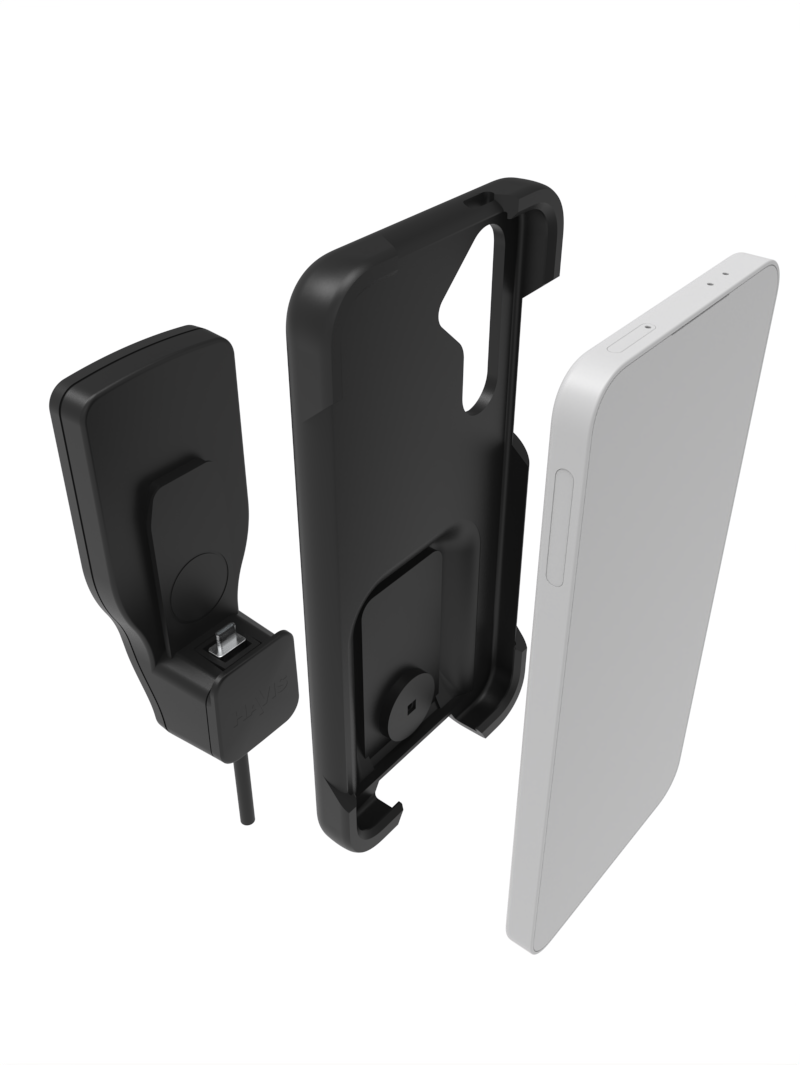

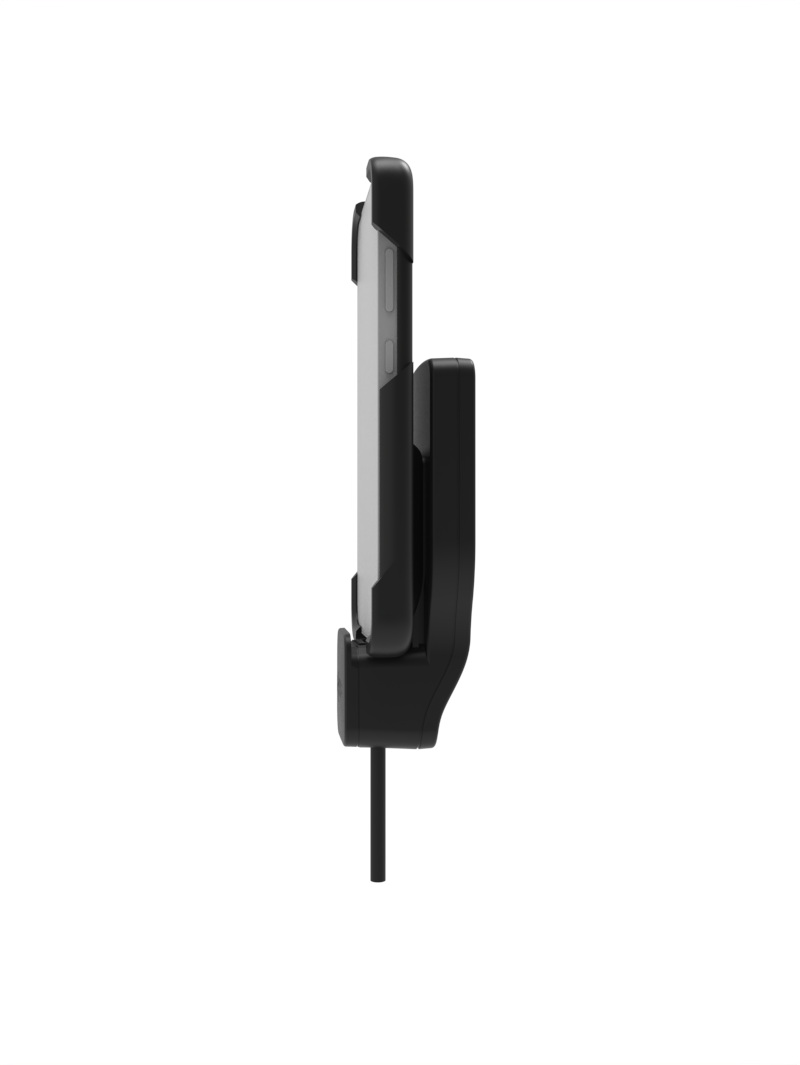

  • Includes PD-1001 Phone Dock and PD-A-1000-CS24FE Phone Case for Samsung Galaxy S24FE
  • Robust case solution designed for consumer sized USB-C phones and used with PD-1001 (sold separately)
  • Charging and Data transfer via user replaceable USB-C cable
  • Dock features intuitive docking and undocking making it simple for one handed operation. Case allows full access to camera, speakers and controls
  • Rugged testing including Crash, Vibration, Thermal, Drop and Dock/Undocking
  • Compact and lightweight design
  • IP68 rated for demanding environments
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Integrated AMPs mounting pattern
  • Pair with Touch Screen Display and Keyboard for a mobile DeX solution. (Touch Screen and Keyboard sold seperately)

Specifications

PRODUCT SPECIFICATIONS:
Compatible Devices:Samsung Galaxy S24FE
Mounting:AMPS
Communication Interface:(1) USB-C to USB-C cable
Working Voltage:5 VDC
Operating environment:-20°C to 50°C (-4°F to 122°F)
Storage environment:-40°C to 85°C (-40°F to 185°F)
Testing:

Drop Testing: MIL-STD-810H 516.8
Vibration Testing: MIL-STD 810H 514.8
Crash Testing: SAE J1455 30 mph
Cycle Testing: Dock and undock for 20K cycles
Environmental Testing: Hot/cold operating -20°C to 50°C (-4°F to 122°F)
Environmental Testing: Hot/cold storage -40°C to 85°C (-40°F to 185°F)
Product Weight0.59 lbs. (0.27 kg)
Gross weight:0 lbs

Application Gallery

product galleryproduct galleryproduct gallery

Compatibility

Havis phone dock
Havis phone dock
Samsung Galaxy S24FE
Samsung Galaxy S24FE
