Features

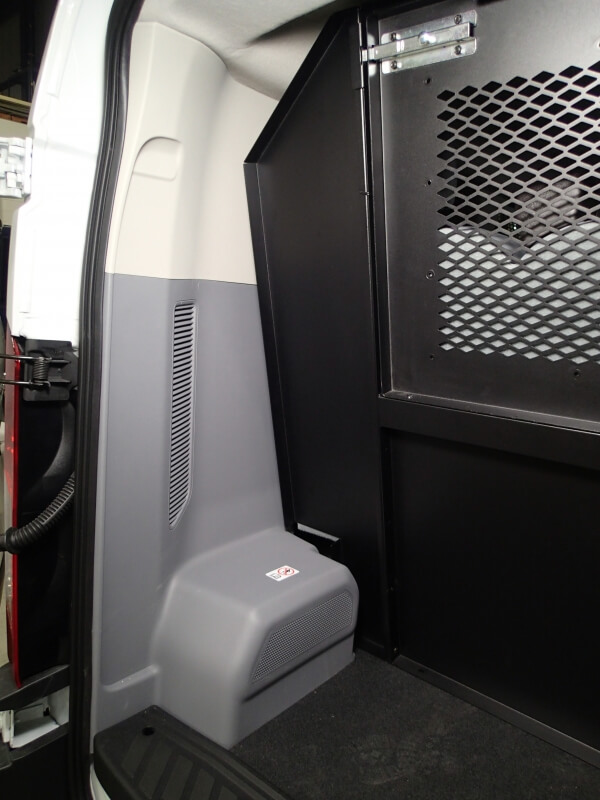

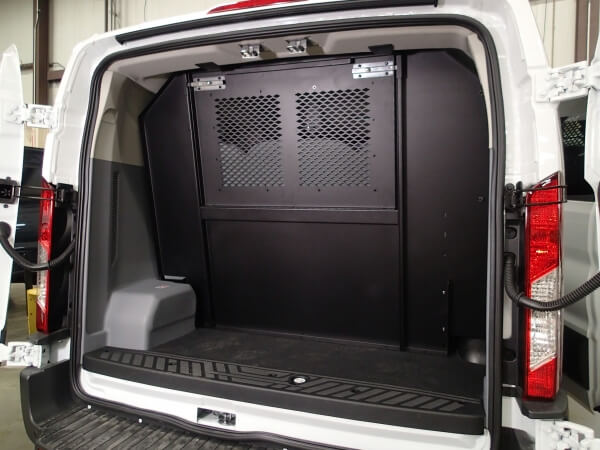

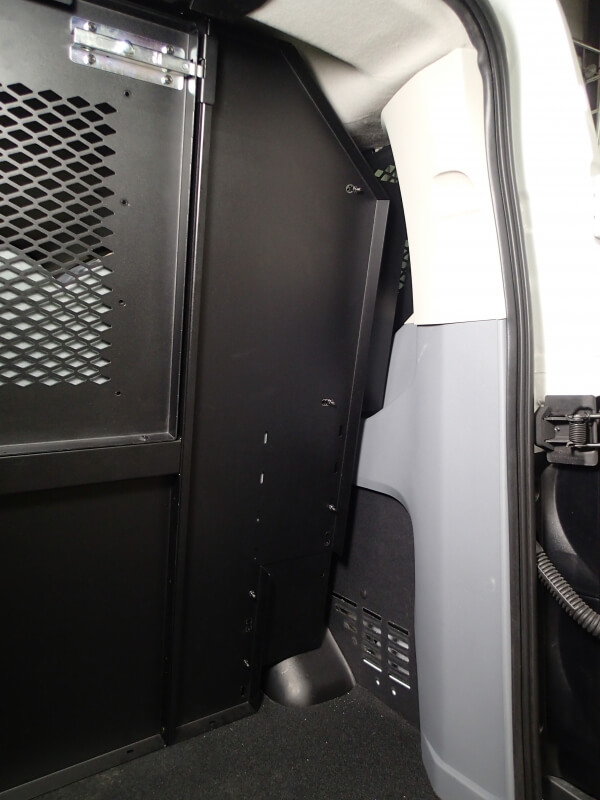

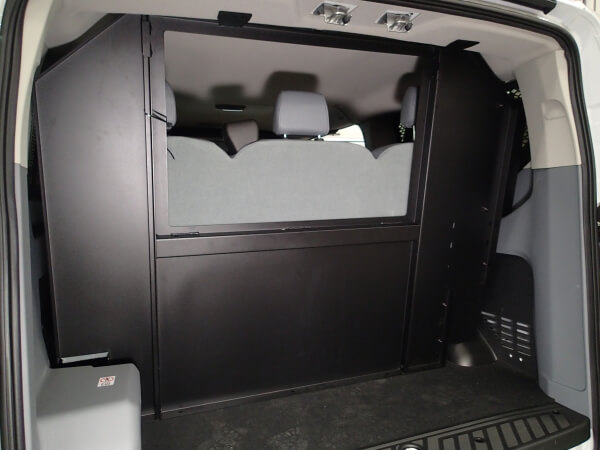

  • Rear partition for Ford Transit low roof 130 inch wheelbase window
  • For ten (10) twelve (12) passenger 130 inch wheelbase van
  • Partition fits behind last row of seats
  • Fabricated with punched, formed and welded 12 gauge steel

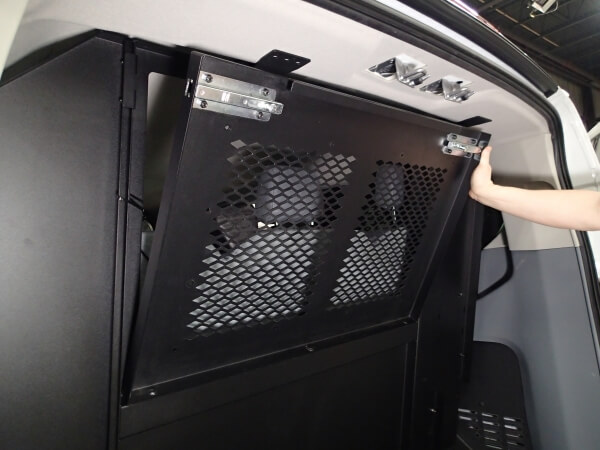

  • Includes emergency exit hatch in top center section with diamond shape openings
  • Hatch is secured with two heavy- duty slide bolts accessible from the rear cargo area
  • Slide bolts have provision for customer supplied padlock
  • Ten (10) or twelve (12) passenger 130 WB vans require mount kit P-MFK-17
  • Mount kit must be ordered along with P-REAR-4 (P-MFK-17 price not included with partition)
  • Ten (10) or twelve (12) passenger 130 WB provides 16 inches of cargo space between partition and OEM rear doors
  • Does not work in medium or high roof vans

Specifications

Interior Specifications:
Gross Weight:110 lbs

Application Gallery

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)
Isoview Drawing (JPG)
Isoview Drawing (JPG)

Compatibility

Ford Transit window van
Ford Transit window van
