Features

  • Supports the Getac B360 and B360 Pro

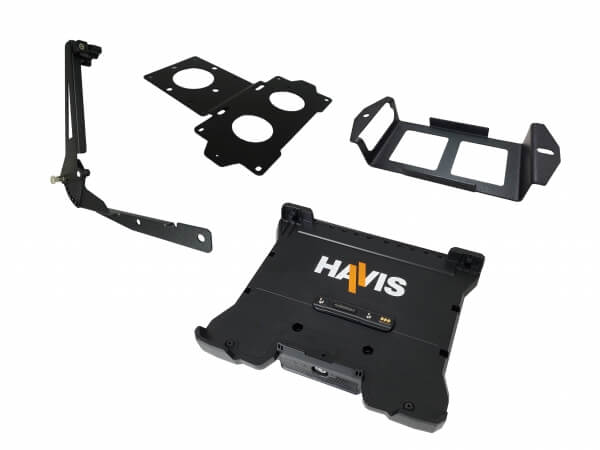

  • Includes DS-GTC-1201-3 docking station, DS-DA-418 screen support, LPS-208 panel mount bracket and LPS-211 accessory bracket
  • Ideal for public safety, military, utilities, manufacturing and other demanding environments
  • Fits either computer size - no dock adjustments needed
  • Durable, compact and lightweight
  • One-handed docking
  • Advanced port replication
  • Reinforced mounting bracket
  • Spring-loaded connector head
  • Keyed-lock
  • Powered by Getac 120W vehicle adapter (LPS-140, sold separately)
  • Proudly made in the USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible computer(s): Getac B360 and B360 Pro laptops
Docking station dimensions (with mounting bracket):11.52" l x 13.79" w x 2.54" h (293mm x 350mm x 64mm)
Docking station dimensions (without mounting bracket):11.52" l x 13.79" w x 2.41" h (293mm x 350mm x 61mm)
Certifications: Vibration Testing: MIL-STD 810H 514.8; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
Connectivity - USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on rear I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
Dock input power:19V DC
Docking station product weight (without mounting bracket): 3.28 lbs (1.49 kg)
Docking station product weight (with mounting bracket): 5.22 lbs (2.36 kg)
Docking station gross weight:6.50 lbs (2.95 kg)
Product weight:8.0 lbs (3.63 kg)
Gross weight:9.29 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
Isoview Drawing (JPG)
Isoview Drawing (JPG)
DS-GTC-1200 Sales Sheet
DS-GTC-1200 Sales Sheet
Getac Brochure
Getac Brochure
Getac Speeds & Feeds
Getac Speeds & Feeds
Getac Speeds & Feeds - French
Getac Speeds & Feeds - French
Getac Speeds & Feeds - Spanish
Getac Speeds & Feeds - Spanish

Application Gallery

Compatibility

Getac B360 And B360 Pro
Getac B360 And B360 Pro
