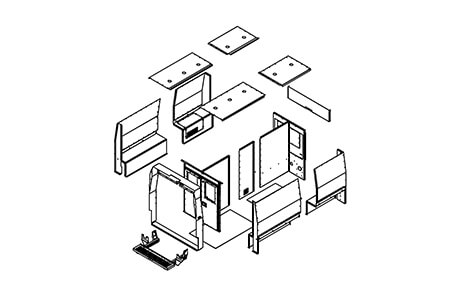

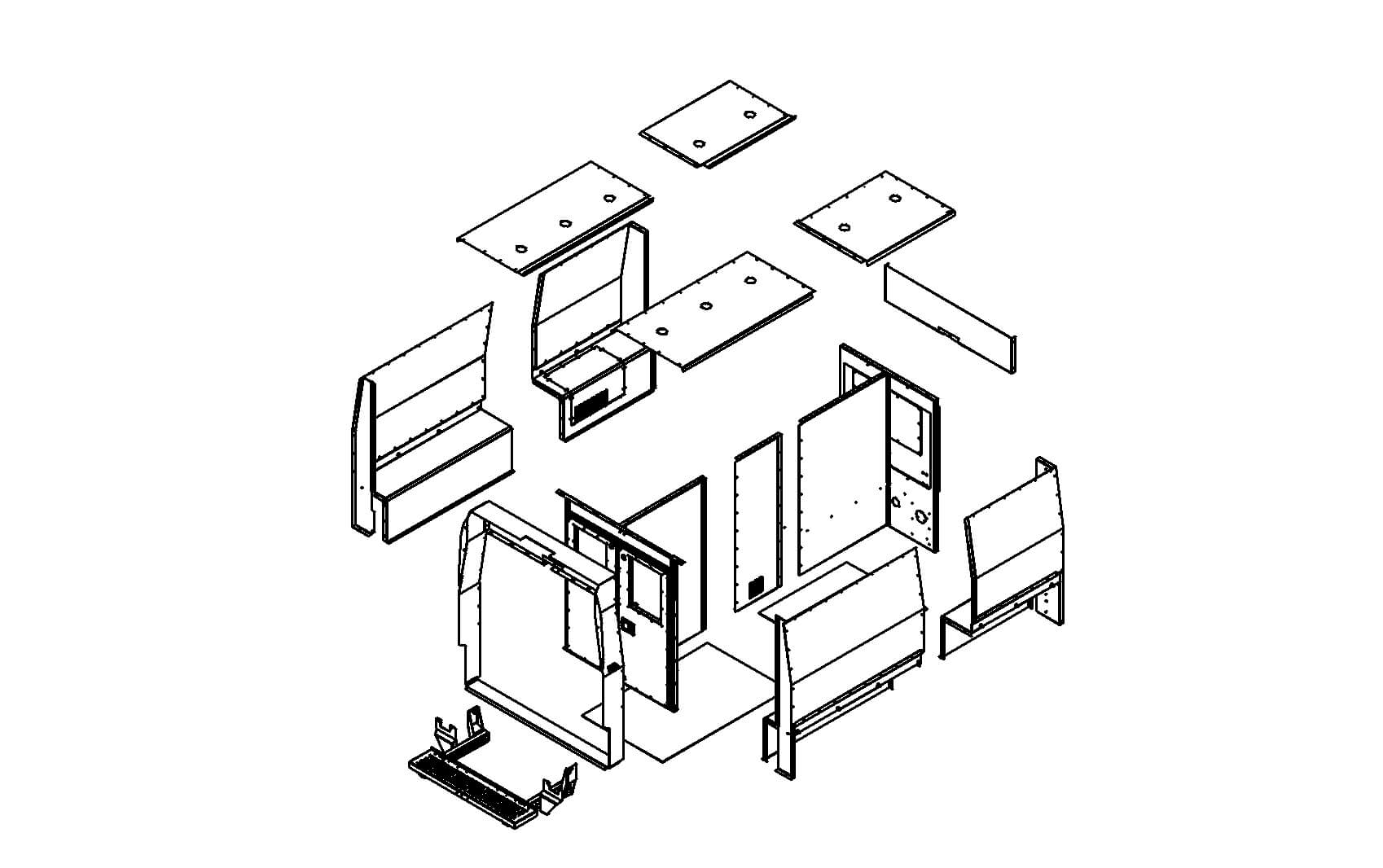

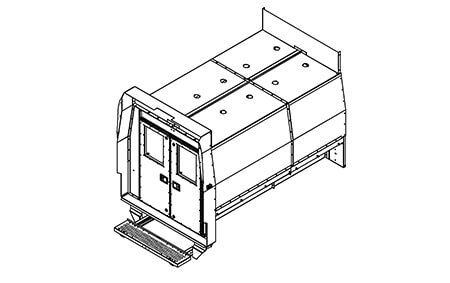

PT, 100″, COMP, DR, PROMSTR, 14-23, SP
|Insert size:||60" high x 100" long|
|Number of prisoner seats:||10|
|Number of compartments:||2|
|Storage area:||12" between front seats and bulkhead|
|Estimated install time:||18 hours|
|Approximate insert weight:||800 lbs.|
|Gross weight:||1200 lbs|
GVWR = Gross Vehicle Weight Rating
The higher the GVWR, the more weight carrying capacity (payload) the vehicle will have. It is important not exceed the OEM maximum payload. If the vehicle is overloaded, it could affect the handling, braking and/or cause premature need for repairs. Van chassis with the highest GVWR are always recommended.
Prisoner Transport Inserts and Estimated Payload Facts
100″ long Prisoner Transport Insert (based on model PT-F01-100-3 with standard accessories)
10 passengers / 2 officers (200 lbs each person)
120″ long Prisoner Transport Insert (based on model PT-F01-120-3 with standard accessories)
12 passengers / 2 officers (200 lbs each person)
Vans with the following features and options are recommended:
The new number system for the main inserts will now include a vehicle specific code to differentiate and simplify what parts are included for different model vehicles. The length and compartment configurations are also described in the new part number.
** See web site for vehicle specific description and part number code **
Old options and accessories have not changed except for part numbers. The new number system is based off of other Havis product lines with multiple sub-categories. This allows each category to expand more easily when new parts are added.
Options and Accessories categories are as follows:
** See web site for product descriptions and specific part numbers **
Three basic models are available
If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.
