Features

  • Compatible Havis docking stations: DS-DELL-100, 110, 200, 210, 220, 230, 300, 400, 410, & 420 Series and DS-GD-300 Series
  • Compatible computers: Dell Latitude E6400/E6410/E6420/E6430 ATG, E6400/E6410/E6420 XFR, XT2 XFR, Dell Latitude Rugged 14" & 12" Notebooks/2in1 (5414, 7414, 7214, 5420, 5424, 7424), Dell Latitude Rugged Notebooks 5420, 5424 , 7424 and General Dynamics GD4000
  • Power supply kit includes: 90 W LIND power supply, 41" output power cable with ferrite bead for EMI suppression and plug-in connector, 6' input cable with cigarette lighter adapter, and mounting hardware
  • Due to differences in the input power connectors, the LPS-137 cannot be connected directly to either the Latitude 5430 Rugged Laptop or the Latitude 7330 Rugged Extreme Laptop

Specifications

PRODUCT SPECIFICATIONS:
Watts:90
Voltage:12-16 VDC input, 20 VDC output
Input cable:72" cigarette lighter adaptor
Output cable:41" plug-in connector (with ferite bead)
Dimensions:1.1" (2.9 cm) x 5.5" (14.0 cm) x 3.1" (7.8 cm)
Gross weight:2 lbs

Resources

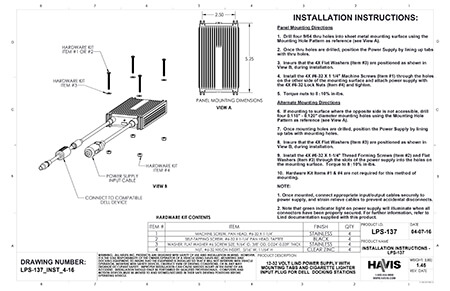

Installation Instructions (PDF)
Installation Instructions (PDF)

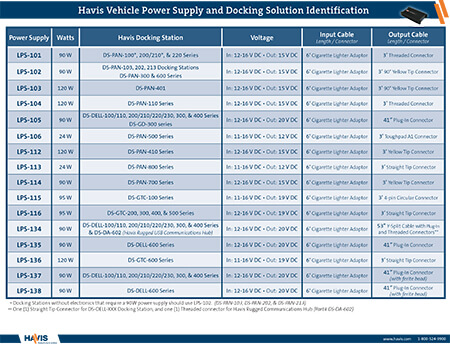

Compatibility Matrix (PDF)
Compatibility Matrix (PDF)

Compatibility

DS-DELL-100, 110, 200, 210, 220, 230, 300, 400, 410, & 420 Series and DS-GD-300 Series
DS-DELL-100, 110, 200, 210, 220, 230, 300, 400, 410, & 420 Series and DS-GD-300 Series
Dell Latitude E6400/E6410/E6420/E6430 ATG, E6400/E6410/E6420 XFR, XT2 XFR, Dell Latitude Rugged 14
Dell Latitude E6400/E6410/E6420/E6430 ATG, E6400/E6410/E6420 XFR, XT2 XFR, Dell Latitude Rugged 14" & 12" Notebooks/2in1 (5414, 7414, 7214, 5420, 5424, 7424), and General Dynamics GD4000
