Features

  • Isolated 85 watt power supply for use on vehicles with 12-32VDC input
  • Compatible Havis docking stations: DS-DELL-700 Series
  • Compatible computers: Dell Latitude Rugged 12" tablets (7212, 7220)
  • Removable output cable provides correct connector for supported Dell docking stations only. This cable does not connect directly to the Dell tablets that are accepted by these docking stations.
  • Power supply includes: 85 watt LIND power supply with attached input cable, 41" output power cable with Dell plug-in connector, and Mounting hardware

Specifications

PRODUCT SPECIFICATIONS:
Watts:85W 15VDC/5.5A output
Voltage:12-32 VDC input
Input cable:attached 72" bare wire input
Output cable:144" with DS-DELL-700 Series dock-specific connector
Gross weight:2 lbs

Resources

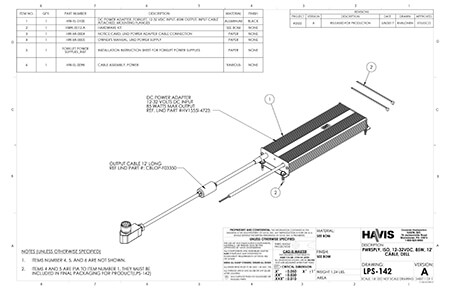

Installation Instructions (PDF)

Compatibility

DS-DELL-700 Series Docking Stations
DS-DELL-700 Series Docking Stations
Dell Latitude Rugged 12
Dell Latitude Rugged 12" tablets (7212, 7220)
