Features

  • Converts 12VDC battery power to 1100 Watts of true sine wave 120V AC power to operate vital emergency vehicle equipment
  • Includes inverter with built-in battery charger, transfer relay, and KKK Spec 12VDC Portable Equipment Charging Circuit with built in remote control capability
  • Provides 1100W of continuous power and 3-second surge power up to 2200W
  • Incorporates an energy-efficient three-stage, 55 amp battery charger and a 20 amp power supply
  • Provides secure DC connection and eliminates DC connection pigtail with the "clean connect" DC receptacle
  • Generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions
  • DC input range of 10.5Vdc to 16.5Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
  • Operating temperature range of -20C to +40C (-4F to +104F) for reliability in any climate
  • Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
  • All of these features, as well as Ignition Safety Interlocks comply with GSA, AMD, NFPA, and CAAS GVS, and are contained in one module for ease of installation.
  • Easy to upgrade existing LifeStar and earlier Vanner quasi-sine inverters to the LifeSine Pure Sine wave

PRODUCT SPECIFICATIONS:
Inverter
Continuous Output Power Rating1100 Watts (9.2 amps)
Surge Capacity (3 sec):2200 Watts
DC Input Voltage, VDC :12 VDC Nominal, 10.5 VDC min,16.5 VDC max.
AC Output Voltage:120 VAC ± 5%
DC Current Draw from Battery
Inverter OFF 0.0 Amps
Inverter ON in Load DemandApprox. 0.08 Amps
Inverter ON, Load Demand OFF, with No AC Load Approx. 1.4 Amps
Inverter ON with AC LoadApprox. AC Load Watts ÷ 10
Battery Charger
AC Input Voltage120 VAC Nominal (90VAC min, 132VAC max)
AC Input Frequency60Hz or 50Hz, ± 3 Hz
AC Input Amps7.5 Amps AC Max (Approx. DC Output Amps ÷ 7)
Bypass Transfer Switch Rating,-4F to 104F (-20C to 40C)
AC Output Current to GFCI Output Receptacle:12 Amps AC
Other Specifications
Dimensions:11.57”W x 5.94”H x 11.4”D
Product Weight:9.5 lbs
Safety Standards:Certified UL/cUL 458
Gross weight:0 lbs

Resources

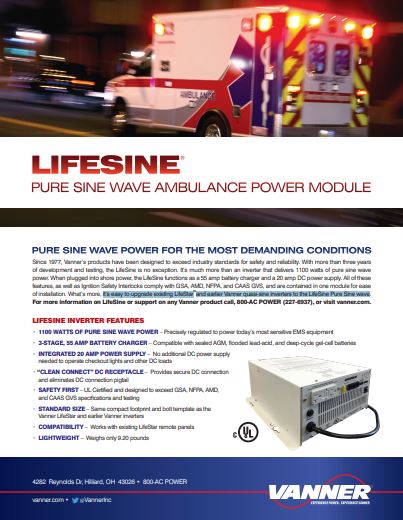

Brochure
Brochure
Download share

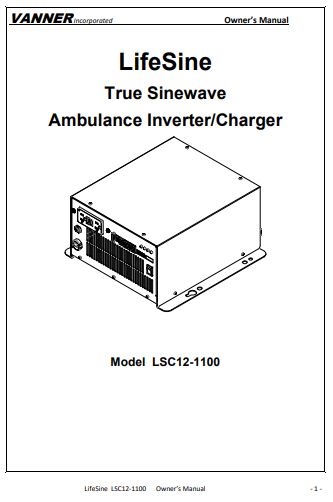

Owner's Manual
Owner's Manual
Download share
