Features

  • Converts 12VDC battery power to 2000 Watts of true sine wave 120V AC power to operate vital emergency vehicle equipment
  • Includes inverter with built-in battery charger, transfer relay, and KKK Spec 12VDC Portable Equipment Charging Circuit with built in remote control capability
  • Provides 2000W of continuous power and 2-second surge power up to 4000W
  • Incorporates an energy-efficient three-stage, 100 amp battery charger and a 20 amp power supply
  • Provides secure DC connection and eliminates DC connection pigtail with the "clean connect" DC receptacle
  • Generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions
  • DC input range of 10.5Vdc to 16.5Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
  • Operating temperature range of -20C to +40C (-4F to +104F) for reliability in any climate
  • Two seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
  • All of these features, as well as Ignition Safety Interlocks comply with GSA, AMD, NFPA, and CAAS GVS, and are contained in one module for ease of installation.
  • Easy to upgrade existing LifeStar and earlier Havis quasi-sine inverters to the LifeSine Pure Sine wave

PRODUCT SPECIFICATIONS:
Inverter:
Continuous Output Power Rating:2000 Watts
Surge Capacity (3 sec):4000 Watts
DC Input Voltage, VDC :12 VDC Nominal, 10.5 VDC min,16.5 VDC max.
AC Output Voltage:120 VAC ± 3%
DC Current Draw from Battery:
Inverter OFF 0.0 Amps
Inverter in Load Demand<0.4A Typical
Inverter Full ON at No AC Load <0.4A @12.5V
Inverter Full ON with AC LoadApprox. AC Load Watts ÷ 10
Battery Charger:
AC Input Voltage120 VAC ± 10%
AC Input Current6.5A @110Vac
Bypass Transfer Switch Rating:
Output Current30 Amps
Other Specifications:
Dimensions:9.88”W x 4.56”H x 17.83”D
Product Weight:13.3 lbs
Gross weight:0 lbs

Resources

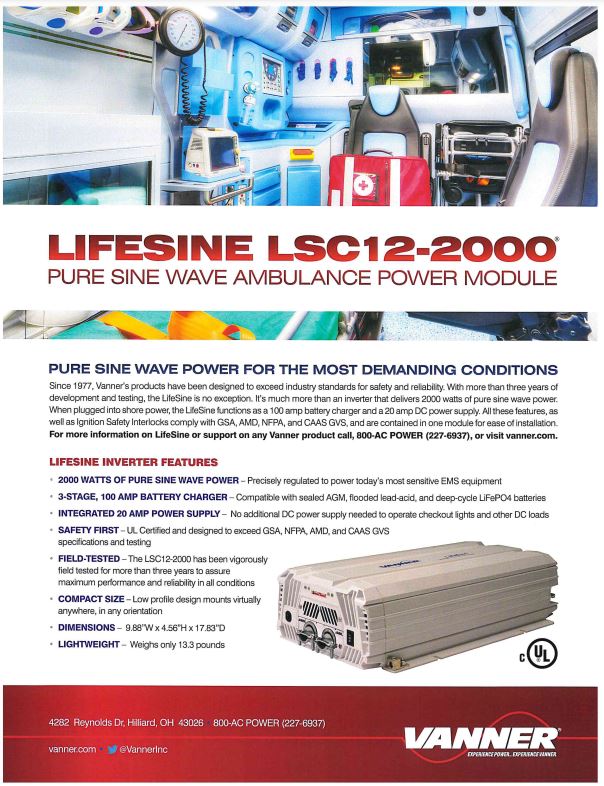

Brochure
Brochure
Download share
Owner's Manual
Owner's Manual
Download share
