Features

  • Vanner’s rugged, reliable, and safe Vanner TS Series AC power inverters operate and protect equipment in the most extreme conditions
  • Provides 700W of continuous power and 3-second surge power up to 1050W
  • DC-AC inverter system designed with advanced power electronic and microprocessor technology
  • TruWave technology generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions.
  • Efficiency rating of 90% to 93% provides longer inverter engine-off run time from batteries and lower battery discharge
  • DC input range of 10.5Vdc to 16.5Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
  • Operating temperature range of -20C to +40C (-4F to +104F) for reliability in any climate
  • Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
  • Easy installation via a low profile housing and integrated mounting features for in-cab and behind the seat applications
  • All-metal body and chassis ensures safe operation and secure mounting regardless of orientation

PRODUCT SPECIFICATIONS:
DC Input:12Vdc
DC Voltage Range:10.5V to 16.5V
Operating Temperature:-4F to 104F (-20C to 40C)
Surge Rating:150% of continuous power for 3 seconds
Dimensions:12.6”L x 8.3”W x 3.5”H
Product Weight:6.0 lbs
EMC Standards:FCC Class B
Efficiency:90% to 93%
Standby Recovery:5 seconds
Gross weight:7.5 lbs

Resources

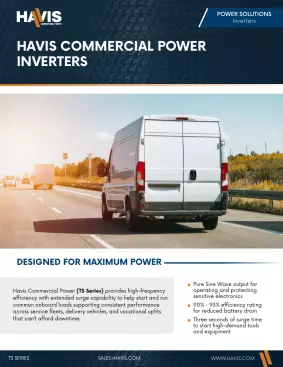

Brochure
Brochure
Download share

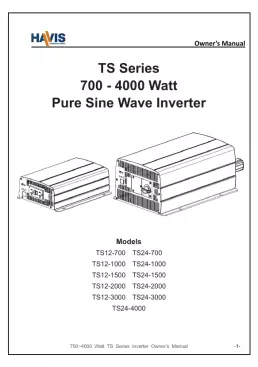

Owner's Manual
Owner's Manual
Download share

Related products

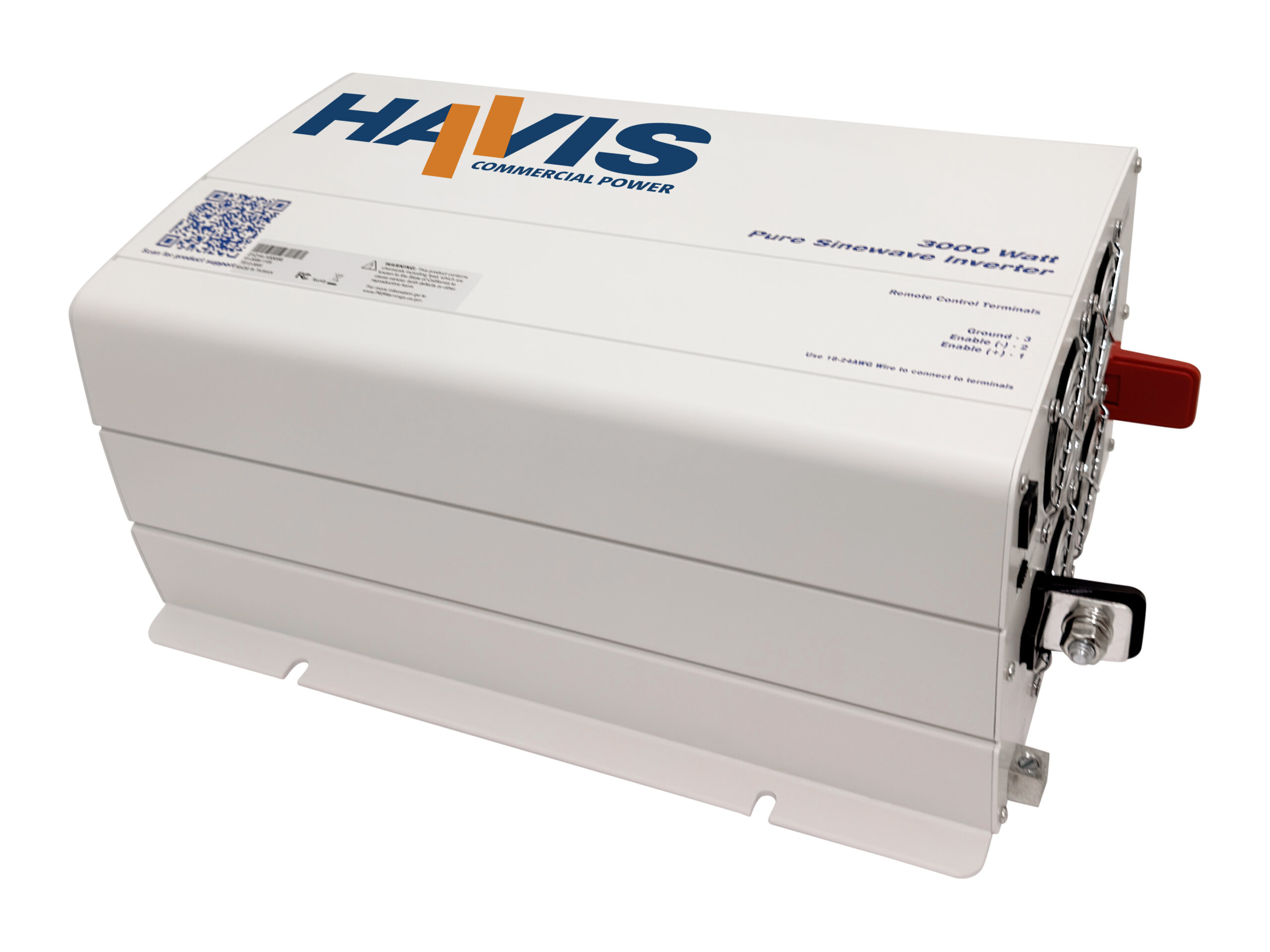

  • Vanner TS Series Pure Sine Wave Power Inverter With 12VDC Input & 3000W AC Output
