Features

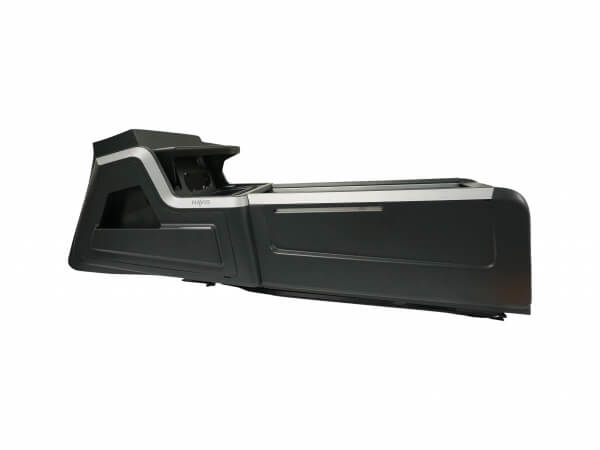

  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate

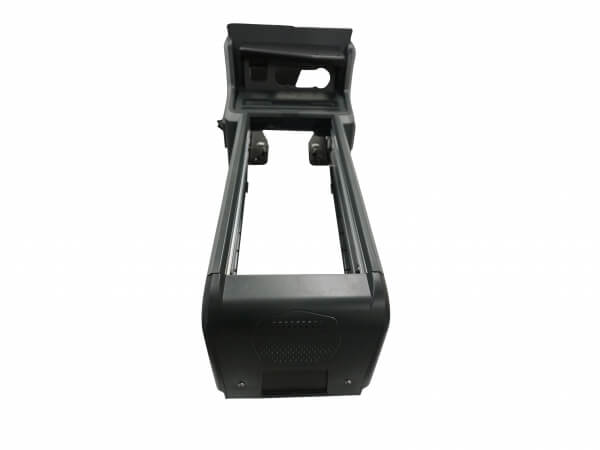

  • Heavy-duty steel floor-mounting structure provides rigid framework for console
  • Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
  • 30% lower weight than comparable steel consoles

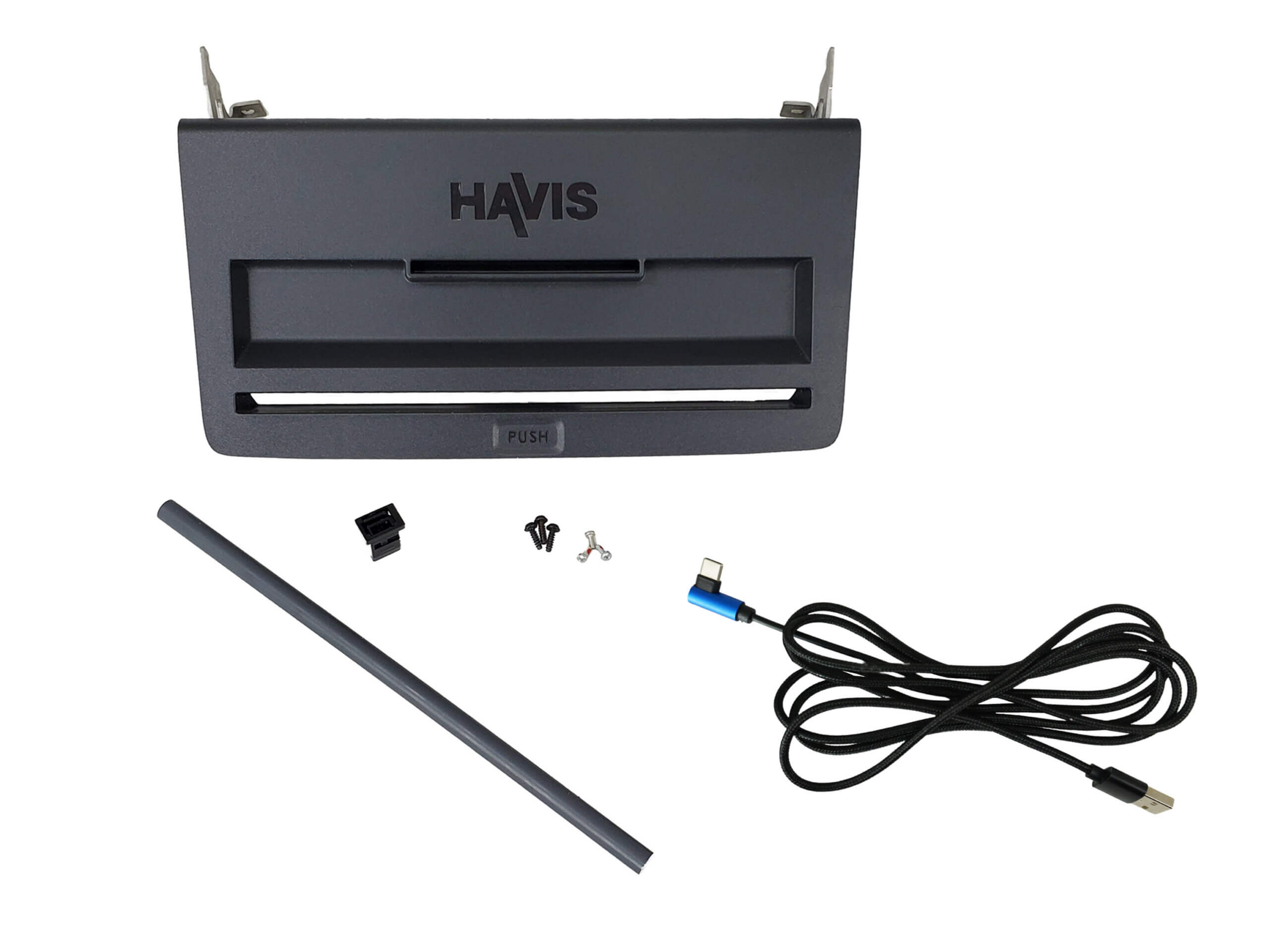

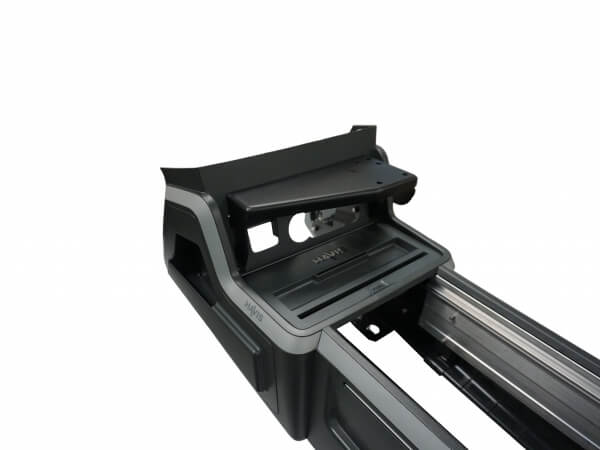

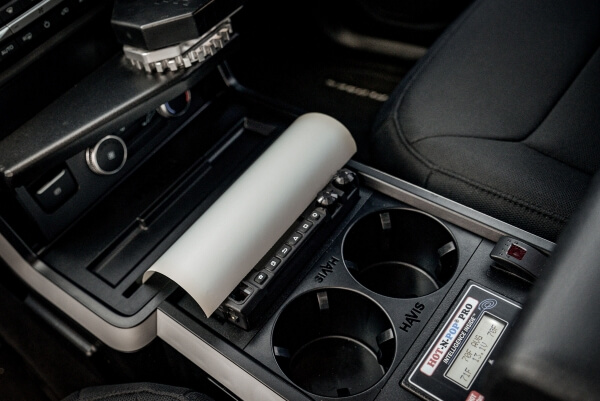

  • Integrated printer mount C-PMX-102 for Brother PocketJet printer included, stows safely inside the front of the VSX console and creates additional mounting space
  • Easy access to printer controls and paper roll
  • 18" total internal mounting space
  • Heavy-duty "hood" for equipment mounting
  • Ultra-low profile for safety and side-to-side egress
  • Slot for holding driver's licenses or cards and recess for pen storage

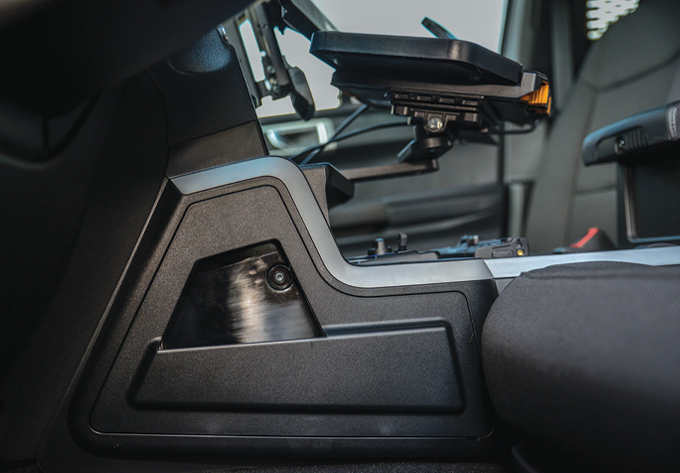

  • Storage pockets, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Rear floor bracket with mounting hole pattern for CG-X

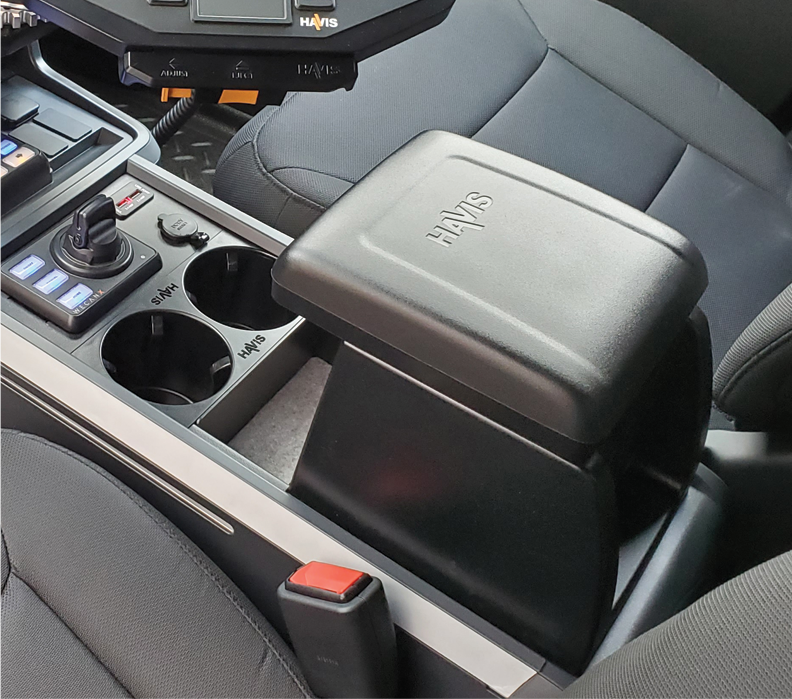

  • Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
  • Filler plates and equipment brackets included to enclose mounting areas
  • Made in the USA with a lifetime warranty
  • OEM 12 volt socket cannot be reused when printer is installed. Optional C-LP series plate recommended

Specifications

PRODUCT SPECIFICATIONS:
Works with OEM ready for the road package wiring conduit
13" wide at front, 9" wide at seats
24" total length
Mounts between seats and fits lower dash contour once OEM tunnel plate is removed
Use with Brother PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Compatible printers: Brother PocketJet 8 PJ-822, 823, 862, 863, and 873 Model kits
Gross weight: 26 lbs

Application Gallery

Resources

Installation Instructions (PDF)

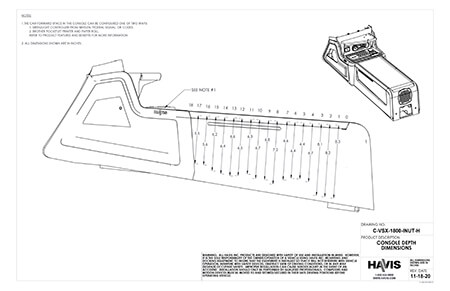

Side View Depth Measurements (PDF)

Compatibility

Ford Interceptor Utility
Ford Interceptor Utility

Related products

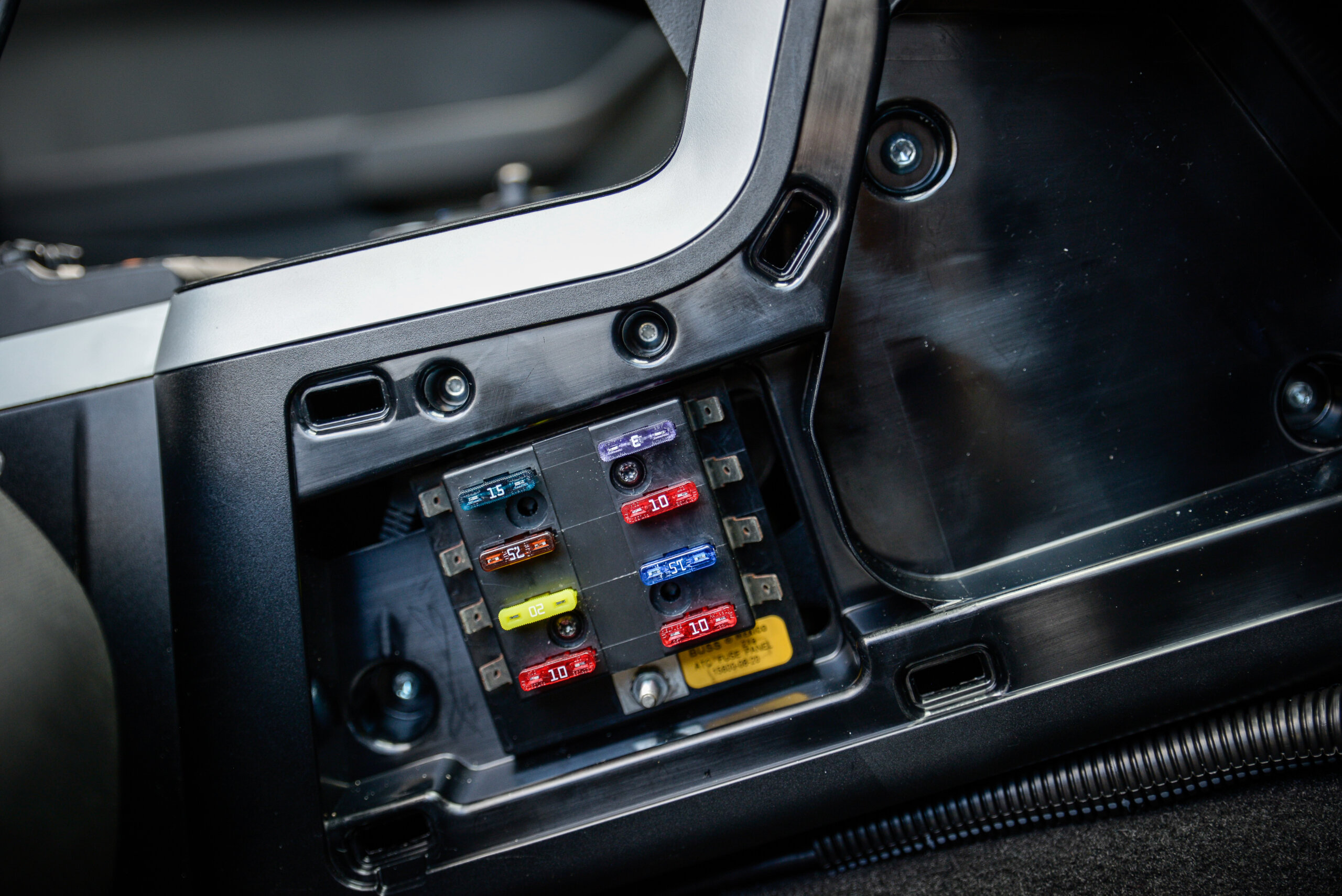

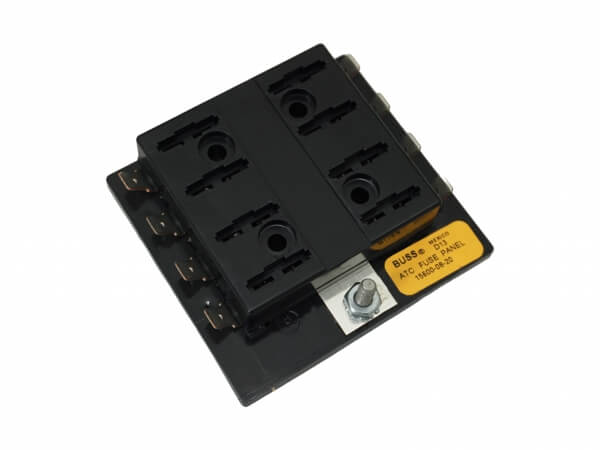

  • Fuse Block Kit for VSX Consoles for 2020-2024 Ford Interceptor Utility
    CMX15600-08
    $47.00
    Fuse Block Kit for VSX Consoles for 2020-2024 Ford Interceptor Utility
    View product
  • Console Accessory Bracket Kit with 2 Lighter Plug Outlets
    C-LP-2
    $57.00
    Console Accessory Bracket Kit with 2 Lighter Plug Outlets
    View product
  • Brother PocketJet 8 Printer Mount for VSX Consoles for 2020-2024 Ford Interceptor Utility
    C-PMX-102
    $195.00
    Brother PocketJet 8 Printer Mount for VSX Consoles for 2020-2024 Ford Interceptor Utility
    View product

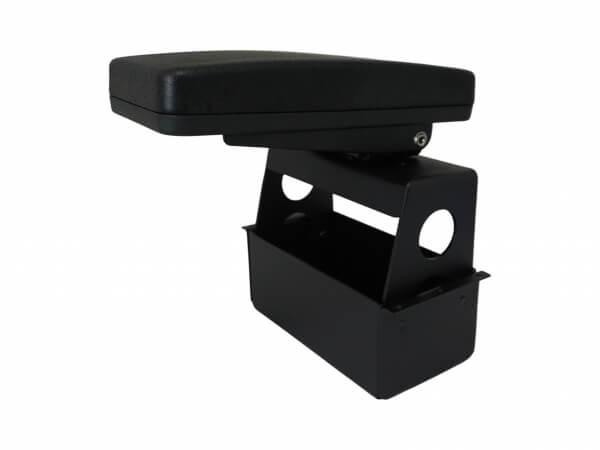

  • Internal Mount Armrest
    C-ARM-109
    $329.00
    Internal Mount Armrest
    View product

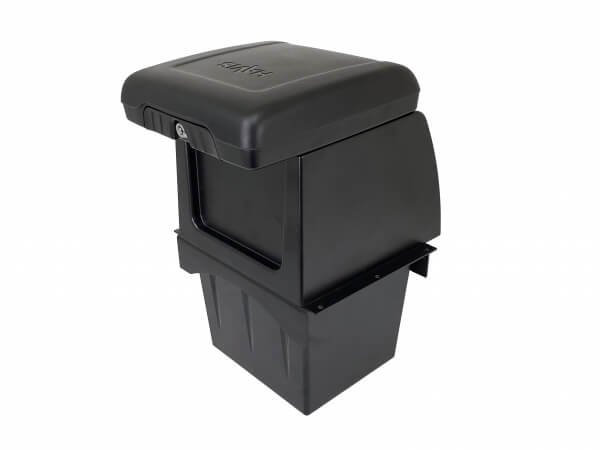

  • Internal Mount Armrest with Lockable Accessory Pocket
    C-ARM-1001
    $318.00
    Internal Mount Armrest with Lockable Accessory Pocket
    View product
  • Package – VSX Console with Front Printer Mount, Cup Holder and Fuse Block for 2020-2024 Ford Interceptor Utility
    PKG-VSX-1800-INUT-PM
    $1,034.00
    Package – VSX Console with Front Printer Mount, Cup Holder and Fuse Block for 2020-2024 Ford Interceptor Utility
    View product

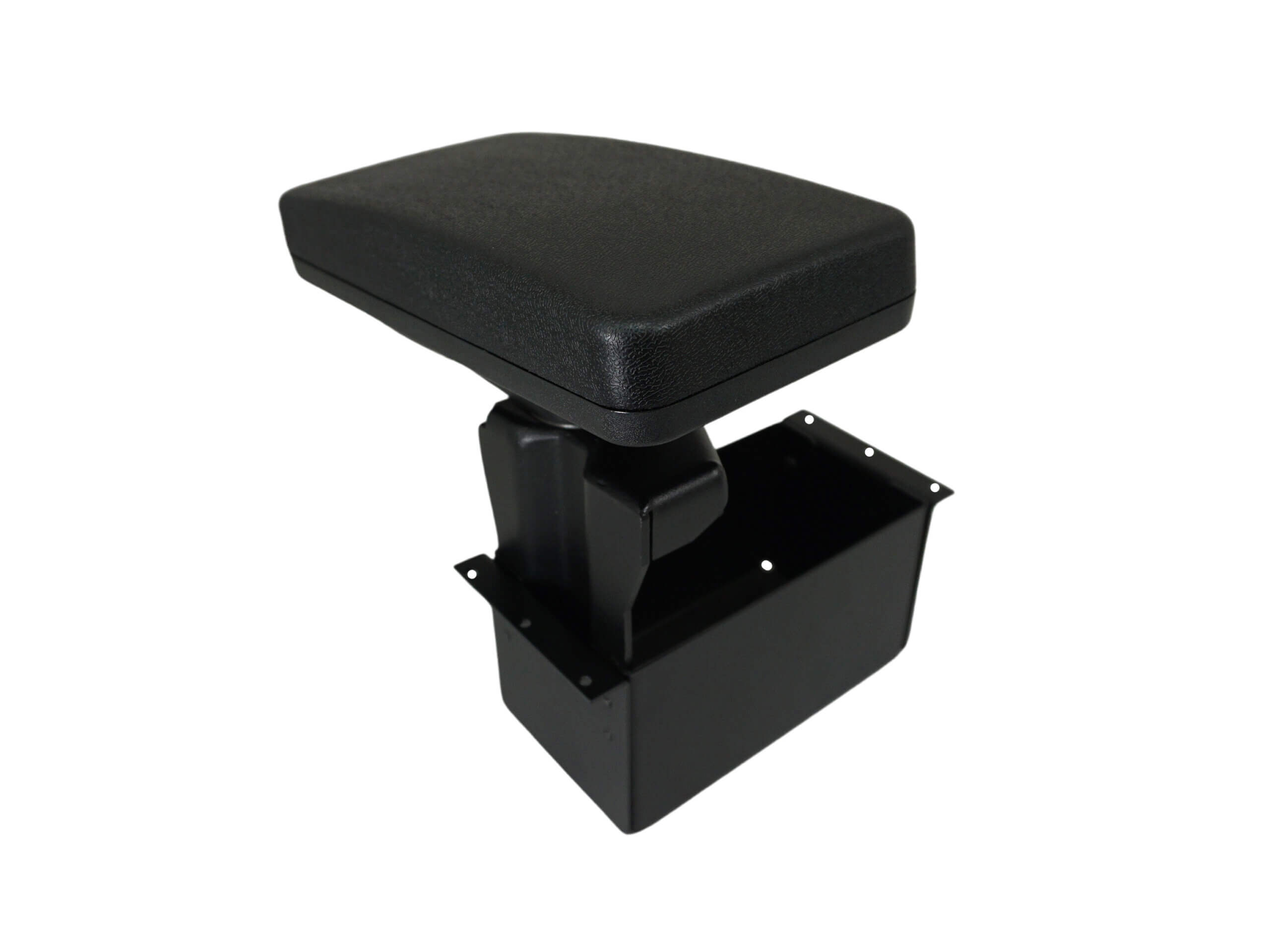

  • Internal Mount Armrest with Accessory Pocket
