Features

  • Low profile tilt swivel motion device
  • 1.38" overall height
  • 45° vertical tilt movement
  • Depending on the device it is mounted to, it can provide 360°, 180° or 90° degree horizontal rotation
  • Used to mount Havis laptop docking stations, UT-Series and C-KBM Series to telescoping computer base (TCB), HDM Series or some Havis consoles
  • Includes the following industry standard hole patterns: VESA 75 and AMPS
  • Includes the following Havis hole patterns: 3" hole laptop docking station, UT-1000 Series, UT-2000 Series, and C-KBM-100 Series patterns
  • Cost-efficient product with motion versatility
  • Easy-adjust and quick-release handle also locks down the position of the device
  • Includes short locking handle
  • Complementary to the C-MD-114 swing arm Series
  • Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
  • Requires C-ADP-117 to work with Panasonic CF-CDS20VM docking station (OEM dock for CF-20)
  • Not recommended for tablet applications, unless 45° tilt is desired

Specifications

Interior Specifications:
Gross Weight:3 lbs

Resources

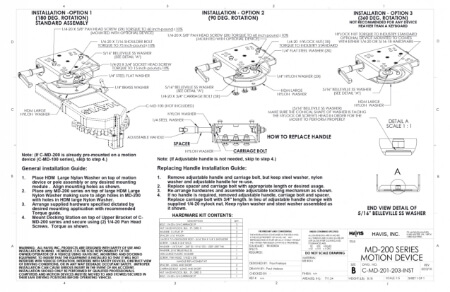

Installation Instructions (PDF)
Installation Instructions (PDF)

Related products

  • Havis Rugged Keyboard Mount
    C-KBM-201
    $132.87
    Havis Rugged Keyboard Mount
    View product
  • 11″ Slide Out Locking Swing Arm
    C-MD-114
    $264.81
    11″ Slide Out Locking Swing Arm
    View product

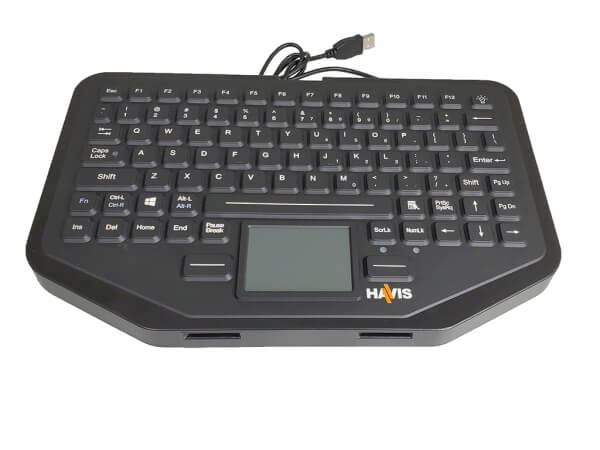

  • Havis Rugged Keyboard with Integrated Touchpad
