Features

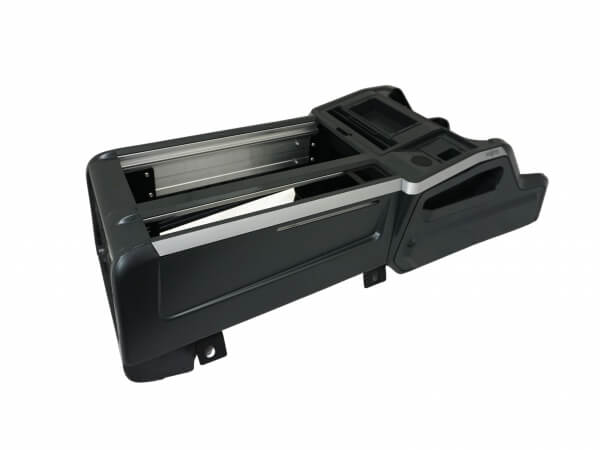

  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
  • Heavy-duty steel floor-mounting structure provides rigid framework for console
  • Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
  • 23% lower weight than comporable steel consoles
  • Low profile for safety and side-to-side egress

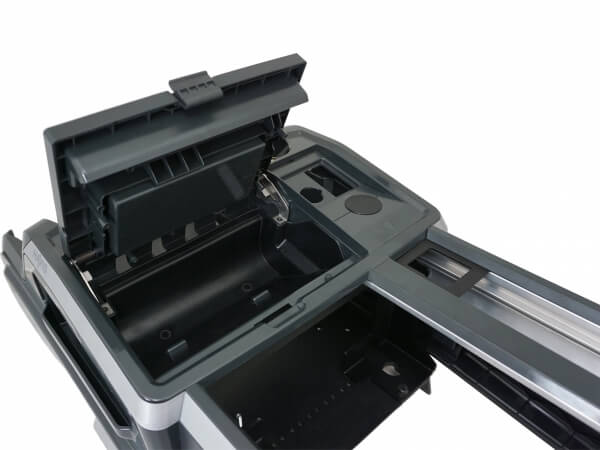

  • Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
  • Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)

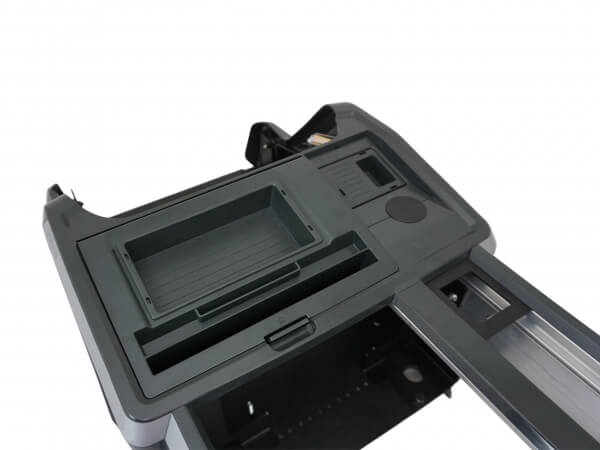

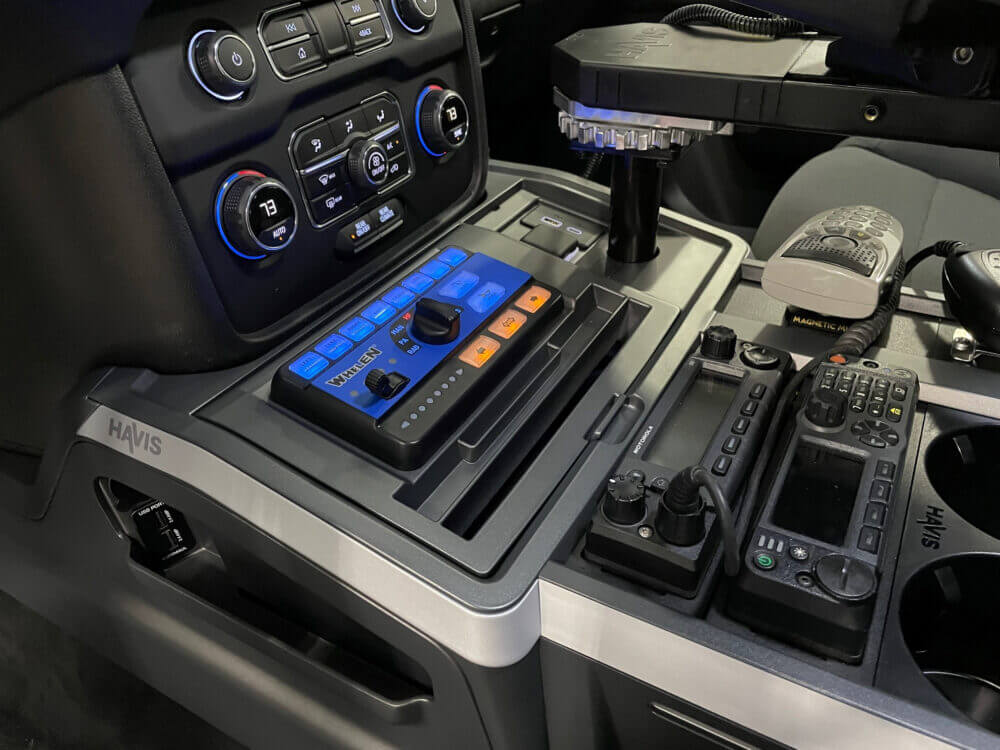

  • Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
  • Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-224, sold separately), relocated USB media hub, and port for 12V lighter plug
  • 18" of total equipment mounting space in 9"W section
  • 3.3"W section includes 15" of total equipment mounting space and removable 3" bracket for relocating 110V outlet

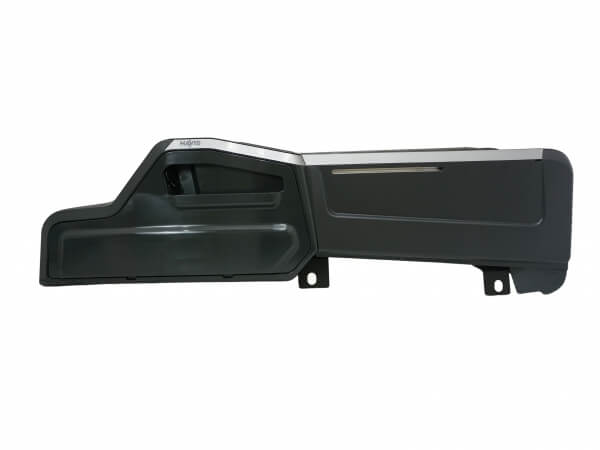

  • Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides

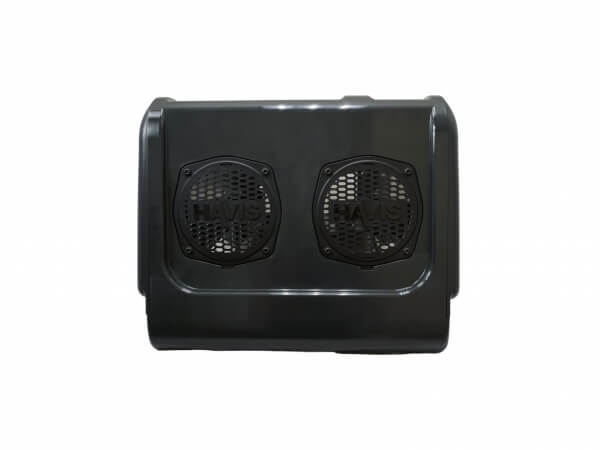

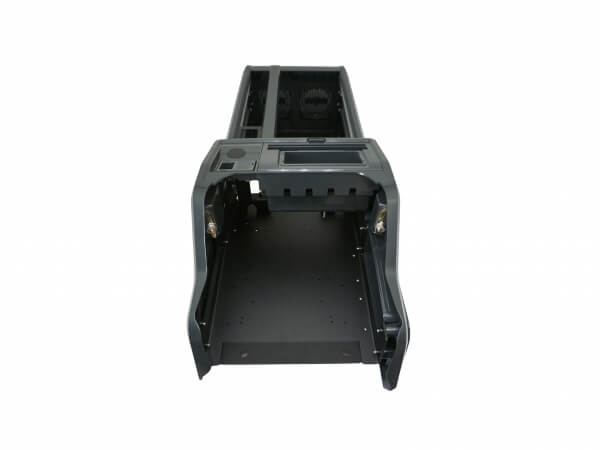

  • Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system.

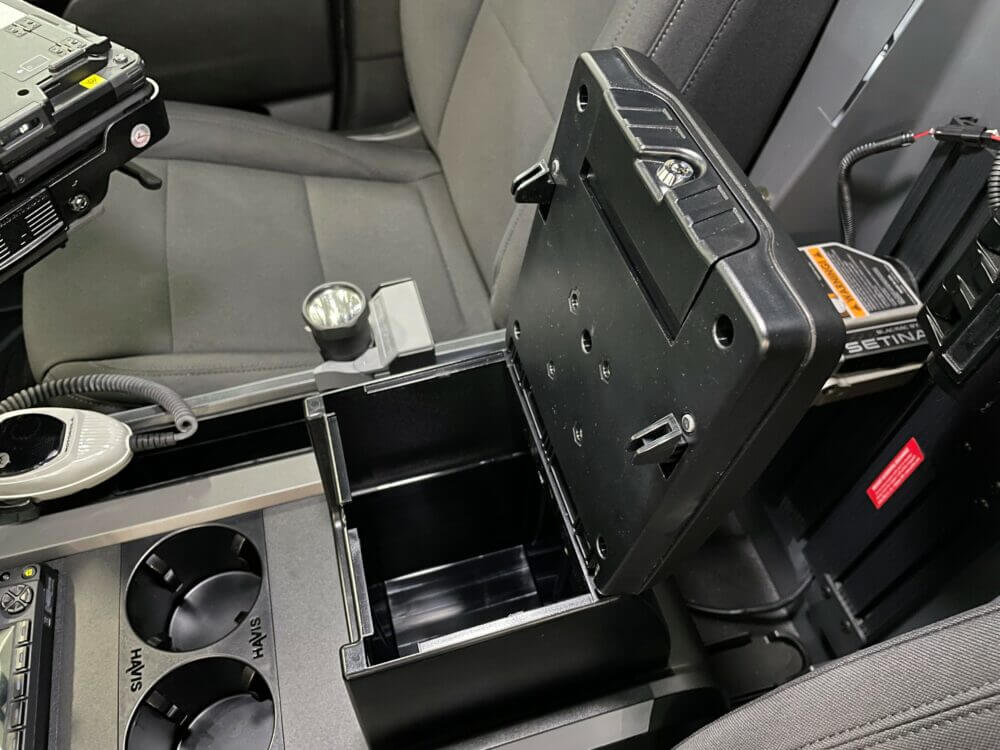

  • Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
  • Filler plates and equipment brackets for 9"W and 3.3W sections included to enclose mounting areas
  • See Havis 3.3" wide console accessories for options
  • Made in the USA with a lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Dimensions:42.6" l x 16.8" w x 13.3" h
Compatible printers:Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Chevrolet Tahoe:Fits 2021-2024 Chevrolet Tahoe PPV and SSV without OEM console
Chevrolet Suburban:Fits 2021-2024 Chevrolet Suburban LS with 40-20-40 split bench front seat option
Equipment Mounting:For vehicles equipped with OEM console C-VS-1100-GMC-2 is recommended for equipment mounting
Gross weight:60 lbs

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)

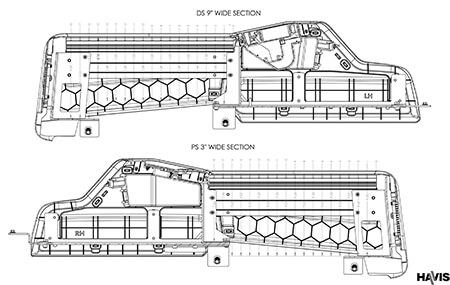

Side View Depth Measurements (PDF)
Side View Depth Measurements (PDF)
Chevy Tahoe Sales Sheet
Chevy Tahoe Sales Sheet
Chevy Tahoe Brochure
Chevy Tahoe Brochure
Chevy Tahoe VSX Console Sales Sheet
Chevy Tahoe VSX Console Sales Sheet

Application Gallery

Related products

  • Internal Mount Armrest with Accessory Pocket
    C-ARM-113
    $329.00
    Internal Mount Armrest with Accessory Pocket
    View product
  • Right-angle USB-C cable for Brother PocketJet 8 Printer
    DS-DA-340
    $36.00
    Right-angle USB-C cable for Brother PocketJet 8 Printer
    View product
  • Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    CMX15600-08-1
    $49.00
    Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    View product
  • Printer Paper Slot Cover for VSX Consoles with Printer Mount
    C-PMX-A-SP
    $20.00
    Printer Paper Slot Cover for VSX Consoles with Printer Mount
    View product
  • 8.5″ Heavy-Duty Telescoping Pole Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    C-HDM-224
    $187.00
    8.5″ Heavy-Duty Telescoping Pole Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    View product
  • Self-Adjusting Double Cup Holder (Fixed Mount)
    CUP2-1004
    $65.00
    Self-Adjusting Double Cup Holder (Fixed Mount)
    View product

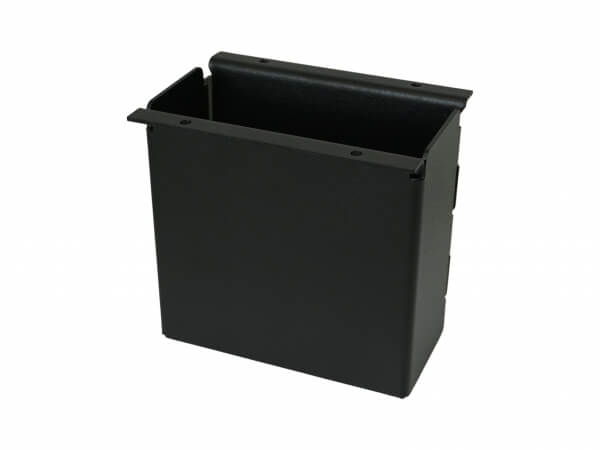

  • 5″ Accessory Pocket, 4.8″ Deep for 3.3″W Section of Wide Consoles
