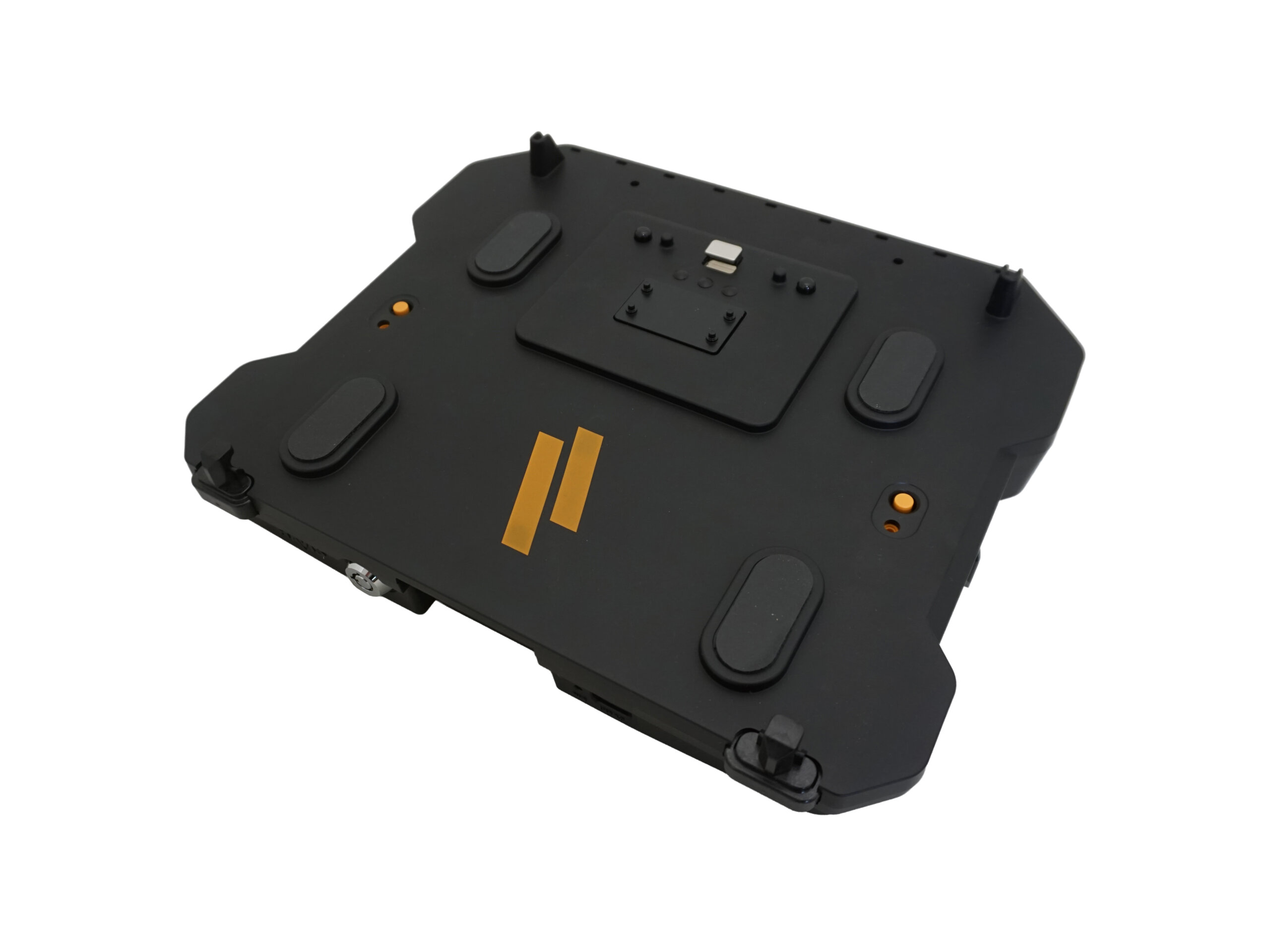

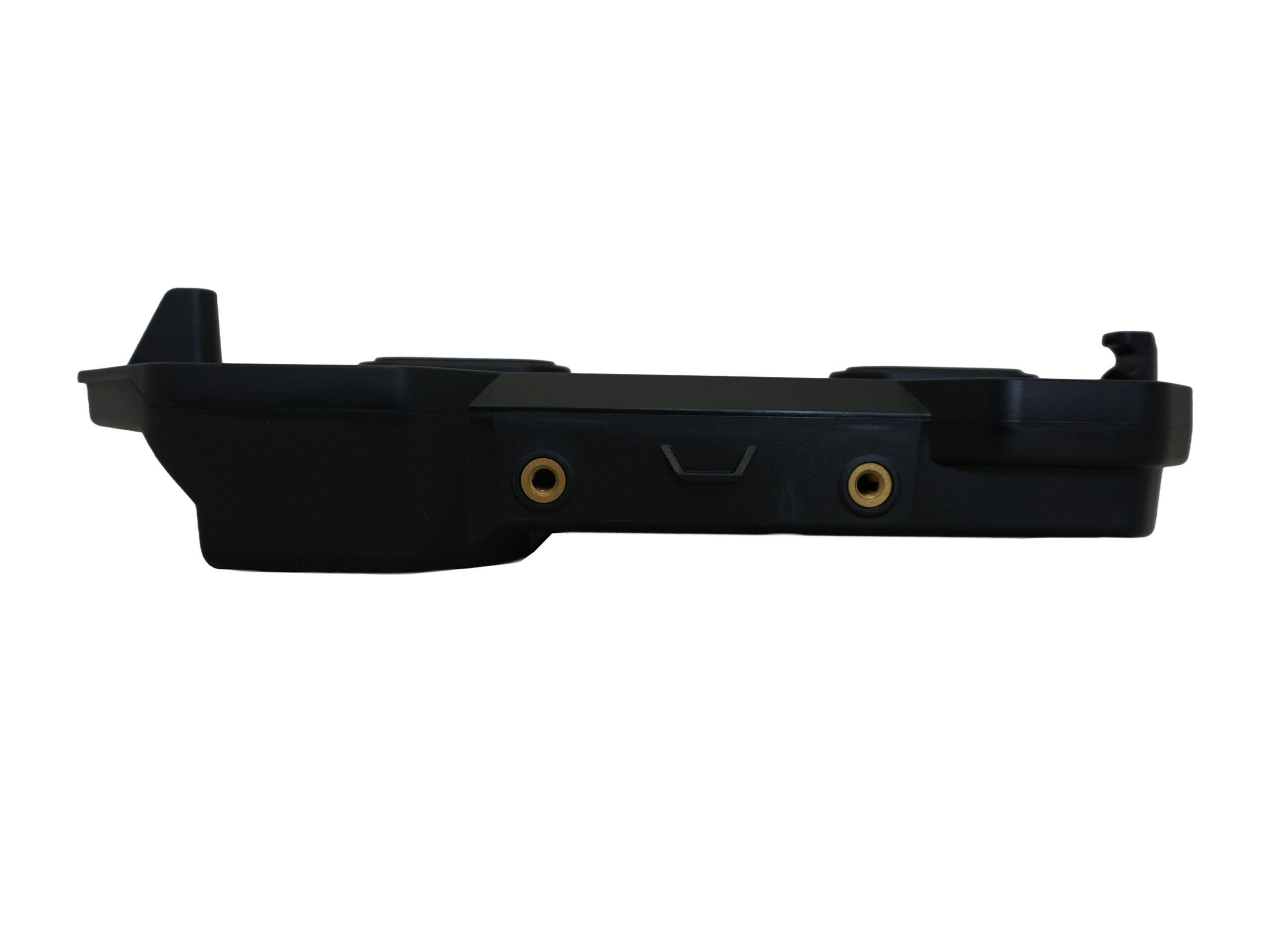

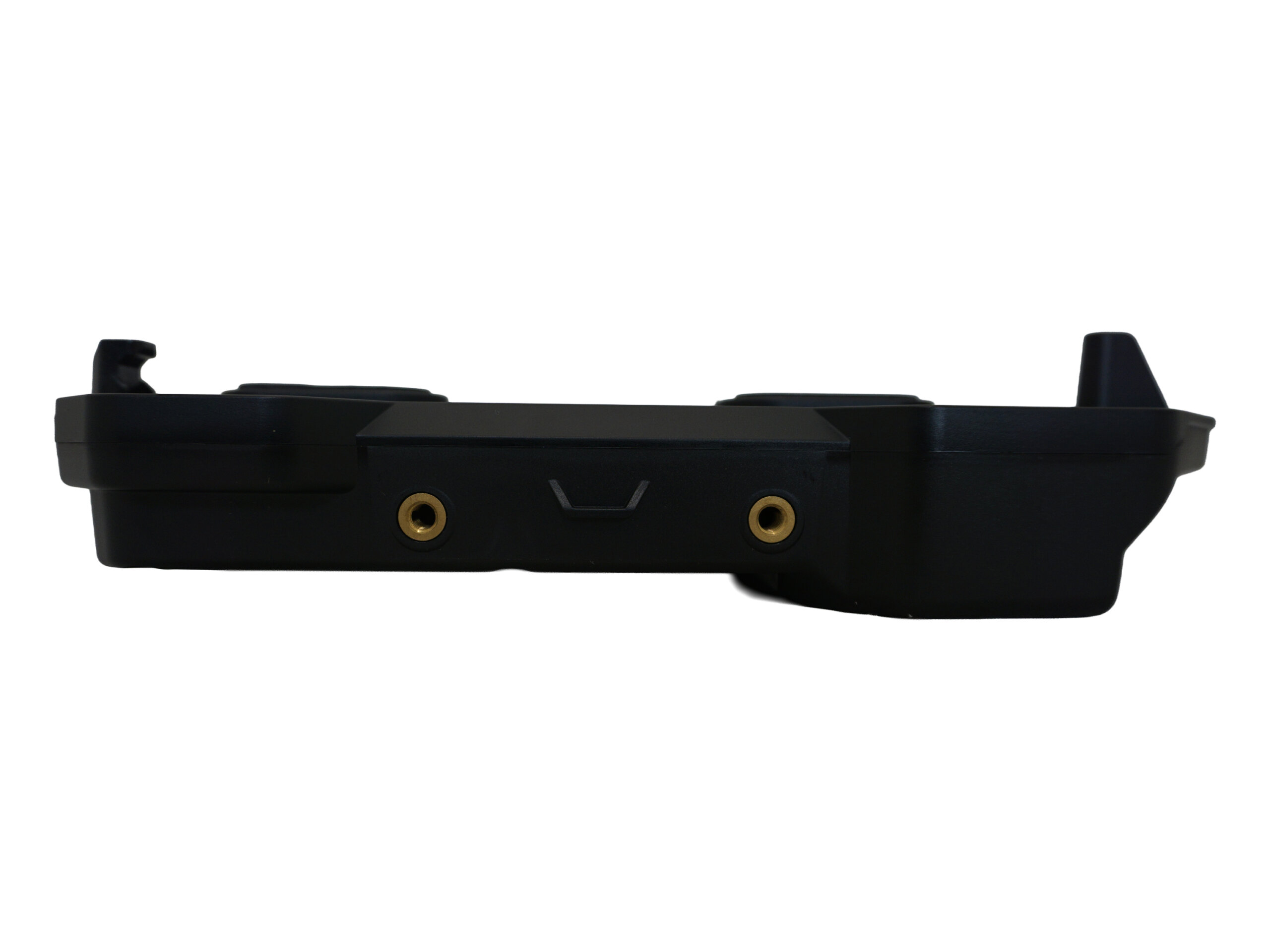

Features

  • Supports Dell's Dell Pro Rugged 14" and 13", 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
  • Cradle offers safe and secure stowage of laptop
  • Updated One-handed docking & undocking with pull latch
  • Compact and lightweight with a reduced footprint
  • U-style mounting bracket with seating notch for easy installation
  • Provides access to all notebook buttons and ports when docked
  • Compatible with screen support (DS-DA-412, sold separately)
  • Integrated cable management system
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in USA

Specifications

PRODUCT SPECIFICATIONS:
Compatible devices:Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 63° C (-4° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Dimensions:Height 2.73” (69.3mm), Width 12.39” (314.7mm); Depth 10.59” (269mm)
Product Weight: Dock: 3.30 lbs. (1.50 kg); Mounting Bracket: 1.42 lbs. (0.64 kg)
Gross weight:5.25 lbs

Resources

Owner's Manual (PDF)
Owner's Manual (PDF)
DS-DELL-430 Series Sales Sheet - Public Safety
DS-DELL-430 Series Sales Sheet - Public Safety
DS-DELL-430 Series Sales Sheet - Work Truck
DS-DELL-430 Series Sales Sheet - Work Truck
Dell Brochure
Dell Brochure
Dell Speeds & Feeds
Dell Speeds & Feeds
Dell Speeds & Feeds - French
Dell Speeds & Feeds - French
Dell Speeds & Feeds - German
Dell Speeds & Feeds - German
Dell Speeds & Feeds - Spanish
Dell Speeds & Feeds - Spanish

Application Gallery

Compatibility

Dell Rugged Notebooks Pro Rugged 14
Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
