Features

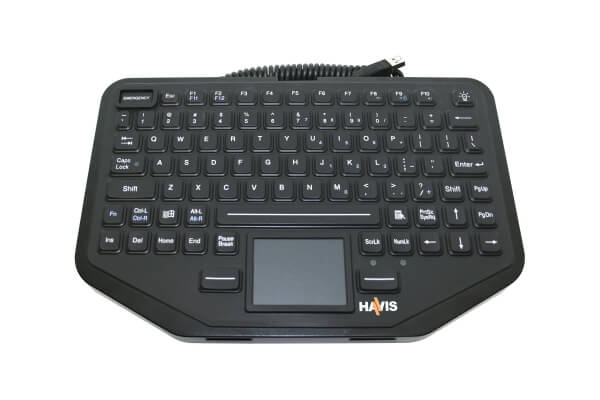

  • Rugged keyboard with 86 keys (US format) and integrated touchpad and emergency key
  • IP65 rated (ingress protection rating) for demanding environments
  • Standard USB connection (not Bluetooth compatible) allows for connection to docking station or direct to computing device.
  • Shielded emergency key sends "Shift+F1" distress signal and is easy to locate in emergency situations
  • Unique backlight key toggles intensity up/down/off
  • 10 function keys for easy operation (includes volume controls)
  • Integrated mounting features for use with Havis Rugged keyboard mount (C-KBM-201, not included)
  • VESA 75 and AMPS mounting hole pattern on bottom of keyboard for easy attachment to fixed mounts
  • Easily installed plug and play drivers
  • Red monochrome illumination backlight for reduced eye strain
  • Silicone material covering for easy cleaning of keyboard with a soft cloth and a non-corrosive cleaning solvent.

Specifications

Interior Specifications:
Dimensions:7.75" high x 12" wide 1" deep
Compatibility:Mac, Microsoft Windows 10/7/8/Vista /Xp/2000/ME/98
Mounting:VESA 75 and AMPS
Communication interface:USB 1.1 or 2.0
Working voltage:standard USB (200mA @5V)
Operating environment:-40° C to 70° C ( -40° F to 158°F ) - 100% humidity
Storage environment:-40° C to 90° C ( -40° F to 194° F ) - 100% humidity
Testing:Vibration Testing, environmental testing: hot/cold operational & storage, certifications: CE, FCC, RoHS
Product weight:1.5 lbs. (0.68 kg)
Gross weight:2 lbs

Resources

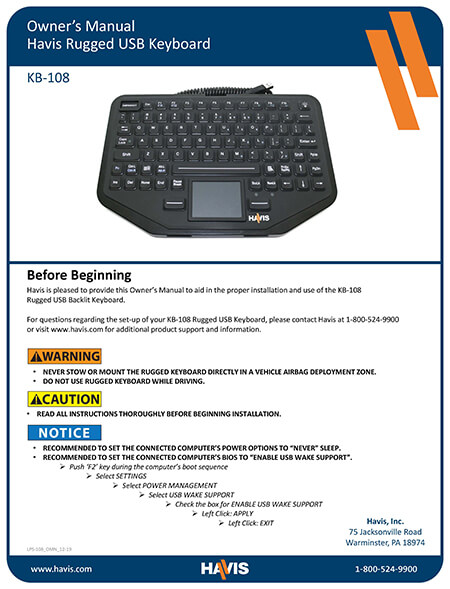

Owner's Manual (PDF)

FAQs

  • Havis no longer sells the Integrated Control System (ICS), but does support existing customers using the system.
  • For specific help with an ICS software download, please contact Havis Technical Support at 1-800-458-3410 Monday through Friday from 8 a.m. to 5 p.m. (EST).

If you would like to display Havis products in a showroom, demonstration vehicle, tradeshow display or similar area, please contact the Havis Sales Team to inquire.

Qualifying customers can test and evaluate products as part of the Test Drive Program. To submit an application to Test Drive a product, visit a product specification page and click Test this Product. After submitting your information, a Sales representative will contact you. Customers may also be interested in seeing a Havis demo vehicle in person. Check out our Find a Demo Unit page for more information.

Havis has elected to Go Green and will no longer be printing MSRP Price Booklets due to the fact that they are instantly outdated. However, our website is updated every day with the most accurate product information as well as many enhanced features. Product pricing can be found on each product specification page.

Havis has elected to Go Green and will no longer be printing catalogs due to the fact that they are instantly outdated. However, our website is updated every day with the most accurate product information as well as many enhanced features.

Electronic versions of Havis literature are available on the Havis Literature page.

Havis will provide literature to support Preferred Resellers. Please contact us, and enter your specific request under Questions/Comments.

In many cases, products are easily transferable between old and new vehicles. However, product transferability does depend on many variables including vehicle year/make/model, other equipment, etc. For more information, please contact Havis Sales Team.

Sales and Technical Support try to respond to all installation questions as quickly as possible. You should hear back within 24 hours of your request.

No, Havis does not have authorized installers nationwide. However, many Havis Resellers offer installation services and would be willing to work with you. To locate a reseller in your area, please use our interactive reseller map.

Havis does provide installation services to local customers near the Warminster, PA location. Please contact the Havis Sales Team to inquire.

Many Havis Resellers offer installation services and would be willing to work with you. To locate a reseller in your area, please use our interactive reseller map.

If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.

Product assembly varies between each specific product. Installation instructions are provided with your shipment for each product and on each product specification page online.
