Features

  • Convenient package solution offers the essential elements for any installation
  • Package includes Havis C-VSX-1800-TAH-PM console, CUP2-1004 fixed mount cup holder, and CMX15600-08-1 fuse block kit
  • Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
  • Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
  • 14" available internal mounting space, 18" total mounting space in 9"W section
  • 3.3"W section includes 15" of total equipment mounting space and removable 3" bracket for relocating 110V outlet
  • Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
  • Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-224, sold separately), relocated USB media hub, and port for 12V lighter plug
  • Self-adjusts to fit cups up to 3.5" in diameter
  • Holds 8 standard automotive blade type fuses up to 30 AMPS (not included)
  • Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system.
  • Filler plates and equipment brackets for 9"W and 3.3W sections included to enclose mounting areas
  • View 3.3" Wide console accessories here
  • Made in the USA with a lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Dimensions: 42.6" l x 16.8" w x 13.3" h
Compatible printers:Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Chevrolet Tahoe:fits 2021-2024 Chevrolet Tahoe PPV and SSV without OEM console
Chevrolet Suburban:Fits 2021-2024 Chevrolet Suburban LS with 40-20-40 split bench front seat option
Equipment Mounting:For vehicles equipped with OEM console C-VS-1100-GMC-2 is recommended for equipment mounting
Gross weight:46 lbs

Resources

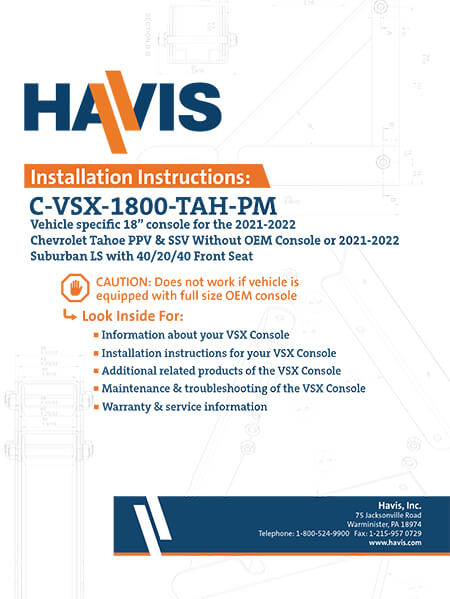

Installation Instructions (PDF)
Installation Instructions (PDF)
Download share

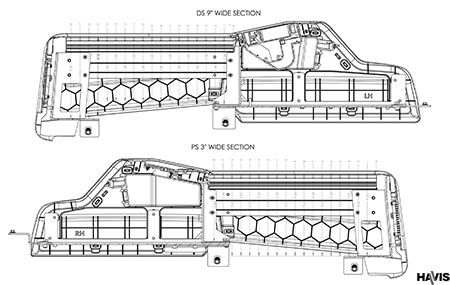

Side View Depth Measurements (PDF)
Side View Depth Measurements (PDF)
Download share
Chevy Tahoe Sales Sheet
Chevy Tahoe Sales Sheet
Download share
Chevy Tahoe Brochure
Chevy Tahoe Brochure
Download share
Chevy Tahoe VSX Console Sales Sheet
Chevy Tahoe VSX Console Sales Sheet
Download share

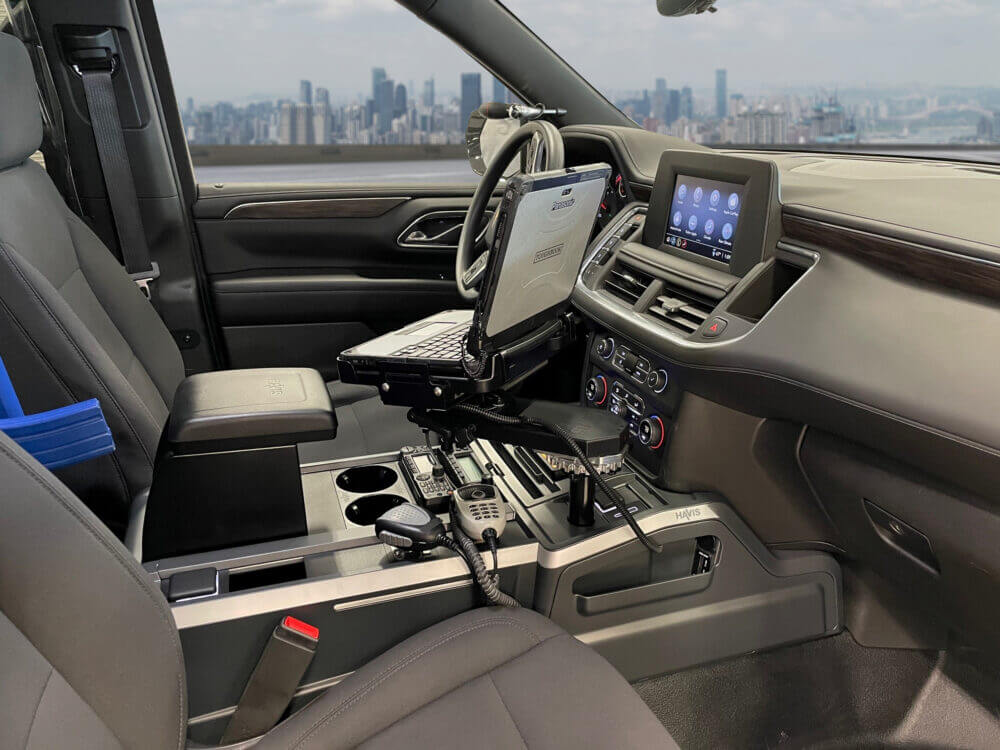

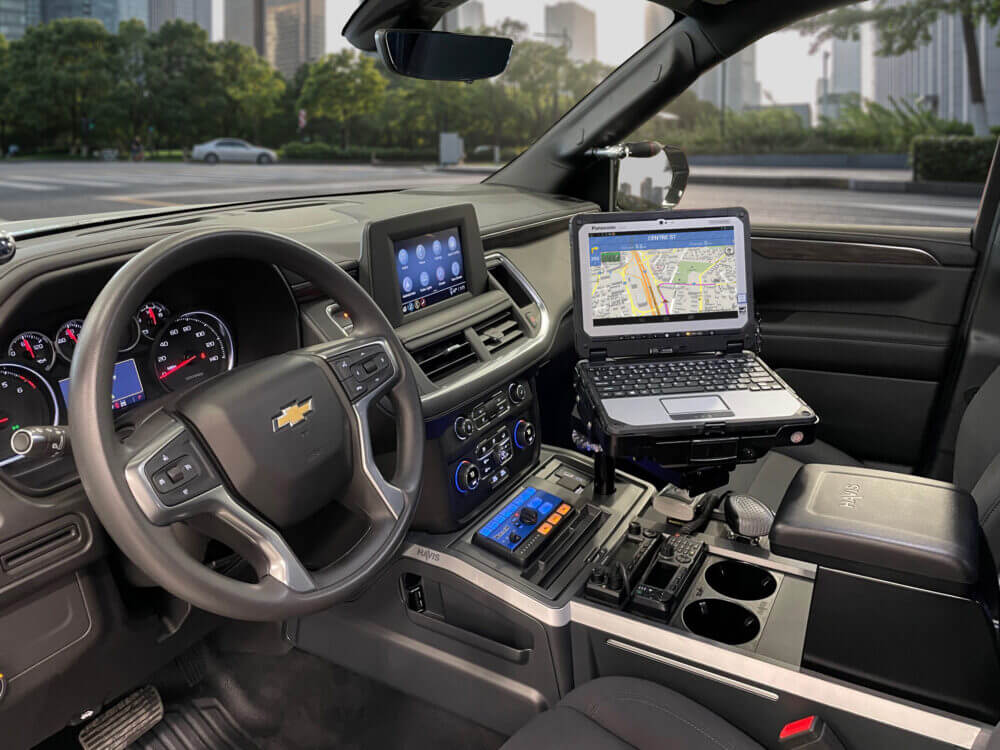

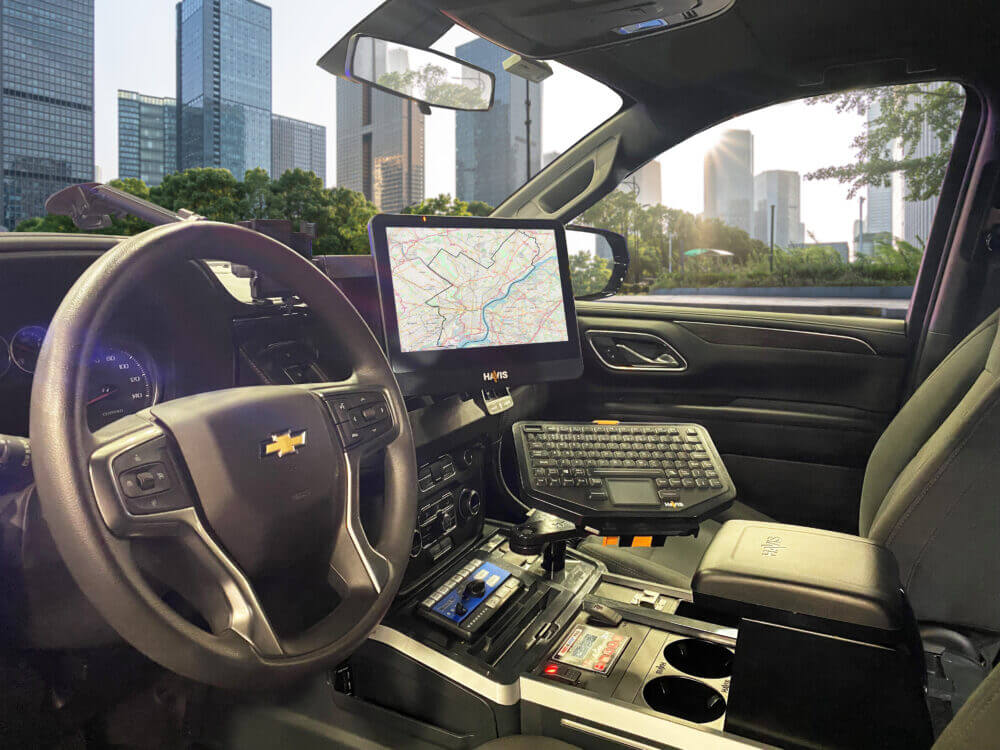

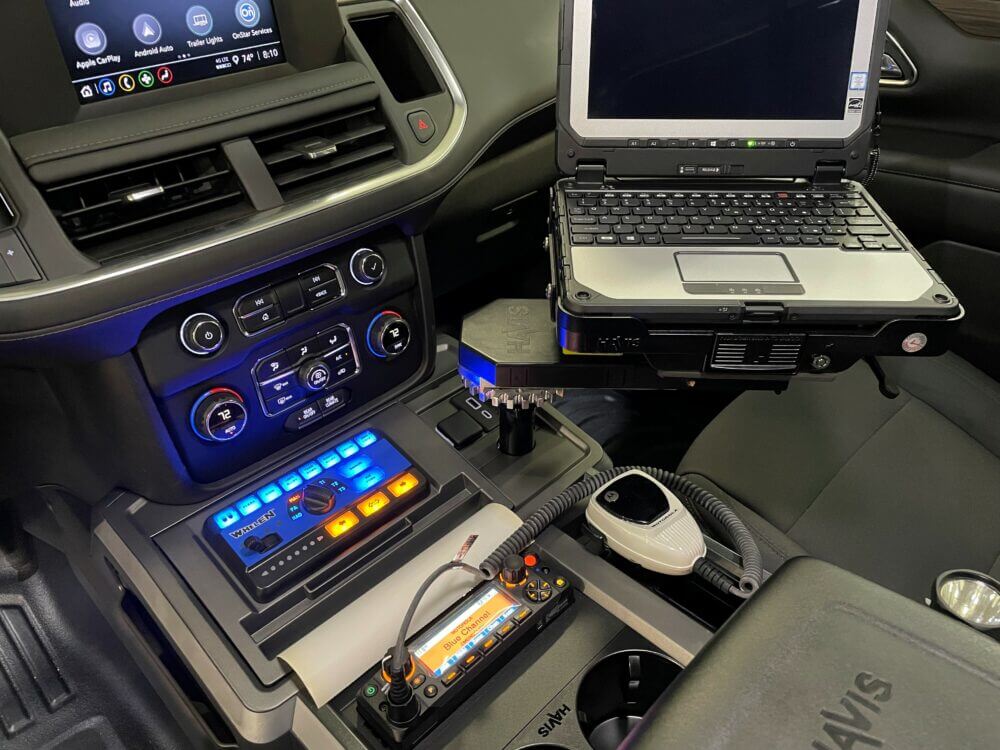

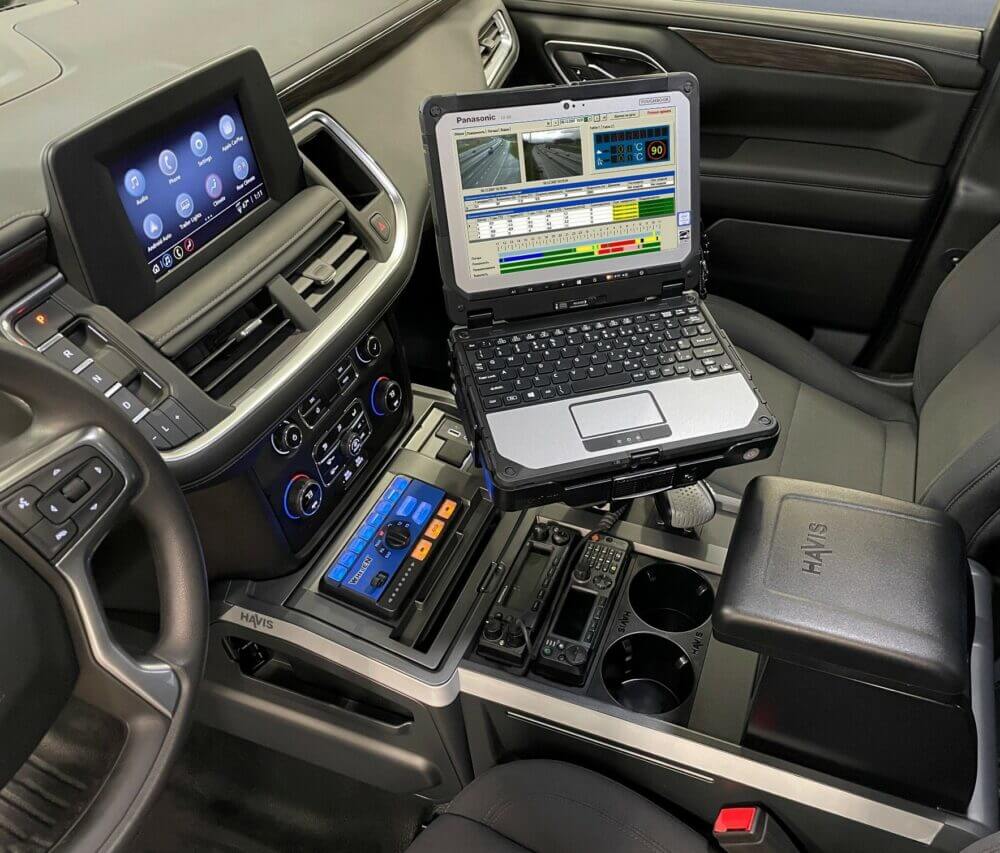

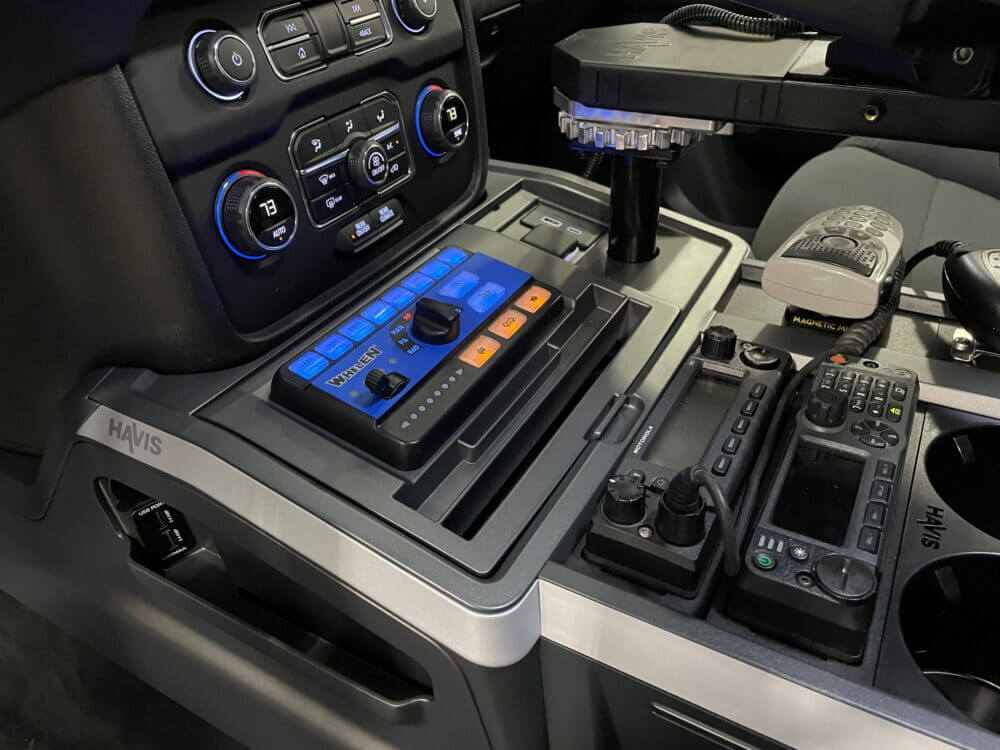

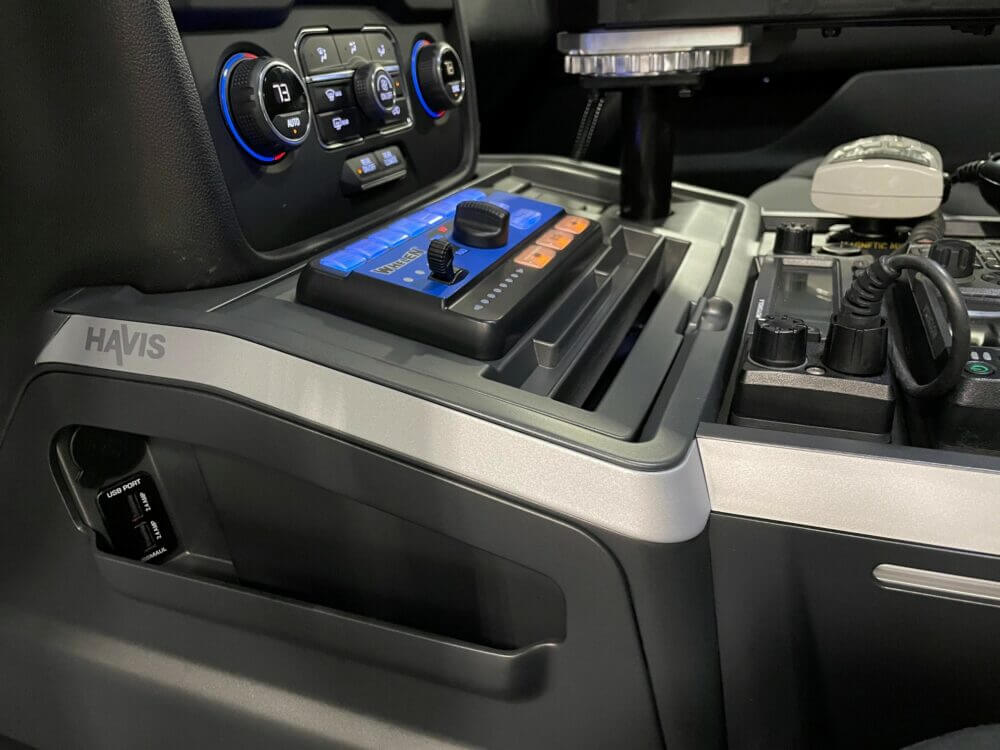

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Related products

  • Right-angle USB-C cable for Brother PocketJet 8 Printer
    DS-DA-340
    $36.00
    Right-angle USB-C cable for Brother PocketJet 8 Printer
    View product
  • Right-Angle USB 2.0 Cable for Brother PocketJet 6 & 7 Printer
    GSM70141
    $36.00
    Right-Angle USB 2.0 Cable for Brother PocketJet 6 & 7 Printer
    View product
  • Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    CMX15600-08-1
    $49.00
    Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    View product

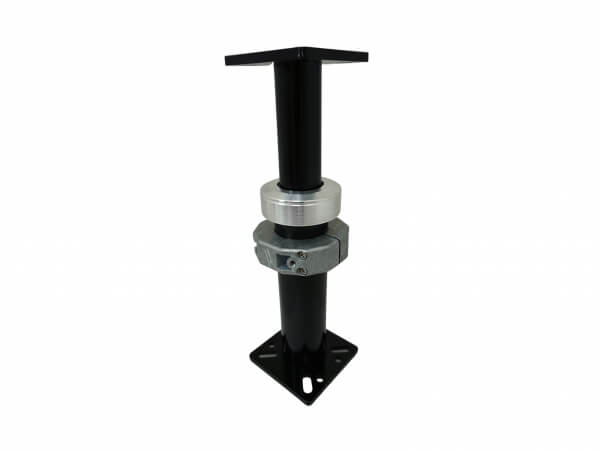

  • 8.5″ Heavy-Duty Telescoping Pole Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    C-HDM-224
    $187.00
    8.5″ Heavy-Duty Telescoping Pole Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    View product

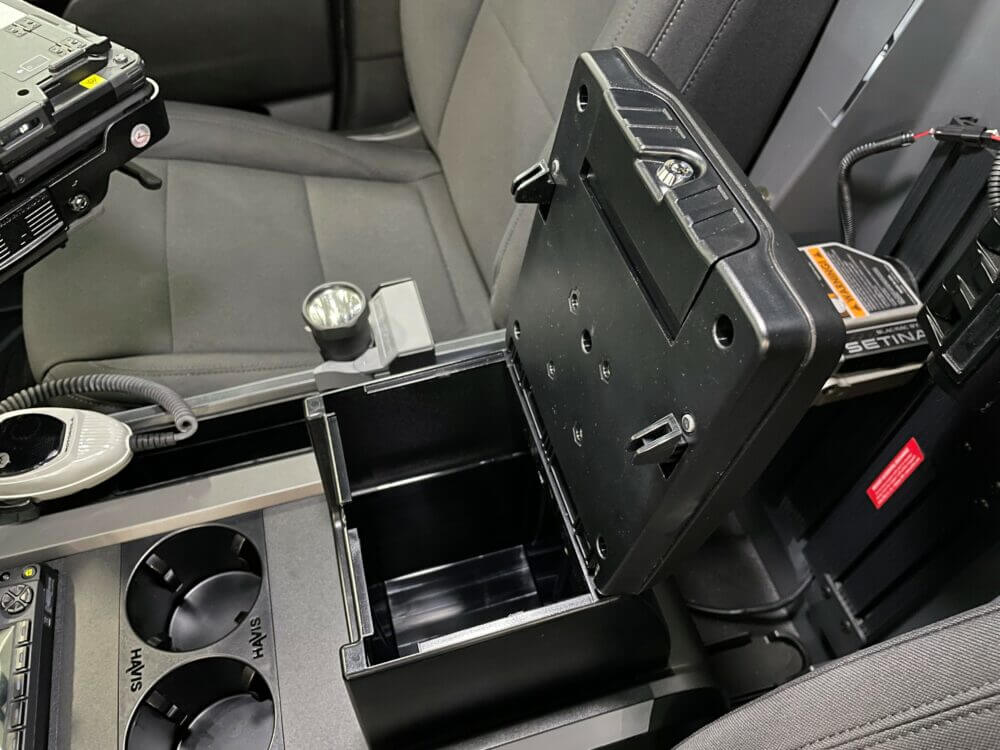

  • Internal Mount Armrest with Lockable Accessory Pocket
    C-ARM-1001
    $318.00
    Internal Mount Armrest with Lockable Accessory Pocket
    View product
  • Internal Mount Armrest
    C-ARM-109
    $329.00
    Internal Mount Armrest
    View product
  • Right-angle USB-C cable for Brother PocketJet 8 Printer
    DS-DA-340
    $36.00
    Right-angle USB-C cable for Brother PocketJet 8 Printer
    View product
  • Printer Paper Slot Cover for VSX Consoles with Printer Mount
    C-PMX-A-SP
    $20.00
    Printer Paper Slot Cover for VSX Consoles with Printer Mount
    View product

FAQs

  • The Integrated Control System (ICS) will supported through June 2023; this system will be marked End of Service Life (EOSL) effective July 1, 2023.
  • All inquiries and requests for support can be directed to the Havis Technical Support Team at (800) 458-3410

If you would like to display Havis products in a showroom, demonstration vehicle, tradeshow display or similar area, please contact the Havis Sales Team to inquire.

Qualifying customers can test and evaluate products as part of the Test Drive Program. To submit an application to Test Drive a product, visit a product specification page and click Test this Product. After submitting your information, a Sales representative will contact you. Customers may also be interested in seeing a Havis demo vehicle in person. Check out our Find a Demo Unit page for more information.

Havis has elected to Go Green and will no longer be printing MSRP Price Booklets due to the fact that they are instantly outdated. However, our website is updated every day with the most accurate product information as well as many enhanced features. Product pricing can be found on each product specification page.

Havis has elected to Go Green and will no longer be printing catalogs due to the fact that they are instantly outdated. However, our website is updated every day with the most accurate product information as well as many enhanced features.

Electronic versions of Havis literature are available on the Havis Literature page.

Havis will provide literature to support Preferred Resellers. Please contact us, and enter your specific request under Questions/Comments.

The following illustrations demonstrate just some of the many ways to mount your computer onto our consoles or computer mounts. For more information, contact us at 1.800.524.9900.

In many cases, products are easily transferable between old and new vehicles. However, product transferability does depend on many variables including vehicle year/make/model, other equipment, etc. For more information, please contact Havis Sales Team.

Sales and Technical Support try to respond to all installation questions as quickly as possible. You should hear back within 24 hours of your request.

No, Havis does not have authorized installers nationwide. However, many Havis Resellers offer installation services and would be willing to work with you. To locate a reseller in your area, please use our interactive reseller map.

Havis does provide installation services to local customers near the Warminster, PA location. Please contact the Havis Sales Team to inquire.

Many Havis Resellers offer installation services and would be willing to work with you. To locate a reseller in your area, please use our interactive reseller map.

If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.

Product assembly varies between each specific product. Installation instructions are provided with your shipment for each product and on each product specification page online.
