Features

  • Convenient package solution offers the essential elements for any tablet docking station installation

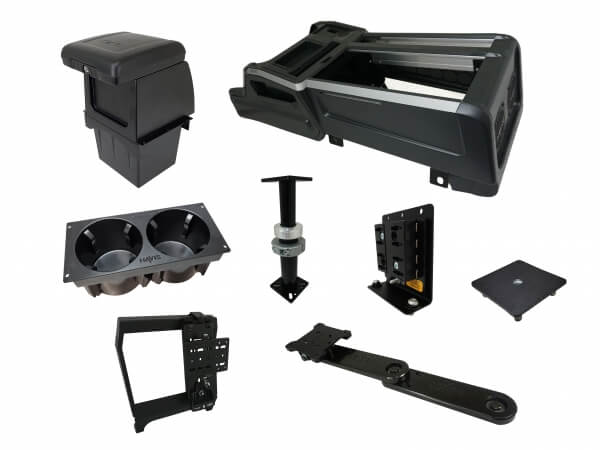

  • Package includes C-VSX-1800-TAH-PM console with front printer mount, C-ARM-1001, CUP2-1004, C-HDM-224, C-HDM-307, MD-ARM-0606, C-DMM-3019, and CMX15600-08-1
  • Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
  • Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate

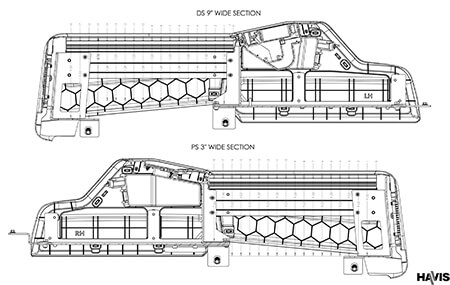

  • 7" available internal mounting space, 18" total mounting space in 9"W section
  • 3.3"W section includes 15" of total equipment mounting space and removable 3" bracket for relocating 110V outlet

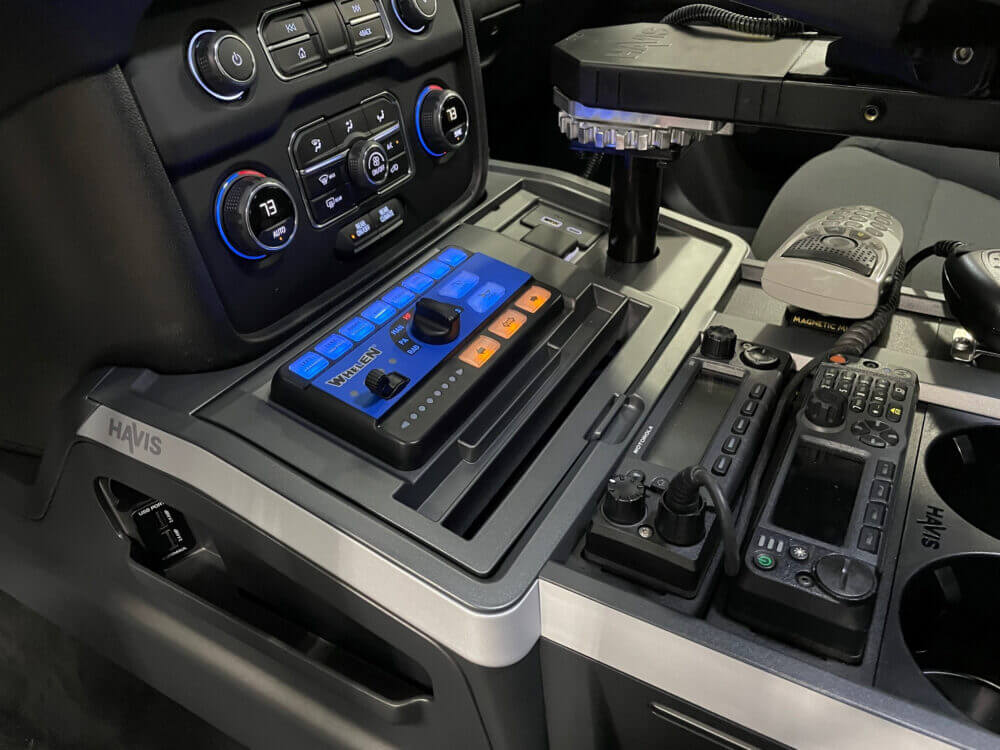

  • Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
  • Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, internal pole mount (C-HDM-224 included), relocated USB media hub, and port for 12V lighter plug
  • Self-adjusts to fit cups up to 3.5" in diameter
  • Holds 8 standard automotive blade type fuses up to 30 AMPS (not included)
  • Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system.
  • Filler plates and equipment brackets for 9"W and 3.3W sections included to enclose mounting areas
  • View 3.3" Wide console accessories here
  • Made in the USA with a lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Dimensions:42.6" l x 16.8" w x 13.3" h
Compatible printers:Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Chevrolet Tahoe:Fits 2021-2024 Chevrolet Tahoe PPV and SSV without OEM console
Chevrolet Suburban:Fits 2021-2024 Chevrolet Suburban LS with 40-20-40 split bench front seat option
Equipment Mounting:For vehicles equipped with OEM console C-VS-1100-GMC-2 is recommended for equipment mounting
Gross weight:49 lbs

Resources

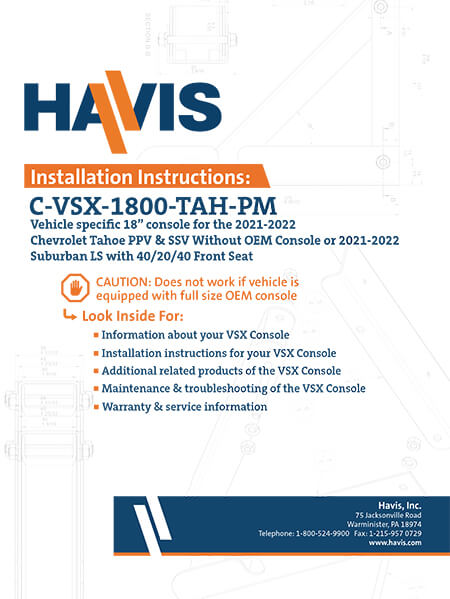

Installation Instructions (PDF)
Side View Depth Measurements (PDF)
Chevy Tahoe Sales Sheet
Chevy Tahoe Brochure
Chevy Tahoe VSX Console Sales Sheet

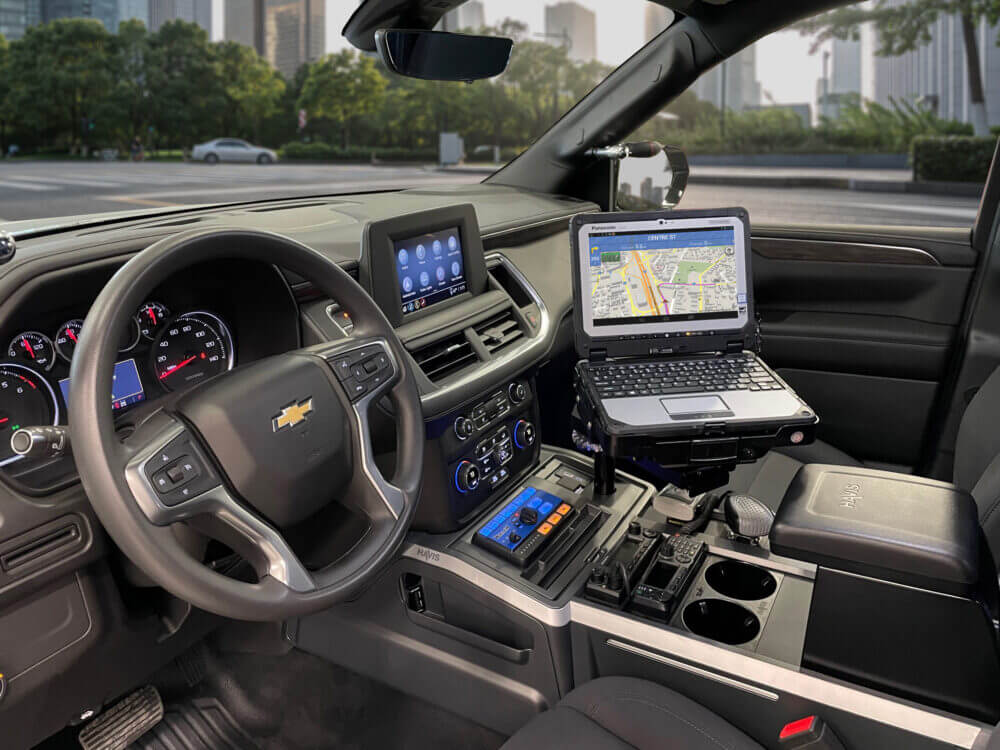

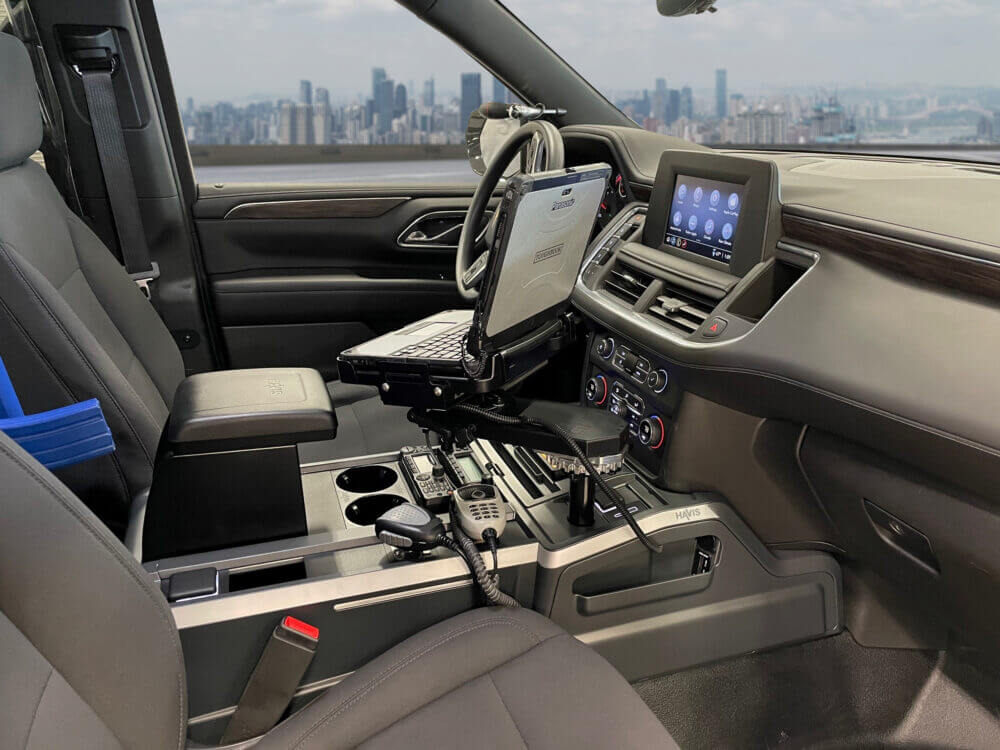

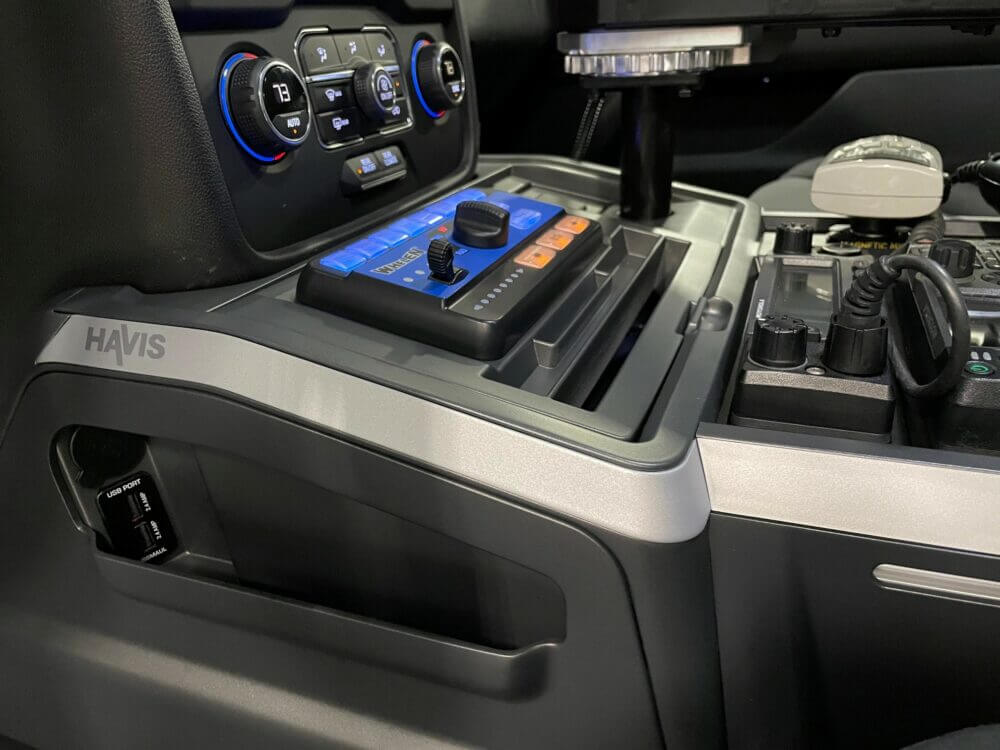

Application Gallery

Compatibility

2021-2024 Chevrolet Tahoe PPV & SSV
2021-2024 Chevrolet Tahoe PPV & SSV

Related products

  • Internal Mount Armrest with Lockable Accessory Pocket
    C-ARM-1001
    $318.00
    Internal Mount Armrest with Lockable Accessory Pocket
    View product
  • Brother PocketJet Printer Slot Cover for 2021-2024 Chevrolet Tahoe C-VSX-1800-TAH-PM Console
    C-PMX-TAH-A-SP
    $20.00
    Brother PocketJet Printer Slot Cover for 2021-2024 Chevrolet Tahoe C-VSX-1800-TAH-PM Console
    View product
  • Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    CMX15600-08-1
    $49.00
    Fuse Block Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    View product

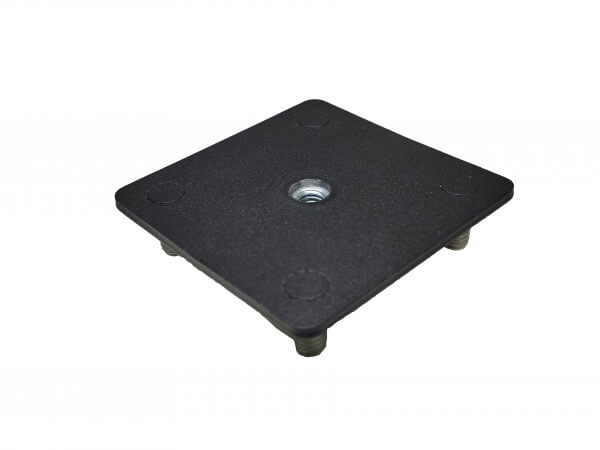

  • Heavy-Duty Adapter Plate for Swivel Arm Mounts
    C-HDM-307
    $21.00
    Heavy-Duty Adapter Plate for Swivel Arm Mounts
    View product
  • Right-Angle USB 2.0 Cable for Brother PocketJet 6 & 7 Printer
    GSM70141
    $36.00
    Right-Angle USB 2.0 Cable for Brother PocketJet 6 & 7 Printer
    View product

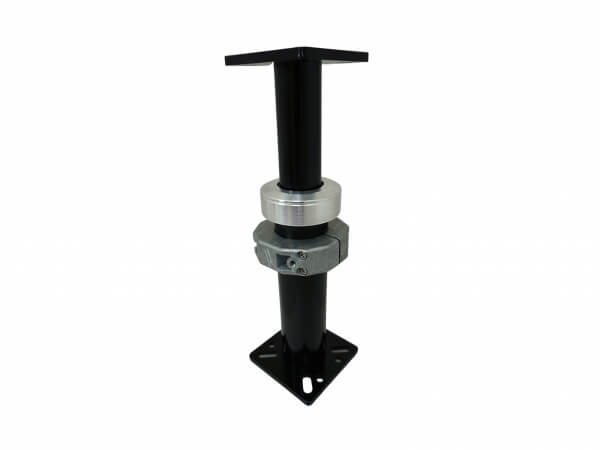

  • 8.5″ Heavy-Duty Telescoping Pole Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    C-HDM-224
    $187.00
    8.5″ Heavy-Duty Telescoping Pole Kit for Wide VSX Console with Front Printer Mount for 2021-2024 Chevrolet Tahoe PPV & SSV
    View product
  • Heavy-Duty Dash Mount for 2021-2024 Chevrolet Tahoe
    C-DMM-3019
    $517.00
    Heavy-Duty Dash Mount for 2021-2024 Chevrolet Tahoe
    View product

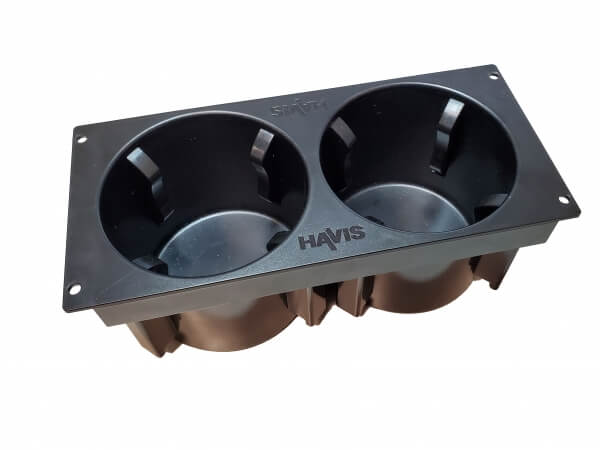

  • Self-Adjusting Double Cup Holder (Fixed Mount)
