Features

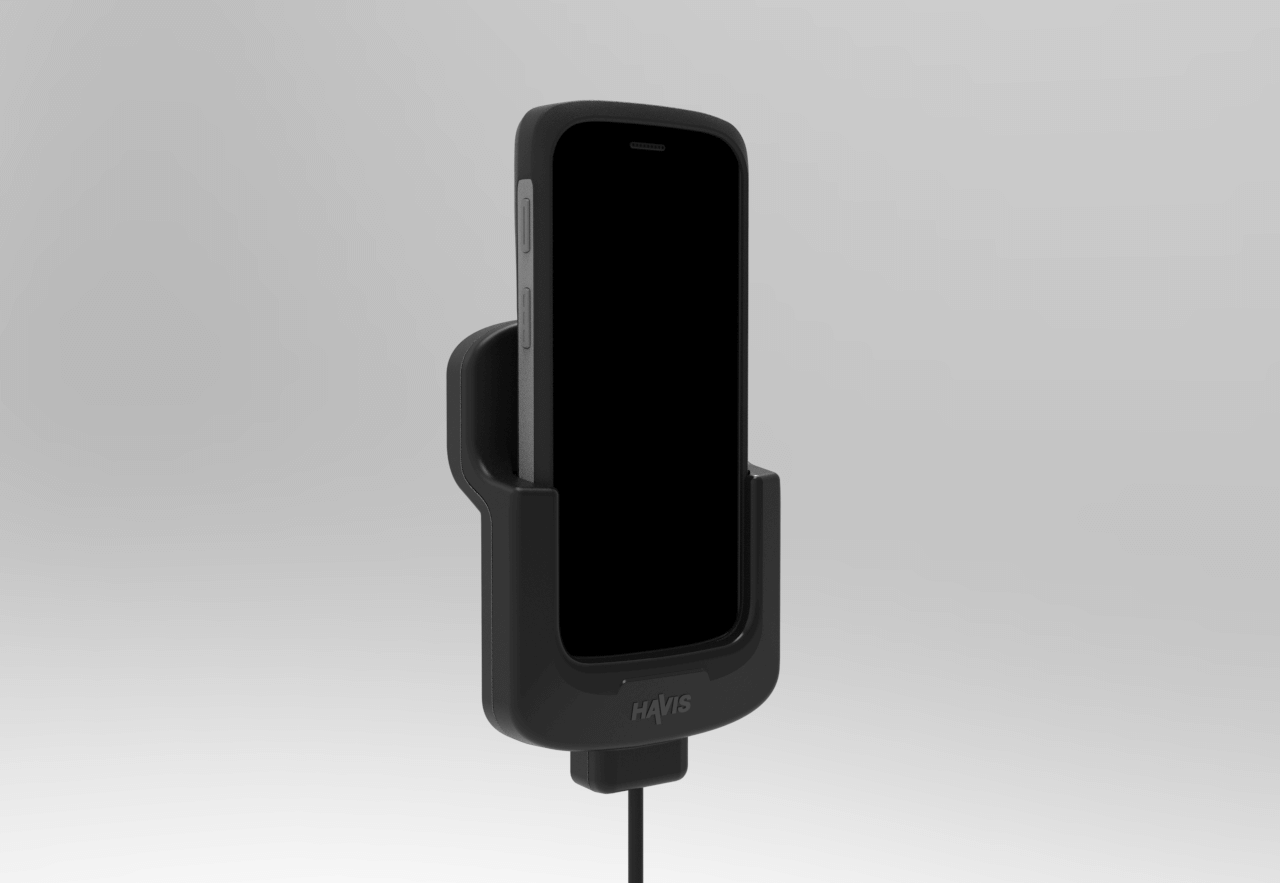

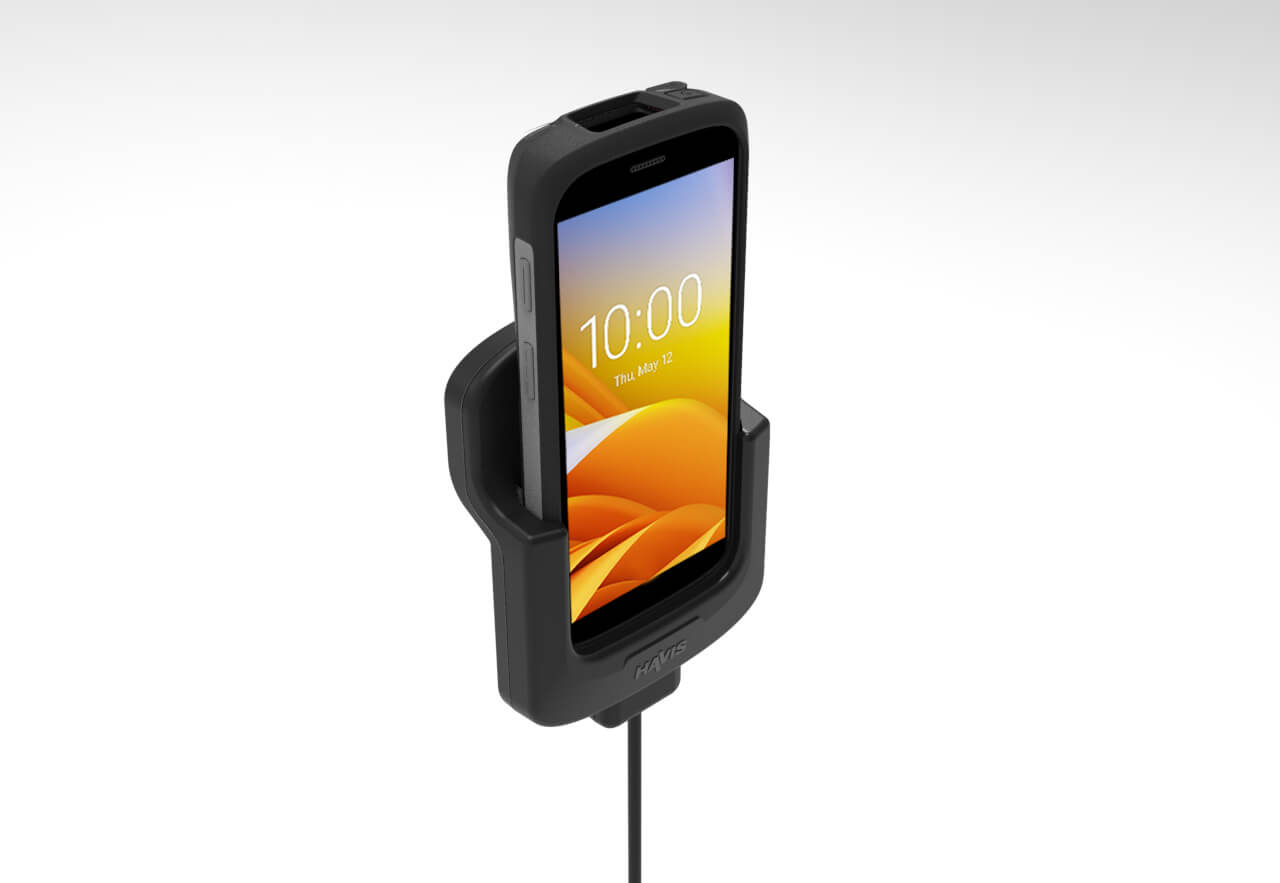

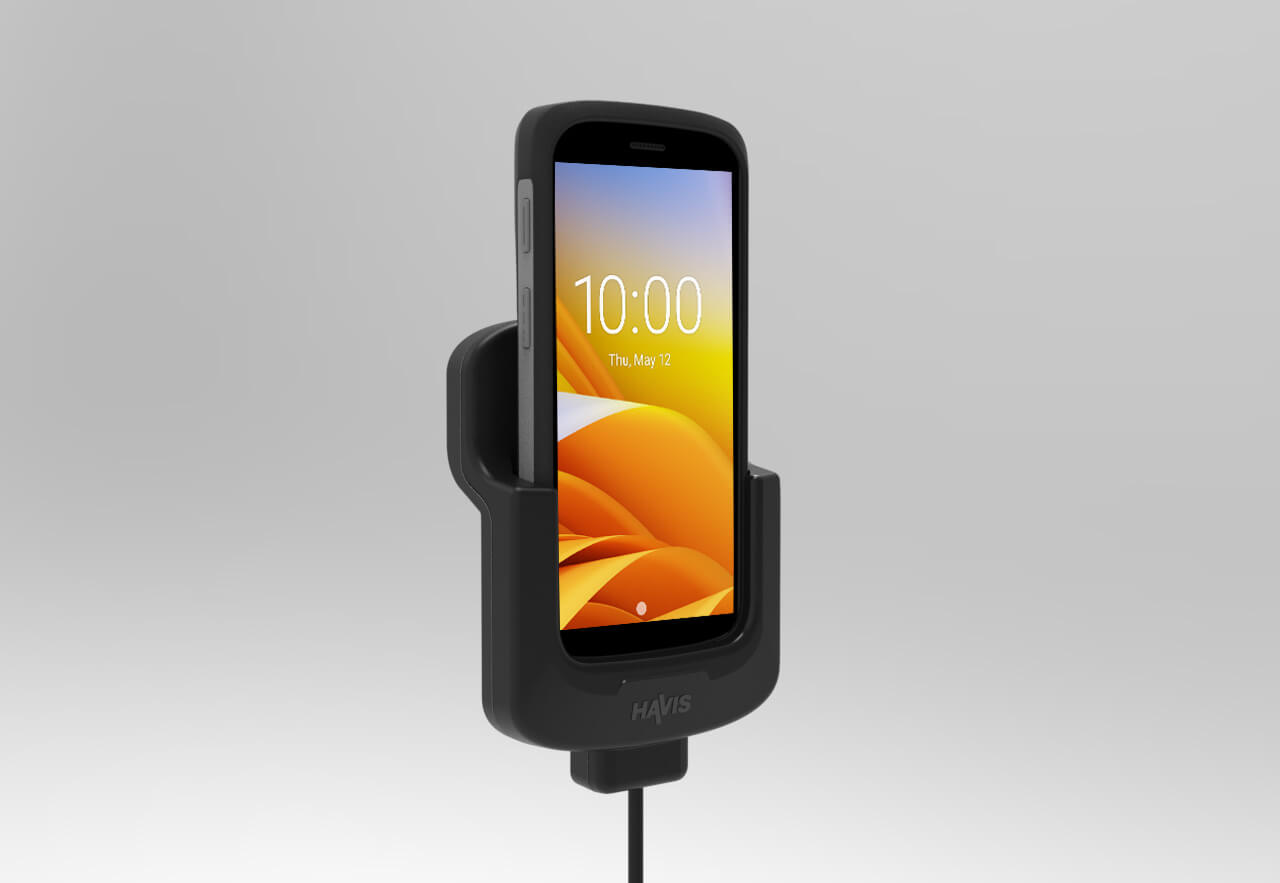

  • Supports Zebra's TC22/TC27 Series Mobile Computers in Retail, Hospitality, Warehouse & Distribution, Energy & Utilities, Field Service, and other demanding environments
  • Includes DS-ZEB-602 Rugged Charging Holder and C-USB-4 Accessory Plug
  • User-replaceable USB-C cable supports Power Delivery
  • One-handed insertion and removal
  • Provides access to all TC22/27 buttons, ports, and bar code scanner when device is inserted
  • Supports Zebra extended battery and hand strap
  • Compact & lightweight design
  • C-USB-4 20W USB-C Accessory Plug supports Power Delivery 3.0 for fast charging

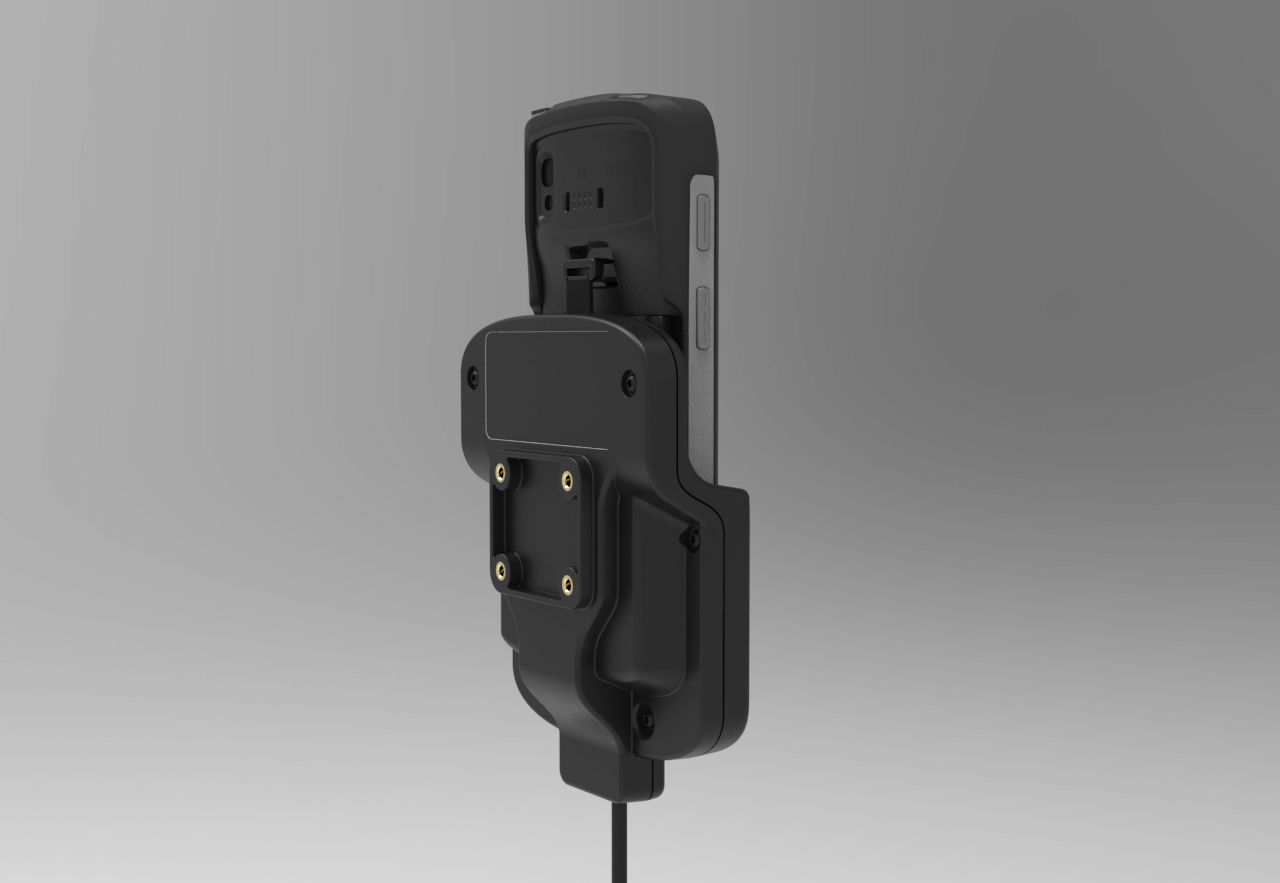

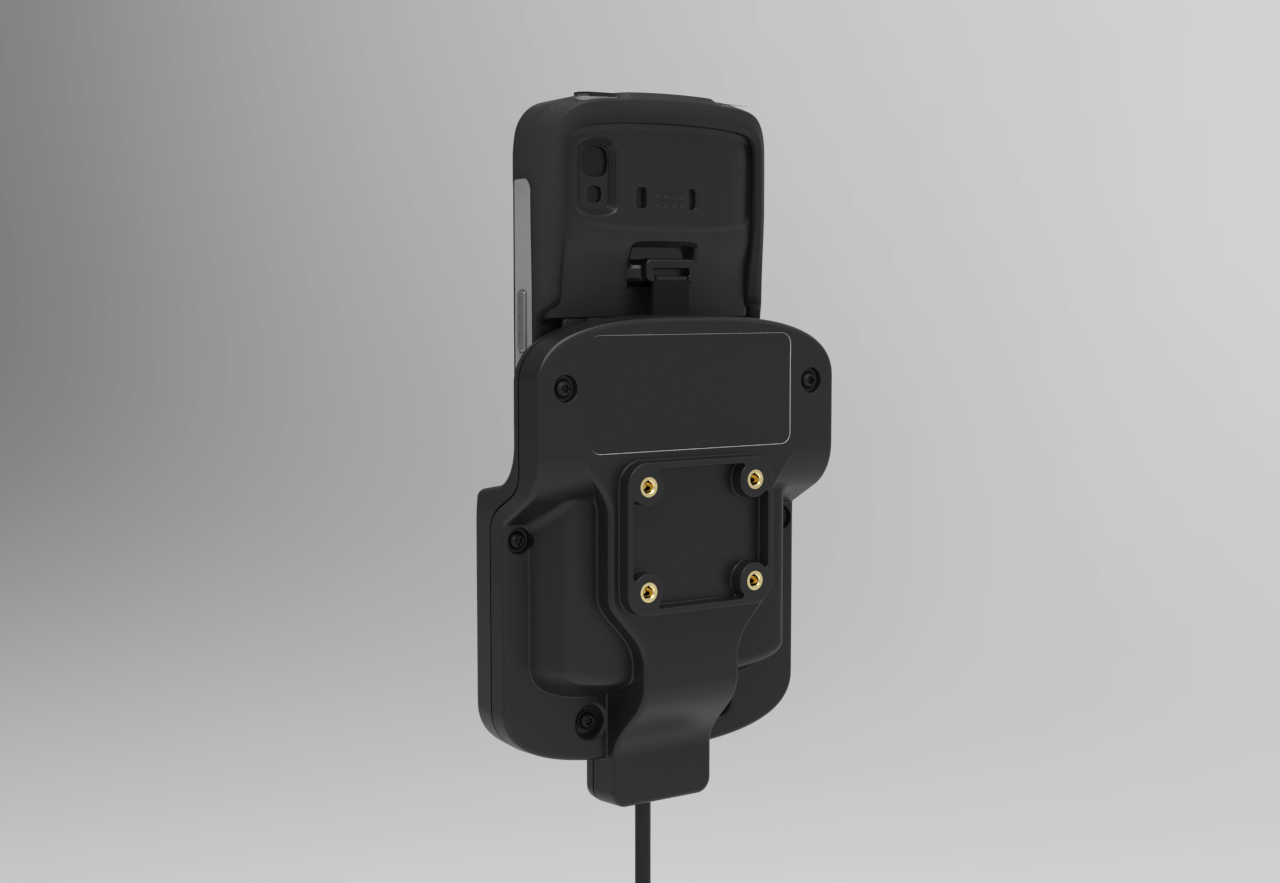

  • Integrated AMPS mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Made in the USA
  • Compatible with a wide range of Havis mounts

Specifications

PRODUCT SPECIFICATIONS:
Compatible Devices:Zebra TC22/TC27 Mobile Computers
Certifications:Vibration Testing: MIL-STD 810H 514.8 Cycle Testing: Insertion, removal and USB-C connector 10K cycles Environmental Testing: Hot/Cold operational 5° C to 40° C (41° F to 104° F); Hot/Cold storage -40° C to 70° C (-40° F to 158° F)
Dimensions:5.8” (14.7 cm) H x 4.2” (10.6 cm) W x 1.8” (4.5 cm) D
Product weight: 0.5 lbs. (0.23 kg)
Gross weight:1 lbs

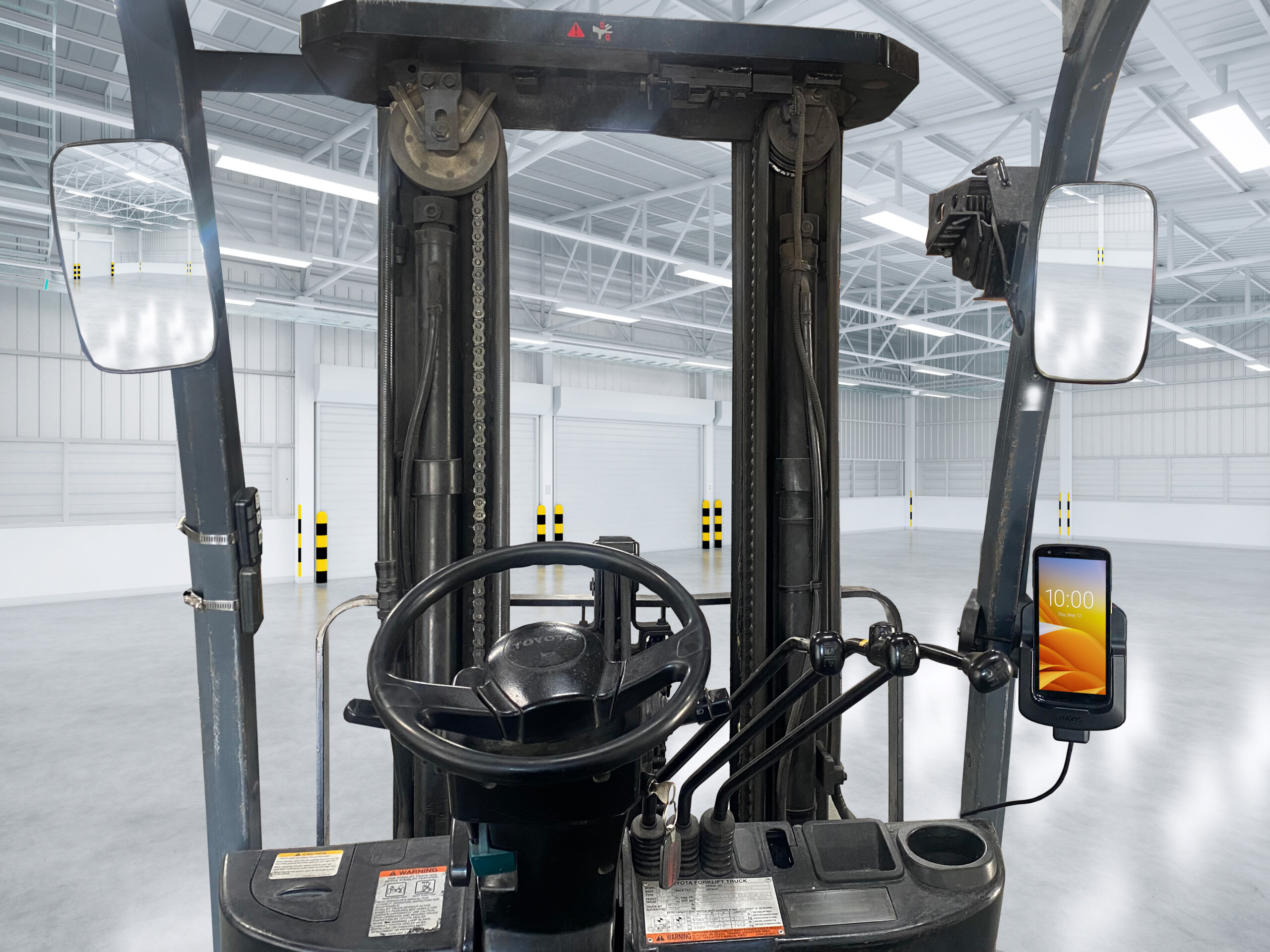

Application Gallery

product galleryproduct gallery

Resources

Owner's Manual
Owner's Manual
Download share

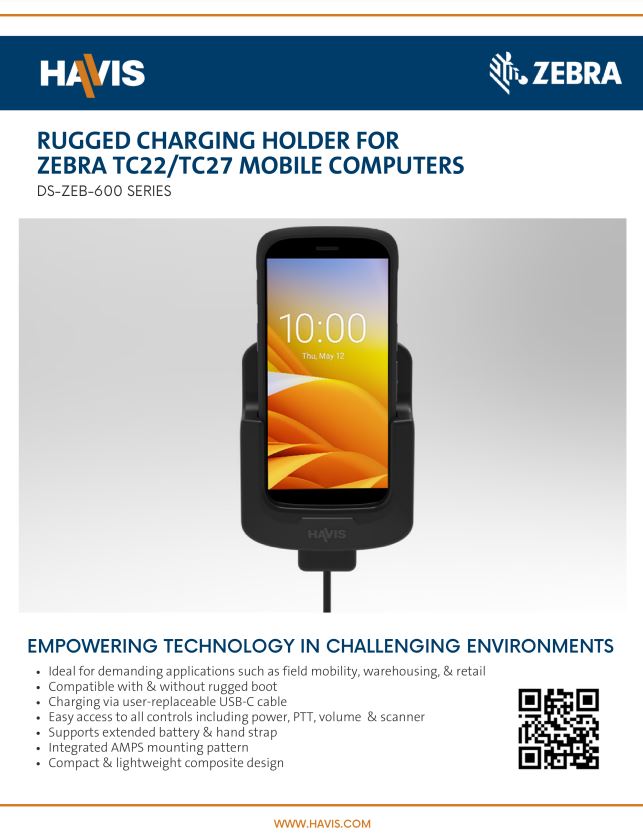

Zebra TC22/TC27 Sales Sheet
