Features

  • VSS Series Temperature Sensor is designed to operate in the most severe enviroments.
  • Nickel plated bus bar
  • High Strength Glass Filled Polycarbonate housing
  • Battery Post or Distribution Bar mounting with 1/2" or 13mm stud
  • Cover has a recess for cable-tie
  • Industry Standard Deutsch Connector
  • 18 month warranty

PRODUCT SPECIFICATIONS:
DC Input:Supply Voltage: 4.5-10.0 V
DC Voltage Range:Supply Current: 10 mA
Operating Temperature:-40F to 150F (-40C to 65C)
Surge Rating:Load Resistence is: <4kΩ
Dimensions:1.36”H x2.87”W x 1.6”D
Product Weight:< 1.0 lbs
Gross weight:0 lbs

Resources

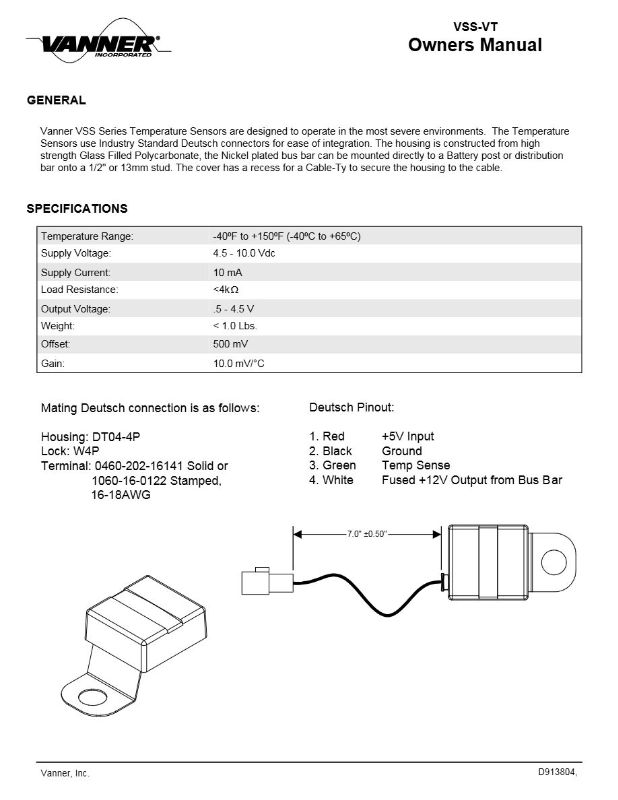

Owner's Manual
Owner's Manual
