Features

  • For 2020-2025 Ford Interceptor Utility
  • Angled console with 22" of total internal mounting space
  • 10" front angled, 12" rear horizontal & 27° degree of angle
  • Mounts between seats and fits lower dash contour once OEM tunnel plate is removed
  • Includes:
  • OEM USB and lighter plug cutout
  • Two (2) additional 12 volt sockets with wire and fuse
  • Rocker switch or dual USB charge module cutout
  • OEM parking brake relocation cutout
  • Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Provisions for external side mount poles and side panels with perforations to allow for equipment cooling as well as internal speaker mounting
  • Mounting holes on top of console for motion device attachments
  • Configure a complete solution with these products:
  • Dash monitor mount for vehicle year 2020-2024: C-DMM-3015
  • Dash monitor mount for vehicle year 2025: C-DMM-3028
  • Brother PocketJet printer mount for vehicle-specific console: C-PM-124-PC, C-PM-125, or C-PM-134-PC
  • 11″ Slide Out Locking Swing Arm With Low Profile Motion Device Adapter: C-MD-119
  • Havis Rugged Keyboard & Keyboard mount: KB-1002 & C-KBM-201
  • View console accessories here
  • Made in USA
  • Lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Dimensions:31.8"L x 11.2"W x 16.6"H
Product Weight:27.46 lbs.
Material:Heavy gauge steel with black powder coat finish
Rear HVAC option:Rear air option on 2020-2024 vehicle with NON-HVAC OPTION require closeout bracket (CM014248-1)
Gross weight:29 lbs

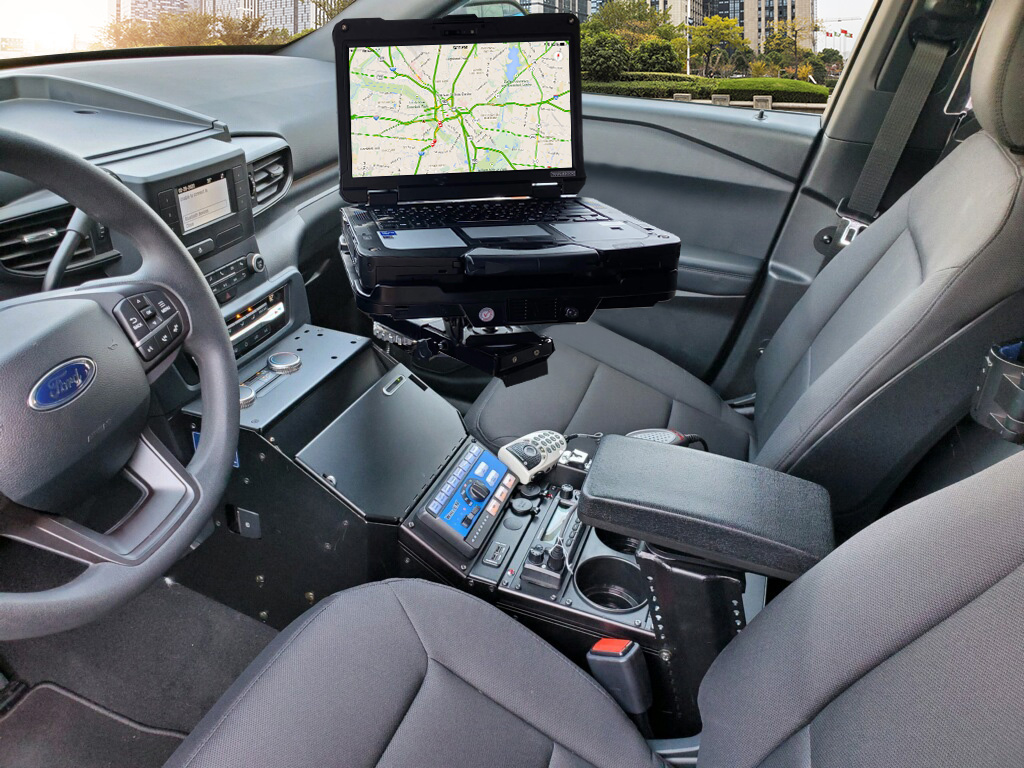

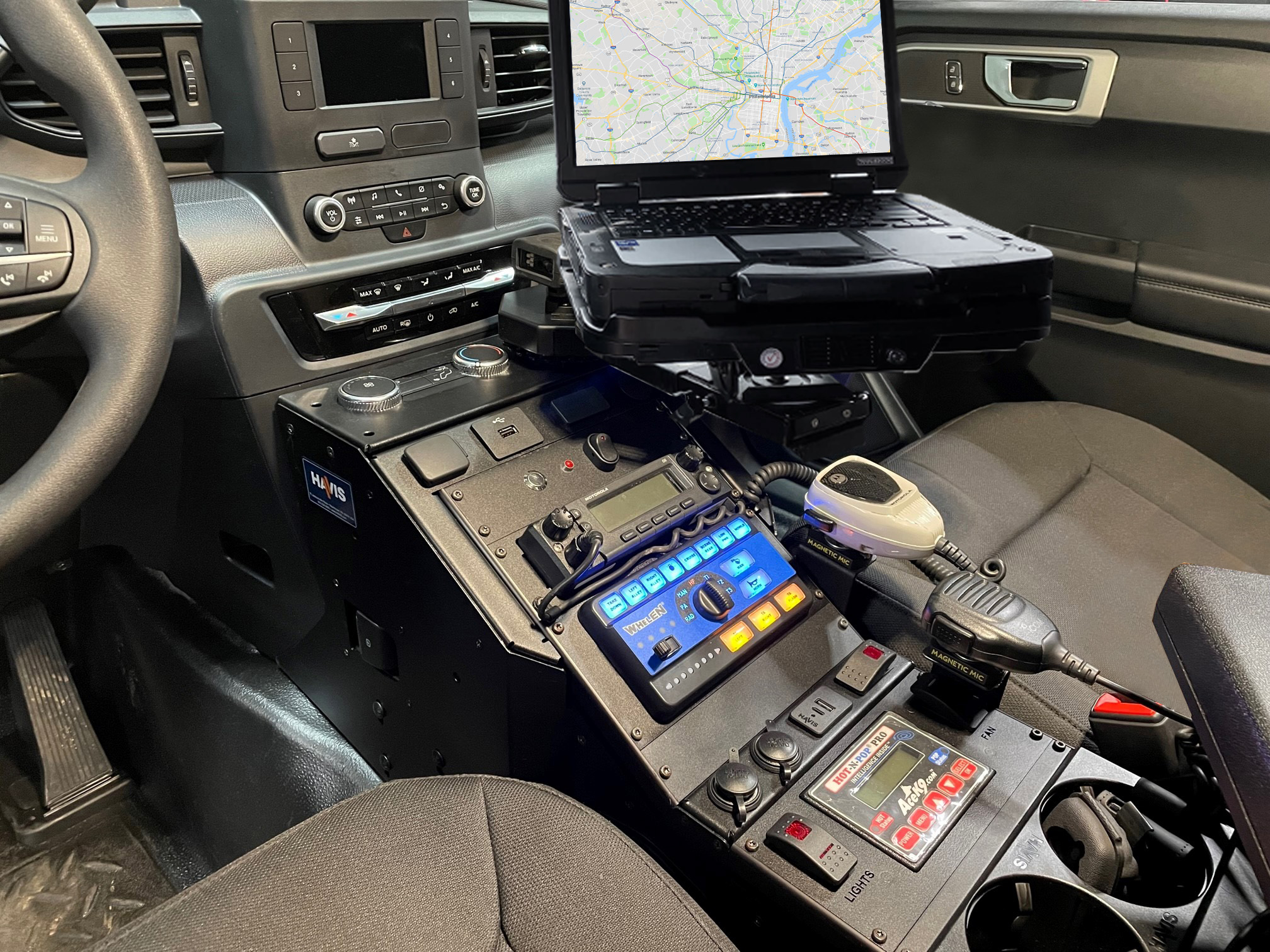

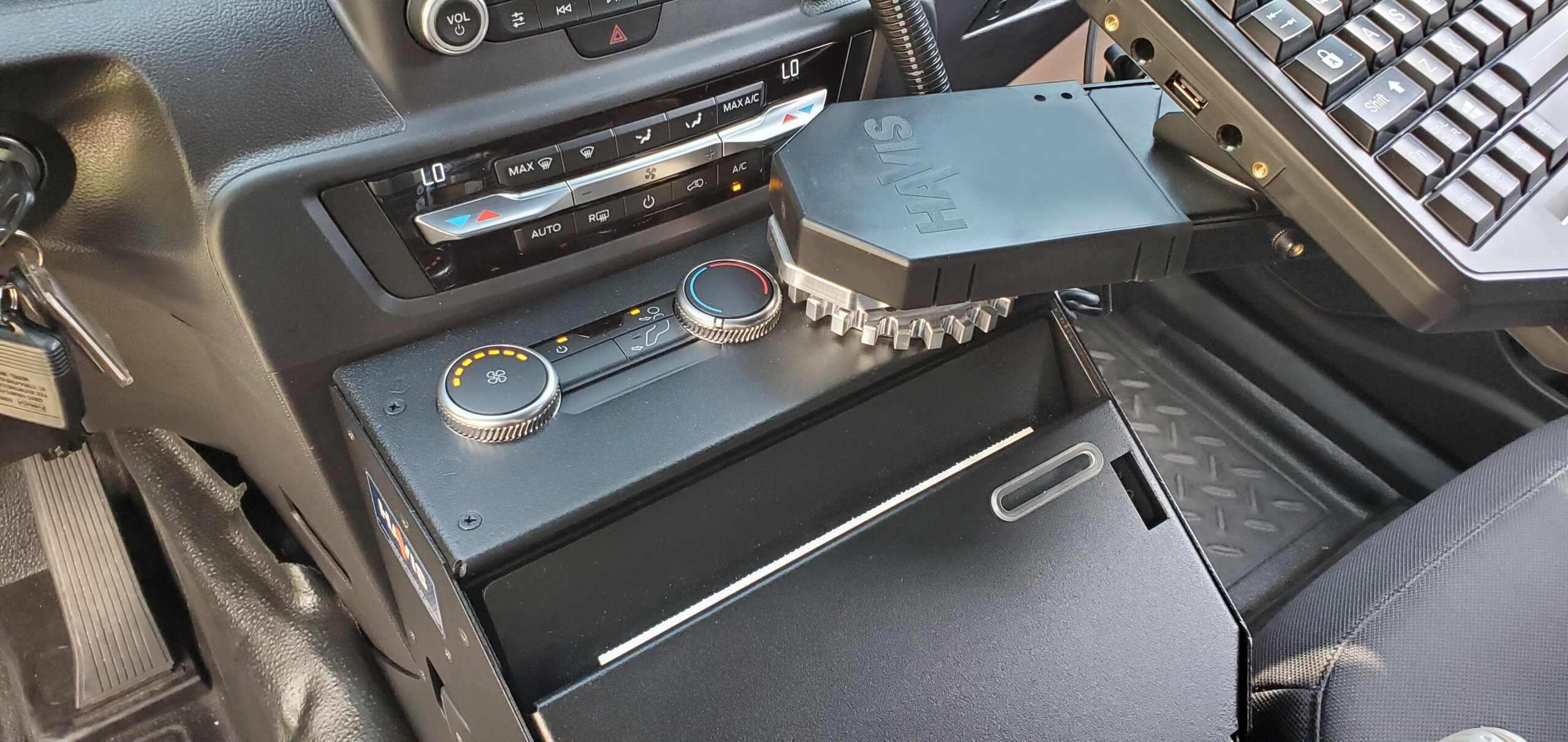

Application Gallery

Resources

Installation Instructions (PDF)
Installation Instructions (PDF)

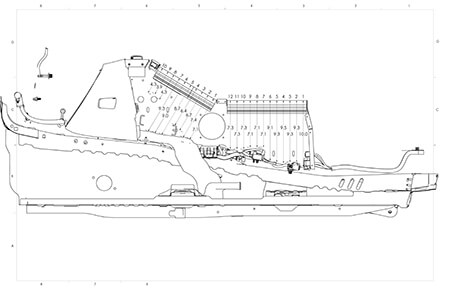

Side View Depth Measurements (PDF)
Side View Depth Measurements (PDF)

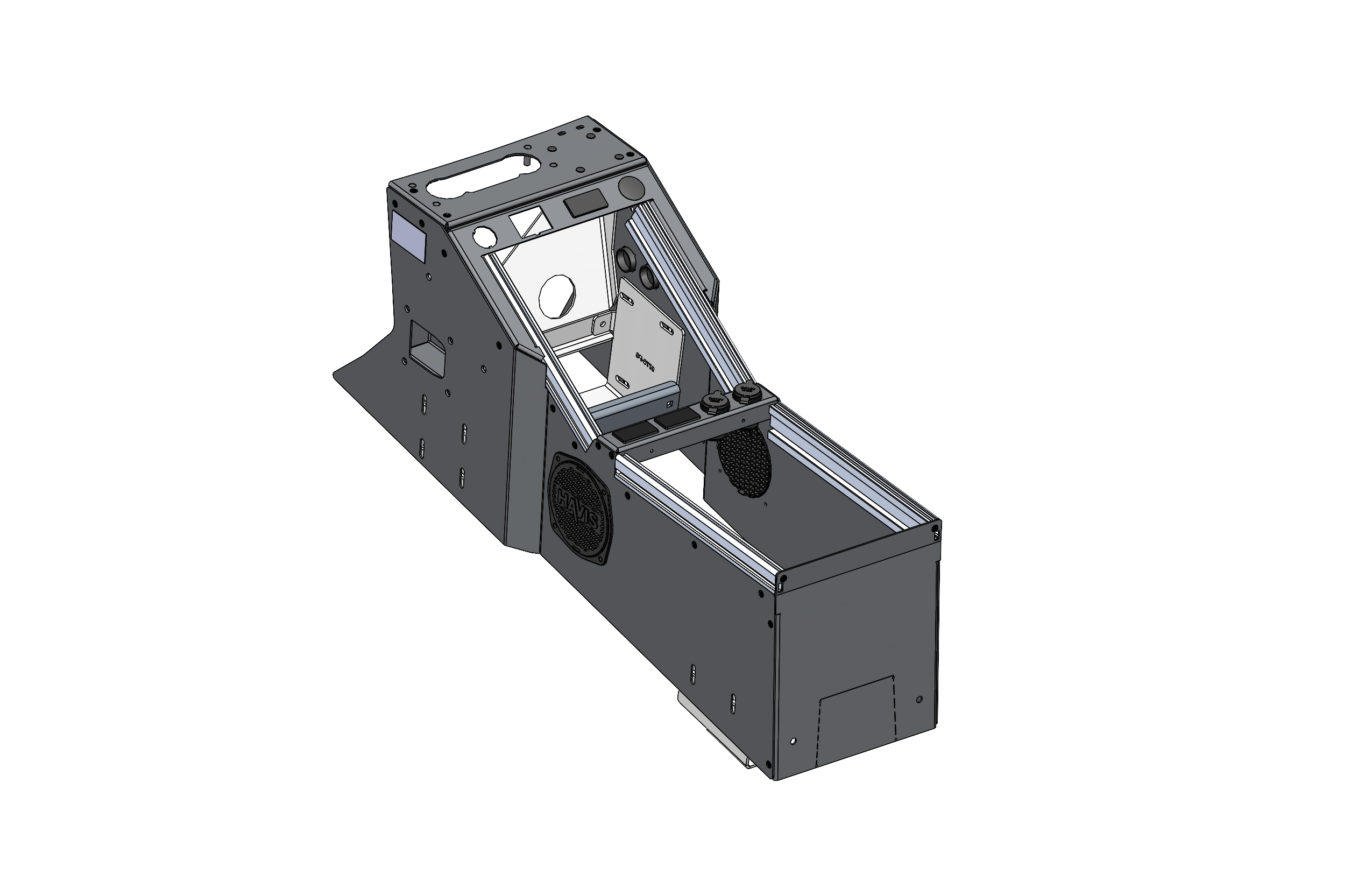

3D Rendering
3D Rendering

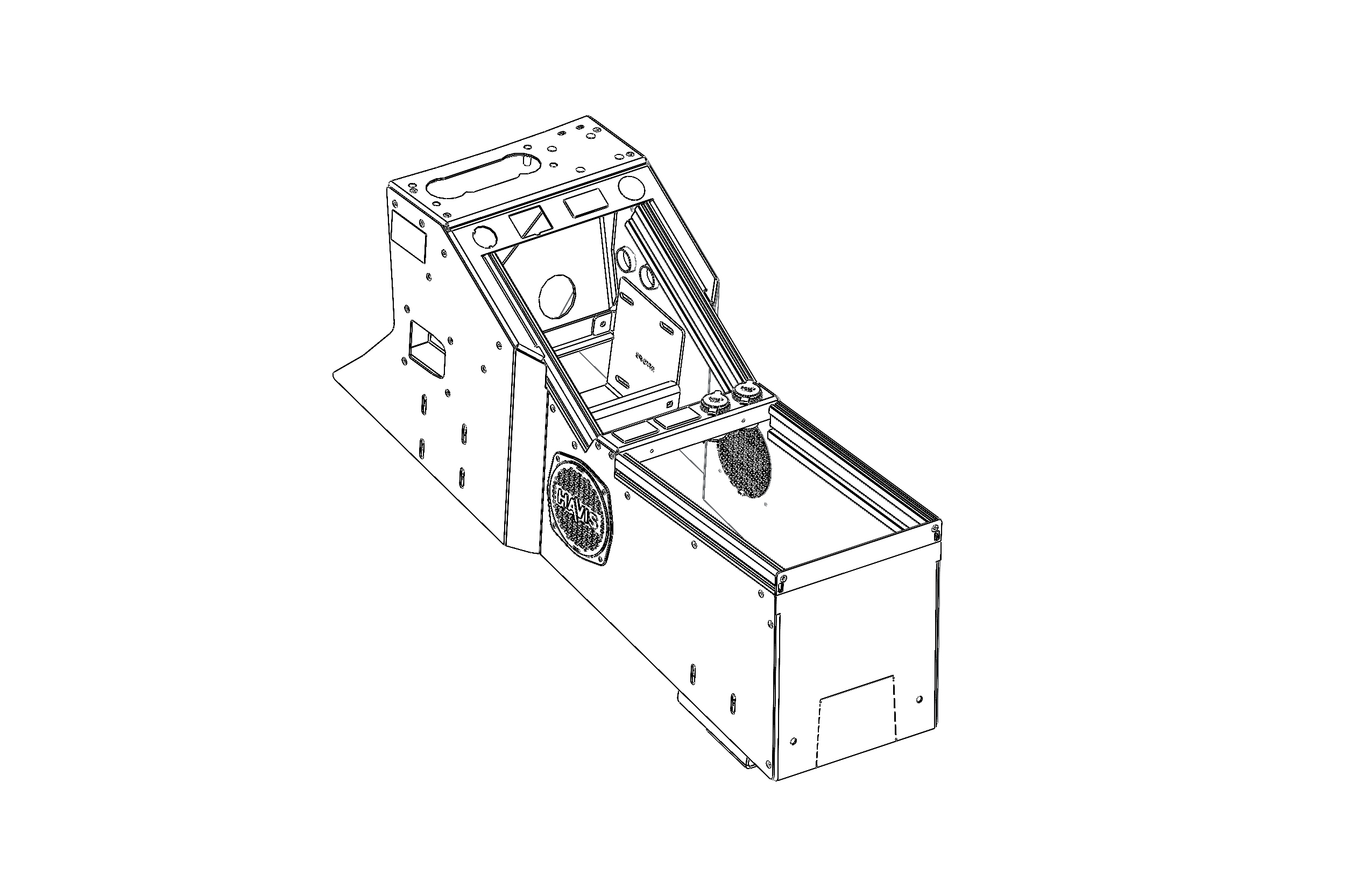

Isoview Drawing (JPG)
Isoview Drawing (JPG)
Ford Interceptor Utility Brochure
Ford Interceptor Utility Brochure

Compatibility

2020-2025 Ford Interceptor Utility
2020-2025 Ford Interceptor Utility

Related products

  • Armrest For Top Mount, Console, Large Pad
    C-ARM-103
    $182.00
    Armrest For Top Mount, Console, Large Pad
    View product

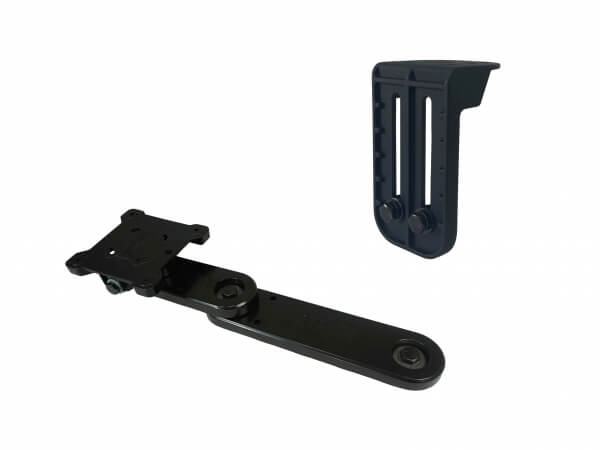

  • Swivel Arm Mount With Side Mount Bracket, 6″ Base, 3″ Extension
