Features

  • For 2024 Chevrolet Blazer EV
  • Fits all SS retail trim levels and PPV version
  • Angled console with 28" of total internal mounting spac
  • 8" in the front angled section, 20" in the rear & 28° degree of angle
  • Fits the contours of the lower dash and vehicle
  • Allows for OEM duct pass-through to rear panel
  • C-LDM-0012, C-HDM-204, and C-HDM-214 can be externally mounted on the passenger side
  • Includes:
  • Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Two (2) 2.58” speaker cutouts
  • Cutout for OEM USB (required to be connected to vehicle)
  • Three (3) additional 12 volt sockets with wire and fuse
  • Two (2) rocker switch or dual USB charge module cutouts
  • Mounting kit
  • Accessory holder bin
  • View console accessories here
  • Made in USA
  • Lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Compatibility:Exclusive to the EV Blazer, incompatible with combustion Blazer
Dimensions:51.4"L x 12.3"W x 15.8"H (Length includes trim panels)
Product Weight:33.62 lbs
Material:Heavy gauge steel
Finish:Black Powder coat
Gross weight:38 lbs

Resources

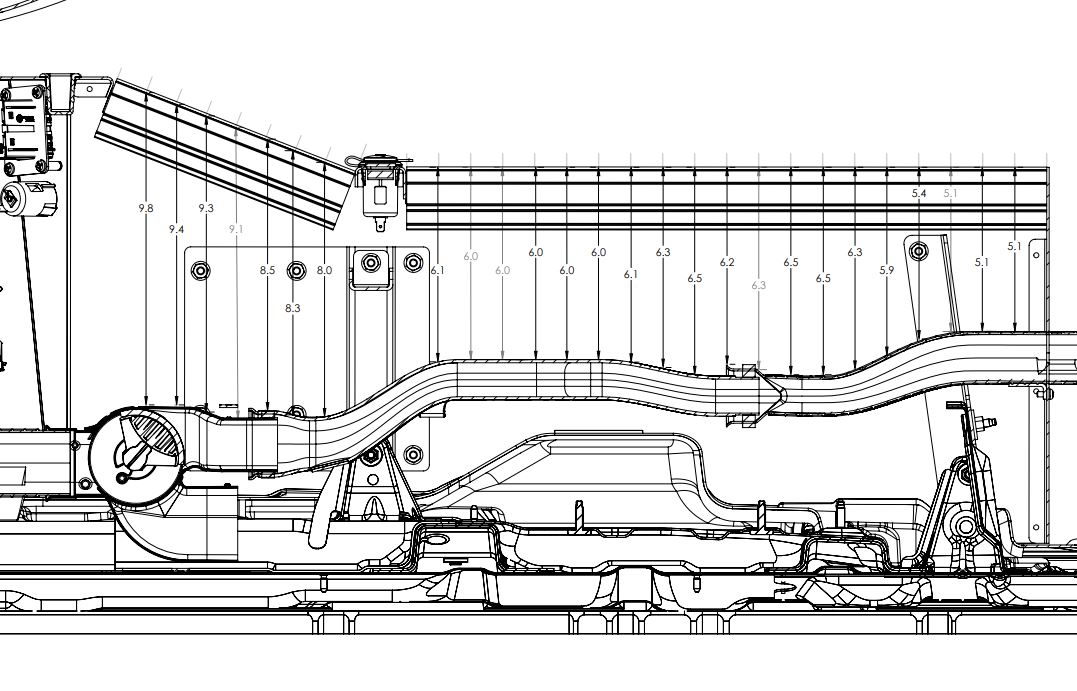

Side View Depth Measurements (PDF)
Side View Depth Measurements (PDF)
Download share

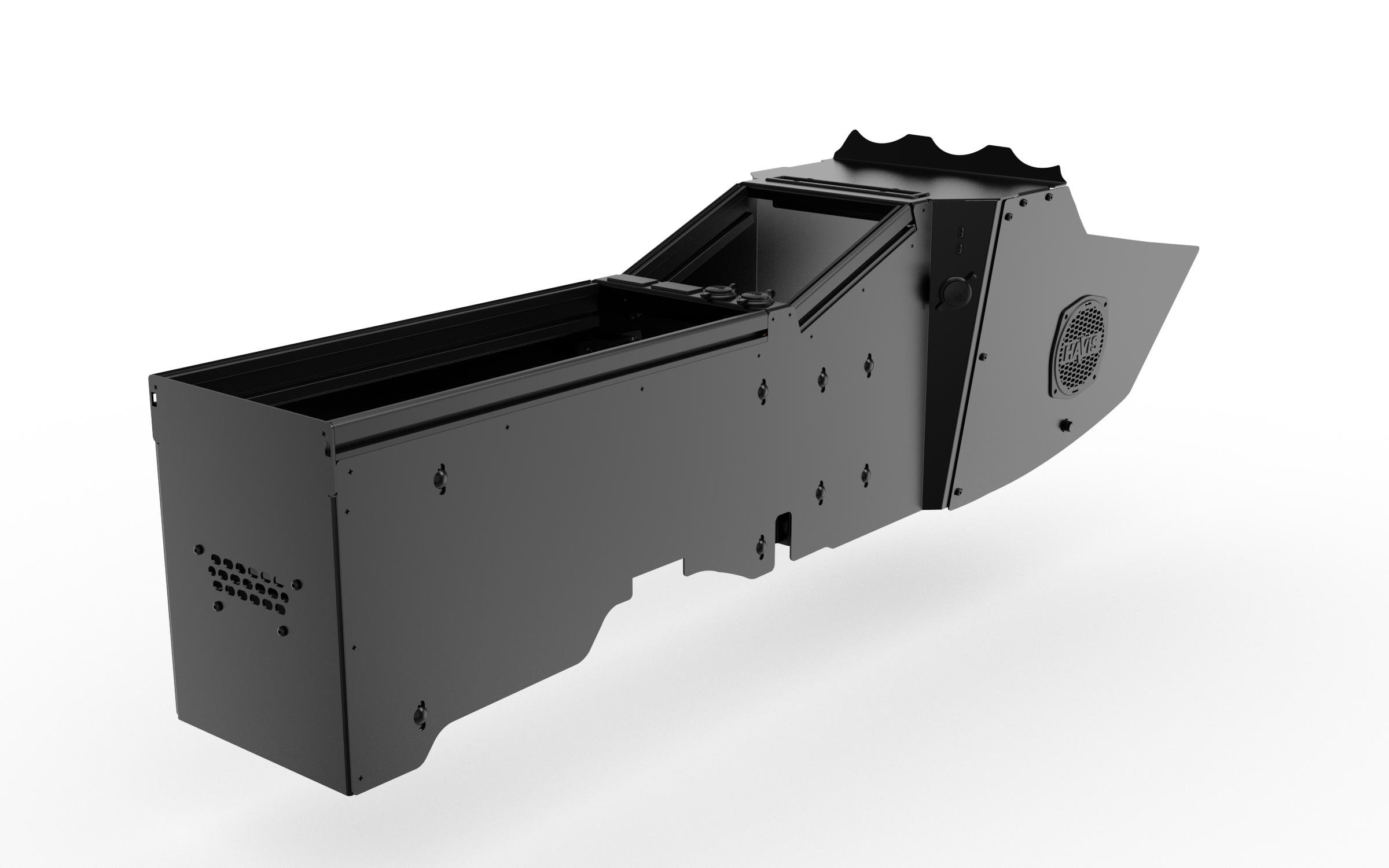

3D Rendering - Passenger Side
3D Rendering - Passenger Side
Download share

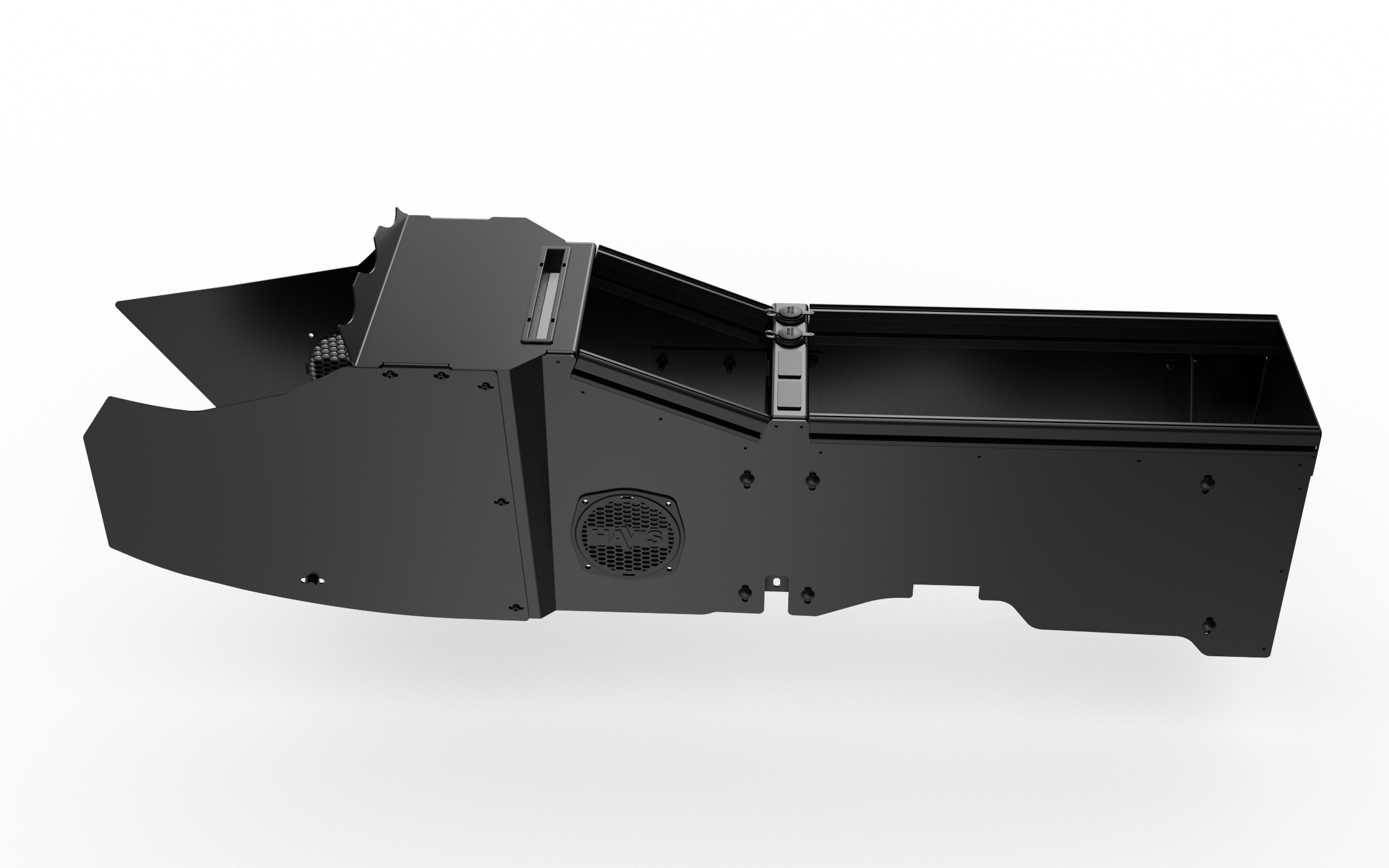

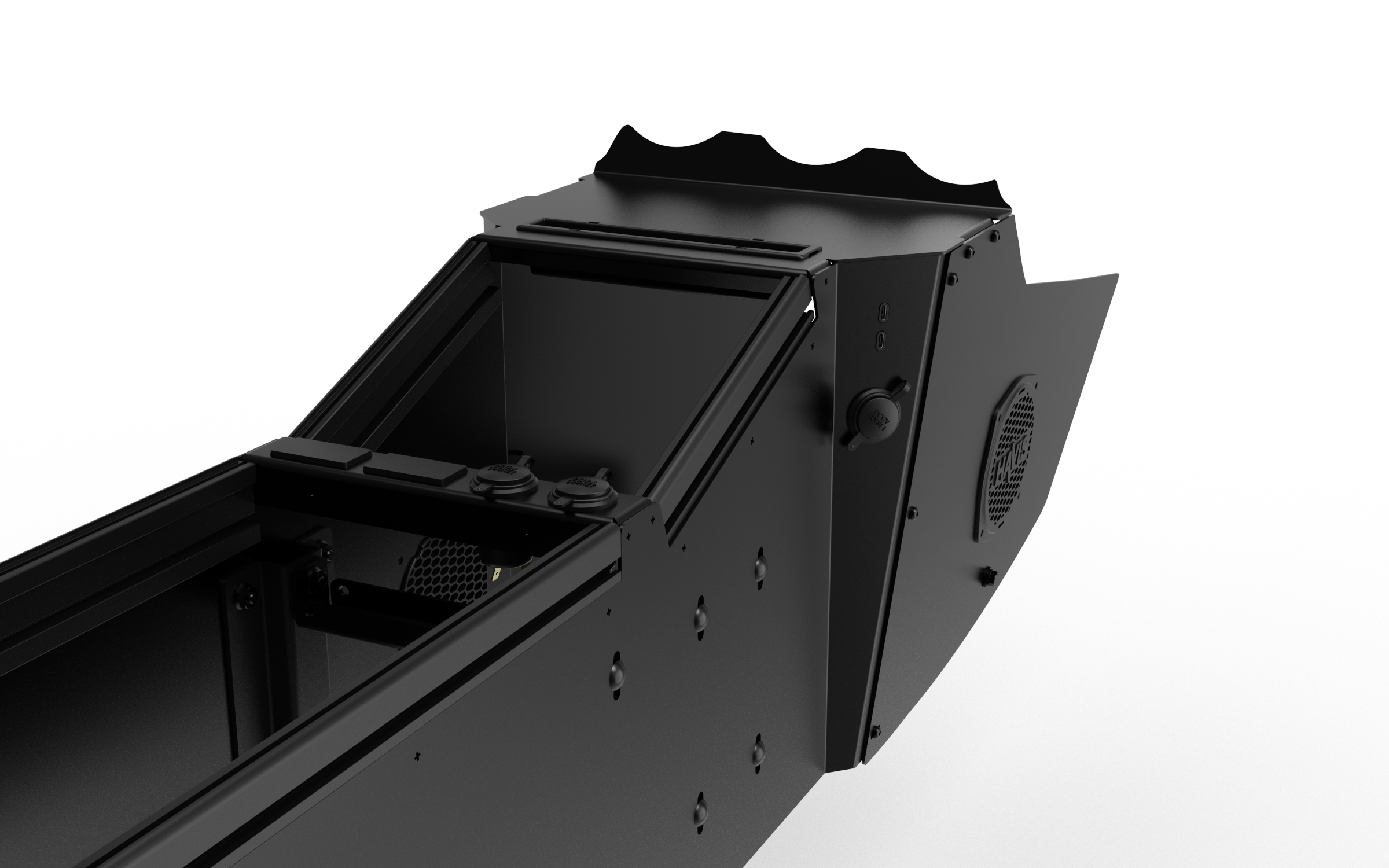

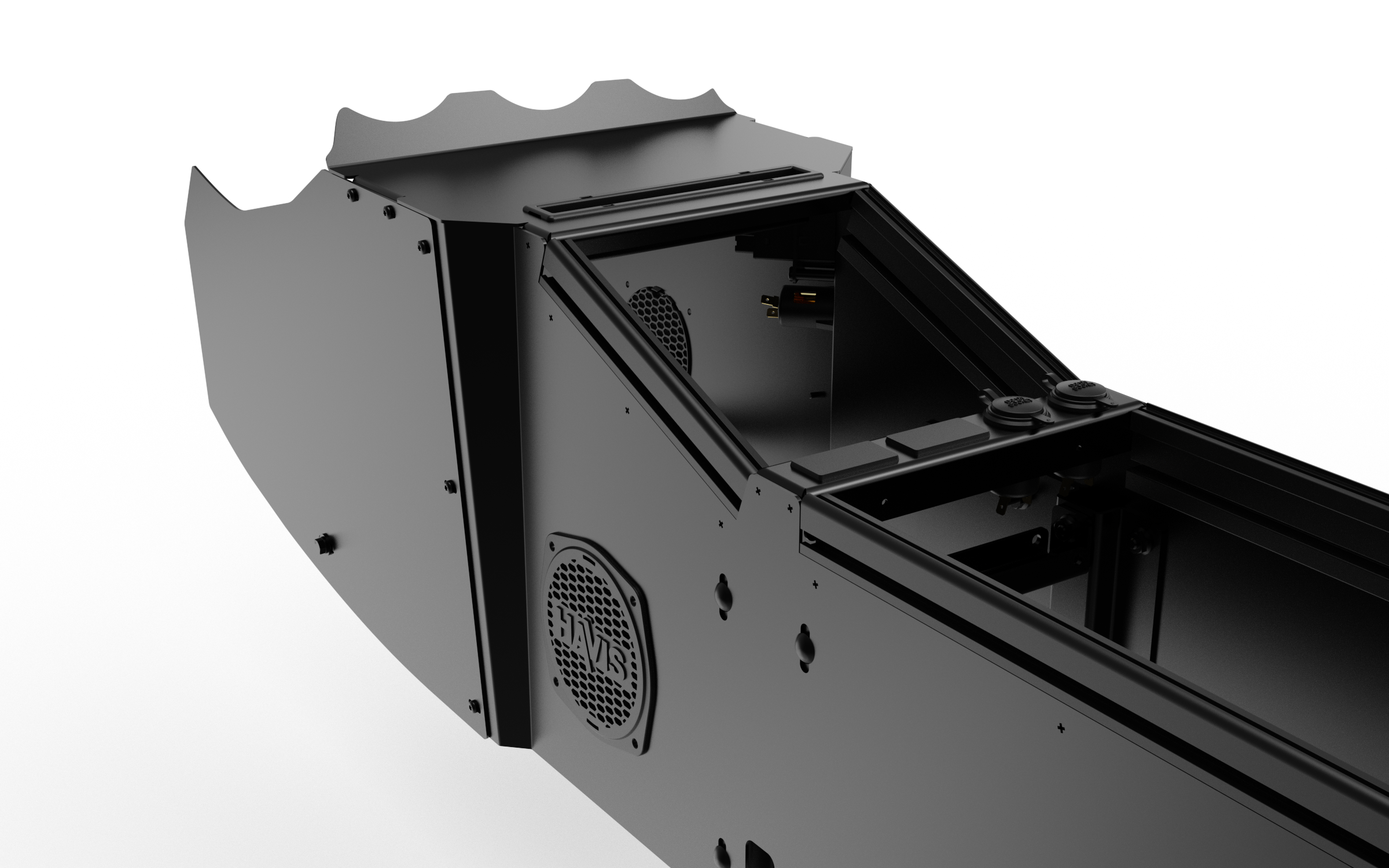

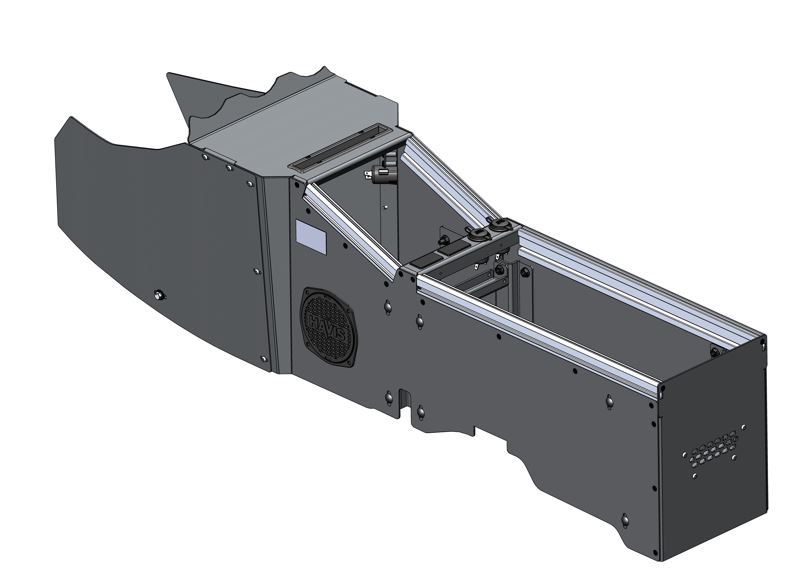

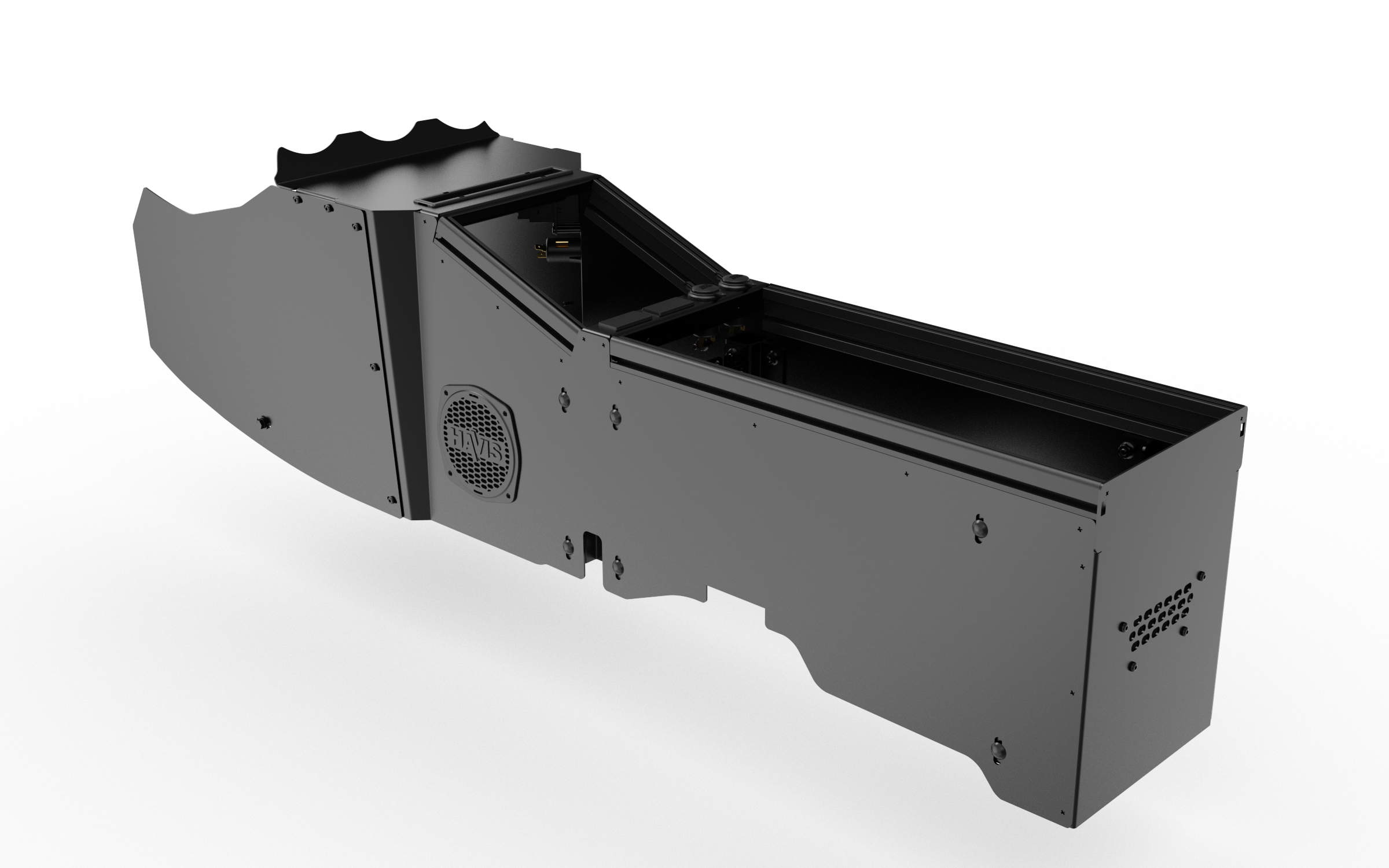

3D Rendering
3D Rendering
Download share

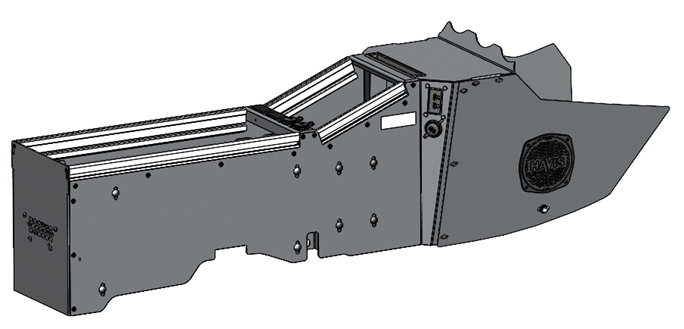

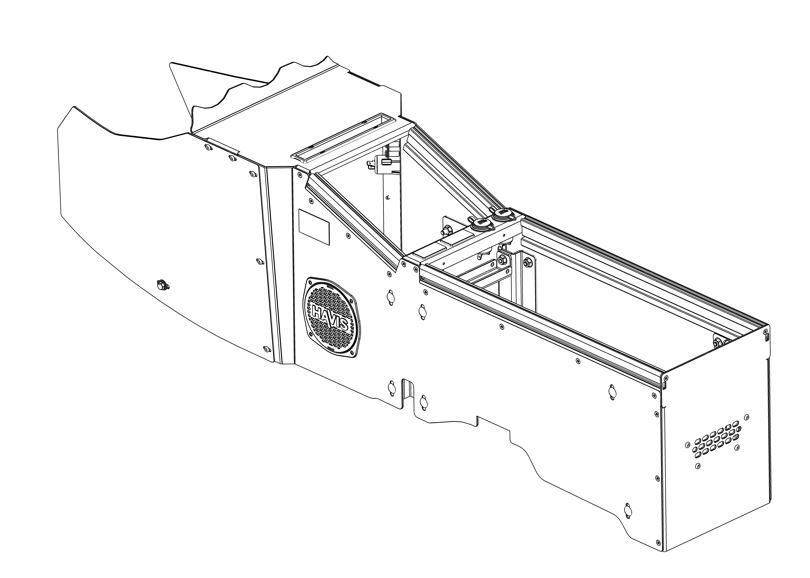

Isoview
Isoview
Download share

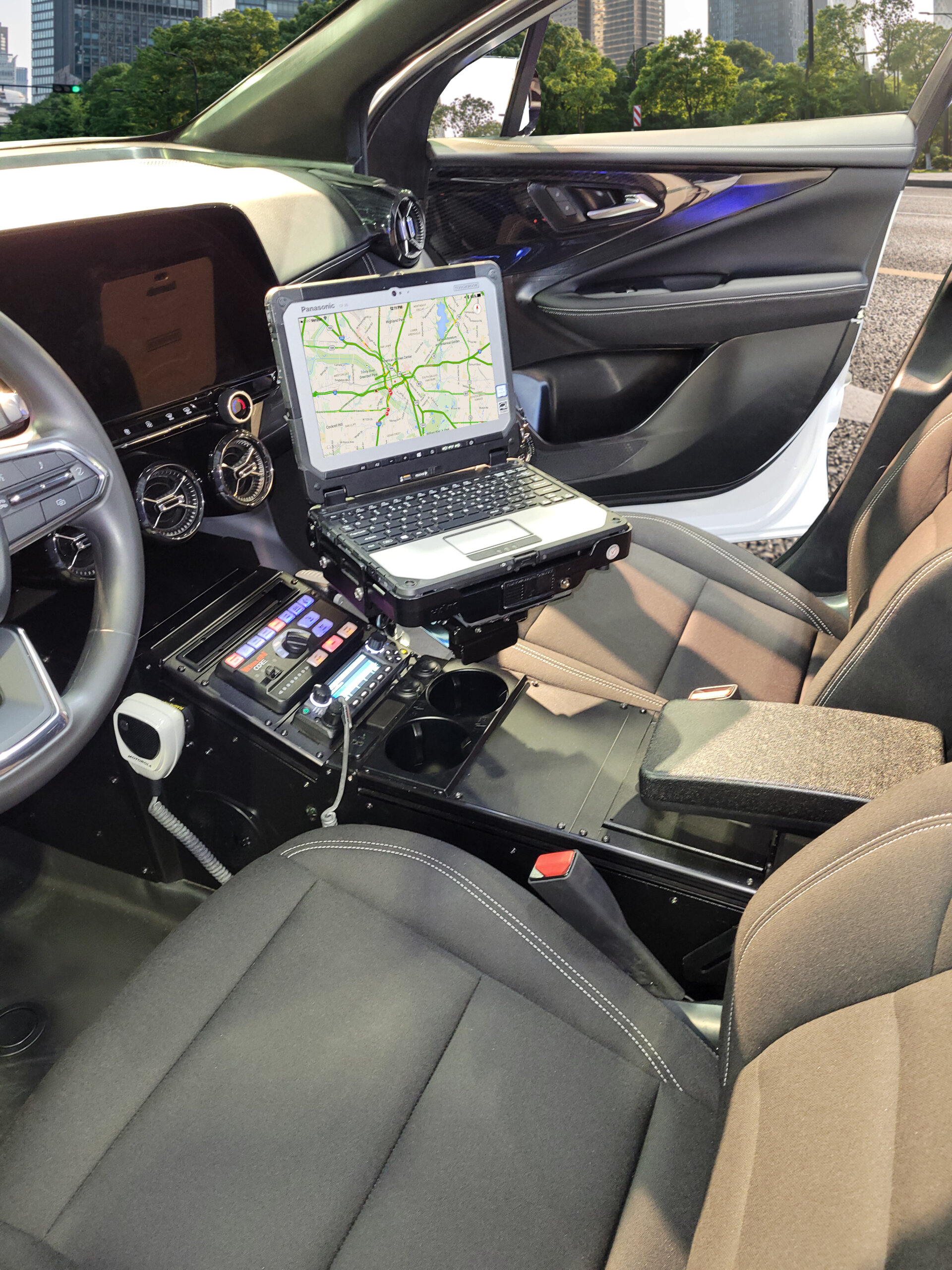

Application Gallery

product gallery

Related products

  • 8.5″ Heavy-Duty Telescoping Pole, Side Mount, Short Handle
    C-HDM-204
    $230.00
    8.5″ Heavy-Duty Telescoping Pole, Side Mount, Short Handle
    View product
  • Side Mount Armrest
    C-ARM-102
    $94.00
    Side Mount Armrest
    View product
  • Self-Adjusting Double Cup Holder
    CUP2-1001
    $67.00
    Self-Adjusting Double Cup Holder
    View product

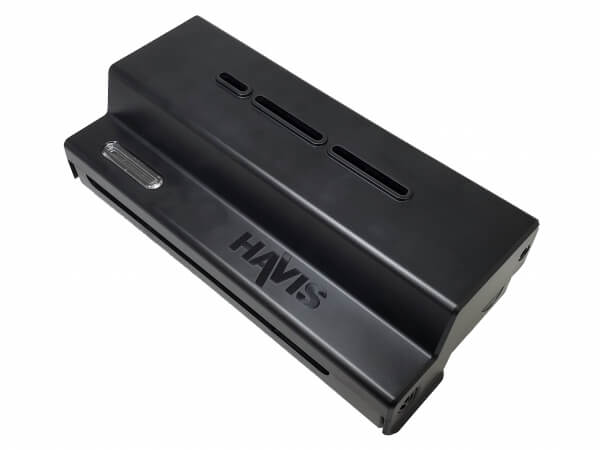

  • Printer Mount With Top Paper Feed for Brother PocketJet 6, 7 & 8 Printers
    C-PM-1001
    $162.23
    Printer Mount With Top Paper Feed for Brother PocketJet 6, 7 & 8 Printers
    View product
  • ChargeGuard-Select
    CG-X
    $107.00
    ChargeGuard-Select
    View product
  • 8.5″ Heavy-Duty Telescoping Pole, Side Mount
    C-HDM-214
    $184.00
    8.5″ Heavy-Duty Telescoping Pole, Side Mount
    View product
  • Side Pole Mount for Swivel Arm

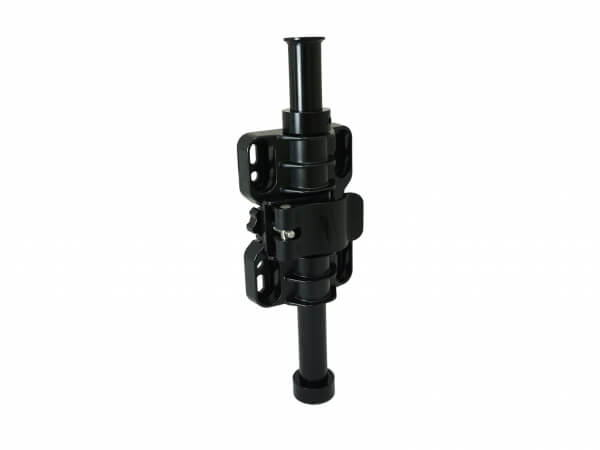

    C-LDM-0012
    $188.00
    Side Pole Mount for Swivel Arm
    View product
  • USB-C & USB Type A Dual Port Charger
    C-USB-3
    $99.00
    USB-C & USB Type A Dual Port Charger
    View product
  • Lighter Plug Socket & Cap

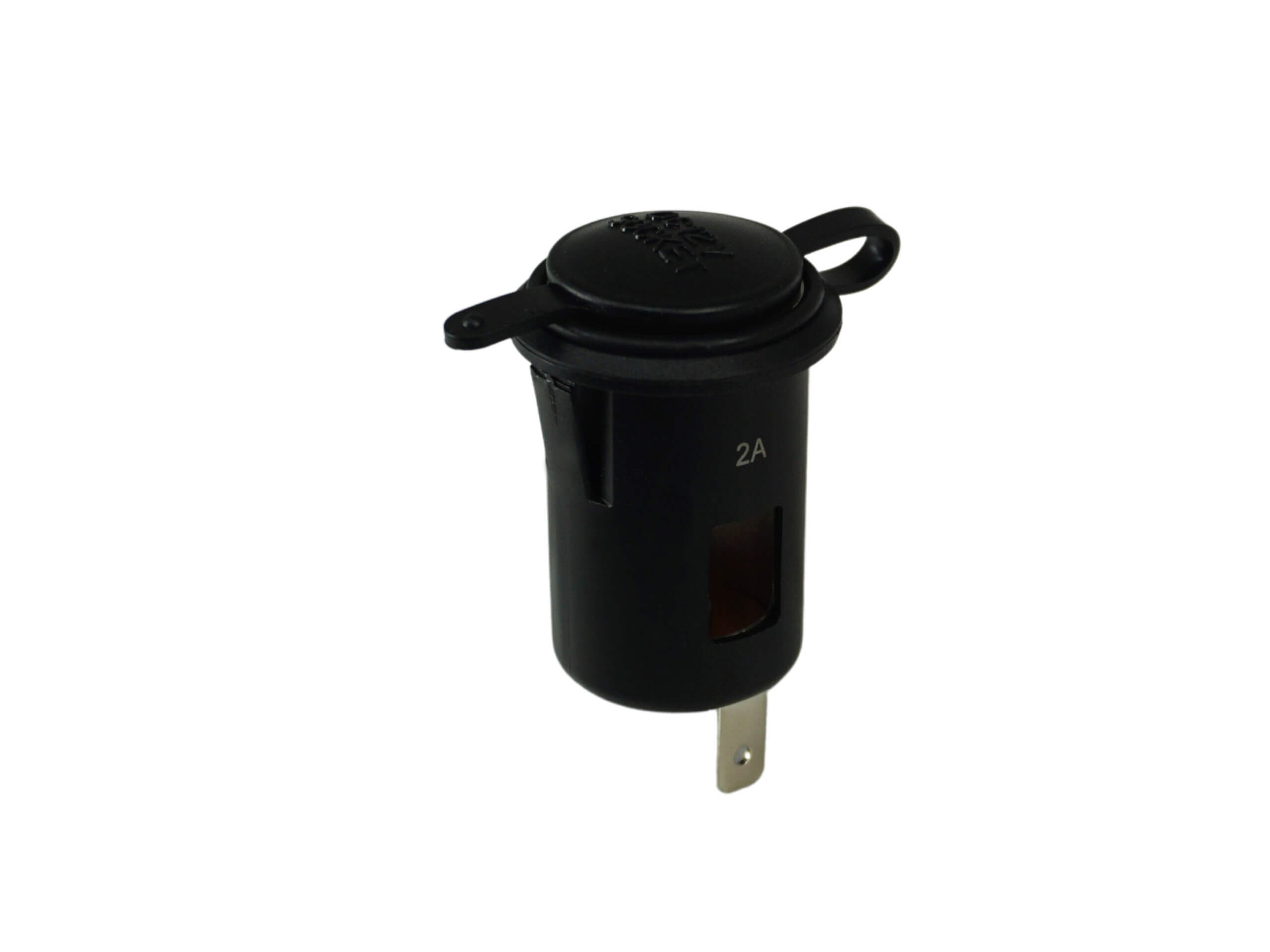

    C-LPO
