Features

  • Fits 2021-2026 Ford F-150 Police Responder, Special Service vehicle (SSV), and 2023-2026 Ford F-250, 350, 450 XL & XLT Super Duty pickup, F-450 & 550 cab chassis & F-600 Chassis Cab
  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
  • Heavy-duty steel floor-mounting structure provides rigid framework for console
  • Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
  • 23% lower weight than comporable steel consoles
  • Low profile for safety and side-to-side egress
  • Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
  • The front section also features a storage tray, a dedicated space for a 2" C-EBW20-xxx wide equipment bracket, and an optional internal pole mount (C-HDM-218, sold separately)
  • Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
  • Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
  • 18" of total equipment mounting space in 9"W section
  • 3.3"W section includes 18" of total equipment mounting space
  • Storage pockets include 12V outlets, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system.
  • Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
  • Filler plates and equipment brackets for 9"W and 3.3W sections included to enclose mounting areas
  • See Havis 3.3" wide console accessories for options
  • Made in the USA with a lifetime warranty

Specifications

PRODUCT SPECIFICATIONS:
Vehicle Compatibility:

Fits the following vehicles equipped without an OEM console and with a column shifter:
2021–2026 Ford F-150 Police Responder
2021–2026 Ford F-150 Special Service Vehicle (SSV)
2023–2026 Ford F-250 XL & XLT Super Duty Pickup
2023–2026 Ford F-350 XL & XLT Super Duty Pickup
2023–2026 Ford F-450 XL & XLT Super Duty Pickup
2023–2026 Ford F-450 Cab Chassis
2023–2026 Ford F-550 Cab Chassis
2023–2026 Ford F-600 Chassis Cab

Important Notes:

Vehicle must be equipped without an OEM center console
Vehicle must be equipped with a column-mounted shifter
Not compatible with vehicles equipped with a 4x4 floor shifter

Dimensions:37.1" l x 16.5" w x 13.6" h
Compatible printers:Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Gross weight:35 lbs

Resources

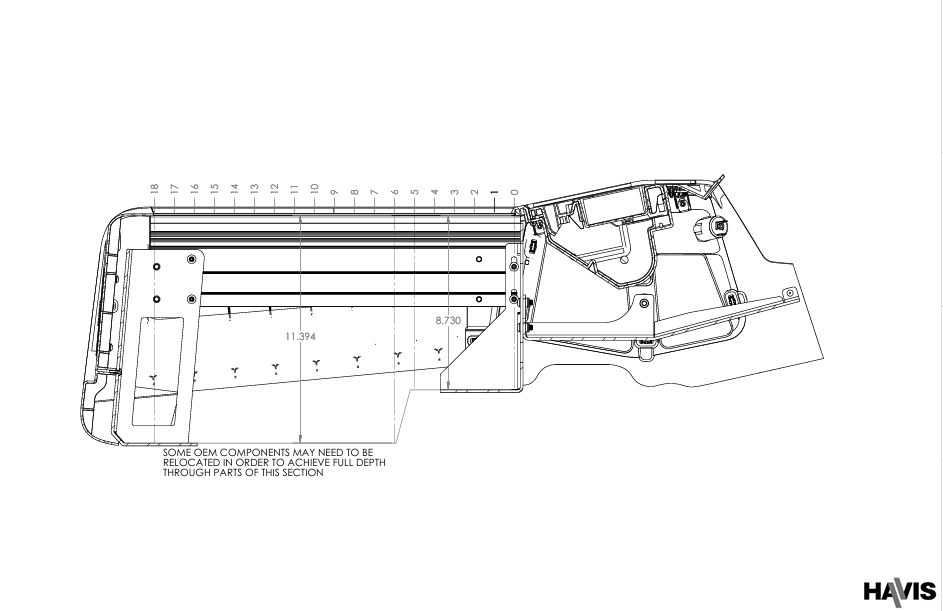

Side View Depth Measurements (PDF)
Side View Depth Measurements (PDF)
Download share
Ford F-150 Brochure
Ford F-150 Brochure
Download share

Compatibility

Ford F-Series
Ford F-Series
