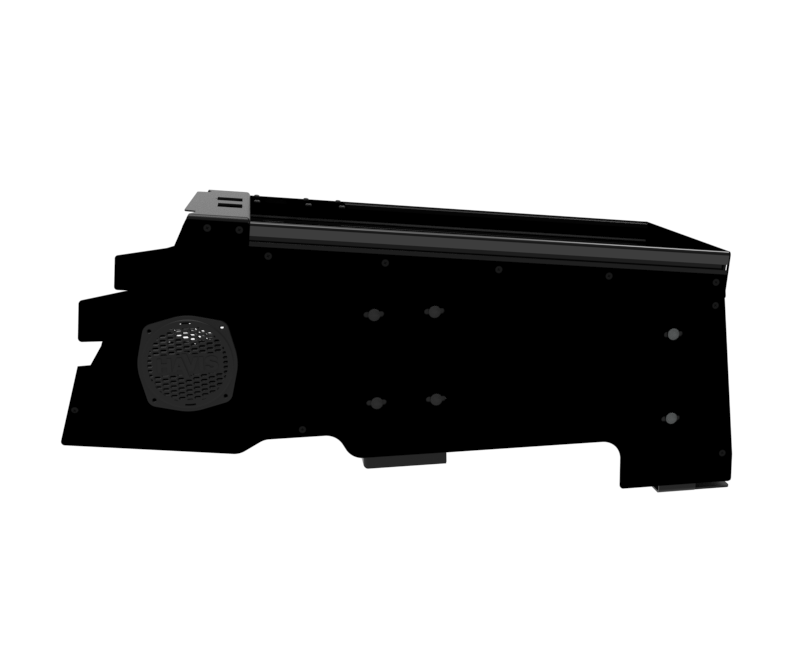

CON, VSW, WIDE, 24TMS, 18.5WTMS, HC, EXPD, 22-24
Overall measurements: 15.8" high x 12.5" wide x 34.2" long (including forward trim panel) |
OEM tunnel plate must be removed |
If using console with a vertical gun rack between seats, a partition with gun alcove is recommended. there is 8" from end of console to Pro-gard a partition gun alcove. dual weapons mount not recommended because of lack of space. |
Does not work on higher trim levels with OEM full length center console that includes mounted shifter (OEM console cannot be removed) |
Does not work on higher trim levels with OEM full length center console |
Works in vehicle that has column shifter and OEM full length center console (OEM console must be removed) |
3.3"W section now comes unpopulated |
Customize to your specific needs |
Includes equipment brackets and filler plates to enclose area |
See Havis 3.3" wide console accessories for options |
Gross weight: 35 lbs |
