Features

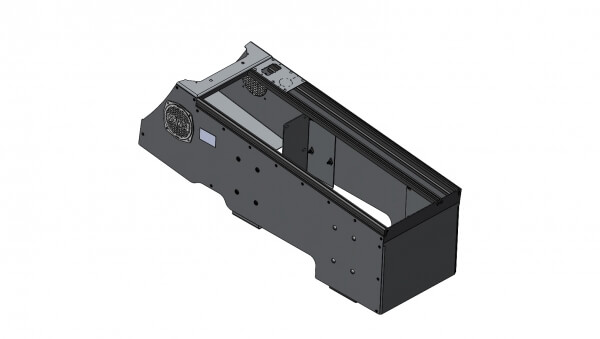

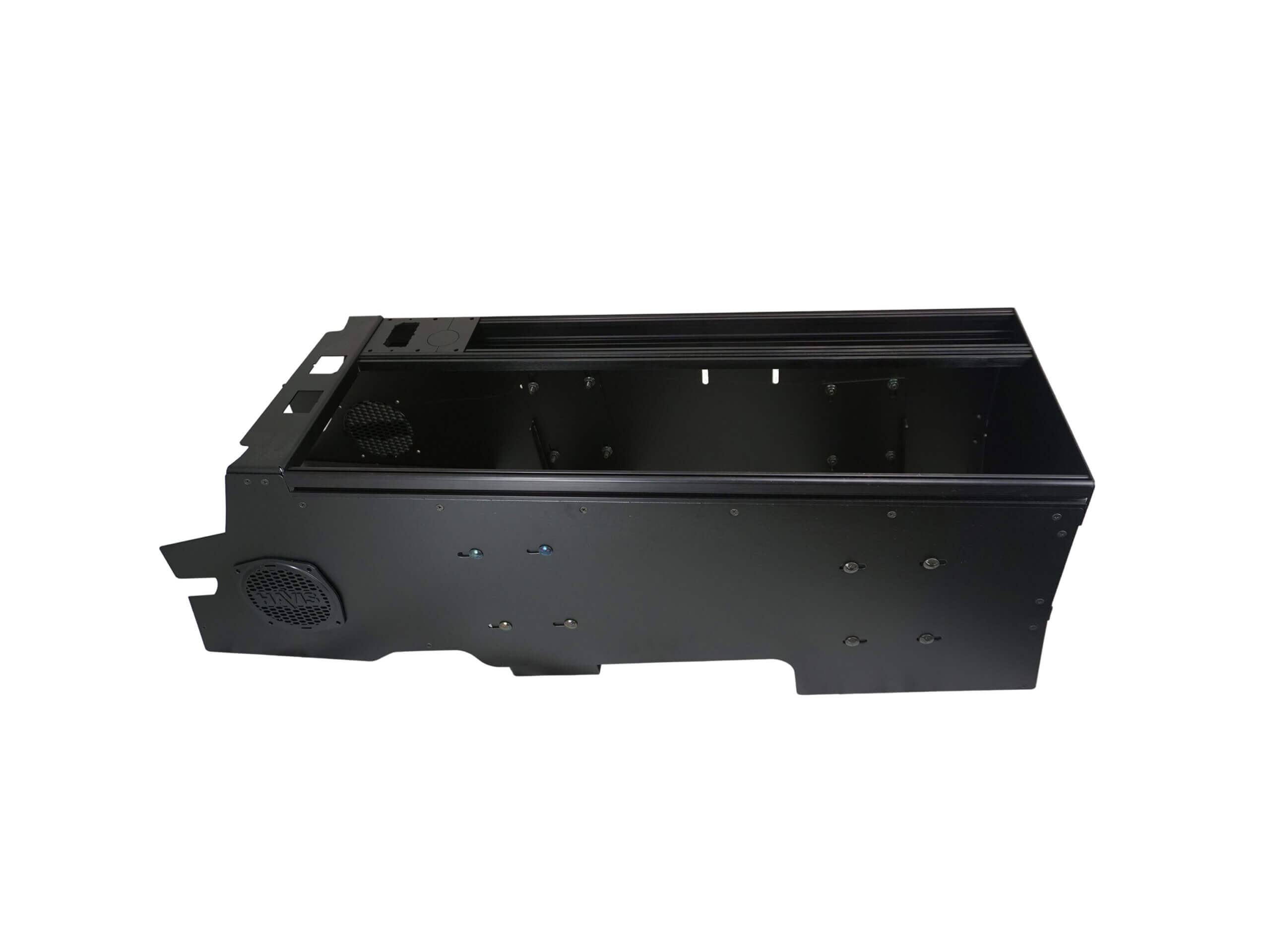

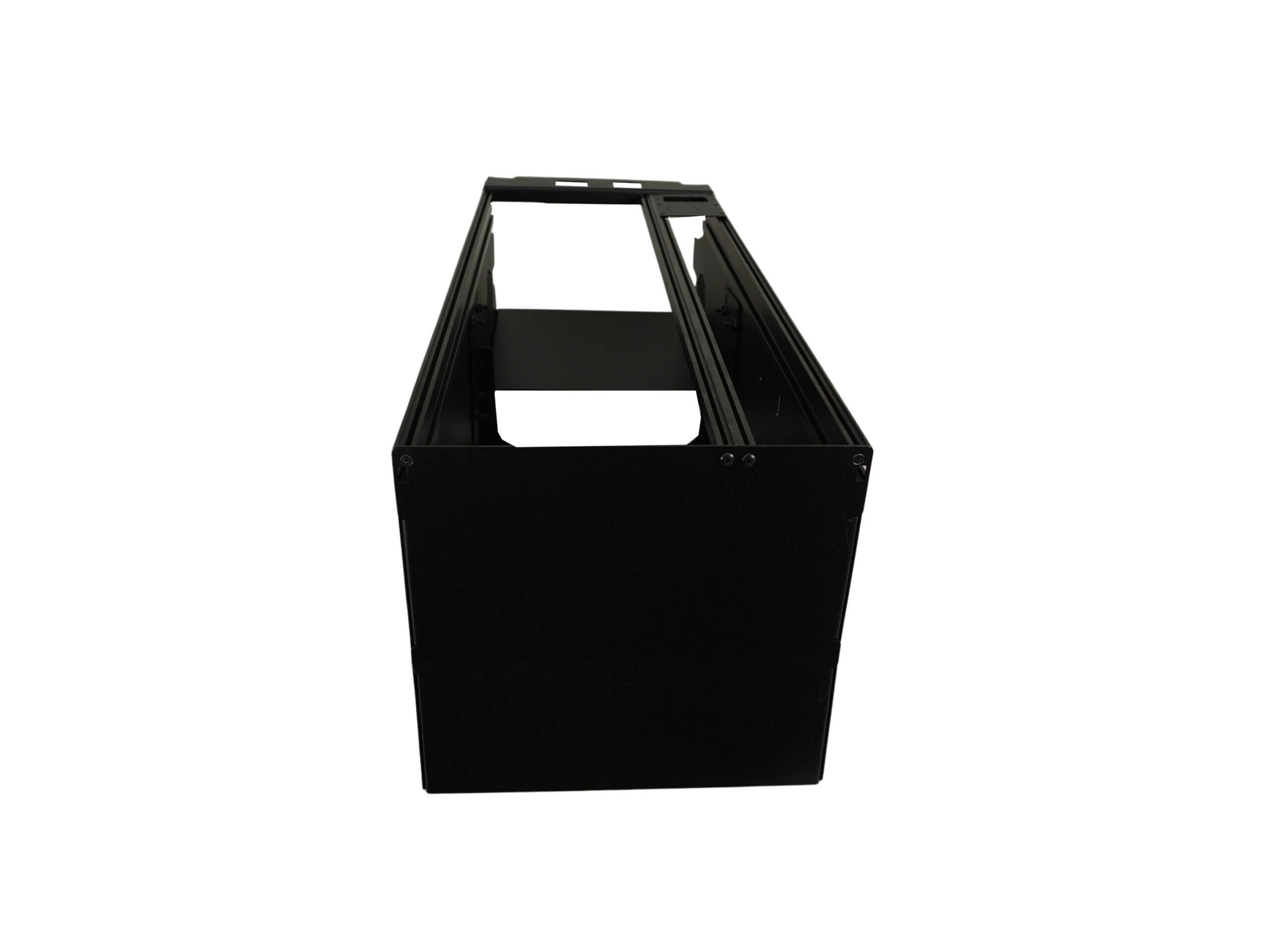

  • 30" long 12.5" wide style vehicle-specific console for 2022-2024 Ford Expedition SSV
  • 30" of total equipment mounting space in 9"W section
  • 25.5" of total equipment mounting space in 3.3"W section
  • Console cleanly fits between the bucket seats and the dash contour for a custom look in your vehicle
  • Heavy gauge steel, welded construction for Heavy-duty use and durability
  • Black powder coat finish
  • Lifetime warranty
  • Made in USA
  • Includes:
  • Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options

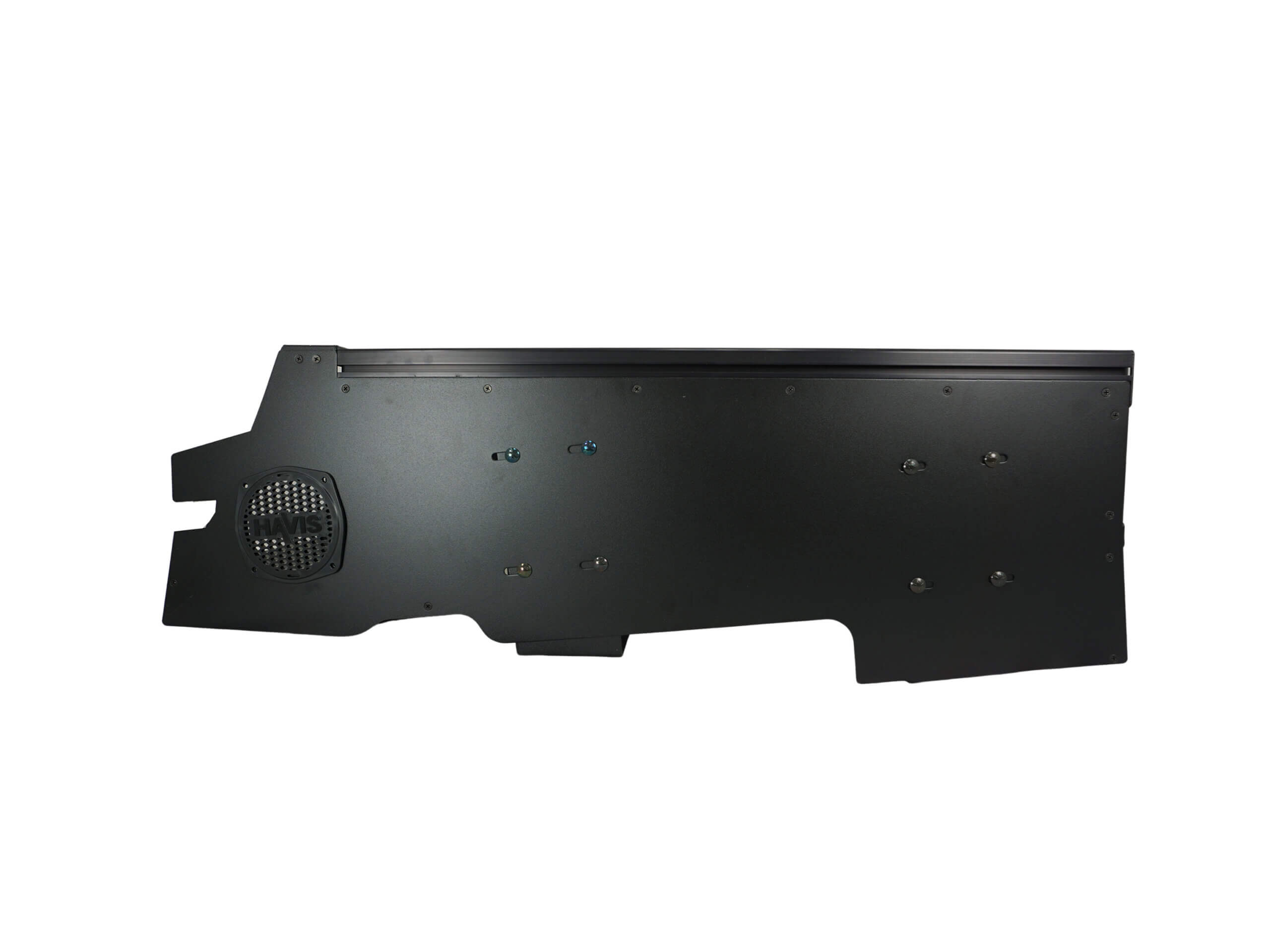

  • Provisions for internal or external side mount poles and side panels with perforations to allow for equipment cooling as well as internal speaker mounting
  • Vehicle mounting kit, no drilling required
  • Cutout for relocation of OEM USB into the console and additional trim panel for XL dash without CD player
  • Compatible Solutions:

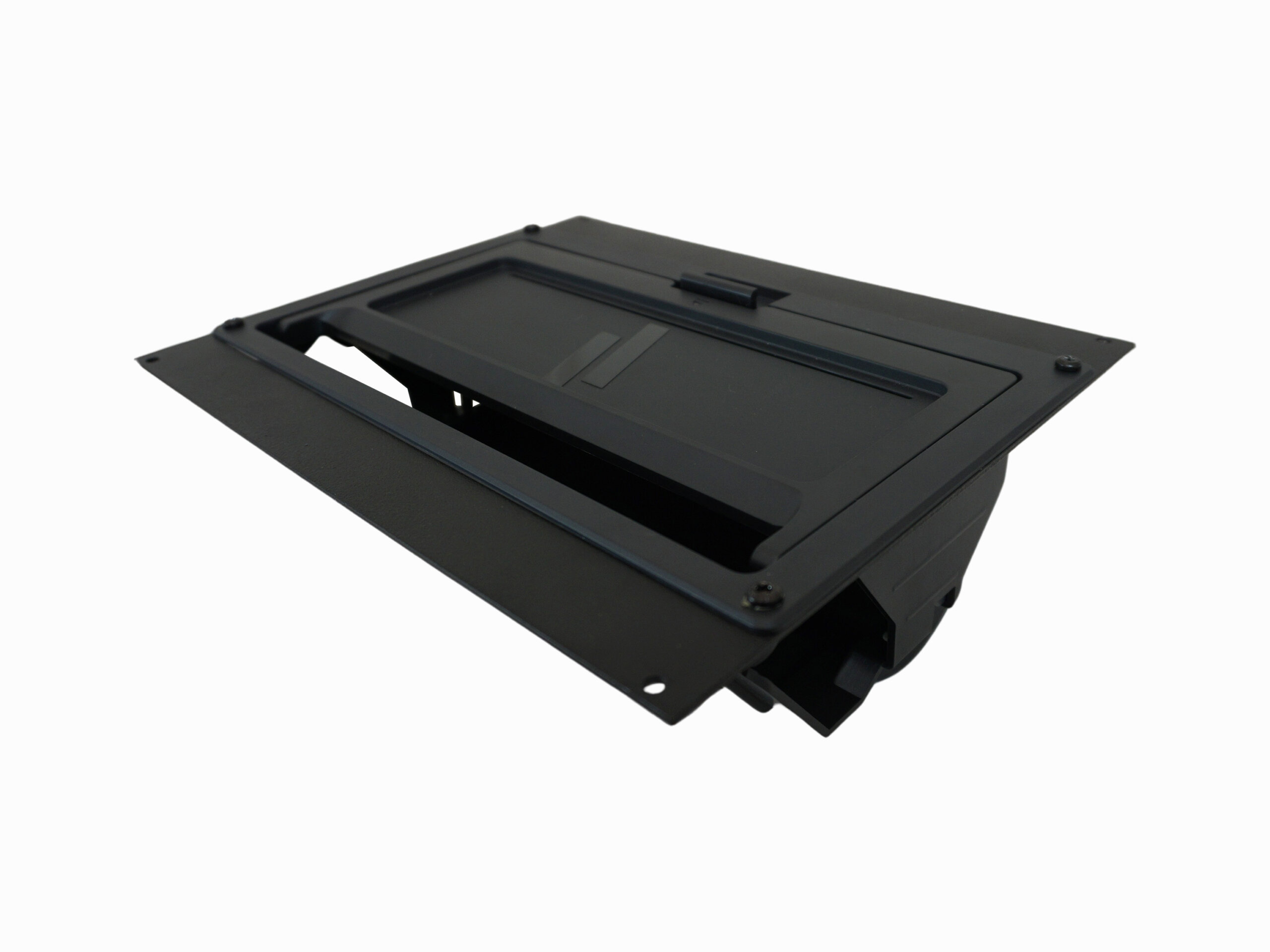

  • C-DMM-3006 dash monitor mounts, C-ARM-102, C-HDM-214, C-USB-2 dual USB charge module, C-SW-x rocker switch, C-PM-122 printer mount
  • View 3.3" Wide console accessories here

Specifications

PRODUCT SPECIFICATIONS:
Overall measurements: 29.5" high x 12.5" wide x 38.5" long (including forward trim panel)
OEM tunnel plate must be removed

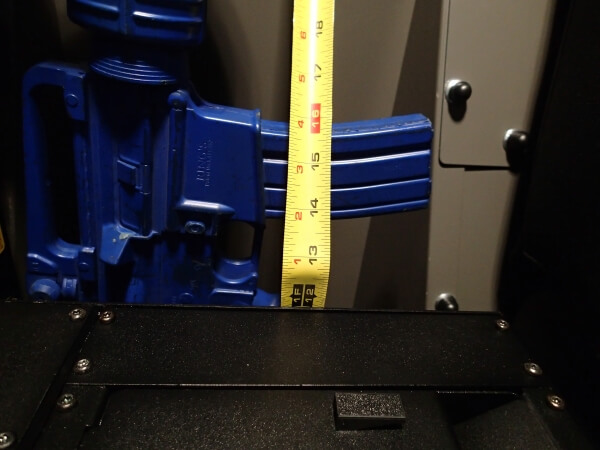

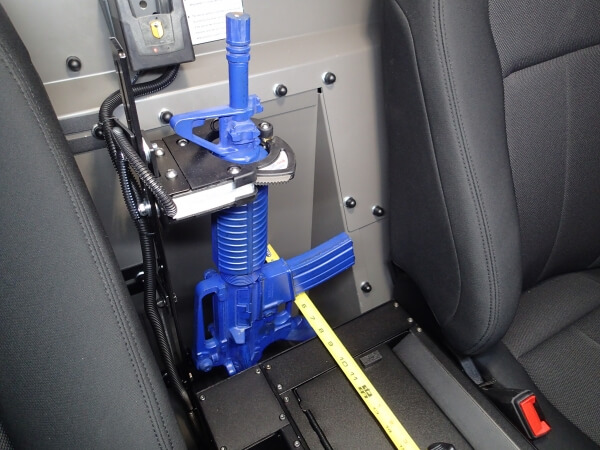

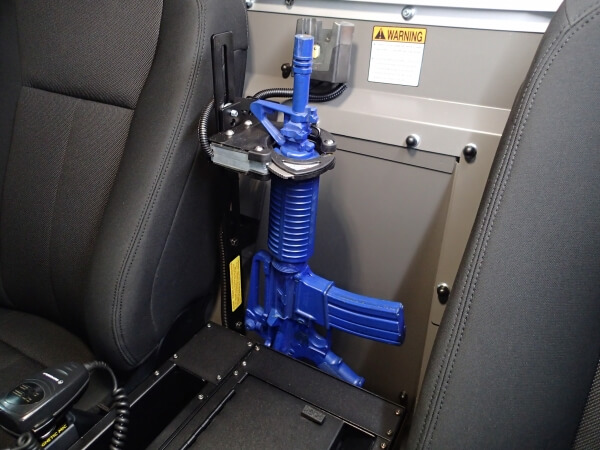

If using console with a vertical gun rack between seats, a partition with gun alcove is recommended. there is 8" from end of console to Pro-gard a partition gun alcove. dual weapons mount not recommended because of lack of space.
Does not work on higher trim levels with OEM full length center console that includes mounted shifter (OEM console cannot be removed)
Does not work on higher trim levels with OEM full length center console
Now ships UPS
Works in vehicle that has column shifter and OEM full length center console (OEM console must be removed)
3.3"W section now comes unpopulated
Customize to your specific needs
Includes equipment brackets and filler plates to enclose area
See Havis 3.3" wide console accessories for options
Gross weight: 39 lbs

Resources

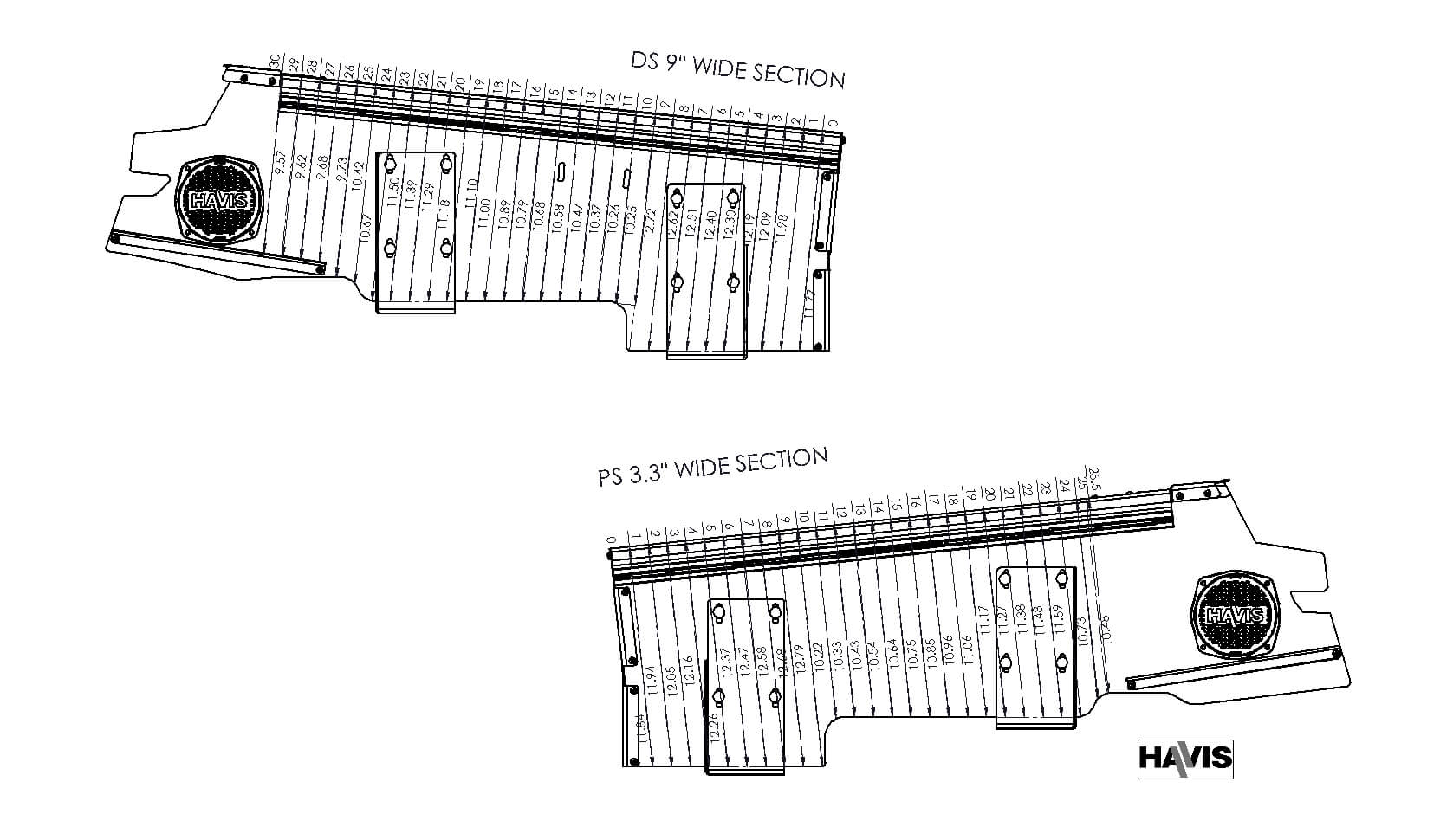

Side View Depth Measurements
Side View Depth Measurements
Download share
Install Instructions
Install Instructions
Download share
Ford Expedition Sales Sheet
Ford Expedition Sales Sheet
Download share

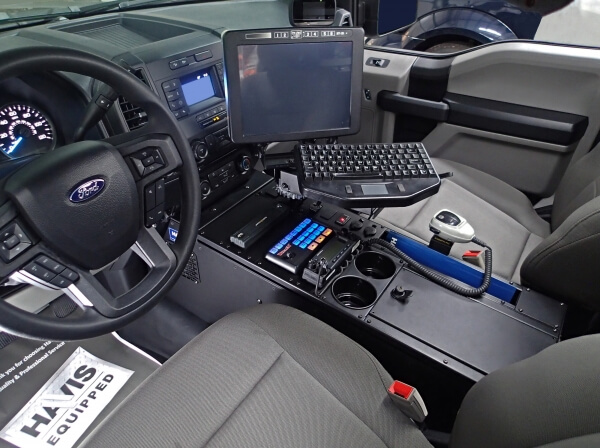

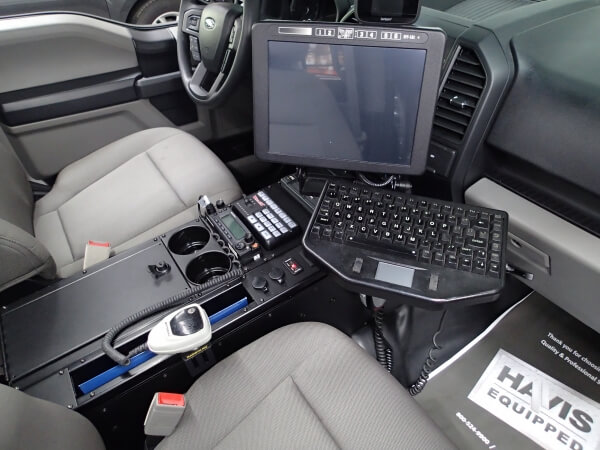

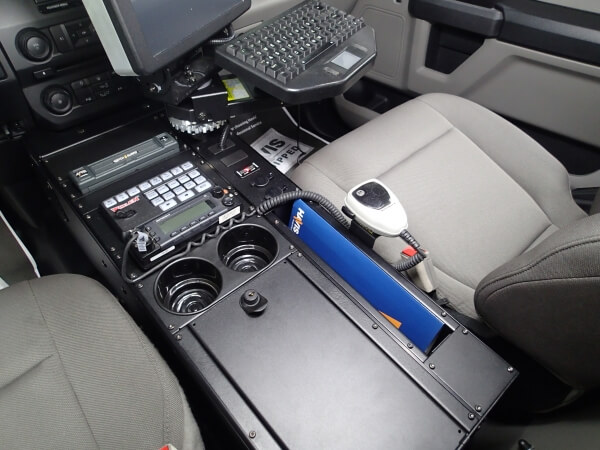

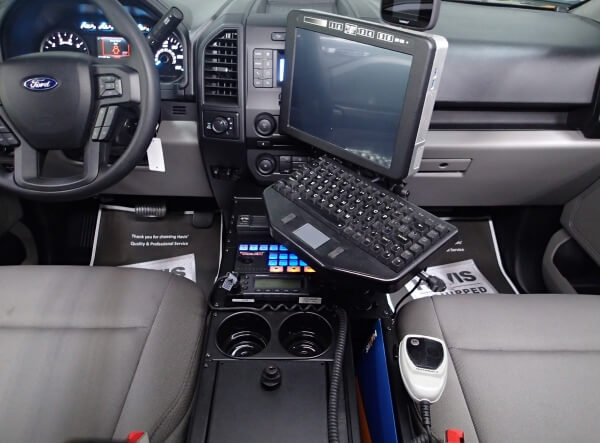

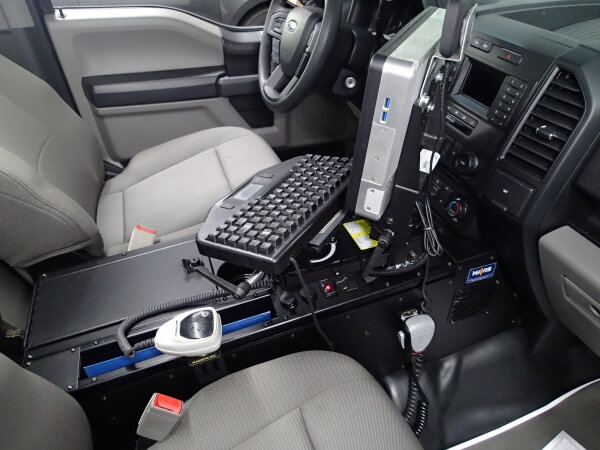

Application Gallery

product galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct galleryproduct gallery

Related products

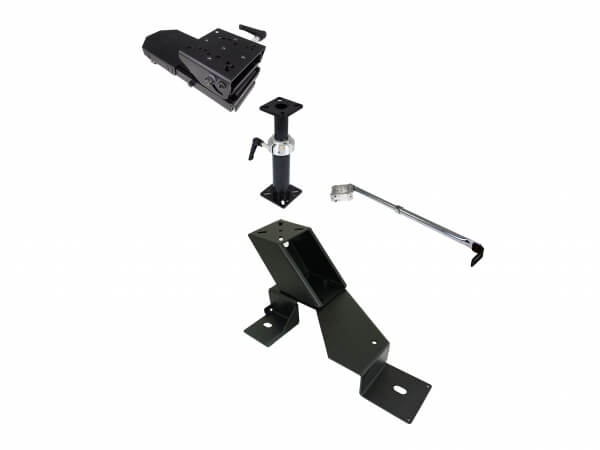

  • Premium Ford 2018-2024 Expedition, 2015-2024 F-150, & 2017-2024 F-250, F-350, F-450, F-250, F-350, F-450, F-550 Chassis Cab and 2022-2024 Ford F-150 Lightning
    PKG-PSM-385
    $851.00
    Premium Ford 2018-2024 Expedition, 2015-2024 F-150, & 2017-2024 F-250, F-350, F-450, F-250, F-350, F-450, F-550 Chassis Cab and 2022-2024 Ford F-150 Lightning
    View product

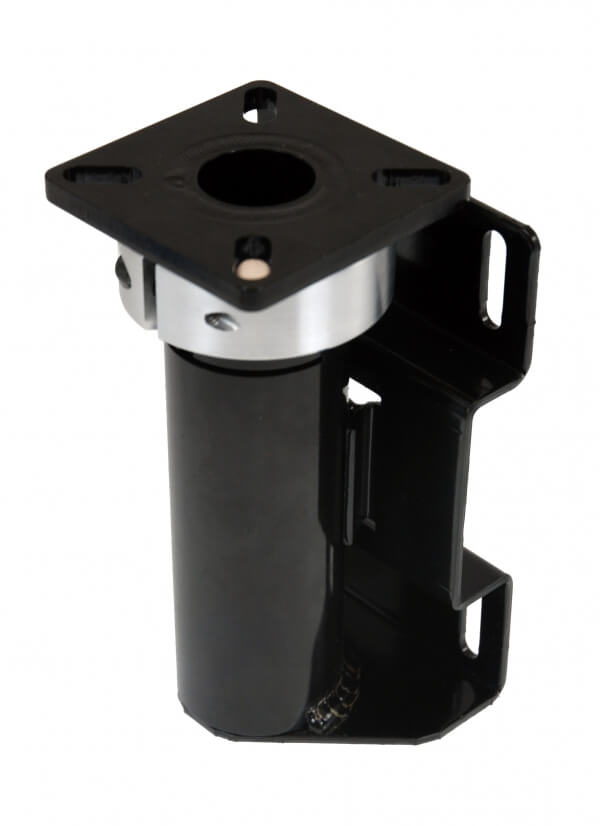

  • 8.5″ Heavy-Duty Telescoping Pole, Side Mount
    C-HDM-214
    $184.00
    8.5″ Heavy-Duty Telescoping Pole, Side Mount
    View product
  • Heavy-Duty Dash Mount for 2015-2020 Ford F-150 Retail, Responder & SSV, 2017-2022 Ford F-250, 350, 450 Pickup, F-450, 550, & 600 Cab Chassis, 2018-2021 Expedition Retail, MAX, & SSV
    C-DMM-3006
    $548.00
    Heavy-Duty Dash Mount for 2015-2020 Ford F-150 Retail, Responder & SSV, 2017-2022 Ford F-250, 350, 450 Pickup, F-450, 550, & 600 Cab Chassis, 2018-2021 Expedition Retail, MAX, & SSV
    View product
  • Side Mount Armrest
    C-ARM-102
    $94.00
    Side Mount Armrest
    View product
  • Standard K9 Transport System For 2017-2024 Ford F-Series – White
    K9-F23-1
    $6,292.00
    Standard K9 Transport System For 2017-2024 Ford F-Series – White
    View product
  • Tunnel Mount Assembly for 2017-2024 Ford F-250, 350, 450 Pickup and F-450 and 550 Cab Chassis, 2015-2024 Ford F-150 & 2018-2024 Ford Expedition
    C-TMW-F150-03
    $212.00
    Tunnel Mount Assembly for 2017-2024 Ford F-250, 350, 450 Pickup and F-450 and 550 Cab Chassis, 2015-2024 Ford F-150 & 2018-2024 Ford Expedition
    View product

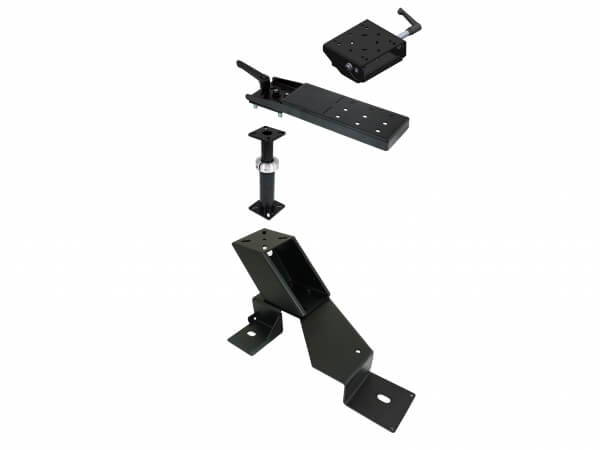

  • Standard Pedestal Mount Package For Ford 2018-2024 Expedition, Ford 2015-2024 F-150, 2017-2024 F-250, F-350, F-450, F-250, F-350, F-450, F-550 Chassis Cab, and 2022-2024 Ford F-150 Lightning
    PKG-PSM-185
    $566.00
    Standard Pedestal Mount Package For Ford 2018-2024 Expedition, Ford 2015-2024 F-150, 2017-2024 F-250, F-350, F-450, F-250, F-350, F-450, F-550 Chassis Cab, and 2022-2024 Ford F-150 Lightning
    View product

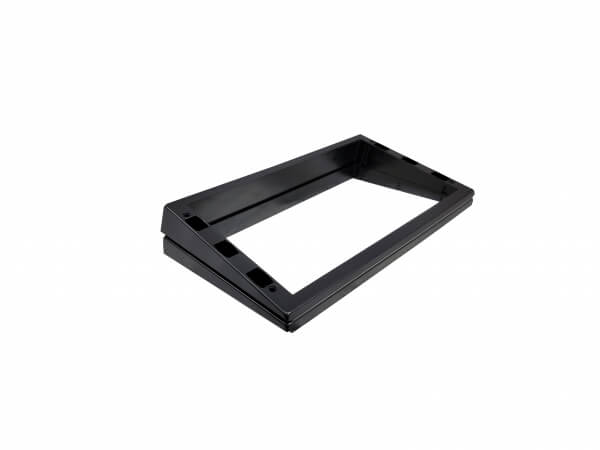

  • Angled Wedge Kit for Havis Cup Holders & 1-Piece 4″ Equipment Brackets
    CUP2-1005
    $33.00
    Angled Wedge Kit for Havis Cup Holders & 1-Piece 4″ Equipment Brackets
    View product

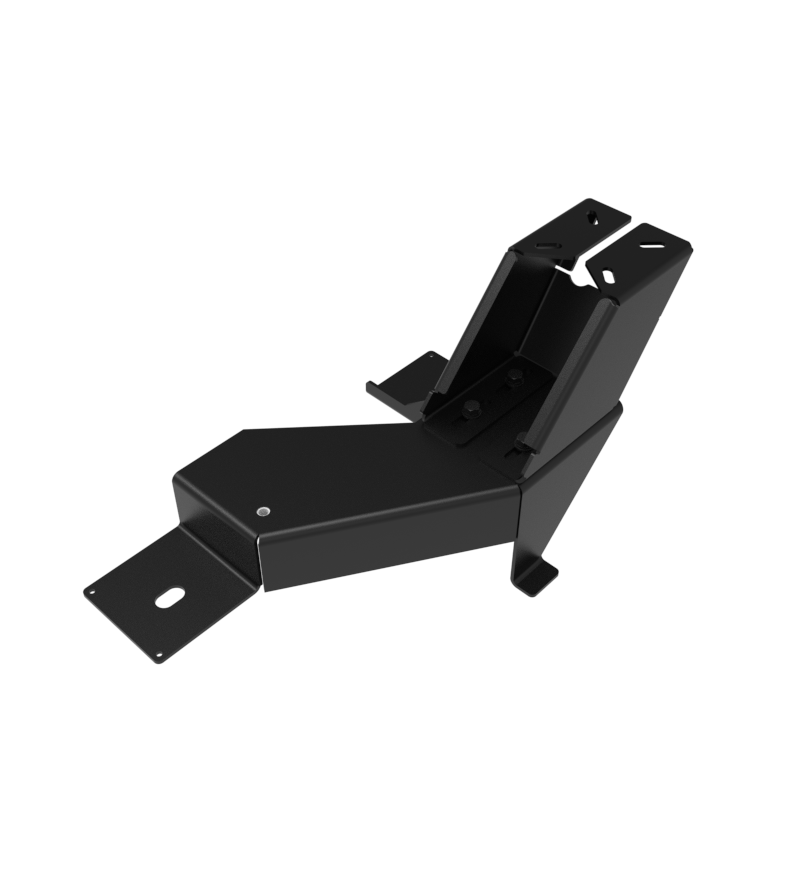

  • Ford 2018-2024 Expedition, Ford 2015-2024 F-150, & 2017-2024 F-250, F-350, F-450, F-250, F-350, F-450, F-550 Chassis Cab, & 2022-2024 Ford F-150 Lightning Heavy-Duty Mount
    C-HDM-185
    $215.00
    Ford 2018-2024 Expedition, Ford 2015-2024 F-150, & 2017-2024 F-250, F-350, F-450, F-250, F-350, F-450, F-550 Chassis Cab, & 2022-2024 Ford F-150 Lightning Heavy-Duty Mount
    View product

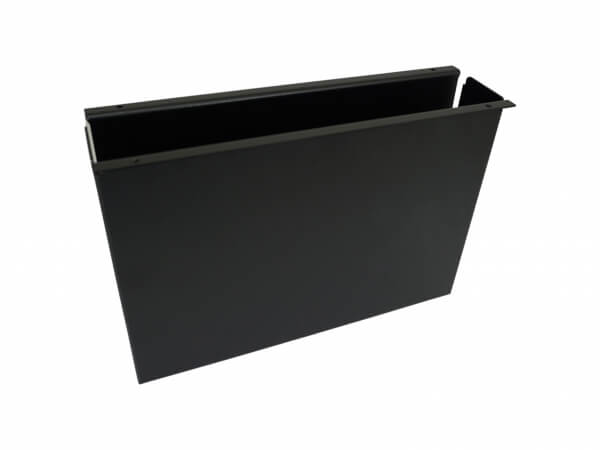

  • 13″ Accessory Pocket, 9.” Deep for 3.3″W Section of Wide Consoles
