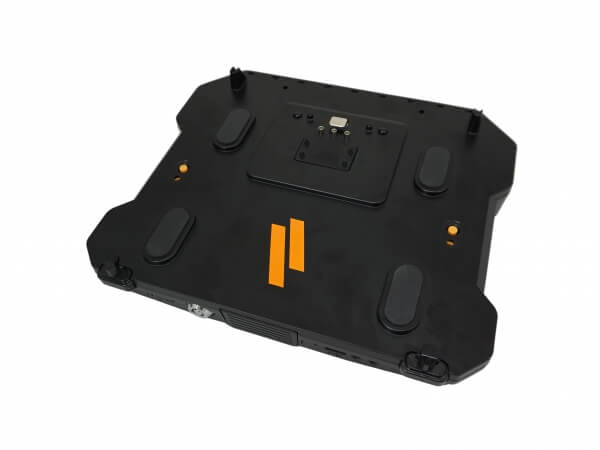

OBSOLETE[DEVMT, CRDL, DELL, LAT12-14, [3]HGANT,
Compatible devices: | Dell Rugged Notebooks 5420, 5424, 7424, 7214, 7204 |
---|---|
Certifications: | UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C), EMC: EN 50498:2010; ESD: ISO 10605:2008 |
Connectivity includes: | Triple pass-through (TNC connectors) |
Dimensions: | Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm) |
Product weight: | 2.79 lbs (1.27 kg) without mounting bracket, 4.23 lbs (1.92 kg) with mounting bracket |
Gross weight: | 5 lbs |
If you need installation help, please contact our Sales department by calling 1.800.524.9900 or by contacting us online. If Sales is unable to answer your question, they will direct you to the appropriate Technical Support representative to assist with your installation.
