Features

  • 88 key backlit keyboard (US format)
  • Integrated finger print reader
  • Two USB ports for additional computing accessories
  • USB allows for connection to docking station or direct to computing device.
  • 12 function keys for easy operation (emergency, lighting, brightness, volume, etc.)
  • Fully sealed industrial silicone rubber keyboard is 100% humidity resistant
  • Easy self-install, computer will detect & install drivers once keyboard initiates, drivers are standard plug and play.
  • Built-in touchpad
  • Red monochrome illumination backlight for reduced eye strain
  • Emergency button (sends shift + F1 key sequence to connected computer)
  • Easy to clean with a soft cloth and a non-corrosive cleaning solvent.
  • Includes VESA 75 and AMPS mounting hole pattern on bottom of keyboard
  • Quick release when used with Havis patented keyboard mount (C-KBM-201)

Specifications

PRODUCT SPECIFICATIONS:
Dimensions:7.80" high x 11.95" wide x 1.45" deep (with tapered corners)
Compatibility:Mac, Microsoft Windows 10/7/8/Vista /xp, linux
Mounting:VESA 75 and AMPS
Communication interface:USB 1.1 or 2.0
Power:200mA@5V (from CPU port)
Operating environment:-20° C to 70° C ( -4° F to 158°F ) - 100% humidity
Storage environment:-40° C to 90° C ( -40° F to 194° F ) - 100% humidity
Testing:Vibration Testing: power spectral density: 0.04g/Hz frequency range: 20Hz - 2kHz duration of test per axis: 3 hours, shock: 3x11 ms pulses of 50g on each of 3 axes
Product weight:1.4 lbs. ( 0.6 kg )
Gross weight:2.5 lbs

Resources

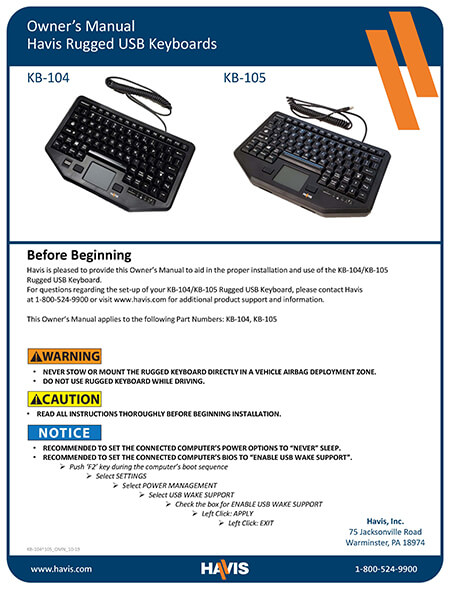

Owner's Manual (PDF)
Owner's Manual (PDF)
