Features

  • Patented, non-electronic computing solution
  • Customize to fit your computing needs
  • Easy to use three point adjustment
  • Extra durable leg retainers
  • Low profile design maximizes space
  • Rounded corners and edges for safety and airbag deployment
  • Simple, safe, and secure connectivity
  • Accommodates recommended screen covers
  • Lock and key supplied for theft deterrence
  • Fits: Zebra 8" ET4X with or without frame
  • Configure Your Computing Device

Specifications

PRODUCT SPECIFICATIONS:
Compatible tablet sizes: width - 7" (17.8cm) to 9.25" (23.5 cm), depth - 0.79" (2.0 cm) maximum, height - dependent on tablet width, please see Compatibility Matrix under resources tab
Cradle dimensions (overall maximum):10.1" (26.7 cm) w x 7.8" (19.8 cm) h x 2.4" (6.1 cm) d
Mounting hole pattern:VESA 75
Mount to C-FAM-101, C-FAM-118 flex arm mount with C-ADP-112 (sold separately)
Made of PC-ABS thermoplastics for strength, heat resistance, feature definition, and surface finish
Testing: impact test - crash simulation per SAE J1455, latch test - 1500 cycles at ambient, 20C and 60C.
Gross weight:1 lbs

Resources

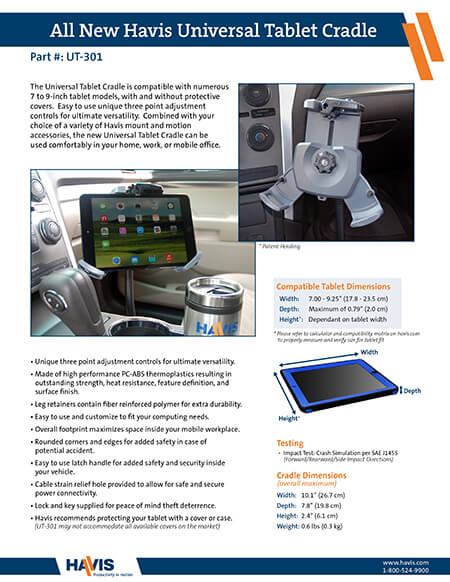

Product Sales Sheet (PDF)
Product Sales Sheet (PDF)

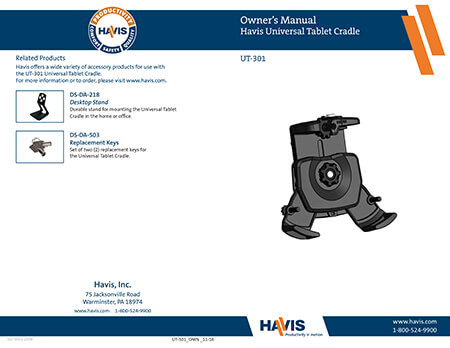

Owner's Manual (PDF)
Owner's Manual (PDF)
Compatibility Matrix (PDF)
Compatibility Matrix (PDF)
Product Brochure (PDF)
Product Brochure (PDF)

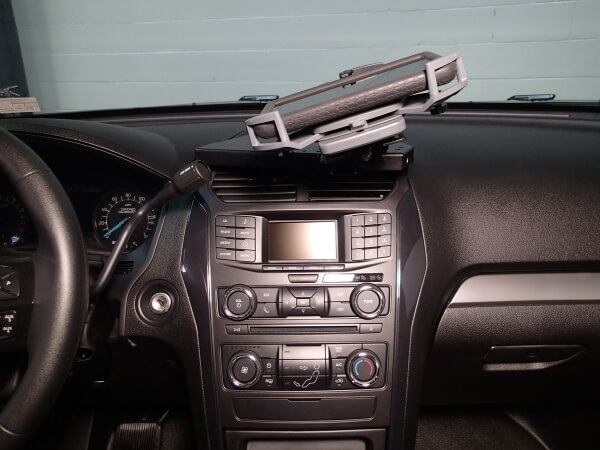

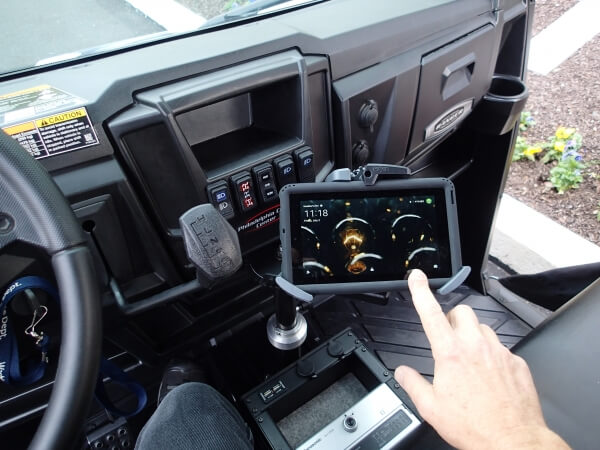

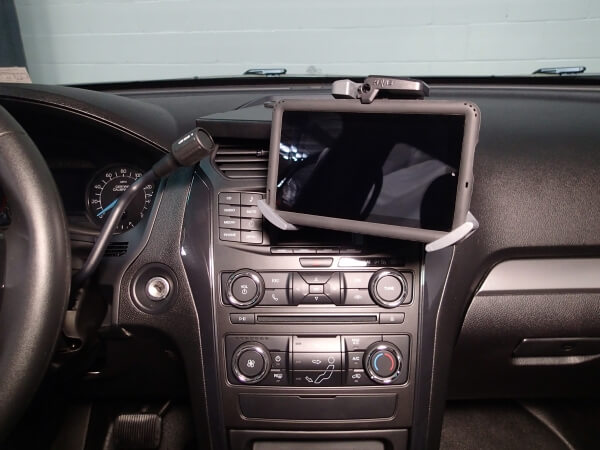

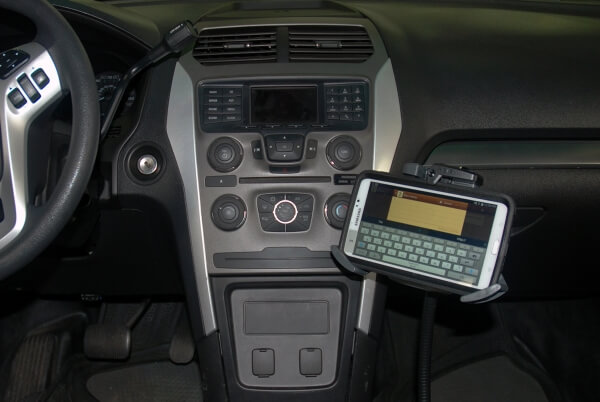

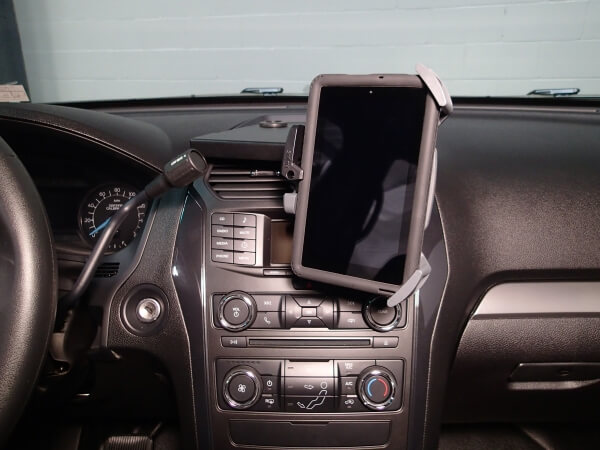

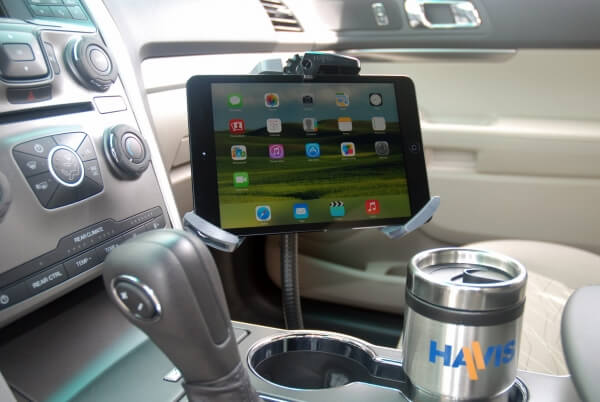

Application Gallery
