Features

  • An ideal retail, hospitality or healthcare display mount for a single VESA 75 or VESA 100 compliant display weighing up to 7 lbs (3.2 kg)
  • Allows the display to tilt 90° and the stand to rotate 300°
  • Easy adjustable tilt and rotation tensioning to suit user preferences
  • Enhances user comfort and minimizes screen glare
  • Integrated cable management and protection
  • Rubber pad to protect your countertops
  • Stand portability and no drilling required
  • Retail hardened - designed for durability
  • Made in the USA

PRODUCT SPECIFICATIONS:
Compatible Devices:Suitable for VESA 75 or VESA 100 monitors, displays or tablets up to 21" and weighing up to 7 lbs (3.2 kg) including VESA Hubs with ports on bottom surface
Certifications:RoHS
Product Dimensions:8"W x 8"D x 7.5"H
Product Weight:5lbs (2.3kg)
Shipping Dimensions:9" W x 9" D x 9" H
Gross weight:6.4 lbs

Resources

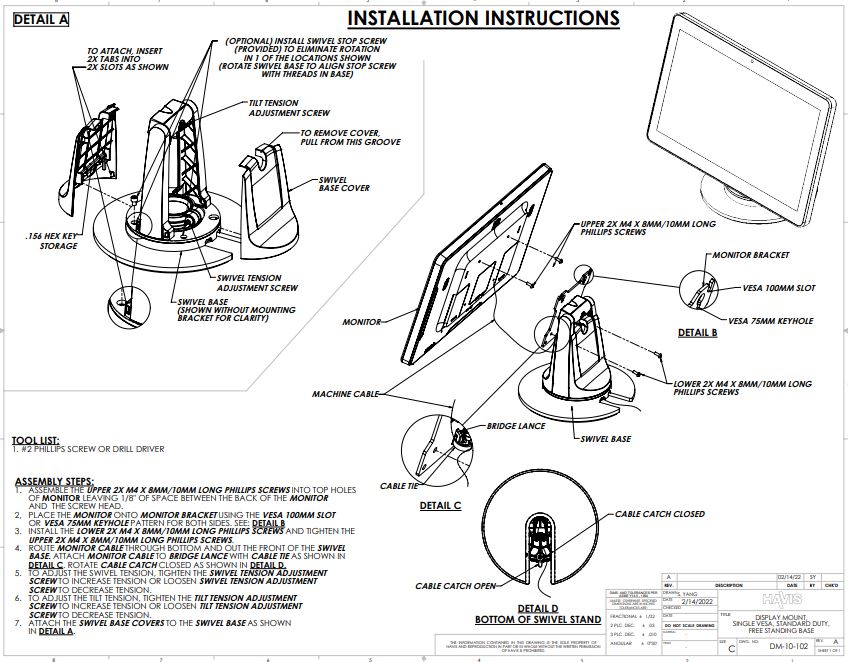

Customer Instructions
Customer Instructions

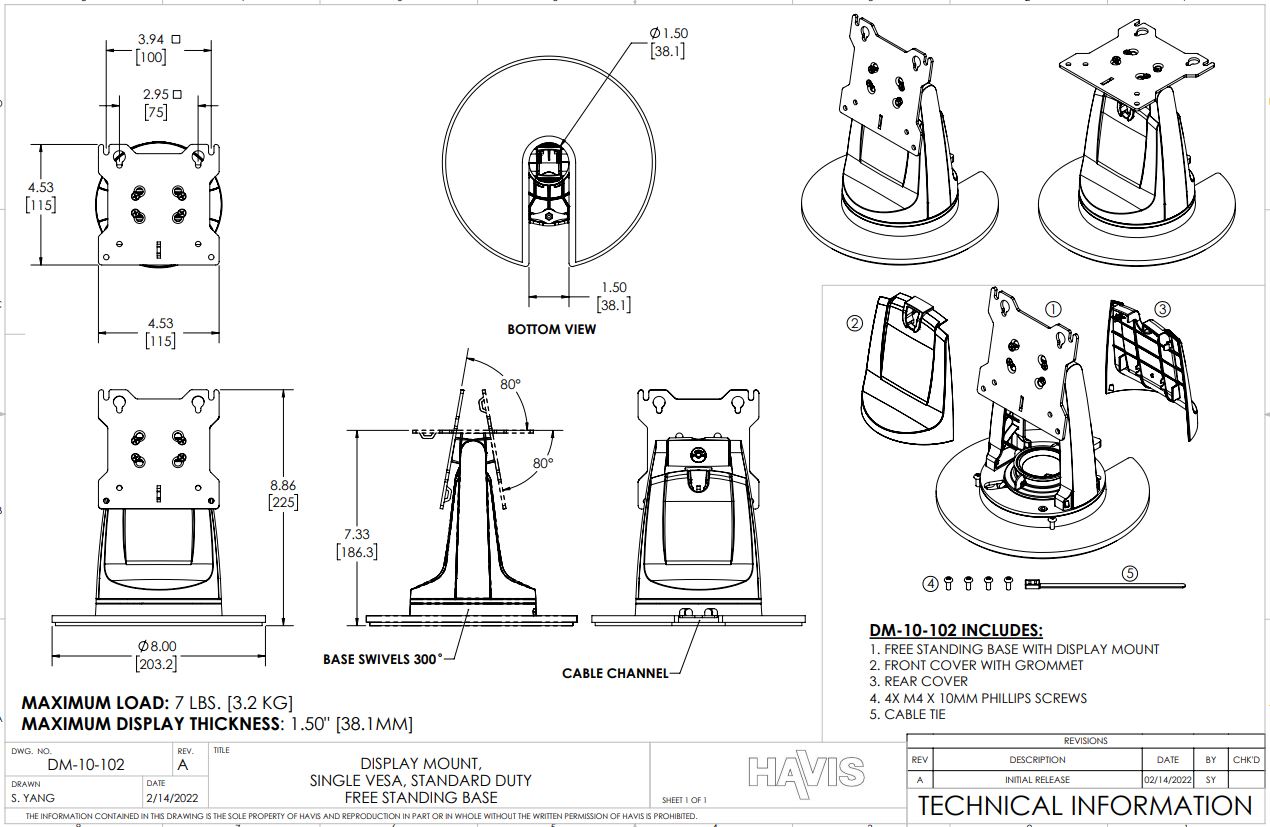

Technical Drawing Sheet
Technical Drawing Sheet
DM-1000 - Data Sheet
DM-1000 - Data Sheet

Application Gallery
